IslandPath Analysis: Neisseria meningitidis Z2491

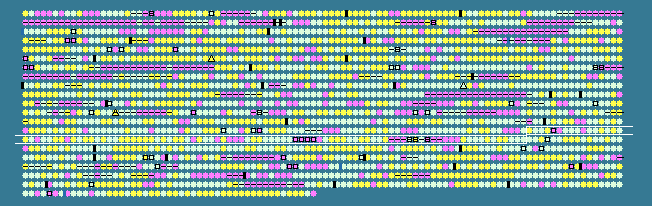

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1385	 55.74	0	1432649..1434826	+	725	15794432	-	NMA1539	-	cation-transporting ATPase
1386	 54.64	0	1434881..1436767	+	628	15794433	uvrC	NMA1540	-	excinuclease ABC subunit C
1387	 54.88	0	1437010..1438443	+	477	15794434	-	NMA1541	-	hypothetical protein
1388	 56.49	0	1438565..1439281	+	238	15794435	trmB	NMA1542	-	tRNA (guanine-N(7))-methyltransferase
1389	 45.77	0	1439484..1440086	+	200	15794436	-	NMA1543	-	IS1016 transposase
1390	 37.39	-2	1440251..1441015	-	254	15794437	-	NMA1544	-	hypothetical protein
1391	 54.34	0	1441083..1443110	-	675	15794438	uvrB	NMA1545	-	excinuclease ABC subunit B
1392	 52.66	0	1443439..1444923	-	494	15794439	-	NMA1546	-	carboxy-terminal processing protease
1393	 51.88	0	1445043..1446848	-	601	15794440	-	NMA1547	-	hypothetical protein
1394	 46.79	0	1446921..1447076	-	51	15794441	-	NMA1548	-	hypothetical protein
1395	 52.41	0	1447176..1447736	+	186	15794442	-	NMA1549	-	lipoprotein
1396	 53.73	0	1447738..1448286	+	182	15794443	-	NMA1550	-	hypothetical protein
1397	 57.68	0	1448279..1448734	+	151	15794444	-	NMA1551	-	Holliday junction resolvase-like protein
1398	 51.90	0	1448744..1449400	-	218	15794445	-	NMA1552	-	hydrolase
1399	 55.46	0	1449464..1451176	-	570	15794446	proS	NMA1553	-	prolyl-tRNA synthetase
1400	 54.62	0	1451870..1454533	+	887	15794447	aceE	NMA1554	-	pyruvate dehydrogenase subunit E1
1401	 55.97	0	1454683..1456290	+	535	15794448	aceF	NMA1555	-	dihydrolipoamide acetyltransferase
1402	 53.73	0	1456368..1458152	+	594	15794449	lpdA	NMA1556	-	dihydrolipoamide dehydrogenase (E3 component of pyruvate and 2-oxoglutarate dehydrogenase complexes)
1403	 47.95	0	1458513..1460051	-	512	15794450	-	NMA1557	-	hypothetical protein
1404	 51.77	0	1460188..1462308	-	706	15794451	-	NMA1558	-	TonB-dependent receptor protein
1405	 52.80	0	1462567..1463352	-	261	15794452	-	NMA1559	-	inositol monophosphate family protein
1406	 55.75	0	1463533..1464411	+	292	15794453	-	NMA1560	-	SpoU methylase family protein
1407	 57.91	0	1464451..1465329	+	292	15794454	-	NMA1561	-	hypothetical protein
1408	 24.85	-2	1465533..1465874	+	113	15794455	-	NMA1562	-	hypothetical protein
1409	 55.37	0	1466222..1467478	+	418	15794456	-	NMA1563	-	SUN-family protein
1410	 50.80	0	1468234..1468668	+	144	15794457	-	NMA1564	-	hypothetical protein
1411	 57.44	0	1468716..1470059	-	447	15794458	-	NMA1565	-	aldehyde dehydrogenase
1412	 57.00	0	1470064..1470777	-	237	15794459	-	NMA1566	-	hypothetical protein
1413	 53.95	0	1470868..1471158	+	96	15794460	gatC	NMA1567	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1414	 57.19	0	1471221..1472666	+	481	15794461	gatA	NMA1568	-	Glu-tRNA(Gln) amidotransferase subunit A
1415	 52.30	0	1472663..1473595	+	310	15794462	-	NMA1569	-	hypothetical protein
1416	 53.60	0	1473638..1475068	+	476	15794463	gatB	NMA1570	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1417	 55.29	0	1475160..1476170	+	336	15794464	-	NMA1571	-	iron/sulphur-binding oxidoreductase
1418	 57.35	0	1476300..1476932	-	210	15794465	pdxH	NMA1572	-	pyridoxamine 5'-phosphate oxidase
1419	 60.18	+1	1477432..1478202	+	256	15794466	-	NMA1573	-	pseudouridine synthase
1420	 56.81	0	1478271..1479812	-	513	15794467	-	NMA1574	-	integral membrane transporter
1421	 56.49	0	1481025..1482380	-	451	15794468	xseA	NMA1575	-	exodeoxyribonuclease VII large subunit
1422	 57.18	0	1482577..1483398	+	273	15794469	nadE	NMA1576	-	NH(3)-dependent NAD synthetase
1423	 50.42	0	1483468..1483941	-	157	15794470	-	NMA1577	-	hypothetical protein
1424	 56.46	0	1484244..1484576	+	110	15794471	trxA	NMA1578	-	thioredoxin I
1425	 51.48	0	1484629..1485576	-	315	15794472	-	NMA1579	-	hypothetical protein
1426	 55.51	0	1485904..1487292	+	462	15794473	-	NMA1580	-	ATP-dependent RNA helicase
1427	 61.62	+1	1487937..1488491	-	184	15794474	-	NMA1581	-	membrane lipoprotein
1428	 55.08	0	1488576..1489136	-	186	15794475	-	NMA1582	-	hypothetical protein
1429	 37.72	-1	1489302..1489415	-	37	15794476	-	NMA1583	-	hypothetical protein
1430	 57.87	0	1489480..1490673	+	397	15794477	argD	NMA1584	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
1431	 51.65	0	1490738..1491982	-	414	15794478	clpX	NMA1585	-	ATP-dependent protease ATP-binding subunit
1432	 55.11	0	1492173..1492544	+	123	15794479	rbfA	NMA1586	-	ribosome-binding factor A
1433	 38.46	-1	1492534..1493079	+	181	15794480	-	NMA1587	-	hypothetical protein
1434	 57.76	0	1493137..1494057	+	306	15794481	truB	NMA1588	-	tRNA pseudouridine synthase B
1435	 39.91	-1	1494377..1494817	+	146	15794482	-	NMA1589	-	hypothetical protein
1436	 33.13	-2	1495045..1496523	+	492	15794483	-	NMA1590	-	type III restriction/modification system modification methylase
1437	 38.12	-1	1496471..1499293	+	940	15794484	-	NMA1591	-	type III restriction/modification system enzyme
1438	 52.17	0	1499437..1500609	-	390	15794485	lldA	NMA1592	-	L-lactate dehydrogenase
1439	 58.39	0	1500899..1501345	+	148	15794486	-	NMA1593	-	hypothetical protein
1440	 55.39	0	1501374..1502588	+	404	15794487	-	NMA1594	-	NifS-like aminotranfserase
1441	 51.16	0	1502655..1502783	+	42	15794488	-	NMA1595	-	hypothetical protein
1442	 52.71	0	1502849..1503235	+	128	15794489	-	NMA1596	-	scaffold protein
1443	 49.84	0	1503322..1503642	+	106	15794490	-	NMA1597	-	HesB-like protein
1444	 52.30	0	1503905..1504405	+	166	15794491	hscB	NMA1598	-	chaperone protein
1445	 54.85	0	1504503..1507253	+	916	15794492	gyrA	NMA1599	-	DNA gyrase subunit A
1446	 37.04	-2	1507410..1507814	+	134	15794493	-	NMA1600	-	transposase
1447	 40.00	-1	1508017..1508091	+	24	15794494	-	NMA1601	-	putative transposase
1448	 44.30	-1	1508092..1508328	+	78	15794495	-	NMA1601a	-	putative transposase
1449	 45.10	0	1508325..1508528	+	67	15794496	-	NMA1601b	-	putative transposase
1450	 47.75	0	1508674..1508784	-	36	15794497	-	NMA1602	-	hypothetical protein
1451	 50.18	0	1508859..1509410	-	183	15794498	-	NMA1603	-	hypothetical protein
1452	 55.43	0	1509424..1511070	-	548	15794499	pgi	NMA1604	-	glucose-6-phosphate isomerase
1453	 56.07	0	1511191..1512039	-	282	15794500	-	NMA1605	-	transcriptional regulator
1454	 57.04	0	1512089..1513075	-	328	15794501	glk	NMA1607	-	glucokinase
1455	 53.59	0	1513056..1513751	-	231	15794502	pgl	NMA1608	-	6-phosphogluconolactonase
1456	 52.07	0	1514031..1515476	-	481	15794503	zwf	NMA1609	-	glucose-6-phosphate 1-dehydrogenase
1457	 57.46	0	1516094..1517929	+	611	161353792	edd	NMA1610	-	phosphogluconate dehydratase
1458	 61.50	+1	1518110..1518748	+	212	15794505	eda	NMA1611	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1459	 54.32	0	1519005..1519757	-	250	15794506	-	NMA1612	-	zinc-binding alcohol dehydrogenase
1460	 48.63	0	1519906..1520088	-	60	15794507	-	NMA1613	-	dehydrogenase fragment
1461	 55.43	0	1520242..1521291	+	349	15794508	mutY	NMA1614	-	adenine glycosylase
1462	 38.10	-1	1521306..1521473	+	55	15794509	-	NMA1615	-	hypothetical protein
1463	 32.79	-2	1521454..1521636	+	60	15794510	-	NMA1616	-	hypothetical protein
1464	 43.32	-1	1521708..1522268	+	186	15794511	sodC	NMA1617	-	superoxide dismutase
1465	 52.92	0	1522627..1523310	-	227	15794512	-	NMA1618	-	insertion element IS1106 transposase
1466	 56.10	0	1523265..1523633	-	122	15794513	-	NMA1619	-	insertion element IS1106 transposase
1467	 52.58	0	1523857..1526085	-	742	15794514	-	NMA1620	-	cytolysin secretion ABC transporter
1468	 46.85	0	1526885..1527424	-	179	15794515	-	NMA1621	-	IS1016 transposase
1469	 27.82	-2	1527761..1528195	+	144	15794516	-	NMA1622	-	hypothetical protein
1470	 43.69	-1	1528206..1528427	+	73	15794517	-	NMA1623	-	hypothetical protein
1471	 22.50	-2	1528462..1529190	+	242	15794518	-	NMA1624	-	integral membrane protein
1472	 44.35	-1	1529177..1530229	+	350	15794519	-	NMA1625	-	RTX family exoprotein
1473	 45.51	0	1530284..1532377	+	697	15794520	-	NMA1626	-	RTX-family exoprotein
1474	 56.72	0	1532719..1535322	-	867	15794521	pepN	NMA1627	-	aminopeptidase N
1475	 52.83	0	1535458..1536252	-	264	15794522	-	NMA1628	-	hypothetical protein
1476	 49.23	0	1536368..1536562	-	64	15794523	-	NMA1629	-	DNA-binding protein
1477	 51.03	0	1537001..1537870	-	289	15794524	-	NMA1630	-	lipid A biosynthesis lauroyl acyltransferase
1478	 59.40	+1	1537921..1538457	-	178	161353791	ruvC	NMA1631	-	Holliday junction resolvase
1479	 48.75	0	1538460..1538699	-	79	15794526	fis	NMA1632	-	factor-for-inversion-stimulation protein
1480	 57.37	0	1538729..1539739	-	336	15794527	-	NMA1633	-	hypothetical protein
1481	 58.88	+1	1540105..1541478	+	457	15794528	-	NMA1634	-	ATP-dependent RNA helicase
1482	 50.71	0	1542053..1543180	+	375	15794529	-	NMA1635	-	hypothetical protein
1483	 52.90	0	1543210..1544088	+	292	15794530	-	NMA1636	-	hypothetical protein
1484	 53.25	0	1544092..1544322	+	76	15794531	-	NMA1637	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
