IslandPath Analysis: Neisseria meningitidis Z2491

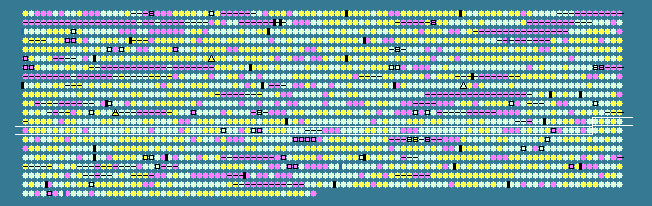

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1296	 52.18	0	1331072..1332541	+	489	15794343	-	NMA1438	-	integral membrane protein
1297	 56.99	0	1332793..1333164	+	123	15794344	-	NMA1439	-	lipoprotein
1298	 53.97	0	1333237..1334646	+	469	15794345	thrC	NMA1440	-	threonine synthase
1299	 56.35	0	1334693..1335487	+	264	15794346	-	NMA1441	-	hypothetical protein
1300	 51.48	0	1335675..1336451	+	258	15794347	fpr	NMA1442	-	ferredoxin--NADP reductase
1301	 30.25	-2	1336758..1336919	+	53	15794348	-	NMA1443	-	hypothetical protein
1302	 58.78	0	1337108..1339579	-	823	15794349	-	NMA1444	-	P-type cation-transporting ATPase
1303	 57.75	0	1339576..1340685	-	369	15794350	-	NMA1445	-	hypothetical protein
1304	 56.83	0	1340759..1342039	-	426	15794351	-	NMA1446	-	periplasmic protein
1305	 52.20	0	1342192..1342917	-	241	15794352	-	NMA1447	-	hypothetical protein
1306	 56.64	0	1342990..1343667	-	225	15794353	radC	NMA1448	-	DNA repair protein RadC
1307	 52.89	0	1343790..1345139	-	449	15794354	gshA	NMA1449	-	glutamate--cysteine ligase
1308	 56.95	0	1345395..1346804	+	469	15794355	leuC	NMA1450	-	isopropylmalate isomerase large subunit
1309	 58.43	0	1346901..1347155	+	84	15794356	-	NMA1451	-	lipoprotein
1310	 53.12	0	1347217..1347858	+	213	15794357	leuD	NMA1452	-	isopropylmalate isomerase small subunit
1311	 40.33	-1	1348033..1349304	+	423	15794358	-	NMA1453	-	DNA modification methylase
1312	 53.59	0	1350085..1351155	+	356	15794359	leuB	NMA1456	-	3-isopropylmalate dehydrogenase
1313	 52.84	0	1351318..1351881	+	187	15794360	-	NMA1457	-	periplasmic protein
1314	 52.58	0	1352342..1353739	+	465	15794361	aspA	NMA1459	-	aspartate ammonia-lyase
1315	 51.94	0	1353811..1354686	-	291	15794362	-	NMA1460	-	integral membrane protein
1316	 54.50	0	1354688..1355410	-	240	15794363	-	NMA1461	-	dnaJ-family protein
1317	 50.42	0	1355589..1356068	-	159	15794364	-	NMA1462	-	hypothetical protein
1318	 60.06	+1	1356143..1356505	+	120	15794365	-	NMA1463	-	hypothetical protein
1319	 54.67	0	1356537..1357403	+	288	15794366	-	NMA1464	-	hypothetical protein
1320	 53.33	0	1357496..1358455	+	319	15794367	-	NMA1465	-	hypothetical protein
1321	 48.30	0	1358548..1361487	-	979	15794368	-	NMA1466	-	type III restriction-modification system endonuclease protein
1322	 43.14	-1	1363469..1363570	-	33	15794369	-	NMA1468	-	hypothetical protein
1323	 52.15	0	1363554..1364111	-	185	15794370	ppiA	NMA1469	-	peptidyl-prolyl cis-trans isomerase A
1324	 53.83	0	1364176..1365102	-	308	15794371	-	NMA1470	-	hypothetical protein
1325	 54.51	0	1365090..1365566	-	158	15794372	-	NMA1471	-	cation uptake regulator
1326	 53.95	0	1365637..1366092	-	151	15794373	-	NMA1472	-	protein-tyrosine-phosphatase
1327	 41.76	-1	1366217..1367332	-	371	15794374	-	NMA1473	-	hypothetical protein
1328	 56.38	0	1367446..1368543	-	365	15794375	-	NMA1474	-	hypothetical protein
1329	 50.06	0	1368626..1370257	-	543	15794376	-	NMA1475	-	hypothetical protein
1330	 53.33	0	1370357..1370641	-	94	15794377	-	NMA1476	-	mercuric ion binding protein
1331	 56.85	0	1371201..1372637	+	478	15794378	-	NMA1478	-	polysaccharide modification protein
1332	 55.39	0	1372648..1373631	+	327	15794379	-	NMA1479	-	periplasmic protein
1333	 61.14	+1	1373628..1374821	+	397	15794380	-	NMA1480	-	periplasmic protein
1334	 51.04	0	1375082..1376047	-	321	15794381	-	NMA1481	-	IS1655 transposase
1335	 54.44	0	1376191..1377744	+	517	15794382	-	NMA1482	-	acyl-CoA synthetase
1336	 51.54	0	1377835..1379817	-	660	15794383	-	NMA1483	-	transmembrane transport protein
1337	 42.22	-1	1379869..1380003	-	44	15794384	-	NMA1484	-	hypothetical protein
1338	 57.15	0	1380151..1382157	+	668	15794385	gcr	NMA1485	-	site-specific recombinase
1339	 51.04	0	1382368..1383333	+	321	15794386	-	NMA1486	-	IS1655 transposase
1340	 46.97	0	1383398..1383991	+	197	15794387	-	NMA1487	-	IS1016 transposase
1341	 54.38	0	1384238..1385230	-	330	15794388	mltB	NMA1488	-	murein hydrolase
1342	 57.94	0	1385256..1385507	-	83	15794389	-	NMA1489	-	hypothetical protein
1343	 55.79	0	1385549..1387102	-	517	15794390	-	NMA1490	-	oxidoreductase
1344	 55.98	0	1387161..1391051	+	1296	15794391	mfd	NMA1491	-	transcription-repair coupling factor
1345	 52.60	0	1391200..1391583	+	127	15794392	panD	NMA1492	-	aspartate alpha-decarboxylase
1346	 51.60	0	1391605..1392447	+	280	15794393	kdsA	NMA1493	-	2-dehydro-3-deoxyphosphooctonate aldolase
1347	 53.97	0	1392462..1392902	+	146	15794394	-	NMA1494	-	hypothetical protein
1348	 54.93	0	1392950..1394236	+	428	15794395	eno	NMA1495	-	phosphopyruvate hydratase
1349	 48.39	0	1394250..1394528	+	92	15794396	-	NMA1496	-	hypothetical protein
1350	 54.64	0	1394569..1394859	-	96	15794397	-	NMA1497	-	iron-sulphur binding protein
1351	 47.80	0	1395057..1396190	-	377	15794398	nrdB	NMA1498	-	ribonucleotide-diphosphate reductase subunit beta
1352	 31.65	-2	1396251..1397438	-	395	15794399	-	NMA1499	-	type-II restriction endonuclease
1353	 32.94	-2	1397431..1398444	-	337	15794400	-	NMA1500	-	modification methylase
1354	 52.72	0	1398502..1400781	-	759	15794401	nrdA	NMA1501	-	ribonucleotide-diphosphate reductase subunit alpha
1355	 54.17	0	1401310..1401621	+	103	15794402	-	NMA1503	-	hypothetical protein
1356	 55.21	0	1401933..1402700	-	255	15794403	plsC	NMA1504	-	1-acyl-SN-glycerol-3-phosphate acyltransferase
1357	 54.71	0	1402788..1403615	-	275	15794404	fpg	NMA1505	-	formamidopyrimidine-DNA glycosylase
1358	 55.26	0	1403667..1404332	-	221	15794405	-	NMA1506	-	hypothetical protein
1359	 56.80	0	1404510..1406486	+	658	15794406	-	NMA1507	-	membrane bound murein transglycosylase
1360	 51.23	0	1406554..1407246	+	230	15794407	-	NMA1508	-	ribosomal small subunit pseudouridine synthase
1361	 56.16	0	1409433..1410089	+	218	15794408	cmk	NMA1514	-	cytidylate kinase
1362	 50.83	0	1410244..1411929	+	561	15794409	rpsA	NMA1515	-	30S ribosomal protein S1
1363	 49.84	0	1411940..1412254	+	104	15794410	hip	NMA1516	-	integration host factor beta-subunit
1364	 40.69	-1	1412605..1413012	-	135	15794411	-	NMA1517	-	transcriptional regulator
1365	 47.76	0	1413133..1414269	+	378	15794412	adhC	NMA1518	-	alcohol dehydrogenase class-III
1366	 46.38	0	1414278..1415105	+	275	15794413	esd	NMA1519	-	esterase D
1367	 52.34	0	1415498..1416649	+	383	15794414	-	NMA1520	-	nucleotide-binding protein
1368	 50.47	0	1416708..1417133	+	141	15794415	ndk	NMA1521	-	nucleoside diphosphate kinase
1369	 51.51	0	1417277..1418371	+	364	15794416	-	NMA1522	-	hypothetical protein
1370	 51.97	0	1418374..1419135	+	253	15794417	-	NMA1523	-	lipoprotein
1371	 52.45	0	1419151..1420416	+	421	15794418	ispG	NMA1524	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1372	 49.27	0	1420469..1421083	-	204	15794419	clpP	NMA1525	-	endopeptidase
1373	 49.09	0	1421179..1422492	-	437	15794420	tig	NMA1526	-	trigger factor
1374	 54.95	0	1422697..1425000	-	767	15794421	-	NMA1527	-	ftsK-like cell division/stress response protein
1375	 55.36	0	1425358..1426569	+	403	15794422	uraA	NMA1528	-	uracil permease
1376	 51.55	0	1426621..1427103	-	160	15794423	-	NMA1529	-	hypothetical protein
1377	 56.99	0	1427427..1427612	+	61	15794424	-	NMA1531	-	hypothetical protein
1378	 55.96	0	1427686..1428432	+	248	15794425	pss	NMA1532	-	phosphatidylserine synthase
1379	 55.14	0	1428433..1429239	+	268	15794426	-	NMA1533	-	hypothetical protein
1380	 51.43	0	1430027..1430479	-	150	15794427	rplI	NMA1534	-	50S ribosomal protein L9
1381	 44.16	-1	1430496..1430726	-	76	15794428	rpsR	NMA1535	-	30S ribosomal protein S18
1382	 42.57	-1	1430733..1431035	-	100	15794429	priB	NMA1536	-	primosomal replication protein
1383	 47.97	0	1431036..1431404	-	122	15794430	rpsF	NMA1537	-	30S ribosomal protein S6
1384	 54.68	0	1431560..1432510	-	316	15794431	trxB	NMA1538	-	thioredoxin reductase
1385	 55.74	0	1432649..1434826	+	725	15794432	-	NMA1539	-	cation-transporting ATPase
1386	 54.64	0	1434881..1436767	+	628	15794433	uvrC	NMA1540	-	excinuclease ABC subunit C
1387	 54.88	0	1437010..1438443	+	477	15794434	-	NMA1541	-	hypothetical protein
1388	 56.49	0	1438565..1439281	+	238	15794435	trmB	NMA1542	-	tRNA (guanine-N(7))-methyltransferase
1389	 45.77	0	1439484..1440086	+	200	15794436	-	NMA1543	-	IS1016 transposase
1390	 37.39	-2	1440251..1441015	-	254	15794437	-	NMA1544	-	hypothetical protein
1391	 54.34	0	1441083..1443110	-	675	15794438	uvrB	NMA1545	-	excinuclease ABC subunit B
1392	 52.66	0	1443439..1444923	-	494	15794439	-	NMA1546	-	carboxy-terminal processing protease
1393	 51.88	0	1445043..1446848	-	601	15794440	-	NMA1547	-	hypothetical protein
1394	 46.79	0	1446921..1447076	-	51	15794441	-	NMA1548	-	hypothetical protein
1395	 52.41	0	1447176..1447736	+	186	15794442	-	NMA1549	-	lipoprotein
51.77	MEAN

7.09	STD DEV
