IslandPath Analysis: Neisseria meningitidis Z2491

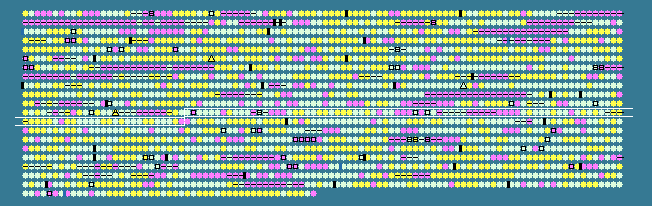

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1128	 49.64	0	1164210..1164620	+	136	15794175	-	NMA1233	-	hypothetical protein
1129	 47.73	0	1164625..1165374	+	249	15794176	-	NMA1234	-	transposase
1130	 50.50	0	1166120..1166725	-	201	15794177	-	NMA1237	-	hypothetical protein
1131	 54.17	0	1169774..1170829	-	351	15794178	-	NMA1243	-	sulphate-binding protein
1132	 51.35	0	1170935..1171417	-	160	15794179	-	NMA1244	-	hypothetical protein
1133	 52.95	0	1171464..1172600	-	378	15794180	purK	NMA1245	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1134	 35.90	-2	1172597..1173142	-	181	15794181	-	NMA1246	-	hypothetical protein
1135	 56.57	0	1173139..1174614	-	491	15794182	trpE	NMA1247	-	anthranilate synthase component I
1136	 50.00	0	1174725..1175090	-	121	15794183	-	NMA1248	-	hypothetical protein
1137	 50.92	0	1175111..1177021	-	636	15794184	abcZ	NMA1249	-	ABC transporter ATP-binding protein
1138	 51.32	0	1177040..1177684	-	214	15794185	dedA	NMA1250	-	DedA protein ortholog
1139	 46.15	0	1177848..1178666	-	272	15794186	opcA	NMA1251	-	outer membrane protein precursor
1140	 52.68	0	1179979..1180986	+	335	15794187	-	NMA1253	-	IS1106A3 transposase
1141	 54.44	0	1181711..1182961	-	416	15794188	glyA	NMA1254	-	serine hydroxymethyltransferase
1142	 47.07	0	1183442..1185217	-	591	15794189	ggt	NMA1255	-	gamma-glutamyltranspeptidase
1143	 33.33	-2	1185786..1186013	+	75	15794190	-	NMA1257	-	hypothetical protein
1144	 45.66	0	1185989..1186207	+	72	15794191	-	NMA1258	-	hypothetical protein
1145	 53.64	0	1186366..1187340	-	324	15794192	fbp	NMA1259	-	fructose-1,6-bisphosphatase
1146	 57.21	0	1187586..1188431	-	281	15794193	-	NMA1260	-	hypothetical protein
1147	 55.39	0	1188519..1189121	-	200	15794194	-	NMA1261	-	integral membrane protein
1148	 53.50	0	1189177..1189533	+	118	15794195	folB	NMA1262	-	dihydroneopterin aldolase
1149	 51.96	0	1189567..1190103	+	178	15794196	-	NMA1263	-	hypothetical protein
1150	 55.83	0	1190759..1191118	-	119	15794197	-	NMA1264	-	integral membrane protein
1151	 56.39	0	1191147..1191827	-	226	15794198	-	NMA1265	-	integral membrane protein
1152	 54.94	0	1191992..1195036	+	1014	15794199	-	NMA1266	-	cell-division protein
1153	 58.27	0	1195261..1196523	-	420	15794200	proA	NMA1267	-	gamma-glutamyl phosphate reductase
1154	 56.13	0	1196536..1197645	-	369	15794201	proB	NMA1268	-	gamma-glutamyl kinase
1155	 55.53	0	1198131..1199684	+	517	15794202	leuA	NMA1270	-	2-isopropylmalate synthase
1156	 52.19	0	1199884..1200546	+	220	15794203	-	NMA1272	-	hypothetical protein
1157	 54.46	0	1200629..1201480	-	283	15794204	lgt	NMA1273	-	prolipoprotein diacylglyceryl transferase
1158	 56.41	0	1201551..1202681	-	376	15794205	-	NMA1274	-	hypothetical protein
1159	 54.29	0	1202851..1203747	+	298	15794206	argB	NMA1275	-	acetylglutamate kinase
1160	 23.27	-2	1204381..1204887	-	168	15794207	-	NMA1276	-	membrane protein
1161	 54.56	0	1205184..1205852	-	222	15794208	-	NMA1278	-	hypothetical protein
1162	 53.96	0	1205849..1206580	-	243	15794209	-	NMA1279	-	hypothetical protein
1163	 44.09	-1	1207416..1207601	+	61	15794210	-	NMA1281	-	hypothetical protein
1164	 39.34	-1	1207797..1208678	-	293	15794211	-	NMA1282	-	DNA-binding protein
1165	 38.10	-1	1208726..1208977	+	83	15794212	-	NMA1283	-	hypothetical protein
1166	 53.50	0	1208979..1210952	+	657	15794213	-	NMA1284	-	phage transposase
1167	 42.94	-1	1210961..1211137	+	58	15794214	-	NMA1285	-	hypothetical protein
1168	 52.02	0	1211167..1212081	+	304	15794215	-	NMA1286	-	phage transposase
1169	 49.81	0	1212171..1212437	+	88	15794216	-	NMA1287	-	hypothetical protein
1170	 45.83	0	1212430..1212549	+	39	15794217	-	NMA1288	-	hypothetical protein
1171	 51.22	0	1212698..1212820	+	40	15794218	-	NMA1289	-	hypothetical protein
1172	 51.19	0	1212900..1213067	+	55	15794219	-	NMA1290	-	hypothetical protein
1173	 52.99	0	1213177..1213695	+	172	15794220	gam	NMA1291	-	host-nuclease inhibitor protein
1174	 50.46	0	1213855..1214070	-	71	15794221	-	NMA1292	-	hypothetical protein
1175	 47.45	0	1214074..1214682	-	202	15794222	-	NMA1293	-	phage anti-repressor protein
1176	 29.35	-2	1214814..1215014	-	66	15794223	-	NMA1294	-	hypothetical protein
1177	 34.95	-2	1215215..1215400	-	61	15794224	-	NMA1295	-	hypothetical protein
1178	 44.12	-1	1215379..1215480	-	33	15794225	-	NMA1296	-	hypothetical protein
1179	 35.71	-2	1215673..1215840	-	55	15794226	-	NMA1297	-	hypothetical protein
1180	 40.44	-1	1216064..1216246	+	60	15794227	-	NMA1298	-	hypothetical protein
1181	 47.92	0	1216363..1216554	+	63	15794228	-	NMA1299	-	hypothetical protein
1182	 46.76	0	1216551..1216967	+	138	15794229	-	NMA1300	-	membrane protein
1183	 47.88	0	1217082..1217576	+	164	15794230	-	NMA1301	-	hypothetical protein
1184	 48.72	0	1217557..1217985	+	142	15794231	-	NMA1302	-	hypothetical protein
1185	 56.04	0	1218293..1218838	+	181	15794232	-	NMA1303	-	amidase
1186	 51.52	0	1219044..1219208	+	54	15794233	-	NMA1304	-	hypothetical protein
1187	 54.43	0	1219211..1219447	+	78	15794234	-	NMA1305	-	hypothetical protein
1188	 52.62	0	1219419..1219838	+	139	15794235	-	NMA1306	-	hypothetical protein
1189	 60.00	+1	1219858..1220052	+	64	15794236	-	NMA1307	-	hypothetical protein
1190	 53.52	0	1220049..1220261	+	70	15794237	-	NMA1308	-	hypothetical protein
1191	 50.83	0	1220258..1220377	+	39	15794238	-	NMA1309	-	hypothetical protein
1192	 46.82	0	1220389..1220655	+	88	15794239	-	NMA1310	-	hypothetical protein
1193	 55.05	0	1220652..1220849	+	65	15794240	-	NMA1311	-	hypothetical protein
1194	 57.20	0	1220851..1221357	+	168	15794241	-	NMA1312	-	DNA-binding protein
1195	 53.17	0	1221378..1223000	+	540	15794242	-	NMA1313	-	hypothetical protein
1196	 55.96	0	1223000..1224568	+	522	15794243	-	NMA1314	-	hypothetical protein
1197	 48.61	0	1224555..1225850	+	431	15794244	-	NMA1315	-	hypothetical protein
1198	 52.28	0	1225960..1226376	+	138	15794245	-	NMA1316	-	hypothetical protein
1199	 60.93	+1	1227769..1228239	+	156	15794246	-	NMA1319	-	hypothetical protein
1200	 57.77	0	1228229..1229374	+	381	15794247	-	NMA1320	-	hypothetical protein
1201	 56.35	0	1229371..1230039	+	222	15794248	-	NMA1321	-	hypothetical protein
1202	 59.20	+1	1230139..1230486	+	115	15794249	-	NMA1322	-	hypothetical protein
1203	 60.89	+1	1230500..1231555	+	351	15794250	-	NMA1323	-	hypothetical protein
1204	 61.85	+1	1231552..1232112	+	186	15794251	-	NMA1324	-	hypothetical protein
1205	 58.05	0	1232123..1234096	+	657	15794252	-	NMA1325	-	phage tail fibre protein
1206	 52.81	0	1234533..1234835	-	100	15794253	-	NMA1326	-	hypothetical protein
1207	 44.79	0	1234807..1235094	-	95	15794254	-	NMA1327	-	hypothetical protein
1208	 59.57	+1	1235174..1235779	+	201	15794255	-	NMA1328	-	hypothetical protein
1209	 58.92	+1	1235758..1236054	+	98	15794256	-	NMA1329	-	hypothetical protein
1210	 55.24	0	1236051..1236260	+	69	15794257	-	NMA1330	-	hypothetical protein
1211	 54.01	0	1237954..1238601	-	215	15794258	-	NMA1332	-	periplasmic protein
1212	 52.69	0	1238598..1238969	-	123	15794259	-	NMA1334	-	periplasmic protein
1213	 53.12	0	1238976..1239647	-	223	15794260	-	NMA1335	-	periplasmic protein
1214	 58.24	0	1239812..1240582	-	256	15794261	-	NMA1336	-	short chain dehydrogenase
1215	 64.08	+1	1240615..1241928	-	437	15794262	-	NMA1338	-	oxidoreductase
1216	 54.30	0	1242009..1242881	-	290	15794263	-	NMA1339	-	poly-isoprenyl transferase
1217	 59.15	+1	1243052..1244914	+	620	15794264	hscA	NMA1340	-	chaperone protein HscA
1218	 49.47	0	1245237..1245800	+	187	15794265	-	NMA1341	-	hypothetical protein
1219	 51.69	0	1246037..1246597	+	186	15794266	-	NMA1343	-	hypothetical protein
1220	 54.09	0	1246652..1246993	+	113	15794267	fdx	NMA1344	-	ferredoxin
1221	 55.78	0	1247280..1247867	-	195	15794268	-	NMA1345	-	hypothetical protein
1222	 58.08	0	1248080..1248277	+	65	15794269	-	NMA1347	-	hypothetical protein
1223	 52.74	0	1248345..1248746	-	133	15794270	-	NMA1348	-	hypothetical protein
1224	 52.92	0	1248958..1249917	+	319	15794271	accA	NMA1349	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1225	 52.77	0	1250015..1251295	+	426	15794272	-	NMA1350	-	hypothetical protein
1226	 55.73	0	1251369..1252154	+	261	15794273	-	NMA1351	-	RNA methyltransferase
1227	 44.73	0	1252205..1252441	+	78	15794274	-	NMA1353	-	lipoprotein
51.77	MEAN

7.09	STD DEV
