IslandPath Analysis: Neisseria meningitidis Z2491

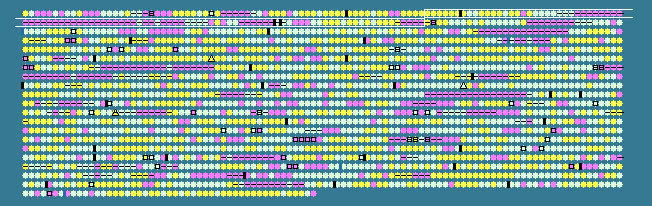

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
68	 55.60	0	70109..71536	+	475	15793102	-	NMA0073	-	amino-acid transport protein
69	 57.55	0	71870..73756	+	628	15793103	gidA	NMA0074	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
70	 57.78	0	73825..74409	+	194	15793104	rnhB	NMA0075	-	ribonuclease HII
71	 59.17	+1	75357..76130	-	257	15793105	-	NMA0076	-	parA family protein
72	 56.89	0	76229..76852	-	207	15793106	gidB	NMA0077	-	glucose-inhibited division protein B
73	 60.29	+1	76948..77433	-	161	15793107	-	NMA0078	-	integral membrane protein
74	 61.79	+1	77843..78970	+	375	15793108	-	NMA0079	-	integral membrane protein
75	 54.12	0	79151..79708	+	185	15793109	frr	NMA0080	-	ribosome recycling factor
76	 54.48	0	79764..80510	+	248	15793110	uppS	NMA0081	-	undecaprenyl diphosphate synthase
77	 56.39	0	80513..81310	+	265	15793111	cdsA	NMA0082	-	phosphatidate cytidylyltransferase
78	 58.31	0	81366..82550	+	394	15793112	dxr	NMA0083	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
79	 59.36	+1	82585..83925	+	446	15793113	-	NMA0084	-	integral membrane protein
80	 56.14	0	83982..86375	+	797	15793114	omp85	NMA0085	-	outer membrane protein OMP85
81	 53.29	0	86441..86941	+	166	15793115	-	NMA0086	-	hypothetical protein
82	 59.96	+1	86974..88017	+	347	15793116	lpxD	NMA0087	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
83	 57.56	0	88053..88502	+	149	15793117	fabZ	NMA0088	-	(3R)-hydroxymyristoyl-ACP dehydratase
84	 36.27	-2	88813..89493	+	226	15793118	-	NMA0089	-	hypothetical protein
85	 59.07	+1	89536..90312	+	258	15793119	lpxA	NMA0090	-	UDP-N-acetylglucosamine acyltransferase
86	 53.95	0	90669..92060	+	463	15793120	-	NMA0091	-	amino-acid transporter
87	 55.13	0	92139..93395	+	418	15793121	dadA	NMA0092	-	D-amino acid dehydrogenase small subunit
88	 54.44	0	93576..94385	+	269	15793122	-	NMA0093	-	zinc transporter ZupT
89	 55.00	0	94482..97319	+	945	15793123	valS	NMA0094	-	valyl-tRNA synthetase
90	 50.64	0	97474..97629	+	51	15793124	-	NMA0095	-	hypothetical protein
91	 50.77	0	97690..98079	-	129	15793125	-	NMA0096	-	hypothetical protein
92	 52.66	0	98653..99573	-	306	15793126	oxyR	NMA0098	-	hydrogen peroxide-inducible genes activator
93	 43.94	-1	99577..99840	-	87	15793127	minE	NMA0099	-	cell division topological specificity factor
94	 46.69	0	99844..100659	-	271	15793128	minD	NMA0100	-	septum site-determining protein
95	 45.10	0	100688..101401	-	237	15793129	minC	NMA0101	-	septum formation inhibitor
96	 46.34	0	101548..101916	-	122	15793130	rplQ	NMA0102	-	50S ribosomal protein L17
97	 42.45	-1	101940..102926	-	328	15793131	rpoA	NMA0103	-	DNA-directed RNA polymerase subunit alpha
98	 44.61	-1	102952..103572	-	206	15793132	rpsD	NMA0104	-	30S ribosomal protein S4
99	 44.95	0	103592..103987	-	131	15793133	rpsK	NMA0105	-	30S ribosomal protein S11
100	 46.56	0	104007..104369	-	120	15793134	rpsM	NMA0106	-	30S ribosomal protein S13
101	 38.60	-1	104435..104548	-	37	15793135	rpmJ	NMA0107	-	50S ribosomal protein L36
102	 37.90	-1	104569..104787	-	72	15793136	infA	NMA0108	-	translation initiation factor IF-1
103	 37.07	-2	104792..106102	-	436	15793137	secY	NMA0109	-	preprotein translocase subunit SecY
104	 43.22	-1	106114..106548	-	144	15793138	rplO	NMA0110	-	50S ribosomal protein L15
105	 41.40	-1	106550..106735	-	61	15793139	rpmD	NMA0111	-	50S ribosomal protein L30
106	 43.74	-1	106728..107246	-	172	15793140	rpsE	NMA0112	-	30S ribosomal protein S5
107	 43.79	-1	107265..107618	-	117	15793141	rplR	NMA0113	-	50S ribosomal protein L18
108	 41.01	-1	107632..108165	-	177	15793142	rplF	NMA0114	-	50S ribosomal protein L6
109	 39.19	-1	108179..108571	-	130	15793143	rpsH	NMA0115	-	30S ribosomal protein S8
110	 46.08	0	108587..108892	-	101	15793144	rpsN	NMA0116	-	30S ribosomal protein S14
111	 38.15	-1	108895..109434	-	179	15793145	rplE	NMA0117	-	50S ribosomal protein L5
112	 38.58	-1	109444..109767	-	107	15793146	rplX	NMA0118	-	50S ribosomal protein L24
113	 44.17	-1	109779..110147	-	122	15793147	rplN	NMA0119	-	50S ribosomal protein L14
114	 36.74	-2	110369..110632	-	87	15793148	rpsQ	NMA0120	-	30S ribosomal protein S17
115	 38.54	-1	110632..110823	-	63	15793149	rpmC	NMA0121	-	50S ribosomal protein L29
116	 46.28	0	110823..111239	-	138	15793150	rplP	NMA0122	-	50S ribosomal protein L16
117	 44.88	0	111223..111915	-	230	15793151	rpsC	NMA0123	-	30S ribosomal protein S3
118	 42.12	-1	111925..112254	-	109	15793152	rplV	NMA0124	-	50S ribosomal protein L22
119	 45.16	0	112263..112541	-	92	15793153	rpsS	NMA0125	-	30S ribosomal protein S19
120	 51.80	0	112548..113381	-	277	15793154	rplB	NMA0126	-	50S ribosomal protein L2
121	 43.30	-1	113387..113707	-	106	15793155	rplW	NMA0127	-	50S ribosomal protein L23
122	 46.54	0	113698..114318	-	206	15793156	rplD	NMA0128	-	50S ribosomal protein L4
123	 49.92	0	114318..114962	-	214	15793157	rplC	NMA0129	-	50S ribosomal protein L3
124	 48.10	0	115181..115864	-	227	15793158	-	NMA0131	-	hypothetical protein
125	 47.82	0	115873..116928	-	351	15793159	-	NMA0132	-	hypothetical protein
126	 41.76	-1	116903..117163	-	86	15793160	-	NMA0132A	-	hypothetical protein
127	 47.44	0	117216..117527	-	103	15793161	rpsJ	NMA0133	-	30S ribosomal protein S10
128	 52.57	0	117545..118729	-	394	15793162	tufA1	NMA0134	-	elongation factor Tu
129	 49.95	0	118817..120922	-	701	15793163	fusA	NMA0135	-	elongation factor G
130	 49.68	0	120941..121411	-	156	15793164	rpsG	NMA0136	-	30S ribosomal protein S7
131	 50.00	0	121529..121900	-	123	15793165	rpsL	NMA0137	-	30S ribosomal protein S12
132	 40.67	-1	122079..122228	-	49	15793166	-	NMA0138	-	hypothetical protein
133	 56.20	0	122225..122482	-	85	15793167	-	NMA0139	-	periplasmic protein
134	 48.00	0	122531..122680	-	49	15793168	-	NMA0140	-	hypothetical protein
135	 50.72	0	122773..126948	-	1391	15793169	rpoC	NMA0141	-	DNA-directed RNA polymerase subunit beta'
136	 50.25	0	127100..131278	-	1392	15793170	rpoB	NMA0142	-	DNA-directed RNA polymerase subunit beta
137	 43.82	-1	131469..131840	-	123	15793171	rplL	NMA0143	-	50S ribosomal protein L7/L12
138	 47.31	0	131898..132398	-	166	15793172	rplJ	NMA0144	-	50S ribosomal protein L10
139	 43.39	-1	132628..133323	-	231	15793173	rplA	NMA0145	-	50S ribosomal protein L1
140	 44.83	0	133323..133757	-	144	15793174	rplK	NMA0146	-	50S ribosomal protein L11
141	 44.13	-1	133858..134394	-	178	15793175	nusG	NMA0147	-	transcription antitermination protein NusG
142	 36.92	-2	134396..134674	-	92	15793176	secE	NMA0148	-	preprotein translocase subunit SecE
143	 52.83	0	134871..136055	-	394	15793177	tufA2	NMA0149	-	elongation factor Tu
144	 49.21	0	136472..136723	-	83	15793178	-	NMA0150	-	ferredoxin
145	 53.68	0	136846..137415	-	189	15793179	-	NMA0151	-	DNA methylase
146	 47.24	0	137504..137884	-	126	15793180	-	NMA0153	-	hypothetical protein
147	 33.88	-2	138003..138554	+	183	15793181	-	NMA0154	-	integral membrane protein
148	 44.68	-1	138574..139269	+	231	15793182	-	NMA0155	-	hypothetical protein
149	 53.97	0	139342..141648	-	768	15793183	topA	NMA0156	-	DNA topoisomerase I
150	 53.46	0	141720..142181	-	153	15793184	-	NMA0157	-	hypothetical protein
151	 59.68	+1	142207..143394	-	395	15793185	dprA	NMA0158	-	DprA-like protein
152	 56.65	0	143485..144762	-	425	15793186	-	NMA0159	-	two-component trancriptional regulator
153	 57.33	0	144755..146875	-	706	15793187	-	NMA0160	-	two-component sensor
154	 54.67	0	146875..147474	-	199	15793188	-	NMA0161	-	hypothetical protein
155	 58.02	0	147440..148699	-	419	15793189	-	NMA0162	-	SUN-like protein
156	 59.55	+1	148778..149704	-	308	15793190	fmt	NMA0163	-	methionyl-tRNA formyltransferase
157	 54.96	0	149791..150294	-	167	15793191	def	NMA0164	-	peptide deformylase
158	 56.16	0	150478..151695	+	405	15793192	-	NMA0165	-	periplasmic protein
159	 53.15	0	151758..152423	-	221	15793193	-	NMA0166	-	integral membrane protein
160	 55.56	0	152488..152946	-	152	15793194	pyrI	NMA0167	-	aspartate carbamoyltransferase regulatory subunit
161	 56.57	0	152956..153876	-	306	15793195	pyrB	NMA0168	-	aspartate carbamoyltransferase catalytic subunit
162	 56.23	0	154112..154954	+	280	15793196	-	NMA0169	-	hypothetical protein
163	 57.86	0	154951..155109	+	52	15793197	-	NMA0170	-	lipoprotein
164	 39.72	-1	155236..155955	+	239	15793198	-	NMA0171	-	hypothetical protein
165	 22.78	-2	156030..156266	+	78	15793199	-	NMA0171A	-	integral membrane protein
166	 39.78	-1	156214..156399	+	61	15793200	-	NMA0172	-	hypothetical protein
167	 38.59	-1	156411..156905	+	164	15793201	-	NMA0173	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
