IslandPath Analysis: Neisseria meningitidis Z2491

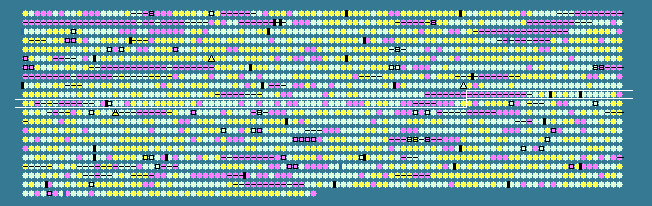

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
975	 26.37	-2	1027962..1028234	-	90	15794022	-	NMA1074	-	membrane protein
976	 44.44	-1	1028303..1028473	-	56	15794023	-	NMA1075	-	hypothetical protein
977	 35.25	-2	1028503..1028763	+	86	15794024	-	NMA1076	-	hypothetical protein
978	 28.51	-2	1029110..1029358	-	82	15794025	-	NMA1077	-	hypothetical protein
979	 46.61	0	1029404..1029772	-	122	15794026	-	NMA1078	-	hypothetical protein
980	 34.15	-2	1029914..1030159	-	81	15794027	-	NMA1079	-	hypothetical protein
981	 30.77	-2	1030388..1030504	-	38	15794028	-	NMA1080	-	hypothetical protein
982	 26.39	-2	1030563..1030850	-	95	15794029	-	NMA1081	-	membrane protein
983	 24.46	-2	1031157..1031528	-	123	15794030	-	NMA1082	-	hypothetical protein
984	 44.82	0	1031662..1032105	-	147	15794031	-	NMA1083	-	periplasmic protein
985	 52.64	0	1032148..1033017	-	289	15794032	-	NMA1084	-	periplasmic protein
986	 52.16	0	1033181..1034104	+	307	15794033	-	NMA1085	-	hypothetical protein
987	 57.48	0	1034182..1034823	-	213	15794034	-	NMA1086	-	hypothetical protein
988	 53.91	0	1034878..1035669	-	263	15794035	-	NMA1087	-	spermidine synthase
989	 56.44	0	1036052..1036843	+	263	15794036	panB	NMA1088	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
990	 53.88	0	1036966..1037802	+	278	15794037	panC	NMA1089	-	pantoate--beta-alanine ligase
991	 55.57	0	1037967..1039805	+	612	15794038	-	NMA1090	-	periplasmic protein
992	 53.61	0	1039945..1040526	+	193	15794039	lolB	NMA1091	-	outer membrane lipoprotein LolB
993	 49.53	0	1040536..1041381	+	281	15794040	-	NMA1092	-	hypothetical protein
994	 52.74	0	1041803..1042786	+	327	15794041	prsA	NMA1093	-	ribose-phosphate pyrophosphokinase
995	 50.09	0	1042853..1043425	+	190	15794042	-	NMA1094	-	50S ribosomal protein L25/general stress protein Ctc
996	 48.55	0	1043550..1044719	-	389	15794043	-	NMA1095	-	D-alanyl-D-alanine carboxypeptidase
997	 53.57	0	1044867..1046393	+	508	15794044	ilvA	NMA1096	-	threonine dehydratase
998	 52.89	0	1046450..1047523	-	357	15794045	cysA	NMA1097	-	sulphate permease ATP-binding protein
999	 56.79	0	1047520..1048380	-	286	15794046	cysW	NMA1098	-	sulphate permease inner membrane protein
1000	 40.21	-1	1048445..1048633	-	62	15794047	-	NMA1099	-	hypothetical protein
1001	 57.71	0	1048758..1049594	-	278	15794048	cysU	NMA1100	-	sulphate permease inner membrane protein
1002	 57.06	0	1049885..1050217	+	110	15794049	-	NMA1101	-	hypothetical protein
1003	 38.04	-1	1050549..1051058	+	169	15794050	-	NMA1102	-	integral membrane protein
1004	 53.40	0	1052308..1052895	-	195	15794051	sodB	NMA1104	-	superoxide dismutase
1005	 55.37	0	1053058..1054464	+	468	15794052	dnaB	NMA1105	-	replicative DNA helicase
1006	 49.10	0	1054773..1055438	+	221	15794053	-	NMA1106	-	hypothetical protein
1007	 46.99	0	1055468..1056082	+	204	15794054	-	NMA1107	-	membrane protein
1008	 43.14	-1	1056079..1057077	+	332	15794055	-	NMA1108	-	membrane protein
1009	 46.30	0	1057056..1057649	+	197	15794056	-	NMA1109	-	membrane protein
1010	 42.13	-1	1057639..1058127	+	162	15794057	-	NMA1110	-	pilin
1011	 49.69	0	1059437..1059919	-	160	15794058	-	NMA1111	-	hypothetical protein
1012	 49.45	0	1060062..1060514	+	150	15794059	dut	NMA1112	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1013	 51.35	0	1060590..1061777	+	395	15794060	-	NMA1113	-	hypothetical protein
1014	 47.69	0	1062039..1062818	+	259	15794061	-	NMA1114	-	hypothetical protein
1015	 53.17	0	1063489..1064496	-	335	15794062	-	NMA1115	-	IS1106A3 transposase
1016	 54.85	0	1065658..1067883	-	741	15794063	icd	NMA1116	-	isocitrate dehydrogenase
1017	 52.53	0	1067916..1068113	+	65	15794064	-	NMA1117	-	hypothetical protein
1018	 46.95	0	1068316..1069431	+	371	15794065	lst	NMA1118	-	CMP-N-acetylneuraminate-beta-galactosamide-alpha- 2,3-sialyltransferase
1019	 55.34	0	1069595..1070053	-	152	15794066	-	NMA1119	-	C-type cytochrome
1020	 53.28	0	1070172..1070993	+	273	15794067	-	NMA1120	-	oxidoreductase
1021	 57.27	0	1071044..1071490	-	148	15794068	-	NMA1121	-	acyl-CoA hydrolase
1022	 52.84	0	1071772..1072704	+	310	15794069	pip	NMA1122	-	proline iminopeptidase
1023	 58.07	0	1072761..1073888	-	375	15794070	-	NMA1123	-	lipoprotein
1024	 60.39	+1	1073966..1074841	-	291	15794071	dapA	NMA1124	-	dihydrodipicolinate synthase
1025	 56.61	0	1075149..1076540	+	463	15794072	-	NMA1126	-	transmembrane transport protein
1026	 57.25	0	1076602..1077387	-	261	15794073	-	NMA1127	-	RNA methylase
1027	 58.90	+1	1077421..1077909	-	162	15794074	-	NMA1128	-	membrane protein
1028	 55.03	0	1077914..1078360	-	148	15794075	-	NMA1129	-	cytosine deaminase
1029	 57.75	0	1078637..1079578	-	313	15794076	miaA	NMA1130	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1030	 45.63	0	1080050..1080358	+	102	15794077	-	NMA1131a	-	membrane protein
1031	 54.31	0	1080377..1081525	+	382	15794078	-	NMA1132	-	hypothetical protein
1032	 50.80	0	1081568..1082128	+	186	15794079	efp	NMA1133	-	elongation factor P
1033	 53.07	0	1082178..1083023	-	281	15794080	-	NMA1134	-	lipoprotein
1034	 53.78	0	1083140..1083721	-	193	15794081	-	NMA1135	-	hypothetical protein
1035	 52.72	0	1083718..1084857	-	379	15794082	metX	NMA1136	-	homoserine O-acetyltransferase
1036	 52.38	0	1085479..1085604	-	41	15794083	rpmJ	NMA1137	-	50S ribosomal protein L36
1037	 46.01	0	1085604..1085879	-	91	15794084	rpmE2	NMA1138	-	50S ribosomal protein L31 type B
1038	 52.79	0	1086078..1086956	+	292	15794085	metF	NMA1139	-	5,10-methylenetetrahydrofolate reductase
1039	 52.26	0	1087095..1089371	+	758	15794086	metE	NMA1140	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1040	 48.24	0	1089650..1090387	+	245	15794087	-	NMA1141	-	redoxin
1041	 54.20	0	1090636..1092039	+	467	15794088	lpdA2	NMA1142	-	dihydrolipoamide dehydrogenase
1042	 48.68	0	1092318..1092695	+	125	15794089	sdhC	NMA1143	-	succinate dehydrogenase cytochrome B subunit
1043	 46.20	0	1092689..1093030	+	113	15794090	sdhD	NMA1144	-	succinate dehydrogenase hydrophobic membrane anchor protein
1044	 52.55	0	1093033..1094796	+	587	15794091	sdhA	NMA1145	-	succinate dehydrogenase flavoprotein subunit
1045	 47.88	0	1094916..1095623	+	235	15794092	sdhB	NMA1146	-	succinate dehydrogenase iron-sulfur subunit
1046	 42.57	-1	1095627..1095875	+	82	15794093	-	NMA1147	-	hypothetical protein
1047	 52.80	0	1095987..1097270	+	427	15794094	gltA	NMA1148	-	type II citrate synthase
1048	 51.25	0	1097475..1100303	+	942	15794095	kgd	NMA1149	-	alpha-ketoglutarate decarboxylase
1049	 52.81	0	1100403..1101614	+	403	15794096	sucB	NMA1150	-	dihydrolipoamide acetyltransferase
1050	 53.00	0	1101979..1103412	+	477	15794097	lpdA3	NMA1151	-	dihydrolipoamide dehydrogenase
1051	 46.18	0	1103507..1103794	+	95	15794098	-	NMA1152	-	membrane protein
1052	 51.33	0	1103893..1105059	+	388	15794099	sucC	NMA1153	-	succinyl-CoA synthetase subunit beta
1053	 51.96	0	1105070..1105960	+	296	15794100	sucD	NMA1154	-	succinyl-CoA synthetase subunit alpha
1054	 49.31	0	1106195..1106557	-	120	15794101	-	NMA1155a	-	hypothetical protein
1055	 47.62	0	1106803..1107033	+	76	15794102	-	NMA1156	-	hypothetical protein
1056	 33.83	-2	1107199..1107996	-	265	15794103	-	NMA1157	-	hypothetical protein
1057	 30.69	-2	1108720..1108908	-	62	15794104	-	NMA1158	-	hypothetical protein
1058	 57.15	0	1108965..1111811	-	948	15794105	uvrA	NMA1159	-	excinuclease ABC subunit A
1059	 53.01	0	1111966..1112763	+	265	15794106	-	NMA1160	-	phosphatidylserine decarboxylase
1060	 55.64	0	1114191..1116485	-	764	15794107	-	NMA1161	-	outer-membrane receptor protein
1061	 55.27	0	1116573..1116809	+	78	15794108	-	NMA1162	-	hypothetical protein
1062	 51.44	0	1116892..1117482	+	196	15794109	trpG	NMA1163	-	anthranilate synthase component II
1063	 52.69	0	1117547..1118605	+	352	15794110	trpD	NMA1164	-	anthranilate phosphoribosyltransferase
1064	 39.05	-1	1118598..1118702	+	34	15794111	-	NMA1165	-	hypothetical protein
1065	 45.99	0	1119382..1120416	+	344	15794112	-	NMA1167	-	hypothetical protein
1066	 47.54	0	1120407..1120751	+	114	15794113	-	NMA1168	-	hypothetical protein
1067	 42.42	-1	1120756..1120953	+	65	15794114	-	NMA1169	-	hypothetical protein
1068	 47.37	0	1120961..1121245	+	94	15794115	-	NMA1170	-	integral membrane protein
1069	 45.88	0	1121252..1121530	+	92	15794116	-	NMA1171	-	hypothetical protein
1070	 31.76	-2	1121658..1121975	+	105	15794117	-	NMA1172	-	hypothetical protein
1071	 42.86	-1	1121917..1122357	+	146	15794118	-	NMA1173	-	cell-surface protein
1072	 47.44	0	1122961..1123428	+	155	15794119	-	NMA1174	-	hypothetical protein
1073	 54.11	0	1123636..1125021	-	461	15794120	pntB	NMA1175	-	pyridine nucleotide transhydrogenase
1074	 56.77	0	1125087..1125470	-	127	15794121	-	NMA1176	-	membrane protein
51.77	MEAN

7.09	STD DEV
