IslandPath Analysis: Neisseria gonorrhoeae FA 1090

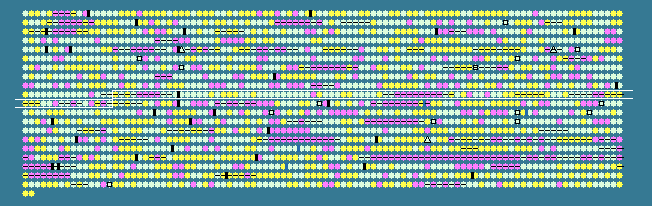

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
916	 57.26	0	976191..976541	-	116	59801389	-	NGO1006	-	putative phage associated protein
917	 53.33	0	976976..977185	-	69	59801390	-	NGO1007	-	putative phage associated protein
918	 57.39	0	977178..977468	-	96	59801391	-	NGO1008	-	putative phage associated protein
919	 53.12	0	977473..977760	-	95	59801392	-	NGO1009	-	putative phage associated protein
920	 35.40	-2	977880..978314	-	144	59801393	-	NGO1010	-	putative phage associated protein
921	 38.13	-2	978515..978889	-	124	59801394	-	NGO1011	-	putative phage associated protein
922	 38.79	-2	978886..979764	-	292	59801395	-	NGO1012	-	putative phage associated protein
923	 46.46	0	980160..980540	-	126	59801396	-	NGO1013	-	putative phage repressor, putative phage associated protein
924	 50.00	0	980749..981042	+	97	59801397	-	NGO1014	-	putative phage associated protein
925	 51.55	0	981023..981313	+	96	59801398	-	NGO1015	-	putative phage associated protein
926	 55.93	0	982212..984008	+	598	59801399	-	NGO1020	-	putative phage associated protein
927	 51.70	0	986456..987631	+	391	59801400	-	NGO1024	-	hypothetical protein
928	 55.19	0	987973..988521	-	182	59801401	-	NGO1025	-	hypothetical protein
929	 53.64	0	988524..990020	-	498	59801402	-	NGO1026	-	putative ferredoxin
930	 52.24	0	990282..990482	-	66	59801403	-	NGO1027	-	hypothetical protein
931	 55.81	0	990554..992533	+	659	59801404	-	NGO1028	-	transketolase
932	 58.03	0	992677..994065	+	462	59801405	fumC	NGO1029	-	fumarate hydratase
933	 55.95	0	994130..995053	-	307	59801406	-	NGO1030	-	hypothetical protein
934	 59.62	+1	995426..995950	-	174	59801407	-	NGO1031	-	putative single-stranded DNA binding protein
935	 57.34	0	995954..997336	-	460	59801408	-	NGO1032	-	hypothetical protein
936	 60.10	+1	997448..998071	-	207	59801409	-	NGO1033	-	putative transglycosylase
937	 52.46	0	998126..998470	+	114	59801410	-	NGO1034	-	hypothetical protein
938	 50.78	0	999363..999746	-	127	59801411	-	NGO1037	-	hypothetical protein
939	 57.06	0	1000964..1001692	+	242	59801412	-	NGO1040	-	hypothetical protein
940	 55.14	0	1001855..1003363	+	502	59801413	-	NGO1041	-	putative exopolyphosphatase
941	 54.43	0	1003525..1003908	+	127	59801414	-	NGO1042	-	hypothetical protein
942	 53.33	0	1003573..1003917	-	114	59801415	-	NGO1043	-	hypothetical protein
943	 54.76	0	1004234..1004779	-	181	59801416	-	NGO1044	-	hypothetical protein
944	 54.60	0	1004860..1005870	-	336	59801417	-	NGO1045	-	tryptophanyl-tRNA synthetase
945	 52.95	0	1006130..1008709	+	859	59801418	-	NGO1046	-	putative ClpB protein
946	 52.43	0	1008781..1009995	-	404	59801419	-	NGO1047	-	aminotransferase AlaT
947	 52.38	0	1010084..1010293	-	69	59801420	-	NGO1048	-	hypothetical protein
948	 53.41	0	1010485..1011291	+	268	59801421	-	NGO1049	-	hypothetical protein
949	 37.92	-2	1012691..1012930	+	79	59801422	-	NGO1051	-	hypothetical protein
950	 57.24	0	1012965..1013675	+	236	59801423	-	NGO1052	-	phosphoglycolate phosphatase
951	 53.03	0	1013748..1014209	+	153	59801424	recX	NGO1053	-	recombination regulator RecX
952	 55.56	0	1014283..1014444	+	53	59801425	-	NGO1054	-	hypothetical protein
953	 55.69	0	1014597..1015079	+	160	59801426	-	NGO1055	-	putative acyl-CoA hydrolase
954	 56.44	0	1015477..1016688	-	403	59801427	-	NGO1056	-	hypothetical protein
955	 56.22	0	1016592..1017338	-	248	59801428	-	NGO1058	-	hypothetical protein
956	 55.43	0	1017355..1018911	-	518	59801429	-	NGO1059	-	hypothetical protein
957	 53.69	0	1019279..1020064	-	261	59801430	-	NGO1060	-	FimB
958	 55.93	0	1020175..1021608	-	477	59801431	-	NGO1061	-	putative succinate semialdehyde dehydrogenase
959	 52.83	0	1022009..1022803	+	264	59801432	-	NGO1062	-	hypothetical protein
960	 58.79	0	1022564..1022944	-	126	59801433	-	NGO1063	-	hypothetical protein
961	 55.48	0	1023468..1025549	+	693	59801434	-	NGO1064	-	hypothetical protein
962	 52.31	0	1025539..1025733	+	64	59801435	-	NGO1065	-	hypothetical protein
963	 41.90	-1	1025841..1026155	+	104	59801436	-	NGO1066	-	MafI protein
964	 48.49	0	1026289..1027251	+	320	59801437	-	NGO1067	-	MafA adhesin protein
965	 45.42	-1	1027291..1028697	+	468	59801438	-	NGO1068	-	MafB2
966	 27.06	-2	1028713..1029015	+	100	59801439	-	NGO1069	-	hypothetical protein
967	 25.47	-2	1029707..1030024	+	105	59801440	-	NGO1070	-	hypothetical protein
968	 37.54	-2	1030403..1030687	+	94	59801441	-	NGO1072	-	hypothetical protein
969	 24.69	-2	1030690..1031013	+	107	59801442	-	NGO1073	-	hypothetical protein
970	 41.09	-1	1031165..1031512	+	115	59801443	-	NGO1074	-	MafI protein 2
971	 55.46	0	1035986..1036333	-	115	59801444	-	NGO1077	-	hypothetical protein
972	 57.05	0	1036789..1037235	+	148	59801445	-	NGO1078	-	putative acyl-CoA hydrolase
973	 53.41	0	1037286..1038107	-	273	59801446	-	NGO1079	-	putative oxidoreductase
974	 56.86	0	1038226..1038684	+	152	59801447	-	NGO1080	-	putative C-type cytochrome
975	 47.67	0	1038827..1039963	-	378	59801448	-	NGO1081	-	alpha-2,3-sialyltransferase
976	 55.30	0	1040336..1042561	+	741	59801449	-	NGO1082	-	putative isocitrate dehydrogenase
977	 49.53	0	1042858..1043178	+	106	59801450	-	NGO1083	-	hypothetical protein
978	 32.74	-2	1044120..1044287	+	55	59801451	-	NGO1084	-	hypothetical protein
979	 55.32	0	1044447..1045292	+	281	59801452	-	NGO1085	-	putative phage associated protein
980	 52.24	0	1045279..1045479	-	66	59801453	-	NGO1086	-	putative phage associated protein
981	 60.50	+1	1045494..1046174	+	226	59801454	-	NGO1087	-	putative phage associated protein
982	 58.85	0	1046153..1046638	-	161	59801455	-	NGO1088	-	putative phage associated protein
983	 56.96	0	1046644..1047117	-	157	59801456	-	NGO1089	-	putative phage associated protein
984	 59.34	+1	1047173..1048468	-	431	59801457	-	NGO1090	-	putative phage associated protein
985	 59.65	+1	1048489..1048887	-	132	59801458	-	NGO1091	-	putative phage associated protein
986	 61.71	+1	1049094..1055027	-	1977	59801459	-	NGO1092	-	putative phage associated protein
987	 65.33	+1	1055027..1056445	-	472	59801460	-	NGO1093	-	putative phage associated protein
988	 61.82	+1	1056442..1057638	-	398	59801461	-	NGO1094	-	putative phage associated protein
989	 52.32	0	1057849..1058322	-	157	59801462	-	NGO1095	-	putative phage associated protein
990	 49.54	0	1058422..1058637	-	71	59801463	-	NGO1096	-	putative phage associated protein
991	 59.96	+1	1058674..1060926	-	750	59801464	-	NGO1097	-	putative phage associated protein
992	 54.90	0	1060926..1062200	-	424	59801465	-	NGO1098	-	putative phage associated protein
993	 53.09	0	1062181..1062423	-	80	59801466	-	NGO1099	-	putative phage associated protein
994	 54.73	0	1062478..1062720	-	80	59801467	-	NGO1100	-	putative phage associated protein
995	 52.06	0	1062720..1063034	-	104	59801468	-	NGO1101	-	putative phage associated protein
996	 33.53	-2	1063207..1063725	-	172	59801469	-	NGO1102	-	putative phage associated protein
997	 41.15	-1	1063716..1064099	-	127	59801470	-	NGO1103	-	putative phage associated protein
998	 62.42	+1	1064096..1064401	-	101	59801471	-	NGO1104	-	putative phage associated protein
999	 63.61	+1	1064373..1064993	+	206	59801472	-	NGO1105	-	putative phage associated protein
1000	 60.67	+1	1065119..1065268	-	49	59801473	-	NGO1106	-	putative phage associated protein
1001	 57.45	0	1065246..1065614	+	122	59801474	-	NGO1107	-	putative phage associated protein
1002	 59.39	+1	1065652..1066146	-	164	59801475	-	NGO1108	-	putative phage associated protein
1003	 58.95	0	1066185..1066469	-	94	59801476	-	NGO1109	-	putative phage associated protein
1004	 54.48	0	1066486..1067847	-	453	59801477	-	NGO1110	-	putative replicative DNA helicase, putative phage associated protein
1005	 52.08	0	1067844..1068974	-	376	59801478	-	NGO1111	-	putative phage associated protein
1006	 46.05	-1	1069092..1069319	-	75	59801479	-	NGO1112	-	putative phage associated protein
1007	 49.21	0	1069492..1069680	+	62	59801480	-	NGO1113	-	putative phage associated protein
1008	 49.36	0	1069657..1069812	-	51	59801481	-	NGO1114	-	putative phage associated protein
1009	 38.10	-2	1069893..1070081	-	62	59801482	-	NGO1115	-	putative phage associated protein
1010	 55.71	0	1070260..1070907	+	215	59801483	-	NGO1116	-	putative phage repressor protein, putative phage associated protein
1011	 52.04	0	1071067..1071606	+	179	59801484	-	NGO1117	-	putative phage associated protein
1012	 48.61	0	1071607..1071966	+	119	59801485	-	NGO1118	-	putative phage associated protein
1013	 58.45	0	1071983..1072201	-	72	59801486	-	NGO1119	-	putative phage associated protein
1014	 42.79	-1	1072684..1072884	+	66	59801487	-	NGO1120	-	putative phage associated protein
1015	 50.94	0	1072917..1073393	+	158	59801488	-	NGO1121	-	putative phage associated protein
52.66	MEAN

6.57	STD DEV
