IslandPath Analysis: Neisseria gonorrhoeae FA 1090

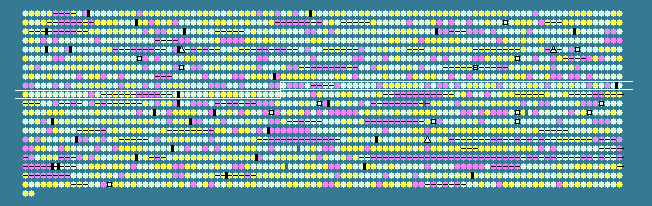

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
844	 52.32	0	901660..903423	-	587	59801317	-	NGO0921	-	putative succinate dehydrogenase flavoprotein subunit
845	 46.78	0	903426..903767	-	113	59801318	-	NGO0922	-	putative succinate dehydrogenase hydrophobic membrane anchor protein
846	 47.62	0	903761..904138	-	125	59801319	-	NGO0923	-	putative fumarate reductase cytochrome b large subunit
847	 39.05	-2	904199..904408	-	69	59801320	-	NGO0924	-	hypothetical protein
848	 54.20	0	904425..905828	-	467	59801321	-	NGO0925	-	dihydrolipoamide dehydrogenase
849	 47.83	0	906077..906814	-	245	59801322	-	NGO0926	-	putative peroxiredoxin family protein/glutaredoxin
850	 42.42	-1	906917..907081	-	54	59801323	-	NGO0927	-	hypothetical protein
851	 52.35	0	907093..909369	-	758	59801324	-	NGO0928	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
852	 52.79	0	909505..910383	-	292	59801325	metF	NGO0929	-	5,10-methylenetetrahydrofolate reductase
853	 45.65	-1	910582..910857	+	91	59801326	rpmE2	NGO0930	-	50S ribosomal protein L31 type B
854	 53.17	0	910857..910982	+	41	59801327	rpmJ	NGO0931	-	50S ribosomal protein L36
855	 49.66	0	911041..911481	+	146	59801328	-	NGO0932	-	hypothetical protein
856	 52.54	0	911429..912568	+	379	59801329	metX	NGO0933	-	homoserine O-acetyltransferase
857	 52.92	0	912565..913146	+	193	59801330	-	NGO0934	-	hypothetical protein
858	 50.62	0	914253..914813	-	186	59801331	-	NGO0936	-	elongation factor P
859	 55.30	0	914856..916007	-	383	59801332	-	NGO0937	-	hypothetical protein
860	 47.57	0	916026..916334	-	102	59801333	-	NGO0938	-	hypothetical protein
861	 58.01	0	916342..916653	-	103	59801334	-	NGO0939	-	hypothetical protein
862	 58.81	0	916655..917596	+	313	59801335	-	NGO0940	-	putative tRNA delta transferase
863	 58.06	0	917600..918319	+	239	59801336	-	NGO0941	-	putative cytosine deaminase
864	 57.87	0	918324..918812	+	162	59801337	-	NGO0942	-	hypothetical protein
865	 59.47	+1	921445..922320	+	291	59801338	dapA	NGO0947	-	dihydrodipicolinate synthase
866	 57.23	0	922329..923525	+	398	59801339	-	NGO0948	-	hypothetical protein
867	 53.27	0	923582..924514	-	310	59801340	-	NGO0949	-	proline iminopeptidase
868	 47.14	0	924507..924803	-	98	59801341	-	NGO0950	-	hypothetical protein
869	 50.45	0	926135..928903	+	922	59801342	-	NGO0952	-	putative TonB-dependent receptor protein
870	 44.91	-1	928934..929149	+	71	59801343	-	NGO0953	-	hypothetical protein
871	 39.33	-2	929779..929928	-	49	59801344	-	NGO0955	-	hypothetical protein
872	 54.43	0	929928..931145	-	405	59801345	-	NGO0956	-	aspartate kinase
873	 44.24	-1	931182..931346	+	54	59801346	-	NGO0957	-	hypothetical protein
874	 55.14	0	931347..932075	-	242	59801347	-	NGO0958	-	putative ribonuclease PH
875	 58.49	0	932157..932621	-	154	59801348	-	NGO0959	-	hypothetical protein
876	 56.89	0	932839..933615	+	258	59801349	-	NGO0960	-	hypothetical protein
877	 55.91	0	933860..934714	+	284	59801350	-	NGO0961	-	hypothetical protein
878	 57.14	0	934704..935963	+	419	59801351	-	NGO0962	-	nicotinate phosphoribosyltransferase
879	 56.89	0	936055..937773	+	572	59801352	argS	NGO0963	-	arginyl-tRNA synthetase
880	 47.13	0	939735..939995	+	86	59801353	-	NGO0967	-	hypothetical protein
881	 55.42	0	940182..940928	-	248	59801354	-	NGO0968	-	putative ABC transporter, permease protein, amino acid
882	 56.55	0	941107..941808	-	233	59801355	-	NGO0969	-	hypothetical protein
883	 53.87	0	941847..942518	-	223	59801356	-	NGO0970	-	ribose-5-phosphate isomerase A
884	 56.11	0	942595..943077	-	160	59801357	ispF	NGO0971	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
885	 57.25	0	943109..943798	-	229	59801358	-	NGO0972	-	hypothetical protein
886	 57.82	0	943795..944529	-	244	59801359	-	NGO0973	-	putative DNA polymerase III, epsilon chain
887	 53.55	0	944685..945995	-	436	59801360	-	NGO0974	-	hypothetical protein
888	 43.55	-1	945985..946170	-	61	59801361	-	NGO0975	-	FixS
889	 49.33	0	946170..946469	-	99	59801362	-	NGO0976	-	hypothetical protein
890	 57.54	0	946790..948016	+	408	59801363	-	NGO0977	-	putative acetate kinase
891	 55.75	0	948529..950370	-	613	59801364	dipZ	NGO0978	-	thiol:disulfide interchange protein precursor
892	 58.17	0	950461..950931	+	156	59801365	-	NGO0979	-	hypothetical protein
893	 54.83	0	951004..951831	-	275	59801366	-	NGO0980	-	putative transferase
894	 53.21	0	951903..952385	-	160	59801367	-	NGO0981	-	putative peptidyl-prolyl cis-trans isomerase
895	 36.84	-2	952514..952798	+	94	59801368	-	NGO0982	-	hypothetical protein
896	 61.05	+1	952858..953124	+	88	59801369	-	NGO0983	-	Lip
897	 52.63	0	953234..954601	+	455	59801370	-	NGO0984	-	hypothetical protein
898	 44.81	-1	957331..957783	-	150	59801371	smpB	NGO0986	-	SsrA-binding protein
899	 53.81	0	957832..958842	-	336	59801372	-	NGO0987	-	ADP-heptose--LPS heptosyltransferase II
900	 55.29	0	959239..960108	-	289	59801373	-	NGO0988	-	putative methylated-DNA-protein-cysteine methyltransferase
901	 61.46	+1	960876..961739	-	287	59801374	-	NGO0990	-	AraC family transcriptional regulator
902	 55.50	0	962111..963256	-	381	59801375	-	NGO0991	-	succinyl-diaminopimelate desuccinylase
903	 52.66	0	963369..963989	-	206	59801376	-	NGO0992	-	hypothetical protein
904	 52.75	0	964023..964532	-	169	59801377	-	NGO0993	-	hypothetical protein
905	 54.89	0	964627..965178	-	183	59801378	-	NGO0994	-	Laz
906	 56.03	0	965461..965883	-	140	59801379	-	NGO0995	-	hypothetical protein
907	 55.62	0	966015..968765	+	916	59801380	-	NGO0996	-	preprotein translocase subunit SecA
908	 53.13	0	968910..970682	+	590	59801381	dnaG	NGO0998	-	DNA primase
909	 51.58	0	970869..972797	+	642	59801382	-	NGO0999	-	RNA polymerase sigma factor RpoD
910	 53.07	0	972837..973064	-	75	59801383	-	NGO1000	-	putative phage associated protein
911	 54.53	0	973188..973673	-	161	59801384	-	NGO1001	-	putative phage associated protein
912	 34.69	-2	973680..974048	-	122	59801385	-	NGO1002	-	putative phage associated protein
913	 53.22	0	974075..974617	-	180	59801386	-	NGO1003	-	putative phage associated protein
914	 51.11	0	974783..975142	-	119	59801387	-	NGO1004	-	putative phage associated protein
915	 50.29	0	975275..976141	-	288	59801388	-	NGO1005	-	putative phage associated protein
916	 57.26	0	976191..976541	-	116	59801389	-	NGO1006	-	putative phage associated protein
917	 53.33	0	976976..977185	-	69	59801390	-	NGO1007	-	putative phage associated protein
918	 57.39	0	977178..977468	-	96	59801391	-	NGO1008	-	putative phage associated protein
919	 53.12	0	977473..977760	-	95	59801392	-	NGO1009	-	putative phage associated protein
920	 35.40	-2	977880..978314	-	144	59801393	-	NGO1010	-	putative phage associated protein
921	 38.13	-2	978515..978889	-	124	59801394	-	NGO1011	-	putative phage associated protein
922	 38.79	-2	978886..979764	-	292	59801395	-	NGO1012	-	putative phage associated protein
923	 46.46	0	980160..980540	-	126	59801396	-	NGO1013	-	putative phage repressor, putative phage associated protein
924	 50.00	0	980749..981042	+	97	59801397	-	NGO1014	-	putative phage associated protein
925	 51.55	0	981023..981313	+	96	59801398	-	NGO1015	-	putative phage associated protein
926	 55.93	0	982212..984008	+	598	59801399	-	NGO1020	-	putative phage associated protein
927	 51.70	0	986456..987631	+	391	59801400	-	NGO1024	-	hypothetical protein
928	 55.19	0	987973..988521	-	182	59801401	-	NGO1025	-	hypothetical protein
929	 53.64	0	988524..990020	-	498	59801402	-	NGO1026	-	putative ferredoxin
930	 52.24	0	990282..990482	-	66	59801403	-	NGO1027	-	hypothetical protein
931	 55.81	0	990554..992533	+	659	59801404	-	NGO1028	-	transketolase
932	 58.03	0	992677..994065	+	462	59801405	fumC	NGO1029	-	fumarate hydratase
933	 55.95	0	994130..995053	-	307	59801406	-	NGO1030	-	hypothetical protein
934	 59.62	+1	995426..995950	-	174	59801407	-	NGO1031	-	putative single-stranded DNA binding protein
935	 57.34	0	995954..997336	-	460	59801408	-	NGO1032	-	hypothetical protein
936	 60.10	+1	997448..998071	-	207	59801409	-	NGO1033	-	putative transglycosylase
937	 52.46	0	998126..998470	+	114	59801410	-	NGO1034	-	hypothetical protein
938	 50.78	0	999363..999746	-	127	59801411	-	NGO1037	-	hypothetical protein
939	 57.06	0	1000964..1001692	+	242	59801412	-	NGO1040	-	hypothetical protein
940	 55.14	0	1001855..1003363	+	502	59801413	-	NGO1041	-	putative exopolyphosphatase
941	 54.43	0	1003525..1003908	+	127	59801414	-	NGO1042	-	hypothetical protein
942	 53.33	0	1003573..1003917	-	114	59801415	-	NGO1043	-	hypothetical protein
943	 54.76	0	1004234..1004779	-	181	59801416	-	NGO1044	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
