IslandPath Analysis: Neisseria gonorrhoeae FA 1090

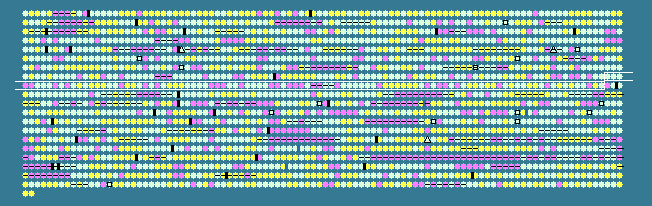

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
798	 50.92	0	853097..855007	+	636	59801271	-	NGO0870	-	AbcZ
799	 51.21	0	855029..855358	+	109	59801272	-	NGO0871	-	hypothetical protein
800	 55.62	0	855507..856982	+	491	59801273	-	NGO0872	-	anthranilate synthase component I
801	 47.39	0	857066..858004	+	312	59801274	-	NGO0873	-	DNA modification methylase M.NGOI
802	 43.67	-1	858005..858865	+	286	59801275	-	NGO0874	-	type II DNA restriction endonuclease R.NGOI
803	 55.50	0	858882..860018	+	378	59801276	-	NGO0875	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
804	 51.35	0	860065..860547	+	160	59801277	-	NGO0876	-	hypothetical protein
805	 50.98	0	861698..861901	+	67	59801278	-	NGO0878	-	hypothetical protein
806	 43.75	-1	861993..862184	-	63	59801279	-	NGO0879	-	hypothetical protein
807	 49.67	0	862282..862887	+	201	59801280	-	NGO0880	-	hypothetical protein
808	 48.30	0	863630..864451	-	273	59801281	-	NGO0881	-	putative ORF B of IS150
809	 49.85	0	864823..865149	+	108	59801282	-	NGO0883	-	hypothetical protein
810	 56.37	0	865171..865578	+	135	59801283	-	NGO0884	-	hypothetical protein
811	 54.39	0	865554..865724	-	56	59801284	-	NGO0885	-	putative rubredoxin
812	 58.54	0	865857..866939	-	360	59801285	-	NGO0886	-	putative acyl-CoA dehydrogenase
813	 57.92	0	867077..867625	-	182	59801286	-	NGO0887	-	hypothetical protein
814	 60.54	+1	867765..868025	-	86	59801287	-	NGO0888	-	hypothetical protein
815	 50.62	0	868110..868271	+	53	59801288	-	NGO0889	-	hypothetical protein
816	 55.14	0	868321..870012	-	563	59801289	-	NGO0890	-	D-lactate dehydrogenase
817	 46.19	0	870109..870528	-	139	59801290	-	NGO0891	-	hypothetical protein
818	 56.74	0	870645..870926	+	93	59801291	-	NGO0892	-	hypothetical protein
819	 56.91	0	871108..874941	+	1277	59801292	-	NGO0893	-	putative oxidoreductase
820	 54.49	0	875018..876019	+	333	59801293	-	NGO0894	-	hypothetical protein
821	 49.18	0	876080..876262	-	60	59801294	-	NGO0895	-	hypothetical protein
822	 50.00	0	876435..876566	-	43	59801295	-	NGO0896	-	hypothetical protein
823	 45.45	-1	876614..876778	+	54	59801296	-	NGO0897	-	hypothetical protein
824	 53.25	0	878296..878772	-	158	59801297	-	NGO0899	-	hypothetical protein
825	 58.14	0	879163..880464	+	433	59801298	-	NGO0900	-	3-phosphoshikimate 1-carboxyvinyltransferase
826	 58.80	0	880542..881075	-	177	59801299	-	NGO0901	-	putative lipoprotein
827	 57.16	0	881132..882709	-	525	59801300	-	NGO0902	-	putative phopholipase D-family protein
828	 55.44	0	882770..884176	-	468	59801301	-	NGO0903	-	AgrA
829	 53.21	0	884459..885238	+	259	59801302	-	NGO0904	-	hypothetical protein
830	 54.27	0	885235..885936	+	233	59801303	-	NGO0905	-	hypothetical protein
831	 54.36	0	885933..887387	+	484	59801304	-	NGO0906	-	hypothetical protein
832	 47.62	0	887536..887955	-	139	59801305	-	NGO0907	-	FitB
833	 48.10	0	887955..888191	-	78	59801306	-	NGO0908	-	FitA
834	 48.30	0	888397..889218	-	273	59801307	-	NGO0909	-	putative IS150 ORF B
835	 52.30	0	890632..891522	-	296	59801308	-	NGO0912	-	succinyl-CoA synthetase subunit alpha
836	 51.50	0	891533..892699	-	388	59801309	sucC	NGO0913	-	succinyl-CoA synthetase subunit beta
837	 44.79	-1	892771..893058	-	95	59801310	-	NGO0914	-	hypothetical protein
838	 52.72	0	893178..894611	-	477	59801311	-	NGO0915	-	dihydrolipoamide dehydrogenase
839	 51.61	0	894872..896053	-	393	59801312	-	NGO0916	-	dihydrolipoamide acetyltransferase
840	 51.11	0	896153..898981	-	942	59801313	kgd	NGO0917	-	alpha-ketoglutarate decarboxylase
841	 52.57	0	899186..900469	-	427	59801314	gltA	NGO0918	-	type II citrate synthase
842	 43.37	-1	900581..900829	-	82	59801315	-	NGO0919	-	hypothetical protein
843	 48.97	0	900833..901561	-	242	59801316	sdhB	NGO0920	-	succinate dehydrogenase iron-sulfur subunit
844	 52.32	0	901660..903423	-	587	59801317	-	NGO0921	-	putative succinate dehydrogenase flavoprotein subunit
845	 46.78	0	903426..903767	-	113	59801318	-	NGO0922	-	putative succinate dehydrogenase hydrophobic membrane anchor protein
846	 47.62	0	903761..904138	-	125	59801319	-	NGO0923	-	putative fumarate reductase cytochrome b large subunit
847	 39.05	-2	904199..904408	-	69	59801320	-	NGO0924	-	hypothetical protein
848	 54.20	0	904425..905828	-	467	59801321	-	NGO0925	-	dihydrolipoamide dehydrogenase
849	 47.83	0	906077..906814	-	245	59801322	-	NGO0926	-	putative peroxiredoxin family protein/glutaredoxin
850	 42.42	-1	906917..907081	-	54	59801323	-	NGO0927	-	hypothetical protein
851	 52.35	0	907093..909369	-	758	59801324	-	NGO0928	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
852	 52.79	0	909505..910383	-	292	59801325	metF	NGO0929	-	5,10-methylenetetrahydrofolate reductase
853	 45.65	-1	910582..910857	+	91	59801326	rpmE2	NGO0930	-	50S ribosomal protein L31 type B
854	 53.17	0	910857..910982	+	41	59801327	rpmJ	NGO0931	-	50S ribosomal protein L36
855	 49.66	0	911041..911481	+	146	59801328	-	NGO0932	-	hypothetical protein
856	 52.54	0	911429..912568	+	379	59801329	metX	NGO0933	-	homoserine O-acetyltransferase
857	 52.92	0	912565..913146	+	193	59801330	-	NGO0934	-	hypothetical protein
858	 50.62	0	914253..914813	-	186	59801331	-	NGO0936	-	elongation factor P
859	 55.30	0	914856..916007	-	383	59801332	-	NGO0937	-	hypothetical protein
860	 47.57	0	916026..916334	-	102	59801333	-	NGO0938	-	hypothetical protein
861	 58.01	0	916342..916653	-	103	59801334	-	NGO0939	-	hypothetical protein
862	 58.81	0	916655..917596	+	313	59801335	-	NGO0940	-	putative tRNA delta transferase
863	 58.06	0	917600..918319	+	239	59801336	-	NGO0941	-	putative cytosine deaminase
864	 57.87	0	918324..918812	+	162	59801337	-	NGO0942	-	hypothetical protein
865	 59.47	+1	921445..922320	+	291	59801338	dapA	NGO0947	-	dihydrodipicolinate synthase
866	 57.23	0	922329..923525	+	398	59801339	-	NGO0948	-	hypothetical protein
867	 53.27	0	923582..924514	-	310	59801340	-	NGO0949	-	proline iminopeptidase
868	 47.14	0	924507..924803	-	98	59801341	-	NGO0950	-	hypothetical protein
869	 50.45	0	926135..928903	+	922	59801342	-	NGO0952	-	putative TonB-dependent receptor protein
870	 44.91	-1	928934..929149	+	71	59801343	-	NGO0953	-	hypothetical protein
871	 39.33	-2	929779..929928	-	49	59801344	-	NGO0955	-	hypothetical protein
872	 54.43	0	929928..931145	-	405	59801345	-	NGO0956	-	aspartate kinase
873	 44.24	-1	931182..931346	+	54	59801346	-	NGO0957	-	hypothetical protein
874	 55.14	0	931347..932075	-	242	59801347	-	NGO0958	-	putative ribonuclease PH
875	 58.49	0	932157..932621	-	154	59801348	-	NGO0959	-	hypothetical protein
876	 56.89	0	932839..933615	+	258	59801349	-	NGO0960	-	hypothetical protein
877	 55.91	0	933860..934714	+	284	59801350	-	NGO0961	-	hypothetical protein
878	 57.14	0	934704..935963	+	419	59801351	-	NGO0962	-	nicotinate phosphoribosyltransferase
879	 56.89	0	936055..937773	+	572	59801352	argS	NGO0963	-	arginyl-tRNA synthetase
880	 47.13	0	939735..939995	+	86	59801353	-	NGO0967	-	hypothetical protein
881	 55.42	0	940182..940928	-	248	59801354	-	NGO0968	-	putative ABC transporter, permease protein, amino acid
882	 56.55	0	941107..941808	-	233	59801355	-	NGO0969	-	hypothetical protein
883	 53.87	0	941847..942518	-	223	59801356	-	NGO0970	-	ribose-5-phosphate isomerase A
884	 56.11	0	942595..943077	-	160	59801357	ispF	NGO0971	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
885	 57.25	0	943109..943798	-	229	59801358	-	NGO0972	-	hypothetical protein
886	 57.82	0	943795..944529	-	244	59801359	-	NGO0973	-	putative DNA polymerase III, epsilon chain
887	 53.55	0	944685..945995	-	436	59801360	-	NGO0974	-	hypothetical protein
888	 43.55	-1	945985..946170	-	61	59801361	-	NGO0975	-	FixS
889	 49.33	0	946170..946469	-	99	59801362	-	NGO0976	-	hypothetical protein
890	 57.54	0	946790..948016	+	408	59801363	-	NGO0977	-	putative acetate kinase
891	 55.75	0	948529..950370	-	613	59801364	dipZ	NGO0978	-	thiol:disulfide interchange protein precursor
892	 58.17	0	950461..950931	+	156	59801365	-	NGO0979	-	hypothetical protein
893	 54.83	0	951004..951831	-	275	59801366	-	NGO0980	-	putative transferase
894	 53.21	0	951903..952385	-	160	59801367	-	NGO0981	-	putative peptidyl-prolyl cis-trans isomerase
895	 36.84	-2	952514..952798	+	94	59801368	-	NGO0982	-	hypothetical protein
896	 61.05	+1	952858..953124	+	88	59801369	-	NGO0983	-	Lip
897	 52.63	0	953234..954601	+	455	59801370	-	NGO0984	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
