IslandPath Analysis: Neisseria gonorrhoeae FA 1090

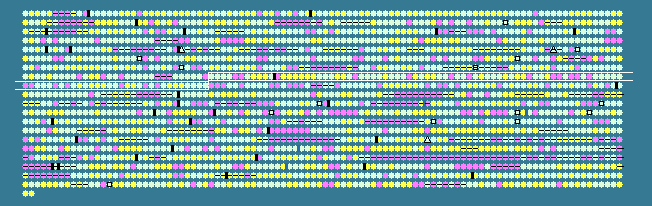

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
732	 51.45	0	782338..782613	+	91	59801205	-	NGO0791	-	hypothetical protein
733	 55.15	0	782666..783238	+	190	59801206	-	NGO0792	-	putative lipoate-protein ligase
734	 53.86	0	783231..784214	+	327	59801207	-	NGO0793	-	lipoyl synthase
735	 52.69	0	784689..785153	+	154	59801208	-	NGO0794	-	BfrA
736	 46.84	0	785181..785654	+	157	59801209	-	NGO0795	-	BfrB
737	 46.77	0	785742..786314	-	190	59801210	-	NGO0796	-	hypothetical protein
738	 55.03	0	785985..786302	+	105	59801211	-	NGO0797	-	putative transcriptional regulator
739	 57.87	0	786351..788909	+	852	59801212	-	NGO0798	-	putative uridylyltransferase
740	 57.10	0	789056..790519	+	487	59801213	-	NGO0799	-	inositol-5-monophosphate dehydrogenase
741	 57.03	0	790591..790839	-	82	59801214	-	NGO0800	-	hypothetical protein
742	 53.03	0	790855..793230	-	791	59801215	-	NGO0801	-	putative ribonuclease
743	 45.19	-1	793665..793934	+	89	59801216	-	NGO0802	-	hypothetical protein
744	 57.12	0	793931..795742	-	603	59801217	-	NGO0803	-	putative GTP-binding protein
745	 59.60	+1	795859..796749	-	296	59801218	-	NGO0804	-	hypothetical protein
746	 56.87	0	796889..797470	+	193	59801219	-	NGO0805	-	hypothetical protein
747	 58.82	0	797898..798980	+	360	59801220	-	NGO0806	-	hypothetical protein
748	 58.55	0	802735..804594	+	619	59801221	-	NGO0809	-	dihydroxy-acid dehydratase
749	 58.42	0	804636..804938	+	100	59801222	-	NGO0810	-	hypothetical protein
750	 54.30	0	804781..805686	-	301	59801223	-	NGO0811	-	hypothetical protein
751	 52.91	0	805132..805749	+	205	59801224	-	NGO0812	-	hypothetical protein
752	 55.94	0	805845..806897	-	350	59801225	-	NGO0813	-	putative biotin synthase
753	 58.17	0	806915..807067	-	50	59801226	-	NGO0814	-	hypothetical protein
754	 58.32	0	807104..808480	-	458	59801227	-	NGO0815	-	putative UDP-N-acetylmuramate: L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
755	 51.63	0	808542..808847	-	101	59801228	-	NGO0816	-	hypothetical protein
756	 46.46	0	809472..809669	-	65	59801229	-	NGO0818	-	hypothetical protein
757	 53.44	0	809679..810464	-	261	59801230	-	NGO0819	-	putative RNA methyltransferase
758	 52.54	0	810538..811818	-	426	59801231	-	NGO0820	-	hypothetical protein
759	 52.60	0	811916..812875	-	319	59801232	-	NGO0821	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
760	 52.74	0	813087..813488	+	133	59801233	-	NGO0822	-	hypothetical protein
761	 57.58	0	813556..813753	-	65	59801234	-	NGO0823	-	hypothetical protein
762	 55.56	0	814566..814907	-	113	59801235	-	NGO0825	-	putative ferredoxin
763	 51.52	0	814963..815721	-	252	59801236	-	NGO0826	-	hypothetical protein
764	 49.47	0	815760..816323	-	187	59801237	-	NGO0827	-	hypothetical protein
765	 44.90	-1	816373..816519	-	48	59801238	-	NGO0828	-	hypothetical protein
766	 58.78	0	816596..818458	-	620	59801239	hscA	NGO0829	-	chaperone protein HscA
767	 54.52	0	818629..819501	+	290	59801240	-	NGO0830	-	putative poly-isoprenyl transferase
768	 63.54	+1	819576..820949	+	457	59801241	-	NGO0831	-	putative oxidoreductase
769	 60.14	+1	820972..821691	+	239	59801242	-	NGO0832	-	short chain dehydrogenase
770	 53.87	0	821857..822528	+	223	59801243	-	NGO0834	-	hypothetical protein
771	 54.32	0	822902..823549	+	215	59801244	-	NGO0835	-	GNA1162
772	 43.75	-1	823589..823732	+	47	59801245	-	NGO0836	-	hypothetical protein
773	 54.41	0	825812..826480	+	222	59801246	-	NGO0841	-	hypothetical protein
774	 55.01	0	826477..827145	+	222	59801247	-	NGO0842	-	hypothetical protein
775	 43.75	-1	827290..827577	-	95	59801248	-	NGO0843	-	hypothetical protein
776	 54.63	0	827592..828488	-	298	59801249	-	NGO0844	-	acetylglutamate kinase
777	 57.56	0	828658..829788	+	376	59801250	-	NGO0845	-	hypothetical protein
778	 54.58	0	829862..830713	+	283	59801251	-	NGO0846	-	prolipoprotein diacylglyceryl transferase
779	 55.51	0	830798..831460	-	220	59801252	-	NGO0847	-	hypothetical protein
780	 55.92	0	831659..833212	-	517	59801253	-	NGO0848	-	2-isopropylmalate synthase
781	 58.27	0	834819..836081	+	420	59801254	proA	NGO0850	-	gamma-glutamyl phosphate reductase
782	 55.70	0	836257..839301	-	1014	59801255	-	NGO0851	-	putative cell-division protein
783	 56.53	0	839467..840147	+	226	59801256	-	NGO0852	-	hypothetical protein
784	 56.94	0	840176..840535	+	119	59801257	-	NGO0853	-	hypothetical protein
785	 31.16	-2	840823..840960	-	45	59801258	-	NGO0854	-	hypothetical protein
786	 52.66	0	841711..842067	-	118	59801259	-	NGO0857	-	putative dihydroneopterin aldolase
787	 55.89	0	842123..842725	+	200	59801260	-	NGO0858	-	hypothetical protein
788	 57.21	0	842817..843662	+	281	59801261	-	NGO0859	-	hypothetical protein
789	 48.58	0	843668..844126	+	152	59801262	-	NGO0860	-	hypothetical protein
790	 46.59	0	844152..844400	-	82	59801263	-	NGO0861	-	hypothetical protein
791	 53.54	0	844641..845615	+	324	59801264	-	NGO0862	-	fructose-1,6-bisphosphatase
792	 47.03	0	845774..845992	-	72	59801265	-	NGO0863	-	hypothetical protein
793	 39.92	-1	848531..848773	+	80	59801266	-	NGO0865	-	hypothetical protein
794	 54.20	0	848840..850090	+	416	59801267	-	NGO0866	-	serine hydroxymethyltransferase
795	 43.08	-1	850163..850552	-	129	59801268	-	NGO0867	-	hypothetical protein
796	 49.49	0	851492..852283	+	263	59801269	-	NGO0868	-	OpcA
797	 51.63	0	852434..853078	+	214	59801270	-	NGO0869	-	hypothetical protein
798	 50.92	0	853097..855007	+	636	59801271	-	NGO0870	-	AbcZ
799	 51.21	0	855029..855358	+	109	59801272	-	NGO0871	-	hypothetical protein
800	 55.62	0	855507..856982	+	491	59801273	-	NGO0872	-	anthranilate synthase component I
801	 47.39	0	857066..858004	+	312	59801274	-	NGO0873	-	DNA modification methylase M.NGOI
802	 43.67	-1	858005..858865	+	286	59801275	-	NGO0874	-	type II DNA restriction endonuclease R.NGOI
803	 55.50	0	858882..860018	+	378	59801276	-	NGO0875	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
804	 51.35	0	860065..860547	+	160	59801277	-	NGO0876	-	hypothetical protein
805	 50.98	0	861698..861901	+	67	59801278	-	NGO0878	-	hypothetical protein
806	 43.75	-1	861993..862184	-	63	59801279	-	NGO0879	-	hypothetical protein
807	 49.67	0	862282..862887	+	201	59801280	-	NGO0880	-	hypothetical protein
808	 48.30	0	863630..864451	-	273	59801281	-	NGO0881	-	putative ORF B of IS150
809	 49.85	0	864823..865149	+	108	59801282	-	NGO0883	-	hypothetical protein
810	 56.37	0	865171..865578	+	135	59801283	-	NGO0884	-	hypothetical protein
811	 54.39	0	865554..865724	-	56	59801284	-	NGO0885	-	putative rubredoxin
812	 58.54	0	865857..866939	-	360	59801285	-	NGO0886	-	putative acyl-CoA dehydrogenase
813	 57.92	0	867077..867625	-	182	59801286	-	NGO0887	-	hypothetical protein
814	 60.54	+1	867765..868025	-	86	59801287	-	NGO0888	-	hypothetical protein
815	 50.62	0	868110..868271	+	53	59801288	-	NGO0889	-	hypothetical protein
816	 55.14	0	868321..870012	-	563	59801289	-	NGO0890	-	D-lactate dehydrogenase
817	 46.19	0	870109..870528	-	139	59801290	-	NGO0891	-	hypothetical protein
818	 56.74	0	870645..870926	+	93	59801291	-	NGO0892	-	hypothetical protein
819	 56.91	0	871108..874941	+	1277	59801292	-	NGO0893	-	putative oxidoreductase
820	 54.49	0	875018..876019	+	333	59801293	-	NGO0894	-	hypothetical protein
821	 49.18	0	876080..876262	-	60	59801294	-	NGO0895	-	hypothetical protein
822	 50.00	0	876435..876566	-	43	59801295	-	NGO0896	-	hypothetical protein
823	 45.45	-1	876614..876778	+	54	59801296	-	NGO0897	-	hypothetical protein
824	 53.25	0	878296..878772	-	158	59801297	-	NGO0899	-	hypothetical protein
825	 58.14	0	879163..880464	+	433	59801298	-	NGO0900	-	3-phosphoshikimate 1-carboxyvinyltransferase
826	 58.80	0	880542..881075	-	177	59801299	-	NGO0901	-	putative lipoprotein
827	 57.16	0	881132..882709	-	525	59801300	-	NGO0902	-	putative phopholipase D-family protein
828	 55.44	0	882770..884176	-	468	59801301	-	NGO0903	-	AgrA
829	 53.21	0	884459..885238	+	259	59801302	-	NGO0904	-	hypothetical protein
830	 54.27	0	885235..885936	+	233	59801303	-	NGO0905	-	hypothetical protein
831	 54.36	0	885933..887387	+	484	59801304	-	NGO0906	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
