IslandPath Analysis: Neisseria gonorrhoeae FA 1090

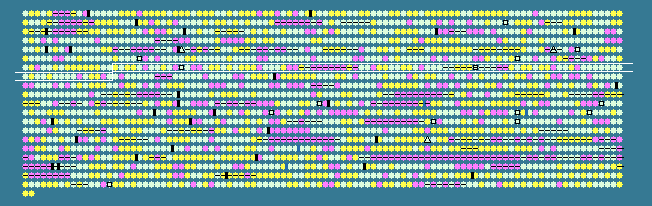

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
616	 58.30	0	653182..654627	-	481	59801089	-	NGO0662	-	putative Glu-tRNA(Gln) amidotransferase subunit
617	 53.95	0	654690..654980	-	96	59801090	gatC	NGO0663	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
618	 57.03	0	655130..655783	+	217	59801091	-	NGO0664	-	hypothetical protein
619	 57.89	0	655788..657131	+	447	59801092	-	NGO0665	-	putative aldehyde dehydrogenase
620	 49.42	0	657180..657608	-	142	59801093	-	NGO0666	-	hypothetical protein
621	 41.40	-1	657753..657938	-	61	59801094	-	NGO0667	-	hypothetical protein
622	 55.61	0	657954..659210	-	418	59801095	-	NGO0668	-	putative SUN-family protein
623	 54.83	0	659246..660115	-	289	59801096	-	NGO0669	-	hypothetical protein
624	 58.58	0	660156..660971	-	271	59801097	-	NGO0670	-	putative methylase family protein
625	 52.42	0	661215..662000	+	261	59801098	-	NGO0671	-	hypothetical protein
626	 43.23	-1	662118..662309	+	63	59801099	-	NGO0672	-	hypothetical protein
627	 55.50	0	662306..662959	+	217	59801100	-	NGO0673	-	IS1016 transposase
628	 55.00	0	662987..664057	-	356	59801101	-	NGO0674	-	3-isopropylmalate dehydrogenase
629	 37.16	-2	664091..664822	-	243	59801102	-	NGO0675	-	putative type II restriction endonuclease NlaIV
630	 40.02	-1	664838..666109	-	423	59801103	-	NGO0676	-	putative DNA modification methylase (N.MgoV)
631	 54.36	0	666276..666917	-	213	59801104	leuD	NGO0677	-	isopropylmalate isomerase small subunit
632	 57.65	0	666979..667233	-	84	59801105	-	NGO0678	-	hypothetical protein
633	 58.23	0	667328..668737	-	469	59801106	-	NGO0679	-	isopropylmalate isomerase large subunit
634	 54.10	0	669169..670338	+	389	59801107	-	NGO0680	-	hypothetical protein
635	 56.34	0	670461..671138	+	225	59801108	radC	NGO0681	-	DNA repair protein RadC
636	 53.31	0	671211..671936	+	241	59801109	-	NGO0682	-	hypothetical protein
637	 56.83	0	672088..673368	+	426	59801110	-	NGO0683	-	hypothetical protein
638	 57.39	0	673443..674552	+	369	59801111	-	NGO0684	-	putative GTP binding protein
639	 59.10	0	674549..677005	+	818	59801112	-	NGO0685	-	putative P-type cation-transporting ATPase
640	 30.72	-2	677179..677331	+	50	59801113	-	NGO0686	-	hypothetical protein
641	 52.77	0	677673..678449	-	258	59801114	-	NGO0687	-	putative ferredoxin-NADP reductase
642	 56.10	0	678637..679431	-	264	59801115	-	NGO0688	-	hypothetical protein
643	 54.47	0	679478..680887	-	469	59801116	-	NGO0689	-	threonine synthase
644	 57.18	0	680960..681328	-	122	59801117	-	NGO0690	-	hypothetical protein
645	 45.93	-1	684226..684741	-	171	59801118	-	NGO0693	-	hypothetical protein
646	 41.58	-1	684728..687346	-	872	59801119	-	NGO0694	-	hypothetical protein
647	 58.20	0	688651..689961	+	436	59801120	-	NGO0696	-	recombination factor protein RarA
648	 49.42	0	690060..693086	+	1008	59801121	-	NGO0697	-	putative type I restriction enzyme
649	 44.87	-1	693136..693369	+	77	59801122	-	NGO0698	-	hypothetical protein
650	 37.07	-2	693416..694618	+	400	59801123	-	NGO0699	-	hypothetical protein
651	 27.81	-2	694611..695171	+	186	59801124	-	NGO0700	-	hypothetical protein
652	 27.05	-2	695182..696024	+	280	59801125	-	NGO0701	-	hypothetical protein
653	 44.26	-1	696091..697692	+	533	59801126	-	NGO0702	-	hypothetical protein
654	 41.85	-1	697719..697988	-	89	59801127	-	NGO0703	-	hypothetical protein
655	 58.79	0	698003..699094	-	363	59801128	-	NGO0704	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
656	 39.84	-1	708430..708798	+	122	59801129	-	NGO0709	-	hypothetical protein
657	 54.10	0	709174..710223	-	349	59801130	-	NGO0710	-	putative adenine glycosylase
658	 52.21	0	710377..711393	+	338	59801131	-	NGO0711	-	putative alcohol dehydrogenase
659	 41.94	-1	711637..711822	+	61	59801132	-	NGO0712	-	hypothetical protein
660	 60.72	+1	712011..712649	-	212	59801133	-	NGO0713	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
661	 58.01	0	712859..714694	-	611	59801134	-	NGO0714	-	phosphogluconate dehydratase
662	 53.04	0	715214..716659	+	481	59801135	-	NGO0715	-	glucose-6-phosphate 1-dehydrogenase
663	 53.02	0	716811..717506	+	231	59801136	-	NGO0716	-	hypothetical protein
664	 57.95	0	717487..718473	+	328	59801137	glk	NGO0717	-	glucokinase
665	 56.42	0	718522..719370	+	282	59801138	-	NGO0718	-	RpiR family transcriptional regulator
666	 55.19	0	719596..721242	+	548	59801139	pgi	NGO0719	-	glucose-6-phosphate isomerase
667	 47.06	0	721256..721459	+	67	59801140	-	NGO0720	-	putative phage associated protein
668	 50.20	0	721459..722472	+	337	59801141	-	NGO0721	-	putative phage associated protein
669	 51.06	0	722517..722657	+	46	59801142	-	NGO0722	-	putative phage associated protein
670	 54.62	0	722896..723144	+	82	59801143	-	NGO0723	-	putative phage associated protein
671	 52.85	0	723086..723208	+	40	59801144	-	NGO0724	-	putative phage associated protein
672	 55.34	0	723158..723466	-	102	59801145	-	NGO0725	-	putative phage associated protein
673	 62.11	+1	726767..727315	-	182	59801146	-	NGO0727	-	putative baseplate protein, putative phage associated protein
674	 60.47	+1	727336..728238	-	300	59801147	-	NGO0728	-	putative phage associated protein
675	 57.28	0	728344..728556	-	70	59801148	-	NGO0729	-	putative phage associated protein
676	 54.74	0	728611..729264	-	217	59801149	-	NGO0730	-	IS1016 transposase
677	 54.74	0	729286..729570	-	94	59801150	-	NGO0731	-	putative phage associated protein
678	 49.62	0	729607..729870	-	87	59801151	-	NGO0732	-	putative phage associated protein
679	 52.69	0	731378..732157	-	259	59801152	-	NGO0734	-	putative oxidoreductase
680	 35.22	-2	732156..732314	+	52	59801153	-	NGO0735	-	hypothetical protein
681	 19.87	-2	732449..732745	-	98	59801154	-	NGO0736	-	hypothetical protein
682	 57.03	0	733057..734115	+	352	59801155	-	NGO0738	-	putative DNA-damage-inducibile protein
683	 53.08	0	734185..736200	-	671	59801156	-	NGO0739	-	putative ATP-dependent DNA helicase
684	 59.22	0	736220..736984	-	254	59801157	aroD	NGO0740	-	3-dehydroquinate dehydratase
685	 56.16	0	737184..738230	+	348	59801158	recA	NGO0741	-	recombinase A
686	 53.87	0	738883..739218	-	111	59801159	-	NGO0742	-	hypothetical protein
687	 59.23	0	739299..741422	-	707	59801160	-	NGO0743	-	DNA polymerase III subunits gamma and tau
688	 58.78	0	741517..743493	-	658	59801161	mutL	NGO0744	-	DNA mismatch repair protein
689	 42.47	-1	743637..743822	+	61	59801162	-	NGO0745	-	hypothetical protein
690	 54.56	0	743833..744501	+	222	59801163	-	NGO0746	-	putative O-methyltransferase
691	 53.78	0	744501..745214	+	237	59801164	-	NGO0747	-	hypothetical protein
692	 56.58	0	745262..745747	+	161	59801165	-	NGO0748	-	putative phosphoribosylaminoimidazole carboxylase catalytic subunit
693	 45.65	-1	747669..748577	+	302	59801166	-	NGO0751	-	hypothetical protein
694	 55.86	0	748733..749389	-	218	59801167	-	NGO0752	-	NarL/NarP
695	 53.73	0	749386..751155	-	589	59801168	-	NGO0753	-	NarX/NarQ
696	 53.33	0	751362..751976	+	204	59801169	-	NGO0754	-	putative molybdopterin-guanine dinucleotide biosynthesis protein
697	 53.72	0	752139..752756	+	205	161572975	-	NGO0755	-	riboflavin synthase subunit alpha
698	 54.40	0	752764..753627	+	287	59801171	-	NGO0756	-	hypothetical protein
699	 54.25	0	753640..754074	-	144	59801172	-	NGO0757	-	hypothetical protein
700	 54.55	0	754220..754912	+	230	59801173	-	NGO0758	-	putative ribulose-phosphate 3-epimerase
701	 49.66	0	755001..755147	-	48	59801174	-	NGO0759	-	hypothetical protein
702	 61.05	+1	755151..756182	-	343	59801175	ruvB	NGO0760	-	Holliday junction DNA helicase B
703	 53.07	0	756266..756574	-	102	59801176	-	NGO0761	-	hypothetical protein
704	 55.32	0	756606..756746	+	46	59801177	-	NGO0762	-	hypothetical protein
705	 59.77	+1	756992..758224	-	410	59801178	cca	NGO0763	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
706	 52.85	0	758303..759931	-	542	59801179	-	NGO0764	-	putative ABC-transporter, ATP-binding protein
707	 53.33	0	760081..760455	+	124	59801180	-	NGO0765	-	hypothetical protein
708	 52.63	0	760504..762042	+	512	59801181	-	NGO0766	-	putative peptidyl-prolyl cis-trans isomerase
709	 54.85	0	762109..762726	+	205	59801182	-	NGO0767	-	putative recombination protein
710	 45.63	-1	762907..763158	-	83	59801183	-	NGO0768	-	hypothetical protein
711	 55.37	0	763287..764534	+	415	59801184	-	NGO0769	-	LolC
712	 57.90	0	764527..765222	+	231	59801185	-	NGO0770	-	hypothetical protein
713	 56.76	0	765289..767034	+	581	59801186	-	NGO0771	-	putative exodeoxyribonuclease V alpha subunit
714	 46.71	0	767722..768723	+	333	59801187	-	NGO0773	-	Irg1
715	 52.46	0	768871..769440	+	189	59801188	-	NGO0774	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
