IslandPath Analysis: Neisseria gonorrhoeae FA 1090

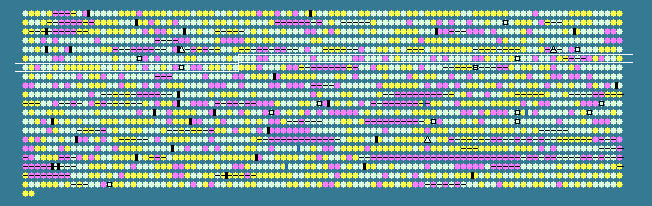

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
537	 55.60	0	565941..568118	-	725	59801010	-	NGO0579	-	putative transport ATPase
538	 54.68	0	568257..569207	+	316	59801011	-	NGO0580	-	putative thioredoxin reductase
539	 49.59	0	569363..569731	+	122	59801012	rpsF	NGO0581	-	30S ribosomal protein S6
540	 45.87	-1	569732..570034	+	100	59801013	-	NGO0582	-	PriB
541	 44.16	-1	570041..570271	+	76	59801014	rpsR	NGO0583	-	30S ribosomal protein S18
542	 51.66	0	570288..570740	+	150	59801015	rplI	NGO0584	-	50S ribosomal protein L9
543	 55.14	0	571363..572169	-	268	59801016	-	NGO0585	-	hypothetical protein
544	 55.56	0	572170..572916	-	248	59801017	-	NGO0586	-	putative phosphatidylserine synthase
545	 50.92	0	572971..573243	-	90	59801018	-	NGO0587	-	hypothetical protein
546	 52.38	0	573500..573982	+	160	59801019	-	NGO0588	-	hypothetical protein
547	 55.94	0	574029..575240	-	403	59801020	-	NGO0589	-	putative ABC transporter, permease protein
548	 55.06	0	575669..577900	+	743	59801021	-	NGO0590	-	putative ftsK-like cell division/stress response protein
549	 48.63	0	578772..580085	+	437	59801022	tig	NGO0592	-	trigger factor
550	 50.24	0	580181..580795	+	204	59801023	-	NGO0593	-	putative endopeptidase
551	 51.11	0	580849..582114	-	421	59801024	ispG	NGO0594	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
552	 51.44	0	582130..582891	-	253	59801025	-	NGO0595	-	hypothetical protein
553	 50.32	0	582894..583988	-	364	59801026	-	NGO0596	-	hypothetical protein
554	 51.60	0	584132..584443	-	103	59801027	-	NGO0597	-	putative nucleoside diphosphate kinase
555	 52.17	0	584616..585767	-	383	59801028	-	NGO0598	-	hypothetical protein
556	 46.59	0	586297..587043	-	248	59801029	-	NGO0600	-	putative esterase D
557	 39.46	-2	588393..588800	+	135	59801030	-	NGO0602	-	MerR family transcriptional regulator
558	 51.18	0	588996..589292	-	98	59801031	-	NGO0603	-	IhfB
559	 50.89	0	589321..591006	-	561	59801032	rpsA	NGO0604	-	30S ribosomal protein S1
560	 54.79	0	591159..591815	-	218	59801033	-	NGO0605	-	putative cytidylate kinase
561	 49.09	0	592048..593418	-	456	59801034	-	NGO0606	-	putative sodium-dependent transport protein
562	 51.23	0	593892..594584	-	230	59801035	-	NGO0607	-	hypothetical protein
563	 57.06	0	594652..596628	-	658	59801036	-	NGO0608	-	putative murein transglycosylase / nitrite reductase transcriptional regulator
564	 55.11	0	596807..597472	+	221	59801037	-	NGO0609	-	hypothetical protein
565	 55.43	0	597525..598352	+	275	59801038	-	NGO0610	-	formamidopyrimidine-DNA glycosylase
566	 55.47	0	598440..599207	+	255	59801039	-	NGO0611	-	1-acyl-SN-glycerol-3-phosphate acyltransferase
567	 54.17	0	599470..599781	-	103	59801040	-	NGO0613	-	hypothetical protein
568	 52.59	0	600312..602591	+	759	59801041	-	NGO0614	-	ribonucleotide-diphosphate reductase subunit alpha
569	 47.71	0	602904..604037	+	377	161572976	nrdB	NGO0615	-	ribonucleotide-diphosphate reductase subunit beta
570	 55.33	0	604158..604448	+	96	59801043	-	NGO6151	-	hypothetical protein
571	 48.75	0	604489..604767	-	92	59801044	-	NGO0616	-	hypothetical protein
572	 53.85	0	604935..606221	-	428	59801045	eno	NGO0617	-	phosphopyruvate hydratase
573	 54.20	0	606268..606708	-	146	59801046	-	NGO0618	-	hypothetical protein
574	 51.60	0	606723..607565	-	280	59801047	-	NGO0619	-	2-dehydro-3-deoxyphosphooctonate aldolase
575	 51.82	0	607587..607970	-	127	59801048	-	NGO0620	-	aspartate alpha-decarboxylase
576	 47.85	0	608132..608434	-	100	59801049	-	NGO0621	-	hypothetical protein
577	 47.50	0	608468..608587	-	39	59801050	-	NGO0622	-	hypothetical protein
578	 57.60	0	608660..612364	-	1234	59801051	-	NGO0623	-	putative transcription-repair coupling factor
579	 55.60	0	612423..613976	+	517	59801052	-	NGO0624	-	putative oxidoreductase
580	 56.63	0	613967..614215	+	82	59801053	-	NGO0625	-	hypothetical protein
581	 54.58	0	614124..615215	+	363	59801054	-	NGO0626	-	putative murein hydrolase
582	 56.40	0	615338..617344	-	668	59801055	-	NGO0627	-	Gcr
583	 55.05	0	617567..618220	+	217	59801056	-	NGO0628	-	IS1016 transposase
584	 54.85	0	618439..621189	-	916	59801057	-	NGO0629	-	DNA gyrase subunit A
585	 53.39	0	621287..621640	-	117	59801058	-	NGO0630	-	putative chaperone protein HscB
586	 44.67	-1	621689..621838	+	49	59801059	-	NGO0631	-	hypothetical protein
587	 50.16	0	622050..622370	-	106	59801060	-	NGO0632	-	hypothetical protein
588	 53.49	0	622457..622843	-	128	59801061	-	NGO0633	-	scaffold protein
589	 25.09	-2	623656..623946	-	96	59801062	-	NGO0635	-	hypothetical protein
590	 57.04	0	623952..625166	-	404	59801063	-	NGO0636	-	putative NifS-like aminotransferase
591	 57.72	0	625195..625641	-	148	59801064	-	NGO0637	-	hypothetical protein
592	 41.56	-1	625640..625870	+	76	59801065	-	NGO0638	-	hypothetical protein
593	 53.03	0	625991..627163	+	390	59801066	-	NGO0639	-	putative L-lactate dehydrogenase
594	 37.87	-2	627312..630086	-	924	59801067	-	NGO0640	-	RmsR
595	 37.65	-2	630076..632346	-	756	59801068	-	NGO0641	-	putative type III restriction/modification system modification methylase
596	 56.68	0	632563..633483	-	306	59801069	-	NGO0642	-	putative tRNA pseudouridine synthase B
597	 39.19	-2	633541..634086	-	181	59801070	-	NGO0643	-	hypothetical protein
598	 53.23	0	634076..634447	-	123	59801071	rbfA	NGO0644	-	ribosome-binding factor A
599	 54.06	0	634630..635874	+	414	59801072	clpX	NGO0645	-	ATP-dependent protease ATP-binding subunit
600	 57.54	0	635981..637174	-	397	59801073	argD	NGO0646	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
601	 55.09	0	637578..638078	+	166	59801074	-	NGO0647	-	hypothetical protein
602	 61.44	+1	638163..638717	+	184	59801075	-	NGO0648	-	hypothetical protein
603	 48.76	0	638731..638931	+	66	59801076	-	NGO0649	-	hypothetical protein
604	 55.58	0	639282..640670	-	462	59801077	-	NGO0650	-	putative ATP-dependent RNA helicase
605	 51.64	0	640881..641945	+	354	59801078	-	NGO0651	-	hypothetical protein
606	 56.46	0	641997..642329	-	110	59801079	-	NGO0652	-	putative thioredoxin I
607	 53.80	0	642627..643100	+	157	59801080	-	NGO0653	-	hypothetical protein
608	 57.79	0	643171..643992	-	273	59801081	-	NGO0654	-	putative NH(3)-dependent NAD synthetase
609	 58.41	0	644189..645544	+	451	59801082	xseA	NGO0655	-	exodeoxyribonuclease VII large subunit
610	 57.39	0	646046..647587	+	513	59801083	-	NGO0656	-	putative membrane transporter
611	 58.59	0	647646..648698	-	350	59801084	-	NGO0657	-	hypothetical protein
612	 58.29	0	648916..649548	+	210	59801085	-	NGO0658	-	pyridoxamine 5'-phosphate oxidase
613	 56.18	0	649678..650688	-	336	59801086	-	NGO0659	-	putative iron/sulphur-binding oxidoreductase
614	 54.86	0	650780..652210	-	476	59801087	gatB	NGO0660	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
615	 51.23	0	652253..653185	-	310	59801088	-	NGO0661	-	hypothetical protein
616	 58.30	0	653182..654627	-	481	59801089	-	NGO0662	-	putative Glu-tRNA(Gln) amidotransferase subunit
617	 53.95	0	654690..654980	-	96	59801090	gatC	NGO0663	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
618	 57.03	0	655130..655783	+	217	59801091	-	NGO0664	-	hypothetical protein
619	 57.89	0	655788..657131	+	447	59801092	-	NGO0665	-	putative aldehyde dehydrogenase
620	 49.42	0	657180..657608	-	142	59801093	-	NGO0666	-	hypothetical protein
621	 41.40	-1	657753..657938	-	61	59801094	-	NGO0667	-	hypothetical protein
622	 55.61	0	657954..659210	-	418	59801095	-	NGO0668	-	putative SUN-family protein
623	 54.83	0	659246..660115	-	289	59801096	-	NGO0669	-	hypothetical protein
624	 58.58	0	660156..660971	-	271	59801097	-	NGO0670	-	putative methylase family protein
625	 52.42	0	661215..662000	+	261	59801098	-	NGO0671	-	hypothetical protein
626	 43.23	-1	662118..662309	+	63	59801099	-	NGO0672	-	hypothetical protein
627	 55.50	0	662306..662959	+	217	59801100	-	NGO0673	-	IS1016 transposase
628	 55.00	0	662987..664057	-	356	59801101	-	NGO0674	-	3-isopropylmalate dehydrogenase
629	 37.16	-2	664091..664822	-	243	59801102	-	NGO0675	-	putative type II restriction endonuclease NlaIV
630	 40.02	-1	664838..666109	-	423	59801103	-	NGO0676	-	putative DNA modification methylase (N.MgoV)
631	 54.36	0	666276..666917	-	213	59801104	leuD	NGO0677	-	isopropylmalate isomerase small subunit
632	 57.65	0	666979..667233	-	84	59801105	-	NGO0678	-	hypothetical protein
633	 58.23	0	667328..668737	-	469	59801106	-	NGO0679	-	isopropylmalate isomerase large subunit
634	 54.10	0	669169..670338	+	389	59801107	-	NGO0680	-	hypothetical protein
635	 56.34	0	670461..671138	+	225	59801108	radC	NGO0681	-	DNA repair protein RadC
636	 53.31	0	671211..671936	+	241	59801109	-	NGO0682	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
