IslandPath Analysis: Neisseria gonorrhoeae FA 1090

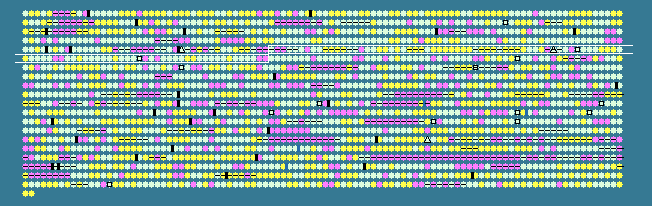

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
442	 51.83	0	463011..463448	-	145	59800915	-	NGO0477	-	putative phage associated protein
443	 44.06	-1	463489..463926	-	145	59800916	-	NGO0478	-	putative phage associated protein
444	 48.26	0	464039..464755	-	238	59800917	-	NGO0479	-	putative lambda repressor protein cI, putative phage associated protein
445	 49.36	0	465140..465295	+	51	59800918	-	NGO0480	-	putative phage associated protein
446	 49.21	0	465272..465460	-	62	59800919	-	NGO0481	-	putative phage associated protein
447	 52.89	0	465465..465827	-	120	59800920	-	NGO0482	-	putative phage associated protein
448	 46.05	-1	465633..465860	+	75	59800921	-	NGO0483	-	putative phage associated protein
449	 52.11	0	465978..467042	+	354	59800922	-	NGO0484	-	putative phage associated protein
450	 54.63	0	467039..468400	+	453	59800923	-	NGO0485	-	putative replicative DNA helicase, putative phage associated protein
451	 58.95	0	468417..468701	+	94	59800924	-	NGO0486	-	putative phage associated protein
452	 59.60	+1	468740..469234	+	164	59800925	-	NGO0487	-	putative phage associated protein
453	 59.33	+1	469411..469560	+	49	59800926	-	NGO0488	-	putative phage associated protein
454	 64.84	+1	469696..470241	+	181	59800927	-	NGO0489	-	putative phage associated protein
455	 51.28	0	470231..470464	+	77	59800928	-	NGO0490	-	putative phage associated protein
456	 53.19	0	470508..470915	+	135	59800929	-	NGO0491	-	putative phage associated protein
457	 38.66	-2	471138..471644	+	168	59800930	-	NGO0492	-	putative phage associated protein
458	 51.35	0	471965..472186	+	73	59800931	-	NGO0493	-	putative phage associated protein
459	 50.44	0	472479..472928	+	149	59800932	-	NGO0494	-	putative phage associated protein
460	 57.31	0	472990..474411	+	473	59800933	-	NGO0495	-	putative phage associated protein
461	 59.03	0	474408..476555	+	715	59800934	-	NGO0496	-	putative phage associated protein
462	 54.49	0	476623..477780	+	385	59800935	-	NGO0497	-	putative phage associated protein
463	 58.07	0	477821..479320	+	499	59800936	-	NGO0498	-	putative phage associated protein
464	 55.65	0	479327..479689	+	120	59800937	-	NGO0499	-	putative phage associated protein
465	 60.26	+1	479692..480222	+	176	59800938	-	NGO0500	-	putative phage associated protein
466	 58.86	0	480370..480702	+	110	59800939	-	NGO0501	-	putative phage associated protein
467	 58.97	0	480699..481127	+	142	59800940	-	NGO0502	-	putative phage associated protein
468	 53.36	0	481153..481926	+	257	59800941	-	NGO0503	-	putative phage associated protein
469	 57.88	0	481987..482316	+	109	59800942	-	NGO0504	-	putative phage associated protein
470	 58.05	0	482328..482594	+	88	59800943	-	NGO0505	-	putative phage associated protein
471	 57.33	0	482594..483193	+	199	59800944	-	NGO0506	-	putative phage associated protein
472	 60.35	+1	483190..484044	+	284	59800945	-	NGO0507	-	putative phage associated protein
473	 60.42	+1	484046..484477	+	143	59800946	-	NGO0508	-	putative phage associated protein
474	 57.45	0	484505..484786	-	93	59800947	-	NGO0509	-	putative phage associated protein
475	 57.79	0	485026..489171	+	1381	59800948	-	NGO0510	-	putative phage associated protein
476	 54.58	0	489283..489588	+	101	59800949	-	NGO0511	-	hypothetical protein
477	 63.57	+1	489593..490528	-	311	59800950	-	NGO0512	-	putative phage associated protein
478	 60.30	+1	489659..490129	+	156	59800951	-	NGO0513	-	putative phage associated protein
479	 66.97	+2	490130..490462	+	110	59800952	-	NGO0514	-	putative phage associated protein
480	 50.85	0	490591..490824	-	77	59800953	-	NGO0515	-	putative phage associated protein
481	 58.91	0	490832..491179	-	115	59800954	-	NGO0516	-	putative plasmid stable inheritance protein putative phage associated protein
482	 64.14	+1	491179..491415	-	78	59800955	-	NGO0517	-	putative pemI-like protein (PemI), putative phage associated protein
483	 56.85	0	491622..492161	+	179	59800956	-	NGO0518	-	putative phage associated protein
484	 57.68	0	492162..492506	+	114	59800957	-	NGO0519	-	putative phage associated protein
485	 53.85	0	492680..492991	+	103	59800958	-	NGO0520	-	putative phage associated protein
486	 52.00	0	493004..493153	+	49	59800959	-	NGO0521	-	phage associated protein
487	 56.20	0	493183..496230	+	1015	59800960	-	NGO0522	-	putative tail length tape measure protein, putative phage associated protein
488	 48.33	0	496290..496769	-	159	59800961	-	NGO0523	-	putative phage associated protein
489	 53.64	0	497111..498100	-	329	59800962	-	NGO0524	-	putative integrase
490	 49.21	0	498360..498548	-	62	59800963	-	NGO0525	-	hypothetical protein
491	 51.98	0	498789..499823	+	344	59800964	-	NGO0526	-	phosphoribosylaminoimidazole synthetase
492	 33.91	-2	500439..500957	+	172	59800965	-	NGO0527	-	hypothetical protein
493	 55.05	0	500821..501474	+	217	59800966	-	NGO0528	-	IS1016 transposase
494	 52.19	0	501653..503635	+	660	59800967	-	NGO0529	-	putative high-affinity choline transport protein
495	 54.95	0	503725..505278	-	517	59800968	-	NGO0530	-	acyl-CoA synthetase
496	 55.13	0	505291..505446	+	51	59800969	-	NGO0531	-	hypothetical protein
497	 62.06	+1	505529..506722	-	397	59800970	-	NGO0532	-	hypothetical protein
498	 56.30	0	506719..507702	-	327	59800971	-	NGO0533	-	hypothetical protein
499	 56.16	0	507713..509149	-	478	59800972	-	NGO0534	-	putative alginate O-acetylation - like protein
500	 53.60	0	510723..511097	+	124	59800973	-	NGO0537	-	hypothetical protein
501	 57.01	0	512905..514002	+	365	59800974	-	NGO0539	-	hypothetical protein
502	 51.54	0	515356..515811	+	151	59800975	-	NGO0541	-	putative low-molecular weight phosphotyrosine protein phosphatase
503	 52.62	0	515888..516364	+	158	59800976	-	NGO0542	-	hypothetical protein
504	 53.18	0	516352..517278	+	308	59800977	-	NGO0543	-	hypothetical protein
505	 54.48	0	517343..517900	+	185	59800978	-	NGO0544	-	putative peptidyl-prolyl cis-trans isomerase A
506	 47.00	0	518016..520079	+	687	59800979	-	NGO0545	-	putative type III restriction-modification system methyltransferase
507	 48.06	0	520169..523108	+	979	59800980	-	NGO0546	-	putative type III restriction-modification system endonuclease protein
508	 53.75	0	523202..524161	-	319	59800981	-	NGO0547	-	hypothetical protein
509	 55.94	0	524253..525119	-	288	59800982	-	NGO0548	-	hypothetical protein
510	 61.71	+1	525151..525513	-	120	59800983	-	NGO0549	-	hypothetical protein
511	 50.00	0	525588..526067	+	159	59800984	-	NGO0550	-	hypothetical protein
512	 55.70	0	526089..526781	+	230	59800985	-	NGO0551	-	putative dnaJ-family protein
513	 51.60	0	526785..527660	+	291	59800986	-	NGO0552	-	hypothetical protein
514	 54.85	0	527868..531488	+	1206	59800987	-	NGO0553	-	putative TonB-dependent receptor
515	 52.68	0	531770..532720	+	316	59800988	-	NGO0554	-	hypothetical protein
516	 57.23	0	532940..534433	+	497	59800989	-	NGO0555	-	hypothetical protein
517	 53.15	0	534501..535898	-	465	59800990	aspA	NGO0556	-	aspartate ammonia-lyase
518	 51.32	0	535924..536112	-	62	59800991	-	NGO0557	-	hypothetical protein
519	 54.55	0	536176..536736	-	186	59800992	-	NGO0558	-	hypothetical protein
520	 55.35	0	536937..537590	+	217	59800993	-	NGO0559	-	IS1016 transposase
521	 46.62	0	540134..541684	+	516	59800994	-	NGO0561	-	hypothetical protein
522	 55.91	0	542108..543892	-	594	59800995	-	NGO0562	-	putative dihydrolipoamide dehydrogenase
523	 34.36	-2	543910..544200	-	96	59800996	-	NGO0563	-	hypothetical protein
524	 55.79	0	544445..546034	-	529	59800997	-	NGO0564	-	dihydrolipoamide acetyltransferase
525	 54.95	0	546184..548847	-	887	59800998	aceE	NGO0565	-	pyruvate dehydrogenase subunit E1
526	 55.69	0	549544..551256	+	570	59800999	-	NGO0566	-	prolyl-tRNA synthetase
527	 52.51	0	551319..551975	+	218	59801000	-	NGO0567	-	putative hydrolase
528	 58.55	0	551985..552440	-	151	59801001	-	NGO0568	-	Holliday junction resolvase-like protein
529	 56.83	0	552433..552981	-	182	59801002	-	NGO0569	-	hypothetical protein
530	 52.41	0	552983..553543	-	186	59801003	-	NGO0570	-	hypothetical protein
531	 52.25	0	553869..555665	+	598	59801004	-	NGO0571	-	hypothetical protein
532	 53.32	0	555792..557267	+	491	59801005	-	NGO0572	-	putative carboxy-terminal processing protease
533	 55.33	0	557597..559624	+	675	59801006	-	NGO0573	-	excinuclease ABC subunit B
534	 53.75	0	559802..560560	-	252	59801007	-	NGO0574	-	Cah
535	 56.62	0	561640..562356	-	238	59801008	trmB	NGO0575	-	tRNA (guanine-N(7))-methyltransferase
536	 54.00	0	564000..565886	-	628	59801009	uvrC	NGO0578	-	excinuclease ABC subunit C
537	 55.60	0	565941..568118	-	725	59801010	-	NGO0579	-	putative transport ATPase
538	 54.68	0	568257..569207	+	316	59801011	-	NGO0580	-	putative thioredoxin reductase
539	 49.59	0	569363..569731	+	122	59801012	rpsF	NGO0581	-	30S ribosomal protein S6
540	 45.87	-1	569732..570034	+	100	59801013	-	NGO0582	-	PriB
541	 44.16	-1	570041..570271	+	76	59801014	rpsR	NGO0583	-	30S ribosomal protein S18
52.66	MEAN

6.57	STD DEV
