IslandPath Analysis: Neisseria gonorrhoeae FA 1090

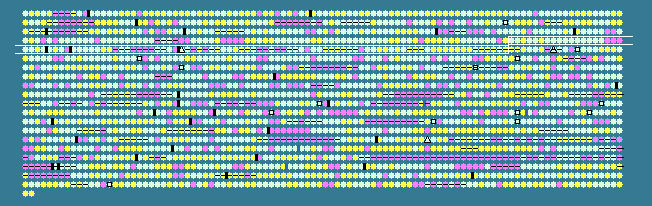

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
382	 53.06	0	408674..409180	+	168	59800855	-	NGO0412	-	hypothetical protein
383	 52.66	0	409227..409940	+	237	59800856	-	NGO0413	-	putative thiosulphate sulphur transferase
384	 57.97	0	410009..411709	+	566	59800857	-	NGO0414	-	hypothetical protein
385	 55.33	0	412067..413425	+	452	59800858	-	NGO0415	-	hypothetical protein
386	 50.93	0	413598..413921	+	107	59800859	-	NGO0416	-	hypothetical protein
387	 56.29	0	414026..414979	-	317	59800860	-	NGO0417	-	hypothetical protein
388	 55.97	0	415005..415490	-	161	59800861	-	NGO0418	-	putative glycosyl transferase
389	 53.23	0	415590..416177	-	195	59800862	-	NGO0419	-	hypothetical protein
390	 51.29	0	416315..417049	+	244	59800863	-	NGO0420	-	hypothetical protein
391	 53.44	0	417115..417681	-	188	59800864	dcd	NGO0421	-	deoxycytidine triphosphate deaminase
392	 54.87	0	417777..418166	-	129	59800865	-	NGO0422	-	hypothetical protein
393	 52.22	0	418218..419117	-	299	59800866	rdgC	NGO0423	-	recombination associated protein
394	 54.12	0	419148..420605	-	485	59800867	engA	NGO0424	-	GTP-binding protein EngA
395	 51.27	0	420755..421384	-	209	59800868	-	NGO0425	-	hypothetical protein
396	 52.70	0	421385..422680	-	431	59800869	hisS	NGO0426	-	histidyl-tRNA synthetase
397	 51.75	0	422808..423464	-	218	59800870	-	NGO0427	-	hypothetical protein
398	 36.89	-2	423520..423744	-	74	59800871	-	NGO0428	-	hypothetical protein
399	 31.16	-2	423973..424110	-	45	59800872	-	NGO0429	-	hypothetical protein
400	 34.02	-2	425228..425518	-	96	59800873	-	NGO0430	-	hypothetical protein
401	 49.91	0	426078..426620	-	180	59800874	-	NGO0432	-	hypothetical protein
402	 51.84	0	426786..427709	+	307	59800875	-	NGO0433	-	hypothetical protein
403	 57.48	0	427788..428429	-	213	59800876	-	NGO0434	-	hypothetical protein
404	 54.42	0	428484..429275	-	263	59800877	-	NGO0435	-	spermidine synthase
405	 55.93	0	429658..430449	+	263	59800878	panB	NGO0436	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
406	 56.15	0	430572..431408	+	278	59800879	panC	NGO0437	-	pantoate--beta-alanine ligase
407	 53.61	0	433712..434293	+	193	59800880	lolB	NGO0439	-	outer membrane lipoprotein LolB
408	 47.87	0	434303..435148	+	281	59800881	-	NGO0440	-	putative isopentenyl monophosphate kinase
409	 52.54	0	435487..436470	+	327	59800882	-	NGO0441	-	ribose-phosphate pyrophosphokinase
410	 49.21	0	436537..437109	+	190	59800883	-	NGO0442	-	50S ribosomal protein L25/general stress protein Ctc
411	 50.09	0	437235..438404	-	389	59800884	-	NGO0443	-	putative D-alanyl-D-alanine carboxypeptidase / penicillin binding protein
412	 54.03	0	438553..440079	+	508	59800885	-	NGO0444	-	threonine dehydratase
413	 53.48	0	440135..441211	-	358	59800886	-	NGO0445	-	putative ABC transporter, ATP-binding protein
414	 56.57	0	441352..442173	-	273	59800887	-	NGO0446	-	putative ABC transporter
415	 57.06	0	443377..443709	+	110	59800888	-	NGO0448	-	hypothetical protein
416	 37.45	-2	444039..444548	+	169	59800889	-	NGO0449	-	hypothetical protein
417	 55.15	0	445524..446930	+	468	59800890	-	NGO0451	-	replicative DNA helicase
418	 49.40	0	447238..447903	+	221	59800891	-	NGO0452	-	hypothetical protein
419	 46.90	0	447935..448546	+	203	59800892	-	NGO0453	-	hypothetical protein
420	 42.30	-1	448543..449523	+	326	59800893	-	NGO0454	-	hypothetical protein
421	 47.55	0	449502..450113	+	203	59800894	-	NGO0455	-	hypothetical protein
422	 42.94	-1	450100..450588	+	162	59800895	-	NGO0456	-	putative type IV pilin-like protein
423	 52.75	0	450658..450966	-	102	59800896	-	NGO0457	-	hypothetical protein
424	 52.54	0	451840..452292	+	150	59800897	dut	NGO0459	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
425	 51.43	0	452364..453551	+	395	59800898	-	NGO0460	-	hypothetical protein
426	 46.92	0	453863..454642	+	259	59800899	-	NGO0461	-	hypothetical protein
427	 55.56	0	455173..456369	+	398	59800900	-	NGO0462	-	putative phage integrase, putative phage associated protein
428	 49.26	0	456725..456994	-	89	59800901	-	NGO0463	-	putative phage associated protein
429	 45.61	-1	457189..457872	-	227	59800902	-	NGO0464	-	putative phage associated protein
430	 56.42	0	457883..458419	-	178	59800903	-	NGO0465	-	putative phage associated protein
431	 32.87	-2	458530..458745	-	71	59800904	-	NGO0466	-	putative phage associated protein
432	 52.44	0	458797..459288	-	163	59800905	-	NGO0467	-	putative phage associated protein
433	 56.28	0	459285..459467	-	60	59800906	-	NGO0468	-	putative phage associated protein
434	 55.60	0	459607..460293	-	228	59800907	-	NGO0469	-	putative phage associated protein
435	 51.85	0	460362..460523	-	53	59800908	-	NGO0470	-	putative phage associated protein
436	 59.72	+1	460520..460735	-	71	59800909	-	NGO0471	-	putative phage associated protein
437	 56.25	0	460949..461236	-	95	59800910	-	NGO0472	-	putative phage associated protein
438	 65.22	+1	461422..461697	-	91	59800911	-	NGO0473	-	putative phage associated protein
439	 50.94	0	461694..462170	-	158	59800912	-	NGO0474	-	putative phage associated protein
440	 43.28	-1	462203..462403	-	66	59800913	-	NGO0475	-	putative phage associated protein
441	 43.72	-1	462601..463014	-	137	59800914	-	NGO0476	-	putative phage associated protein
442	 51.83	0	463011..463448	-	145	59800915	-	NGO0477	-	putative phage associated protein
443	 44.06	-1	463489..463926	-	145	59800916	-	NGO0478	-	putative phage associated protein
444	 48.26	0	464039..464755	-	238	59800917	-	NGO0479	-	putative lambda repressor protein cI, putative phage associated protein
445	 49.36	0	465140..465295	+	51	59800918	-	NGO0480	-	putative phage associated protein
446	 49.21	0	465272..465460	-	62	59800919	-	NGO0481	-	putative phage associated protein
447	 52.89	0	465465..465827	-	120	59800920	-	NGO0482	-	putative phage associated protein
448	 46.05	-1	465633..465860	+	75	59800921	-	NGO0483	-	putative phage associated protein
449	 52.11	0	465978..467042	+	354	59800922	-	NGO0484	-	putative phage associated protein
450	 54.63	0	467039..468400	+	453	59800923	-	NGO0485	-	putative replicative DNA helicase, putative phage associated protein
451	 58.95	0	468417..468701	+	94	59800924	-	NGO0486	-	putative phage associated protein
452	 59.60	+1	468740..469234	+	164	59800925	-	NGO0487	-	putative phage associated protein
453	 59.33	+1	469411..469560	+	49	59800926	-	NGO0488	-	putative phage associated protein
454	 64.84	+1	469696..470241	+	181	59800927	-	NGO0489	-	putative phage associated protein
455	 51.28	0	470231..470464	+	77	59800928	-	NGO0490	-	putative phage associated protein
456	 53.19	0	470508..470915	+	135	59800929	-	NGO0491	-	putative phage associated protein
457	 38.66	-2	471138..471644	+	168	59800930	-	NGO0492	-	putative phage associated protein
458	 51.35	0	471965..472186	+	73	59800931	-	NGO0493	-	putative phage associated protein
459	 50.44	0	472479..472928	+	149	59800932	-	NGO0494	-	putative phage associated protein
460	 57.31	0	472990..474411	+	473	59800933	-	NGO0495	-	putative phage associated protein
461	 59.03	0	474408..476555	+	715	59800934	-	NGO0496	-	putative phage associated protein
462	 54.49	0	476623..477780	+	385	59800935	-	NGO0497	-	putative phage associated protein
463	 58.07	0	477821..479320	+	499	59800936	-	NGO0498	-	putative phage associated protein
464	 55.65	0	479327..479689	+	120	59800937	-	NGO0499	-	putative phage associated protein
465	 60.26	+1	479692..480222	+	176	59800938	-	NGO0500	-	putative phage associated protein
466	 58.86	0	480370..480702	+	110	59800939	-	NGO0501	-	putative phage associated protein
467	 58.97	0	480699..481127	+	142	59800940	-	NGO0502	-	putative phage associated protein
468	 53.36	0	481153..481926	+	257	59800941	-	NGO0503	-	putative phage associated protein
469	 57.88	0	481987..482316	+	109	59800942	-	NGO0504	-	putative phage associated protein
470	 58.05	0	482328..482594	+	88	59800943	-	NGO0505	-	putative phage associated protein
471	 57.33	0	482594..483193	+	199	59800944	-	NGO0506	-	putative phage associated protein
472	 60.35	+1	483190..484044	+	284	59800945	-	NGO0507	-	putative phage associated protein
473	 60.42	+1	484046..484477	+	143	59800946	-	NGO0508	-	putative phage associated protein
474	 57.45	0	484505..484786	-	93	59800947	-	NGO0509	-	putative phage associated protein
475	 57.79	0	485026..489171	+	1381	59800948	-	NGO0510	-	putative phage associated protein
476	 54.58	0	489283..489588	+	101	59800949	-	NGO0511	-	hypothetical protein
477	 63.57	+1	489593..490528	-	311	59800950	-	NGO0512	-	putative phage associated protein
478	 60.30	+1	489659..490129	+	156	59800951	-	NGO0513	-	putative phage associated protein
479	 66.97	+2	490130..490462	+	110	59800952	-	NGO0514	-	putative phage associated protein
480	 50.85	0	490591..490824	-	77	59800953	-	NGO0515	-	putative phage associated protein
481	 58.91	0	490832..491179	-	115	59800954	-	NGO0516	-	putative plasmid stable inheritance protein putative phage associated protein
52.66	MEAN

6.57	STD DEV
