IslandPath Analysis: Neisseria gonorrhoeae FA 1090

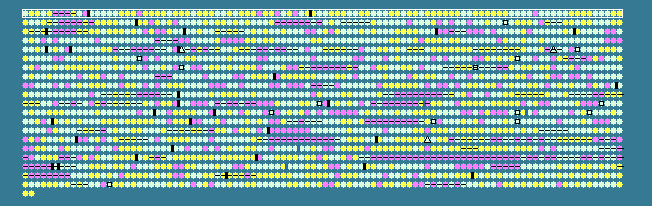

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 55.43	0	159..1715	+	518	59800474	-	NGO0001	-	putative chromosomal replication protein (DnaA)
2	 56.25	0	1795..2898	+	367	59800475	-	NGO0002	-	DNA polymerase III subunit beta
3	 59.57	+1	3047..5104	-	685	59800476	-	NGO0003	-	polyphosphate kinase
4	 56.08	0	5273..5716	-	147	59800477	-	NGO0004	-	hypothetical protein
5	 56.92	0	6500..9136	+	878	59800478	leuS	NGO0006	-	leucyl-tRNA synthetase
6	 40.43	-1	9365..10294	+	309	59800479	-	NGO0007	-	putative type II restriction endonuclease
7	 40.71	-1	10394..11071	+	225	59800480	-	NGO0008	-	putative modification methylase
8	 35.09	-2	11091..11546	+	151	59800481	-	NGO0009	-	hypothetical protein
9	 62.69	+1	12107..12307	-	66	59800482	-	NGO0010	-	hypothetical protein
10	 53.21	0	12417..12728	-	103	59800483	-	NGO0011	-	hypothetical protein
11	 38.60	-2	13341..13625	+	94	59800484	-	NGO0015	-	hypothetical protein
12	 52.14	0	14081..14431	-	116	59800485	secG	NGO0016	-	preprotein translocase subunit SecG
13	 55.81	0	14438..15211	-	257	59800486	tpiA	NGO0017	-	triosephosphate isomerase
14	 55.68	0	15370..15897	+	175	59800487	-	NGO0018	-	hypothetical protein
15	 53.88	0	16000..16656	+	218	59800488	-	NGO0019	-	putative protein-L-isoaspartate O-methyltransferase
16	 55.86	0	16737..17060	+	107	59800489	-	NGO0020	-	hypothetical protein
17	 62.17	+1	17323..19500	-	725	59800490	-	NGO0021	-	putative TonB-dependent receptor protein, iron related
18	 59.88	+1	19763..20086	-	107	59800491	-	NGO0022	-	hypothetical protein
19	 61.83	+1	20119..21090	-	323	59800492	-	NGO0023	-	putative ABC transporter, periplasmic binding protein,iron related
20	 44.24	-1	21087..21251	-	54	59800493	-	NGO0024	-	hypothetical protein
21	 61.44	+1	21326..22282	+	318	59800494	-	NGO0025	-	AraC family transcriptional regulator
22	 57.69	0	22395..24410	-	671	59800495	-	NGO0026	-	putative prolyl endopeptidase
23	 63.31	+1	24506..25816	-	436	59800496	-	NGO0027	-	N-acetylglutamate synthase
24	 56.18	0	25813..26241	-	142	59800497	-	NGO0028	-	hypothetical protein
25	 55.76	0	26309..26950	-	213	59800498	pyrE	NGO0029	-	orotate phosphoribosyltransferase
26	 63.28	+1	27012..27749	-	245	59800499	-	NGO0030	-	hypothetical protein
27	 60.32	+1	27743..28183	-	146	59800500	-	NGO0031	-	putative acetyltransferase
28	 62.24	+1	28180..28857	-	225	59800501	-	NGO0032	-	hypothetical protein
29	 53.96	0	28996..29853	-	285	59800502	-	NGO0033	-	hypothetical protein
30	 57.09	0	29992..31056	-	354	59800503	-	NGO0034	-	fructose-1,6-bisphosphate aldolase
31	 62.20	+1	31250..32167	+	305	59800504	-	NGO0035	-	putative site-specific recombinase
32	 59.20	0	32252..34165	+	637	59800505	-	NGO0036	-	1-deoxy-D-xylulose-5-phosphate synthase
33	 56.06	0	34412..35740	-	442	59800506	-	NGO0037	-	hypothetical protein
34	 50.56	0	36107..36460	+	117	59800507	-	NGO0039	-	hypothetical protein
35	 59.02	0	36524..37804	+	426	59800508	-	NGO0040	-	glutamate-1-semialdehyde aminotransferase
36	 53.72	0	39110..39673	-	187	59800509	-	NGO0042	-	oligoribonuclease
37	 60.59	+1	39691..40578	-	295	59800510	prmA	NGO0043	-	ribosomal protein L11 methyltransferase
38	 58.44	0	40682..42043	-	453	59800511	-	NGO0044	-	acetyl-CoA carboxylase, biotin carboxylase
39	 58.87	0	42157..42618	-	153	59800512	-	NGO0045	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
40	 48.06	0	42600..42857	-	85	59800513	-	NGO0046	-	hypothetical protein
41	 57.16	0	42974..44014	+	346	59800514	queA	NGO0047	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
42	 57.25	0	44215..47430	-	1071	59800515	carB	NGO0048	-	carbamoyl phosphate synthase large subunit
43	 27.34	-2	47441..47974	-	177	59800516	-	NGO0049	-	hypothetical protein
44	 54.36	0	49539..49928	-	129	59800517	-	NGO0050	-	hypothetical protein
45	 57.32	0	50524..51657	-	377	59800518	-	NGO0053	-	carbamoyl phosphate synthase small subunit
46	 46.54	0	51927..52244	+	105	59800519	-	NGO0054	-	hypothetical protein
47	 52.48	0	52527..55670	-	1047	59800520	-	NGO0055	-	pilus-associated protein
48	 60.19	+1	57122..58201	-	359	59800521	-	NGO0056	-	putative atpase
49	 57.25	0	58575..59084	+	169	59800522	-	NGO0057	-	putative thioredoxin
50	 52.38	0	59488..59865	+	125	59800523	-	NGO0058	-	MarR family transcriptional regulator
51	 55.09	0	59981..60481	+	166	59800524	-	NGO0059	-	putative flavoprotein oxidoreductase
52	 60.63	+1	60497..61192	+	231	59800525	-	NGO0060	-	putative sugar-phosphate transferase
53	 56.53	0	61831..63507	+	558	59800526	-	NGO0062	-	formate--tetrahydrofolate ligase
54	 56.59	0	63621..64712	+	363	59800527	-	NGO0063	-	translation-associated GTPase
55	 52.50	0	64750..64989	+	79	59800528	-	NGO0064	-	hypothetical protein
56	 53.97	0	64986..66860	+	624	59800529	-	NGO0065	-	putative lipo-oligosaccharide acyltransferase
57	 57.10	0	66922..68217	+	431	59800530	-	NGO0066	-	putative tyrosyl-tRNA synthase
58	 57.60	0	70214..71173	+	319	59800531	-	NGO0068	-	bifunctional riboflavin kinase/FMN adenylyltransferase
59	 55.34	0	71315..74104	+	929	59800532	ileS	NGO0069	-	isoleucyl-tRNA synthetase
60	 52.38	0	74783..75580	-	265	59800533	-	NGO0070	-	outer membrane opacity protein B
61	 52.32	0	76565..77059	+	164	59800534	lspA	NGO0071	-	lipoprotein signal peptidase
62	 58.20	0	77089..78057	+	322	59800535	ispH	NGO0072	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
63	 62.88	+1	78813..79472	-	219	59800536	-	NGO0073	-	putative phosphatase
64	 55.14	0	80406..80726	+	106	59800537	-	NGO0076	-	hypothetical protein
65	 59.29	+1	80714..81337	+	207	59800538	-	NGO0077	-	hypothetical protein
66	 57.61	0	81989..85423	-	1144	59800539	-	NGO0078	-	putative DNA polymerase III, alpha subunit
67	 55.13	0	85956..86189	+	77	59800540	-	NGO0079	-	hypothetical protein
68	 60.29	+1	86167..86370	+	67	59800541	-	NGO0080	-	hypothetical protein
69	 59.74	+1	86665..87501	+	278	59800542	-	NGO0081	-	hypothetical protein
70	 57.85	0	87553..88845	-	430	59800543	avtA	NGO0082	-	valine--pyruvate transaminase
71	 57.56	0	88901..90811	-	636	59800544	-	NGO0083	-	pilin glycosylation protein
72	 58.08	0	90859..92034	-	391	59800545	-	NGO0084	-	PglC
73	 57.33	0	92165..93406	-	413	59800546	-	NGO0085	-	PglB
74	 53.21	0	93399..94565	-	388	59800547	-	NGO0086	-	hypothetical protein
75	 56.06	0	94579..95643	-	354	59800548	-	NGO0087	-	hypothetical protein
76	 60.69	+1	95640..97061	-	473	59800549	-	NGO0088	-	hypothetical protein
77	 59.37	+1	97256..98365	-	369	59800550	-	NGO0089	-	putative diaminohydroxyphosphoribosylaminopyrimidine deaminase
78	 62.47	+1	98397..98849	-	150	59800551	-	NGO0090	-	transcriptional regulator NrdR
79	 58.84	0	98878..99720	-	280	59800552	-	NGO0091	-	hypothetical protein
80	 61.39	+1	100459..101538	-	359	59800553	-	NGO0092	-	3-dehydroquinate synthase
81	 57.31	0	101618..102130	-	170	59800554	-	NGO0093	-	shikimate kinase
82	 52.81	0	103398..105569	-	723	59800555	-	NGO0094	-	hypothetical protein
83	 49.63	0	105588..106133	-	181	59800556	-	NGO0095	-	PilP
84	 49.69	0	106151..106798	-	215	59800557	-	NGO0096	-	hypothetical protein
85	 49.50	0	106799..107398	-	199	59800558	-	NGO0097	-	PilN
86	 48.03	0	107401..108516	-	371	59800559	-	NGO0098	-	hypothetical protein
87	 51.06	0	108668..111064	+	798	59800560	-	NGO0099	-	PonA
88	 50.31	0	111184..111819	-	211	59800561	-	NGO0100	-	GTPase EngB
89	 50.80	0	112020..112643	+	207	59800562	-	NGO0101	-	putative cytochrome precursor
90	 50.10	0	112858..114873	+	671	59800563	-	NGO0102	-	putative cytochrome biogenesis protein
91	 52.86	0	114866..116053	+	395	59800564	-	NGO0103	-	putative cytochrome synthesis protein
92	 56.90	0	116169..117233	+	354	59800565	-	NGO0104	-	O-sialoglycoprotein endopeptidase
93	 56.26	0	117278..118171	-	297	59800566	-	NGO0105	-	lipid A biosynthesis lauroyl acyltransferase
94	 57.61	0	118517..119686	+	389	161572979	-	NGO0106	-	S-adenosylmethionine synthetase
95	 57.23	0	119751..121160	-	469	59800568	-	NGO0107	-	putative carboxypeptidase, penicillin binding protein
96	 49.79	0	121405..121890	+	161	59800569	-	NGO0108	-	hypothetical protein
97	 52.91	0	121880..122068	+	62	59800570	-	NGO0109	-	hypothetical protein
98	 53.04	0	122259..123572	+	437	59800571	-	NGO0110	-	putative magnesium citrate secondary transporter
99	 56.43	0	124550..125800	+	416	59800572	-	NGO0112	-	putative two-component system sensor kinase
100	 57.50	0	125835..127328	-	497	59800573	-	NGO0113	-	putative ribonuclease G / cytoplasmic axial filament protein
52.66	MEAN

6.57	STD DEV
