IslandPath Analysis: Neisseria gonorrhoeae FA 1090

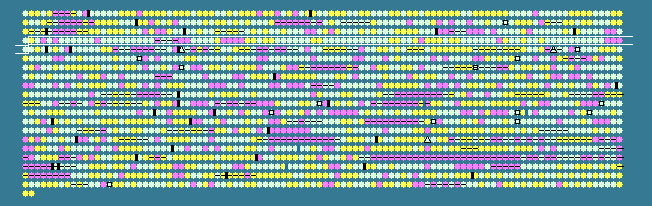

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
302	 56.62	0	325628..326503	+	291	59800775	-	NGO0329	-	hypothetical protein
303	 50.85	0	326609..326962	-	117	59800776	-	NGO0330	-	hypothetical protein
304	 43.59	-1	327041..327274	+	77	59800777	-	NGO0331	-	hypothetical protein
305	 55.67	0	327646..328509	-	287	59800778	-	NGO0332	-	putative reductase
306	 48.75	0	328606..329565	+	319	59800779	hemH	NGO0333	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
307	 53.34	0	329799..331922	+	707	59800780	-	NGO0335	-	polynucleotide phosphorylase/polyadenylase
308	 51.12	0	331995..332663	-	222	59800781	-	NGO0336	-	hypothetical protein
309	 54.29	0	332660..332974	-	104	59800782	-	NGO0337	-	hypothetical protein
310	 55.28	0	333111..333962	+	283	59800783	-	NGO0338	-	diaminopimelate epimerase
311	 51.65	0	333959..334564	+	201	59800784	-	NGO0339	-	hypothetical protein
312	 52.52	0	334760..335692	+	310	59800785	-	NGO0340	-	putative cysteine synthase/cystathionine beta-synthase
313	 47.68	0	337103..337339	+	78	59800786	-	NGO0342	-	hypothetical protein
314	 50.78	0	337539..338558	-	339	59800787	-	NGO0343	-	Lep
315	 51.90	0	338704..340497	-	597	59800788	-	NGO0344	-	GTP-binding protein LepA
316	 55.13	0	340639..341340	-	233	59800789	-	NGO0345	-	putative nucleoside phosphorylase
317	 53.91	0	341526..342638	+	370	59800790	-	NGO0346	-	putative twitching motility-like protein
318	 53.07	0	342672..343649	+	325	59800791	-	NGO0347	-	DNA polymerase III subunit delta'
319	 49.29	0	343653..344003	+	116	59800792	-	NGO0348	-	putative type 4 pilus biogenesis protein
320	 51.79	0	344008..344787	+	259	59800793	-	NGO0349	-	hypothetical protein
321	 54.17	0	344813..345028	+	71	59800794	-	NGO0350	-	hypothetical protein
322	 51.60	0	345129..345440	+	103	59800795	-	NGO0351	-	glutaredoxin-like protein GrlA
323	 41.88	-1	345440..345556	+	38	59800796	-	NGO0352	-	hypothetical protein
324	 53.75	0	345546..346172	+	208	59800797	upp	NGO0353	-	uracil phosphoribosyltransferase
325	 52.65	0	346195..346515	+	106	59800798	-	NGO0354	-	hypothetical protein
326	 38.19	-2	346735..347331	+	198	59800799	-	NGO0355	-	hypothetical protein
327	 42.91	-1	347355..348179	+	274	59800800	-	NGO0356	-	hypothetical protein
328	 37.05	-2	348179..349147	+	322	59800801	-	NGO0357	-	hypothetical protein
329	 50.23	0	349426..349851	+	141	59800802	-	NGO0358	-	hypothetical protein
330	 56.08	0	349869..350633	+	254	59800803	hemD	NGO0359	-	uroporphyrinogen-III synthase
331	 55.92	0	350705..351979	+	424	59800804	-	NGO0360	-	hypothetical protein
332	 55.34	0	351976..353193	+	405	59800805	-	NGO0361	-	hypothetical protein
333	 57.75	0	353268..354332	+	354	59800806	-	NGO0362	-	putative uroporphyrinogen decarboxylase
334	 37.67	-2	354395..356284	-	629	59800807	-	NGO0363	-	putative stress-sensitive restriction system protein
335	 36.22	-2	356285..357322	-	345	59800808	-	NGO0364	-	restriction endonuclease R.NgoVII
336	 40.09	-1	357319..358443	-	374	59800809	-	NGO0365	-	site-specific DNA-methyltransferase M.NgoVII
337	 44.57	-1	358468..358725	+	85	59800810	-	NGO0366	-	hypothetical protein
338	 58.12	0	358830..360209	+	459	59800811	-	NGO0367	-	DNA repair protein RadA
339	 56.43	0	360484..360864	-	126	59800812	-	NGO0368	-	hypothetical protein
340	 53.83	0	361088..361531	-	147	59800813	-	NGO0369	-	hypothetical protein
341	 58.98	0	361486..365088	-	1200	59800814	-	NGO0370	-	putative exodeoxyribonuclease
342	 59.19	0	365165..366073	-	302	59800815	-	NGO0371	-	hypothetical protein
343	 53.62	0	366358..367185	+	275	59800816	-	NGO0372	-	putative ABC transporter, periplasmic binding protein, amino acid
344	 50.63	0	367175..367891	+	238	59800817	-	NGO0373	-	putative ABC transporter, permease protein, amino acid
345	 53.31	0	367901..368656	+	251	59800818	-	NGO0374	-	putative ABC transporter, ATP-binding protein, amino acid
346	 55.17	0	368712..370094	-	460	59800819	-	NGO0375	-	Pgm
347	 50.98	0	370262..370771	-	169	59800820	-	NGO0376	-	putative peptidyl-prolyl cis-trans isomerase B
348	 55.86	0	370891..372306	-	471	59800821	-	NGO0377	-	putative transport protein
349	 59.50	+1	372535..372897	-	120	59800822	-	NGO0378	-	hypothetical protein
350	 56.82	0	373161..373739	-	192	59800823	-	NGO0379	-	peptidyl-tRNA hydrolase
351	 54.12	0	373792..374070	-	92	59800824	-	NGO0380	-	hypothetical protein
352	 51.14	0	374063..374500	-	145	59800825	-	NGO0381	-	hypothetical protein
353	 55.84	0	374716..376683	-	655	59800826	-	NGO0382	-	hypothetical protein
354	 54.11	0	376747..377367	-	206	59800827	-	NGO0383	-	hypothetical protein
355	 52.63	0	377477..377761	+	94	59800828	-	NGO0384	-	hypothetical protein
356	 55.46	0	377930..378946	+	338	59800829	-	NGO0385	-	delta-aminolevulinic acid dehydratase
357	 52.94	0	379010..380167	-	385	59800830	-	NGO0386	-	putative lyase
358	 51.94	0	380370..381143	+	257	59800831	-	NGO0387	-	putative GTP cyclohydrolase
359	 52.10	0	381340..382005	+	221	59800832	-	NGO0388	-	putative oxidoreductase, NAD(P)H-flavin
360	 54.02	0	382060..382818	-	252	59800833	-	NGO0389	-	hypothetical protein
361	 55.56	0	382843..383733	-	296	59800834	ppnK	NGO0390	-	inorganic polyphosphate/ATP-NAD kinase
362	 60.14	+1	383753..384319	-	188	59800835	-	NGO0391	-	hypothetical protein
363	 59.59	+1	384369..385145	-	258	59800836	-	NGO0392	-	hypothetical protein
364	 53.30	0	385200..385850	-	216	59800837	-	NGO0393	-	TetR family transcriptional regulator
365	 55.72	0	385862..386902	-	346	59800838	-	NGO0394	-	putative UDP-N-acetylenolpyruvoylglucosamine reductase
366	 57.03	0	386946..388325	-	459	59800839	-	NGO0395	-	multidrug efflux protein
367	 42.33	-1	388382..388570	+	62	59800840	-	NGO0396	-	hypothetical protein
368	 59.55	+1	388662..389813	+	383	59800841	hisZ	NGO0397	-	ATP phosphoribosyltransferase regulatory subunit
369	 57.93	0	389912..391216	+	434	59800842	-	NGO0398	-	adenylosuccinate synthetase
370	 56.31	0	391452..392291	-	279	59800843	-	NGO0399	-	heat shock protein HtpX
371	 53.86	0	392506..393153	+	215	59800844	adk	NGO0400	-	adenylate kinase
372	 56.68	0	393677..394417	+	246	59800845	-	NGO0401	-	orotidine 5'-phosphate decarboxylase
373	 57.84	0	394473..395435	+	320	59800846	-	NGO0402	-	putative sugar kinase / ADP-heptose synthase
374	 52.04	0	395499..396503	+	334	59800847	-	NGO0403	-	ADP-L-glycero-D-mannoheptose epimerase
375	 53.33	0	396578..398122	+	514	59800848	-	NGO0404	-	putative type I restriction-modification system methyltransferase protein
376	 51.53	0	398238..399089	+	283	59800849	dinD	NGO0405	-	DNA-damage-inducible protein D
377	 51.44	0	400709..403807	+	1032	59800850	-	NGO0407	-	putative type I site-specific deoxyribonuclease
378	 55.54	0	403847..406138	-	763	59800851	-	NGO0408	-	hypothetical protein
379	 51.82	0	406140..406442	-	100	59800852	-	NGO0409	-	hypothetical protein
380	 48.53	0	406687..406890	+	67	59800853	-	NGO0410	-	CspA
381	 61.11	+1	407189..408520	-	443	59800854	-	NGO0411	-	hypothetical protein
382	 53.06	0	408674..409180	+	168	59800855	-	NGO0412	-	hypothetical protein
383	 52.66	0	409227..409940	+	237	59800856	-	NGO0413	-	putative thiosulphate sulphur transferase
384	 57.97	0	410009..411709	+	566	59800857	-	NGO0414	-	hypothetical protein
385	 55.33	0	412067..413425	+	452	59800858	-	NGO0415	-	hypothetical protein
386	 50.93	0	413598..413921	+	107	59800859	-	NGO0416	-	hypothetical protein
387	 56.29	0	414026..414979	-	317	59800860	-	NGO0417	-	hypothetical protein
388	 55.97	0	415005..415490	-	161	59800861	-	NGO0418	-	putative glycosyl transferase
389	 53.23	0	415590..416177	-	195	59800862	-	NGO0419	-	hypothetical protein
390	 51.29	0	416315..417049	+	244	59800863	-	NGO0420	-	hypothetical protein
391	 53.44	0	417115..417681	-	188	59800864	dcd	NGO0421	-	deoxycytidine triphosphate deaminase
392	 54.87	0	417777..418166	-	129	59800865	-	NGO0422	-	hypothetical protein
393	 52.22	0	418218..419117	-	299	59800866	rdgC	NGO0423	-	recombination associated protein
394	 54.12	0	419148..420605	-	485	59800867	engA	NGO0424	-	GTP-binding protein EngA
395	 51.27	0	420755..421384	-	209	59800868	-	NGO0425	-	hypothetical protein
396	 52.70	0	421385..422680	-	431	59800869	hisS	NGO0426	-	histidyl-tRNA synthetase
397	 51.75	0	422808..423464	-	218	59800870	-	NGO0427	-	hypothetical protein
398	 36.89	-2	423520..423744	-	74	59800871	-	NGO0428	-	hypothetical protein
399	 31.16	-2	423973..424110	-	45	59800872	-	NGO0429	-	hypothetical protein
400	 34.02	-2	425228..425518	-	96	59800873	-	NGO0430	-	hypothetical protein
401	 49.91	0	426078..426620	-	180	59800874	-	NGO0432	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
