IslandPath Analysis: Neisseria gonorrhoeae FA 1090

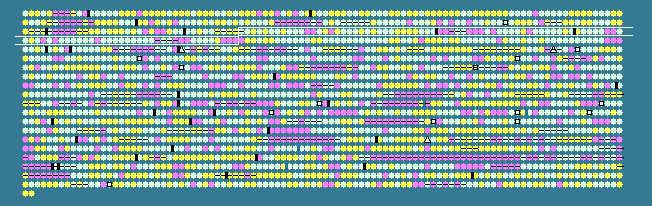

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
237	 55.97	0	255967..256686	+	239	59800710	rnc	NGO0259	-	ribonuclease III
238	 53.21	0	256721..257656	+	311	59800711	era	NGO0260	-	GTP-binding protein Era
239	 59.17	0	260589..261215	-	208	59800712	-	NGO0261	-	N-(5'-phosphoribosyl)anthranilate isomerase
240	 54.07	0	261274..261765	-	163	59800713	greB	NGO0262	-	transcription elongation factor GreB
241	 57.99	0	261865..263409	-	514	59800714	-	NGO0263	-	amidophosphoribosyltransferase
242	 54.82	0	263603..264100	-	165	59800715	-	NGO0264	-	putative bacteriocin production protein
243	 55.14	0	264093..265133	-	346	59800716	-	NGO0265	-	tetrapac protein
244	 56.94	0	265147..266421	-	424	59800717	-	NGO0266	-	putative folylpolyglutamate synthase/dihydrofolate synthase
245	 55.10	0	266452..266892	-	146	59800718	-	NGO0267	-	FolI
246	 51.73	0	266897..267271	-	124	59800719	-	NGO0268	-	hypothetical protein
247	 53.77	0	267329..268057	-	242	59800720	-	NGO0269	-	putative ABC transporter, ATP-binding protein, amino acid
248	 47.37	0	268099..268554	-	151	59800721	-	NGO0270	-	hypothetical protein
249	 45.44	-1	268665..269234	-	189	59800722	-	NGO0271	-	hypothetical protein
250	 53.59	0	269249..270028	-	259	59800723	ksgA	NGO0272	-	dimethyladenosine transferase
251	 58.10	0	271016..272218	+	400	59800724	-	NGO0274	-	tryptophan synthase subunit beta
252	 46.30	0	272294..277075	-	1593	59800725	-	NGO0275	-	IgA-specific metalloendopeptidase
253	 61.46	+1	277605..279680	+	691	59800726	-	NGO0276	-	ComA
254	 53.48	0	279750..280553	-	267	59800727	-	NGO0277	-	ComL
255	 55.64	0	280552..281676	+	374	59800728	-	NGO0278	-	RluD
256	 50.16	0	282855..283175	-	106	59800729	-	NGO0280	-	hypothetical protein
257	 59.87	+1	283231..284010	+	259	59800730	-	NGO0281	-	hypothetical protein
258	 55.21	0	284062..284541	+	159	59800731	-	NGO0282	-	hypothetical protein
259	 59.06	0	284543..285541	+	332	59800732	holA	NGO0283	-	DNA polymerase III subunit delta
260	 53.57	0	285662..286081	+	139	59800733	-	NGO0284	-	hypothetical protein
261	 54.32	0	286106..286672	+	188	59800734	-	NGO0285	-	hypothetical protein
262	 51.75	0	286763..287647	-	294	59800735	-	NGO0286	-	hypothetical protein
263	 56.70	0	288380..289252	-	290	59800736	-	NGO0288	-	RNA polymerase factor sigma-32
264	 57.18	0	289507..291045	-	512	59800737	lnt	NGO0289	-	apolipoprotein N-acyltransferase
265	 57.22	0	291115..291855	-	246	59800738	-	NGO0290	-	hypothetical protein
266	 56.45	0	292059..293780	+	573	59800739	-	NGO0291	-	potassium/proton antiporter
267	 52.56	0	293777..294244	-	155	59800740	-	NGO0292	-	hypothetical protein
268	 55.09	0	294435..295445	-	336	59800741	-	NGO0293	-	HemZ
269	 54.21	0	295527..296642	-	371	59800742	tgt	NGO0294	-	queuine tRNA-ribosyltransferase
270	 49.01	0	296950..298863	+	637	59800743	-	NGO0295	-	putative threonyl-tRNA synthetase
271	 46.93	0	298881..299402	+	173	59800744	infC	NGO0296	-	translation initiation factor IF-3
272	 44.44	-1	299549..299746	+	65	59800745	rpmI	NGO0297	-	50S ribosomal protein L35
273	 49.72	0	299759..300118	+	119	59800746	rplT	NGO0298	-	50S ribosomal protein L20
274	 50.71	0	300359..301348	+	329	161572977	pheS	NGO0299	-	phenylalanyl-tRNA synthetase subunit alpha
275	 42.51	-1	301365..301778	+	137	59800748	-	NGO0300	-	putative very-short-patch-repair endonuclease
276	 28.46	-2	302132..302377	+	81	59800749	-	NGO0302	-	hypothetical protein
277	 36.27	-2	302383..303132	+	249	59800750	-	NGO0303	-	hypothetical protein
278	 53.05	0	303223..305586	+	787	59800751	pheT	NGO0304	-	phenylalanyl-tRNA synthetase subunit beta
279	 48.51	0	305660..305962	+	100	59800752	-	NGO0305	-	IfhA
280	 50.81	0	305946..306254	+	102	59800753	-	NGO0306	-	hypothetical protein
281	 50.82	0	306430..306915	+	161	59800754	fxsA	NGO0307	-	FxsA
282	 53.76	0	307549..308850	+	433	59800755	-	NGO0308	-	putative adenosylmethionine-8-amino-7-oxononanoate aminotranferase
283	 54.17	0	308847..309494	+	215	59800756	bioD	NGO0309	-	dithiobiotin synthetase
284	 56.27	0	309428..309985	+	185	59800757	-	NGO0310	-	hypothetical protein
285	 28.92	-2	310109..310516	+	135	59800758	-	NGO0311	-	hypothetical protein
286	 52.19	0	310506..311396	+	296	59800759	ubiA	NGO0312	-	4-hydroxybenzoate octaprenyltransferase
287	 54.00	0	311581..312030	+	149	59800760	-	NGO0313	-	putative two-component system transcriptional response regulator
288	 53.37	0	312034..312996	+	320	59800761	-	NGO0314	-	HPr kinase/phosphorylase
289	 55.09	0	312977..313831	+	284	59800762	-	NGO0315	-	hypothetical protein
290	 55.10	0	313912..314853	+	313	59800763	rbgA	NGO0316	-	ribosomal biogenesis GTPase
291	 57.05	0	314954..315556	+	200	59800764	-	NGO0317	-	hypothetical protein
292	 52.75	0	315740..317413	+	557	59800765	-	NGO0318	-	hypothetical protein
293	 58.64	0	318158..319777	-	539	59800766	-	NGO0319	-	hypothetical protein
294	 49.87	0	319873..320265	+	130	59800767	-	NGO0320	-	hypothetical protein
295	 51.22	0	320308..321045	+	245	59800768	ubiE	NGO0321	-	ubiquinone/menaquinone biosynthesis methyltransferase
296	 49.58	0	321265..321744	+	159	59800769	-	NGO0322	-	hypothetical protein
297	 54.14	0	321872..322366	-	164	59800770	-	NGO0323	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine-pyrophosphokinase
298	 49.07	0	322376..322750	-	124	59800771	-	NGO0324	-	hypothetical protein
299	 47.96	0	323455..323748	-	97	59800772	-	NGO0326	-	hypothetical protein
300	 54.21	0	323877..324815	-	312	59800773	-	NGO0327	-	putative D-alanyl-D-alanine-endopeptidase
301	 50.20	0	325073..325576	+	167	59800774	-	NGO0328	-	hypothetical protein
302	 56.62	0	325628..326503	+	291	59800775	-	NGO0329	-	hypothetical protein
303	 50.85	0	326609..326962	-	117	59800776	-	NGO0330	-	hypothetical protein
304	 43.59	-1	327041..327274	+	77	59800777	-	NGO0331	-	hypothetical protein
305	 55.67	0	327646..328509	-	287	59800778	-	NGO0332	-	putative reductase
306	 48.75	0	328606..329565	+	319	59800779	hemH	NGO0333	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
307	 53.34	0	329799..331922	+	707	59800780	-	NGO0335	-	polynucleotide phosphorylase/polyadenylase
308	 51.12	0	331995..332663	-	222	59800781	-	NGO0336	-	hypothetical protein
309	 54.29	0	332660..332974	-	104	59800782	-	NGO0337	-	hypothetical protein
310	 55.28	0	333111..333962	+	283	59800783	-	NGO0338	-	diaminopimelate epimerase
311	 51.65	0	333959..334564	+	201	59800784	-	NGO0339	-	hypothetical protein
312	 52.52	0	334760..335692	+	310	59800785	-	NGO0340	-	putative cysteine synthase/cystathionine beta-synthase
313	 47.68	0	337103..337339	+	78	59800786	-	NGO0342	-	hypothetical protein
314	 50.78	0	337539..338558	-	339	59800787	-	NGO0343	-	Lep
315	 51.90	0	338704..340497	-	597	59800788	-	NGO0344	-	GTP-binding protein LepA
316	 55.13	0	340639..341340	-	233	59800789	-	NGO0345	-	putative nucleoside phosphorylase
317	 53.91	0	341526..342638	+	370	59800790	-	NGO0346	-	putative twitching motility-like protein
318	 53.07	0	342672..343649	+	325	59800791	-	NGO0347	-	DNA polymerase III subunit delta'
319	 49.29	0	343653..344003	+	116	59800792	-	NGO0348	-	putative type 4 pilus biogenesis protein
320	 51.79	0	344008..344787	+	259	59800793	-	NGO0349	-	hypothetical protein
321	 54.17	0	344813..345028	+	71	59800794	-	NGO0350	-	hypothetical protein
322	 51.60	0	345129..345440	+	103	59800795	-	NGO0351	-	glutaredoxin-like protein GrlA
323	 41.88	-1	345440..345556	+	38	59800796	-	NGO0352	-	hypothetical protein
324	 53.75	0	345546..346172	+	208	59800797	upp	NGO0353	-	uracil phosphoribosyltransferase
325	 52.65	0	346195..346515	+	106	59800798	-	NGO0354	-	hypothetical protein
326	 38.19	-2	346735..347331	+	198	59800799	-	NGO0355	-	hypothetical protein
327	 42.91	-1	347355..348179	+	274	59800800	-	NGO0356	-	hypothetical protein
328	 37.05	-2	348179..349147	+	322	59800801	-	NGO0357	-	hypothetical protein
329	 50.23	0	349426..349851	+	141	59800802	-	NGO0358	-	hypothetical protein
330	 56.08	0	349869..350633	+	254	59800803	hemD	NGO0359	-	uroporphyrinogen-III synthase
331	 55.92	0	350705..351979	+	424	59800804	-	NGO0360	-	hypothetical protein
332	 55.34	0	351976..353193	+	405	59800805	-	NGO0361	-	hypothetical protein
333	 57.75	0	353268..354332	+	354	59800806	-	NGO0362	-	putative uroporphyrinogen decarboxylase
334	 37.67	-2	354395..356284	-	629	59800807	-	NGO0363	-	putative stress-sensitive restriction system protein
335	 36.22	-2	356285..357322	-	345	59800808	-	NGO0364	-	restriction endonuclease R.NgoVII
336	 40.09	-1	357319..358443	-	374	59800809	-	NGO0365	-	site-specific DNA-methyltransferase M.NgoVII
52.66	MEAN

6.57	STD DEV
