IslandPath Analysis: Neisseria gonorrhoeae FA 1090

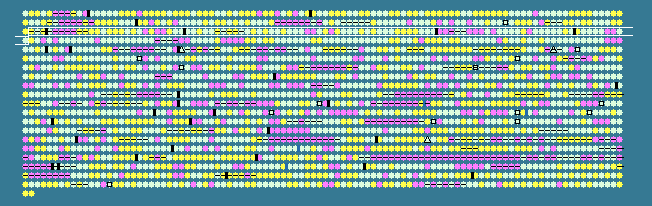

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
202	 56.84	0	225402..225635	-	77	59800675	-	NGO0222	-	hypothetical protein
203	 53.18	0	225743..226276	-	177	59800676	-	NGO0223	-	inorganic pyrophosphatase
204	 59.48	+1	226378..226836	-	152	59800677	ntpA	NGO0224	-	dATP pyrophosphohydrolase
205	 50.98	0	227386..229272	+	628	59800678	-	NGO0225	-	MafB1
206	 31.44	-2	229300..229722	+	140	59800679	-	NGO0226	-	hypothetical protein
207	 44.72	-1	230200..230445	+	81	59800680	-	NGO0227	-	hypothetical protein
208	 31.78	-2	230448..230834	+	128	59800681	-	NGO0228	-	hypothetical protein
209	 33.59	-2	231055..231444	+	129	59800682	-	NGO0229	-	hypothetical protein
210	 58.98	0	231484..232941	-	485	59800683	-	NGO0230	-	putative transport protein, potassium
211	 58.60	0	232956..233786	-	276	59800684	apaH	NGO0231	-	diadenosine tetraphosphatase
212	 62.05	+1	233863..234252	-	129	59800685	-	NGO0232	-	hypothetical protein
213	 58.52	0	234399..234926	-	175	59800686	-	NGO0233	-	outer membrane protein
214	 55.44	0	235369..236544	-	391	59800687	-	NGO0234	-	coproporphyrinogen III oxidase
215	 59.71	+1	236601..239072	-	823	59800688	-	NGO0235	-	putative DNA ligase
216	 56.64	0	239206..240492	-	428	59800689	-	NGO0236	-	hypothetical protein
217	 58.99	0	240686..241258	-	190	59800690	-	NGO0237	-	N-acetyl-anhydromuranmyl-L-alanine amidase
218	 55.80	0	241342..242289	+	315	59800691	-	NGO0238	-	hypothetical protein
219	 58.13	0	242398..243018	+	206	59800692	tdk	NGO0239	-	thymidylate kinase
220	 54.80	0	243240..244520	+	426	59800693	-	NGO0240	-	putative malic enzyme, malate dehydrogenase/oxaloacetate-decarboxylating
221	 45.59	-1	244633..244836	+	67	59800694	-	NGO0241	-	hypothetical protein
222	 56.30	0	244922..245953	+	343	59800695	lpxK	NGO0242	-	tetraacyldisaccharide 4'-kinase
223	 48.31	0	246159..246692	+	177	59800696	-	NGO0243	-	hypothetical protein
224	 47.54	0	246914..247096	+	60	59800697	-	NGO0244	-	hypothetical protein
225	 59.84	+1	247093..247854	+	253	59800698	-	NGO0245	-	3-deoxy-manno-octulosonate cytidylyltransferase
226	 49.49	0	247877..248173	+	98	59800699	-	NGO0246	-	hypothetical protein
227	 49.70	0	248228..248392	+	54	59800700	-	NGO0247	-	hypothetical protein
228	 53.94	0	248915..249700	+	261	59800701	trpA	NGO0248	-	tryptophan synthase subunit alpha
229	 55.67	0	249737..250609	+	290	59800702	-	NGO0249	-	acetyl-CoA carboxylase subunit beta
230	 58.50	0	250669..251280	-	203	59800703	-	NGO0250	-	Cnp1
231	 54.26	0	251643..252029	+	128	59800704	-	NGO0252	-	hypothetical protein
232	 53.20	0	252030..252623	-	197	59800705	-	NGO0253	-	hypothetical protein
233	 60.97	+1	253334..254368	+	344	59800706	-	NGO0255	-	dihydroorotase
234	 55.87	0	254447..254872	-	141	59800707	nusB	NGO0256	-	transcription antitermination protein NusB
235	 56.18	0	254950..255426	-	158	59800708	ribH	NGO0257	-	riboflavin synthase subunit beta
236	 59.26	+1	255473..255796	-	107	59800709	-	NGO0258	-	hypothetical protein
237	 55.97	0	255967..256686	+	239	59800710	rnc	NGO0259	-	ribonuclease III
238	 53.21	0	256721..257656	+	311	59800711	era	NGO0260	-	GTP-binding protein Era
239	 59.17	0	260589..261215	-	208	59800712	-	NGO0261	-	N-(5'-phosphoribosyl)anthranilate isomerase
240	 54.07	0	261274..261765	-	163	59800713	greB	NGO0262	-	transcription elongation factor GreB
241	 57.99	0	261865..263409	-	514	59800714	-	NGO0263	-	amidophosphoribosyltransferase
242	 54.82	0	263603..264100	-	165	59800715	-	NGO0264	-	putative bacteriocin production protein
243	 55.14	0	264093..265133	-	346	59800716	-	NGO0265	-	tetrapac protein
244	 56.94	0	265147..266421	-	424	59800717	-	NGO0266	-	putative folylpolyglutamate synthase/dihydrofolate synthase
245	 55.10	0	266452..266892	-	146	59800718	-	NGO0267	-	FolI
246	 51.73	0	266897..267271	-	124	59800719	-	NGO0268	-	hypothetical protein
247	 53.77	0	267329..268057	-	242	59800720	-	NGO0269	-	putative ABC transporter, ATP-binding protein, amino acid
248	 47.37	0	268099..268554	-	151	59800721	-	NGO0270	-	hypothetical protein
249	 45.44	-1	268665..269234	-	189	59800722	-	NGO0271	-	hypothetical protein
250	 53.59	0	269249..270028	-	259	59800723	ksgA	NGO0272	-	dimethyladenosine transferase
251	 58.10	0	271016..272218	+	400	59800724	-	NGO0274	-	tryptophan synthase subunit beta
252	 46.30	0	272294..277075	-	1593	59800725	-	NGO0275	-	IgA-specific metalloendopeptidase
253	 61.46	+1	277605..279680	+	691	59800726	-	NGO0276	-	ComA
254	 53.48	0	279750..280553	-	267	59800727	-	NGO0277	-	ComL
255	 55.64	0	280552..281676	+	374	59800728	-	NGO0278	-	RluD
256	 50.16	0	282855..283175	-	106	59800729	-	NGO0280	-	hypothetical protein
257	 59.87	+1	283231..284010	+	259	59800730	-	NGO0281	-	hypothetical protein
258	 55.21	0	284062..284541	+	159	59800731	-	NGO0282	-	hypothetical protein
259	 59.06	0	284543..285541	+	332	59800732	holA	NGO0283	-	DNA polymerase III subunit delta
260	 53.57	0	285662..286081	+	139	59800733	-	NGO0284	-	hypothetical protein
261	 54.32	0	286106..286672	+	188	59800734	-	NGO0285	-	hypothetical protein
262	 51.75	0	286763..287647	-	294	59800735	-	NGO0286	-	hypothetical protein
263	 56.70	0	288380..289252	-	290	59800736	-	NGO0288	-	RNA polymerase factor sigma-32
264	 57.18	0	289507..291045	-	512	59800737	lnt	NGO0289	-	apolipoprotein N-acyltransferase
265	 57.22	0	291115..291855	-	246	59800738	-	NGO0290	-	hypothetical protein
266	 56.45	0	292059..293780	+	573	59800739	-	NGO0291	-	potassium/proton antiporter
267	 52.56	0	293777..294244	-	155	59800740	-	NGO0292	-	hypothetical protein
268	 55.09	0	294435..295445	-	336	59800741	-	NGO0293	-	HemZ
269	 54.21	0	295527..296642	-	371	59800742	tgt	NGO0294	-	queuine tRNA-ribosyltransferase
270	 49.01	0	296950..298863	+	637	59800743	-	NGO0295	-	putative threonyl-tRNA synthetase
271	 46.93	0	298881..299402	+	173	59800744	infC	NGO0296	-	translation initiation factor IF-3
272	 44.44	-1	299549..299746	+	65	59800745	rpmI	NGO0297	-	50S ribosomal protein L35
273	 49.72	0	299759..300118	+	119	59800746	rplT	NGO0298	-	50S ribosomal protein L20
274	 50.71	0	300359..301348	+	329	161572977	pheS	NGO0299	-	phenylalanyl-tRNA synthetase subunit alpha
275	 42.51	-1	301365..301778	+	137	59800748	-	NGO0300	-	putative very-short-patch-repair endonuclease
276	 28.46	-2	302132..302377	+	81	59800749	-	NGO0302	-	hypothetical protein
277	 36.27	-2	302383..303132	+	249	59800750	-	NGO0303	-	hypothetical protein
278	 53.05	0	303223..305586	+	787	59800751	pheT	NGO0304	-	phenylalanyl-tRNA synthetase subunit beta
279	 48.51	0	305660..305962	+	100	59800752	-	NGO0305	-	IfhA
280	 50.81	0	305946..306254	+	102	59800753	-	NGO0306	-	hypothetical protein
281	 50.82	0	306430..306915	+	161	59800754	fxsA	NGO0307	-	FxsA
282	 53.76	0	307549..308850	+	433	59800755	-	NGO0308	-	putative adenosylmethionine-8-amino-7-oxononanoate aminotranferase
283	 54.17	0	308847..309494	+	215	59800756	bioD	NGO0309	-	dithiobiotin synthetase
284	 56.27	0	309428..309985	+	185	59800757	-	NGO0310	-	hypothetical protein
285	 28.92	-2	310109..310516	+	135	59800758	-	NGO0311	-	hypothetical protein
286	 52.19	0	310506..311396	+	296	59800759	ubiA	NGO0312	-	4-hydroxybenzoate octaprenyltransferase
287	 54.00	0	311581..312030	+	149	59800760	-	NGO0313	-	putative two-component system transcriptional response regulator
288	 53.37	0	312034..312996	+	320	59800761	-	NGO0314	-	HPr kinase/phosphorylase
289	 55.09	0	312977..313831	+	284	59800762	-	NGO0315	-	hypothetical protein
290	 55.10	0	313912..314853	+	313	59800763	rbgA	NGO0316	-	ribosomal biogenesis GTPase
291	 57.05	0	314954..315556	+	200	59800764	-	NGO0317	-	hypothetical protein
292	 52.75	0	315740..317413	+	557	59800765	-	NGO0318	-	hypothetical protein
293	 58.64	0	318158..319777	-	539	59800766	-	NGO0319	-	hypothetical protein
294	 49.87	0	319873..320265	+	130	59800767	-	NGO0320	-	hypothetical protein
295	 51.22	0	320308..321045	+	245	59800768	ubiE	NGO0321	-	ubiquinone/menaquinone biosynthesis methyltransferase
296	 49.58	0	321265..321744	+	159	59800769	-	NGO0322	-	hypothetical protein
297	 54.14	0	321872..322366	-	164	59800770	-	NGO0323	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine-pyrophosphokinase
298	 49.07	0	322376..322750	-	124	59800771	-	NGO0324	-	hypothetical protein
299	 47.96	0	323455..323748	-	97	59800772	-	NGO0326	-	hypothetical protein
300	 54.21	0	323877..324815	-	312	59800773	-	NGO0327	-	putative D-alanyl-D-alanine-endopeptidase
301	 50.20	0	325073..325576	+	167	59800774	-	NGO0328	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
