IslandPath Analysis: Neisseria gonorrhoeae FA 1090

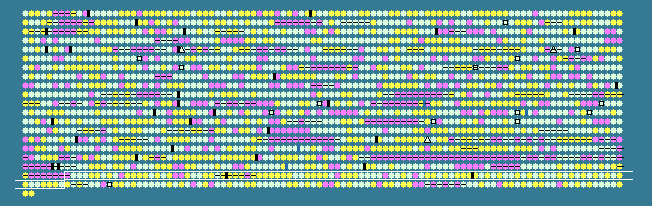

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.66   STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1808	 48.49	0	1949393..1950355	-	320	59802281	-	NGO1972	-	MafA4
1809	 53.61	0	1950486..1951205	-	239	59802282	pyrH	NGO1973	-	uridylate kinase
1810	 51.35	0	1951422..1952276	-	284	59802283	tsf	NGO1974	-	elongation factor Ts
1811	 51.85	0	1952405..1953133	-	242	59802284	rpsB	NGO1975	-	30S ribosomal protein S2
1812	 56.84	0	1953306..1953539	-	77	59802285	-	NGO1976	-	hypothetical protein
1813	 57.88	0	1953539..1954198	+	219	59802286	-	NGO1977	-	hypothetical protein
1814	 54.65	0	1954259..1954849	+	196	59802287	-	NGO1978	-	hypothetical protein
1815	 56.99	0	1955233..1956699	+	488	59802288	-	NGO1980	-	malate:quinone oxidoreductase
1816	 50.98	0	1956886..1957446	-	186	59802289	-	NGO1981	-	hypothetical protein
1817	 45.67	-1	1957498..1957797	-	99	59802290	-	NGO1982	-	hypothetical protein
1818	 56.54	0	1957896..1958675	-	259	59802291	-	NGO1983	-	hypothetical protein
1819	 57.30	0	1958715..1959365	-	216	59802292	-	NGO1984	-	hypothetical protein
1820	 59.77	+1	1959373..1959981	-	202	59802293	-	NGO1985	-	hypothetical protein
1821	 59.60	+1	1960045..1960638	-	197	59802294	gmhA	NGO1986	-	phosphoheptose isomerase
1822	 51.44	0	1960643..1960990	-	115	59802295	-	NGO1987	-	hypothetical protein
1823	 57.31	0	1961037..1961912	+	291	59802296	-	NGO1988	-	hypothetical protein
1824	 51.70	0	1961935..1962756	+	273	59802297	-	NGO1989	-	hypothetical protein
1825	 57.84	0	1962756..1963910	+	384	59802298	obgE	NGO1990	-	GTPase ObgE
1826	 42.62	-1	1963964..1964911	+	315	59802299	-	NGO1991	-	NgoIM
1827	 38.08	-2	1964908..1965960	+	350	59802300	-	NGO1992	-	putative NgoI restriction endonuclease
1828	 56.61	0	1965976..1967397	+	473	59802301	-	NGO1993	-	hypothetical protein
1829	 53.85	0	1967568..1968347	+	259	59802302	-	NGO1994	-	putative exodeoxyribonuclease
1830	 54.49	0	1968334..1968678	+	114	59802303	-	NGO1995	-	hypothetical protein
1831	 59.51	+1	1968688..1969218	+	176	59802304	-	NGO1996	-	hypothetical protein
1832	 58.15	0	1969311..1970426	-	371	59802305	-	NGO1997	-	aspartate-semialdehyde dehydrogenase
1833	 52.06	0	1970601..1971182	+	193	59802306	-	NGO1998	-	hypothetical protein
1834	 57.54	0	1971244..1972098	-	284	59802307	-	NGO1999	-	hypothetical protein
1835	 59.37	+1	1972738..1973244	+	168	59802308	-	NGO2000	-	putative transferase
1836	 60.54	+1	1973241..1975019	+	592	59802309	-	NGO2001	-	bifunctional biotin--[acetyl-CoA-carboxylase] ligase/pantothenate kinase
1837	 58.06	0	1975132..1975956	+	274	59802310	-	NGO2002	-	hypothetical protein
1838	 41.46	-1	1976165..1976287	-	40	59802311	-	NGO2003	-	hypothetical protein
1839	 59.07	0	1976422..1976658	+	78	59802312	-	NGO2004	-	hypothetical protein
1840	 61.98	+1	1976689..1977477	-	262	59802313	thiG	NGO2005	-	thiazole synthase
1841	 56.92	0	1977556..1977750	-	64	59802314	-	NGO2006	-	hypothetical protein
1842	 61.49	+1	1978172..1978789	-	205	59802315	-	NGO2007	-	putative thiamin-phosphate pyrophosphorylase
1843	 61.58	+1	1978811..1979911	-	366	59802316	-	NGO2008	-	putative oxidoreductase
1844	 59.66	+1	1979908..1981134	-	408	59802317	-	NGO2009	-	putative permease protein
1845	 61.88	+1	1981421..1982863	+	480	59802318	-	NGO2010	-	hypothetical protein
1846	 53.48	0	1983007..1983666	+	219	59802319	-	NGO2011	-	putative ABC transporter, permease protein, amino acid
1847	 53.96	0	1983656..1984324	+	222	59802320	-	NGO2012	-	putative ABC transporter, permease protein, amino acid
1848	 56.42	0	1984326..1985057	+	243	59802321	-	NGO2013	-	putative ABC transporter, ATP-binding protein, amino acid
1849	 56.26	0	1985170..1986024	+	284	59802322	-	NGO2014	-	putative ABC transporter, periplasmic binding protein, amino acid
1850	 57.34	0	1986403..1987260	+	285	59802323	-	NGO2015	-	hypothetical protein
1851	 58.68	0	1987346..1988734	+	462	59802324	-	NGO2016	-	hypothetical protein
1852	 54.67	0	1988735..1988959	+	74	59802325	-	NGO2017	-	hypothetical protein
1853	 47.69	0	1989067..1989261	+	64	59802326	-	NGO2018	-	hypothetical protein
1854	 63.16	+1	1989359..1990129	-	256	59802327	-	NGO2019	-	hypothetical protein
1855	 57.27	0	1990296..1992998	+	900	161572971	-	NGO2020	-	phosphoenolpyruvate carboxylase
1856	 56.97	0	1993121..1994110	+	329	59802329	-	NGO2021	-	putative glycerol-3-phosphate dehydrogenase
1857	 53.33	0	1994164..1994493	+	109	59802330	-	NGO2022	-	hypothetical protein
1858	 54.90	0	1994504..1994809	+	101	59802331	-	NGO2023	-	hypothetical protein
1859	 51.62	0	1995172..1995603	+	143	59802332	rplM	NGO2024	-	50S ribosomal protein L13
1860	 53.44	0	1995616..1996008	+	130	59802333	rpsI	NGO2025	-	30S ribosomal protein S9
1861	 24.04	-2	1996389..1996883	-	164	59802334	-	NGO2026	-	hypothetical protein
1862	 55.81	0	1997076..1998005	-	309	59802335	-	NGO2027	-	MetR
1863	 53.20	0	1998134..1998883	+	249	59802336	-	NGO2028	-	hypothetical protein
1864	 56.70	0	1999006..1999587	+	193	59802337	-	NGO2029	-	PetA
1865	 51.04	0	1999606..2000955	+	449	59802338	-	NGO2030	-	PetB
1866	 48.54	0	2000970..2001758	+	262	59802339	-	NGO2031	-	PetC
1867	 54.10	0	2002090..2003880	+	596	59802340	-	NGO2032	-	hypothetical protein
1868	 58.14	0	2003947..2004579	-	210	59802341	-	NGO2033	-	putative hydrolase
1869	 57.94	0	2004672..2005496	+	274	59802342	-	NGO2034	-	DNA ligase
1870	 53.19	0	2005565..2006128	+	187	59802343	-	NGO2035	-	hypoxanthine-guanine phosphoribosyltransferase
1871	 57.31	0	2006212..2006649	+	145	59802344	-	NGO2036	-	putative sugar transport PTS system IIA protein
1872	 54.07	0	2006870..2007139	+	89	59802345	-	NGO2037	-	PtsH
1873	 57.55	0	2007139..2008914	+	591	59802346	-	NGO2038	-	PtsI
1874	 58.81	0	2009041..2009982	-	313	59802347	-	NGO2039	-	putative ABC transporter, ATP-binding protein, amino acid
1875	 57.65	0	2009991..2010866	-	291	59802348	-	NGO2040	-	hypothetical protein
1876	 57.68	0	2011464..2013365	+	633	59802349	-	NGO2041	-	thiamine biosynthesis protein ThiC
1877	 51.80	0	2015247..2015468	+	73	59802350	-	NGO2042	-	hypothetical protein
1878	 58.10	0	2017051..2017365	+	104	59802351	-	NGO2043	-	putative dehydrogenase related protein
1879	 55.23	0	2017440..2019494	-	684	59802352	metG	NGO2044	-	methionyl-tRNA synthetase
1880	 58.35	0	2019610..2021448	-	612	59802353	-	NGO2045	-	D-fructose-6-phosphate amidotransferase
1881	 53.97	0	2021482..2021670	+	62	59802354	-	NGO2046	-	hypothetical protein
1882	 50.19	0	2021721..2022242	+	173	59802355	-	NGO2047	-	hypothetical protein
1883	 60.71	+1	2022525..2023850	-	441	59802356	-	NGO2048	-	GNA33)
1884	 54.50	0	2024900..2026066	+	388	59802357	-	NGO2050	-	hypothetical protein
1885	 58.77	0	2026373..2027638	+	421	59802358	-	NGO2051	-	hypothetical protein
1886	 54.24	0	2027710..2028039	-	109	59802359	-	NGO2052	-	PhnA
1887	 58.21	0	2028114..2029484	-	456	59802360	-	NGO2053	-	UDP-N-acetylglucosamine pyrophosphorylase
1888	 54.21	0	2029539..2029811	-	90	59802361	-	NGO2054	-	hypothetical protein
1889	 55.56	0	2029787..2030515	-	242	59802362	-	NGO2055	-	putative hydrolase
1890	 59.08	0	2030574..2031575	+	333	59802363	-	NGO2056	-	putative ABC transporter, thiamine-binding periplasmic protein
1891	 54.06	0	2031669..2032517	+	282	59802364	-	NGO2057	-	hypothetical protein
1892	 61.28	+1	2032543..2033025	+	160	59802365	-	NGO2058	-	hypothetical protein
1893	 55.07	0	2033109..2034677	-	522	59802366	-	NGO2059	-	trifunctional thioredoxin/methionine sulfoxide reductase A/B protein
1894	 56.95	0	2034823..2036088	+	421	59802367	-	NGO2060	-	putative signal recognition particle protein
1895	 53.90	0	2039365..2040288	-	307	59802368	lpxC	NGO2065	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1896	 60.58	+1	2046714..2047403	-	229	59802369	-	NGO2068	-	hypothetical protein
1897	 55.38	0	2047400..2048143	-	247	59802370	-	NGO2069	-	NlaB
1898	 58.16	0	2048173..2048736	-	187	59802371	-	NGO2070	-	D,D-heptose 1,7-bisphosphate phosphatase
1899	 54.39	0	2048879..2050531	+	550	59802372	-	NGO2071	-	hypothetical protein
1900	 56.91	0	2050598..2051653	-	351	59802373	-	NGO2072	-	lipooligosaccharide glycosyl transferase G
1901	 58.13	0	2051805..2053046	-	413	59802374	-	NGO2073	-	TnaB
1902	 55.42	0	2053194..2053922	+	242	59802375	-	NGO2074	-	3-demethylubiquinone-9 3-methyltransferase
1903	 55.88	0	2053959..2054876	+	305	59802376	-	NGO2075	-	homoserine kinase
1904	 59.73	+1	2055062..2055580	-	172	59802377	-	NGO2076	-	putative glucokinase
1905	 60.25	+1	2055600..2056985	-	461	59802378	-	NGO2077	-	GntP
1906	 60.95	+1	2057326..2058918	+	530	59802379	-	NGO2078	-	putative ABC transporter, permease protein
1907	 55.00	0	2058947..2059546	+	199	59802380	-	NGO2079	-	putative carbonic anhydrase
52.66	MEAN

6.57	STD DEV
