IslandPathversion 1.0

IslandPath Analysis: Neisseria gonorrhoeae FA 1090

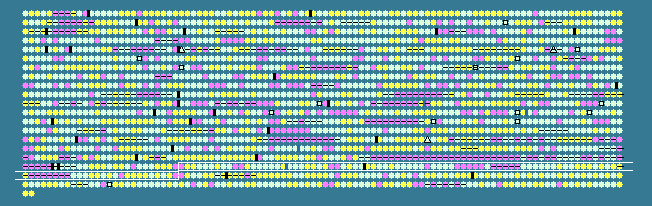

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1727	 39.59	-1	1849022..1849612	+	196	59802200	-	NGO1879	-	hypothetical protein
1728	 58.88	0	1849888..1850439	-	183	59802201	-	NGO1880	-	hypothetical protein
1729	 60.08	+1	1851528..1853000	+	490	59802202	-	NGO1881	-	PykA
1730	 52.48	0	1854669..1855091	-	140	59802203	-	NGO1886	-	hypothetical protein
1731	 52.00	0	1855269..1855418	-	49	59802204	-	NGO1887	-	hypothetical protein
1732	 53.03	0	1855436..1855633	-	65	59802205	-	NGO1888	-	hypothetical protein
1733	 58.51	0	1855643..1856659	-	338	59802206	-	NGO1889	-	hypothetical protein
1734	 53.25	0	1856758..1857972	-	404	59802207	-	NGO1890	-	GltS
1735	 54.96	0	1858225..1858506	-	93	59802208	-	NGO1891	-	hypothetical protein
1736	 36.31	-2	1859711..1860718	-	335	59802209	-	NGO1893	-	DamH
1737	 40.12	-1	1860711..1861712	-	333	59802210	-	NGO1894	-	putative 5-methylcytosine methyltransferase
1738	 59.37	+1	1861743..1864016	-	757	59802211	-	NGO1895	-	hypothetical protein
1739	 55.95	0	1864135..1865151	+	338	59802212	-	NGO1896	-	hypothetical protein
1740	 55.72	0	1865152..1866192	+	346	59802213	-	NGO1897	-	hypothetical protein
1741	 54.21	0	1866297..1867163	+	288	59802214	-	NGO1898	-	glucose-1-phosphate thymidylyltransferase
1742	 54.04	0	1867902..1869920	-	672	59802215	-	NGO1900	-	hypothetical protein
1743	 53.03	0	1870115..1871236	-	373	59802216	-	NGO1901	-	putative heat shock protein/chaperone DnaJ
1744	 58.50	0	1872224..1872517	-	97	59802217	-	NGO1902	-	ComE4
1745	 50.36	0	1878578..1878994	-	138	59802218	-	NGO1904	-	DskA
1746	 54.29	0	1879145..1879936	-	263	59802219	-	NGO1905	-	putative pyrroline-5-carboxylate reductase
1747	 51.96	0	1879985..1880392	-	135	59802220	-	NGO1906	-	hypothetical protein
1748	 58.08	0	1880392..1881078	-	228	59802221	-	NGO1907	-	hypothetical protein
1749	 57.76	0	1881198..1882241	+	347	59802222	-	NGO1908	-	twitching motility/pilus retraction protein
1750	 55.58	0	1882405..1883631	+	408	59802223	-	NGO1909	-	putative twitching motility - like protein
1751	 60.99	+1	1883748..1885898	+	716	59802224	-	NGO1910	-	hypothetical protein
1752	 40.00	-1	1886380..1886664	-	94	59802225	-	NGO1911	-	hypothetical protein
1753	 38.93	-2	1891120..1891512	+	130	59802226	-	NGO1913	-	hypothetical protein
1754	 55.35	0	1891592..1893040	+	482	59802227	-	NGO1914	-	6-phosphogluconate dehydrogenase
1755	 60.38	+1	1893103..1894374	+	423	59802228	-	NGO1915	-	3-deoxy-D-manno-octulosonic-acid transferase
1756	 56.00	0	1894415..1894864	+	149	59802229	-	NGO1916	-	hypothetical protein
1757	 49.95	0	1894897..1895871	+	324	59802230	-	NGO1917	-	hypothetical protein
1758	 59.17	0	1896236..1897489	+	417	59802231	-	NGO1918	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1759	 58.29	0	1897570..1898763	+	397	59802232	pgk	NGO1919	-	phosphoglycerate kinase
1760	 53.41	0	1898815..1899063	-	82	59802233	-	NGO1920	-	hypothetical protein
1761	 55.66	0	1899156..1900073	-	305	59802234	-	NGO1921	-	hypothetical protein
1762	 56.22	0	1900070..1900720	-	216	59802235	-	NGO1922	-	hypothetical protein
1763	 55.07	0	1900914..1901396	-	160	59802236	-	NGO1923	-	putative thioredoxin
1764	 51.98	0	1901520..1901873	+	117	59802237	-	NGO1924	-	ArsC
1765	 55.86	0	1901870..1902526	+	218	59802238	-	NGO1925	-	hypothetical protein
1766	 54.19	0	1902642..1904036	+	464	59802239	gltX	NGO1926	-	glutamyl-tRNA synthetase
1767	 51.26	0	1904057..1904452	+	131	59802240	-	NGO1927	-	hypothetical protein
1768	 48.58	0	1904456..1904947	+	163	59802241	-	NGO1928	-	putative acetyltransferase
1769	 50.39	0	1904953..1905081	+	42	59802242	-	NGO1929	-	hypothetical protein
1770	 55.84	0	1905223..1907817	-	864	59802243	-	NGO1930	-	DNA mismatch repair protein
1771	 55.72	0	1908251..1909255	+	334	59802244	-	NGO1931	-	GapC
1772	 54.04	0	1909407..1910087	-	226	59802245	-	NGO1932	-	hypothetical protein
1773	 46.38	0	1910547..1911182	+	211	59802246	-	NGO1933	-	hypothetical protein
1774	 46.65	0	1911219..1912187	+	322	59802247	-	NGO1934	-	RfaC
1775	 46.53	0	1912413..1913162	+	249	59802248	-	NGO1935	-	EtfB
1776	 48.08	0	1913173..1914108	+	311	59802249	-	NGO1936	-	EtfA
1777	 42.16	-1	1914832..1915035	-	67	59802250	-	NGO1938	-	hypothetical protein
1778	 50.31	0	1915307..1916578	+	423	59802251	-	NGO1939	-	phosphoribosylamine--glycine ligase
1779	 48.09	0	1916612..1917214	+	200	59802252	-	NGO1940	-	hypothetical protein
1780	 36.43	-2	1917229..1917744	+	171	59802253	-	NGO1941	-	hypothetical protein
1781	 41.84	-1	1917896..1918318	-	140	59802254	-	NGO1942	-	hypothetical protein
1782	 43.89	-1	1918568..1918747	-	59	59802255	-	NGO1943	-	hypothetical protein
1783	 47.96	0	1918753..1919340	-	195	59802256	-	NGO1944	-	RNA polymerase sigma factor
1784	 49.40	0	1919362..1920108	-	248	59802257	-	NGO1945	-	hypothetical protein
1785	 55.16	0	1920098..1920940	-	280	59802258	-	NGO1946	-	hypothetical protein
1786	 55.46	0	1921058..1921396	-	112	59802259	-	NGO1947	-	hypothetical protein
1787	 49.78	0	1921470..1921919	-	149	59802260	-	NGO1948	-	hypothetical protein
1788	 53.71	0	1922250..1923152	+	300	59802261	-	NGO1949	-	hypothetical protein
1789	 53.08	0	1923255..1924358	+	367	59802262	prfB	NGO1951	-	peptide chain release factor 2
1790	 58.22	0	1924516..1924728	-	70	59802263	-	NGO1952	-	hypothetical protein
1791	 49.81	0	1924854..1925114	-	86	59802264	-	NGO1953	-	hypothetical protein
1792	 54.66	0	1925126..1926583	-	485	59802265	-	NGO1954	-	putative peptide transporter
1793	 59.66	+1	1927364..1931533	-	1389	59802266	-	NGO1955	-	hypothetical protein
1794	 58.65	0	1931588..1933495	-	635	59802267	-	NGO1956	-	hypothetical protein
1795	 59.02	0	1933806..1935035	+	409	59802268	-	NGO1957	-	serine/threonine transporter SstT
1796	 53.49	0	1935186..1936475	+	429	59802269	-	NGO1958	-	hypothetical protein
1797	 59.31	+1	1936475..1936678	+	67	59802270	-	NGO1959	-	hypothetical protein
1798	 49.44	0	1936946..1937212	+	88	59802271	-	NGO1960	-	hypothetical protein
1799	 56.18	0	1937605..1938948	-	447	59802272	-	NGO1961	-	argininosuccinate synthase
1800	 57.05	0	1939073..1939873	+	266	59802273	-	NGO1962	-	hypothetical protein
1801	 57.55	0	1939913..1940899	+	328	59802274	-	NGO1963	-	putative protease
1802	 30.67	-2	1942504..1942878	-	124	59802275	-	NGO1965	-	hypothetical protein
1803	 28.85	-2	1943052..1943408	-	118	59802276	-	NGO1966	-	hypothetical protein
1804	 27.22	-2	1944697..1945056	-	119	59802277	-	NGO1967	-	hypothetical protein
1805	 26.67	-2	1947207..1947416	-	69	59802278	-	NGO1969	-	hypothetical protein
1806	 25.28	-2	1947493..1947852	-	119	59802279	-	NGO1970	-	hypothetical protein
1807	 45.62	-1	1947857..1949353	-	498	59802280	-	NGO1971	-	MafB5
1808	 48.49	0	1949393..1950355	-	320	59802281	-	NGO1972	-	MafA4
1809	 53.61	0	1950486..1951205	-	239	59802282	pyrH	NGO1973	-	uridylate kinase
1810	 51.35	0	1951422..1952276	-	284	59802283	tsf	NGO1974	-	elongation factor Ts
1811	 51.85	0	1952405..1953133	-	242	59802284	rpsB	NGO1975	-	30S ribosomal protein S2
1812	 56.84	0	1953306..1953539	-	77	59802285	-	NGO1976	-	hypothetical protein
1813	 57.88	0	1953539..1954198	+	219	59802286	-	NGO1977	-	hypothetical protein
1814	 54.65	0	1954259..1954849	+	196	59802287	-	NGO1978	-	hypothetical protein
1815	 56.99	0	1955233..1956699	+	488	59802288	-	NGO1980	-	malate:quinone oxidoreductase
1816	 50.98	0	1956886..1957446	-	186	59802289	-	NGO1981	-	hypothetical protein
1817	 45.67	-1	1957498..1957797	-	99	59802290	-	NGO1982	-	hypothetical protein
1818	 56.54	0	1957896..1958675	-	259	59802291	-	NGO1983	-	hypothetical protein
1819	 57.30	0	1958715..1959365	-	216	59802292	-	NGO1984	-	hypothetical protein
1820	 59.77	+1	1959373..1959981	-	202	59802293	-	NGO1985	-	hypothetical protein
1821	 59.60	+1	1960045..1960638	-	197	59802294	gmhA	NGO1986	-	phosphoheptose isomerase
1822	 51.44	0	1960643..1960990	-	115	59802295	-	NGO1987	-	hypothetical protein
1823	 57.31	0	1961037..1961912	+	291	59802296	-	NGO1988	-	hypothetical protein
1824	 51.70	0	1961935..1962756	+	273	59802297	-	NGO1989	-	hypothetical protein
1825	 57.84	0	1962756..1963910	+	384	59802298	obgE	NGO1990	-	GTPase ObgE
1826	 42.62	-1	1963964..1964911	+	315	59802299	-	NGO1991	-	NgoIM
52.66	MEAN

6.57	STD DEV
