IslandPathversion 1.0

IslandPath Analysis: Neisseria gonorrhoeae FA 1090

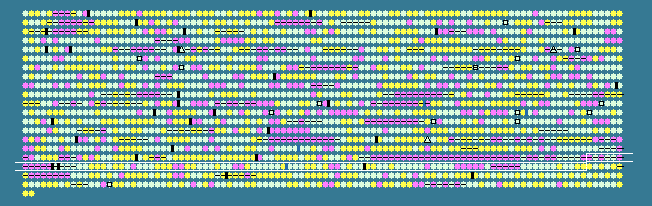

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1695	 48.92	0	1812378..1813307	-	309	59802168	-	NGO1847	-	hypothetical protein
1696	 55.56	0	1813279..1813521	-	80	59802169	-	NGO1848	-	hypothetical protein
1697	 41.24	-1	1813761..1814822	-	353	59802170	-	NGO1849	-	hypothetical protein
1698	 51.01	0	1815110..1819285	-	1391	59802171	-	NGO1850	-	DNA-directed RNA polymerase subunit beta'
1699	 50.25	0	1819438..1823616	-	1392	59802172	rpoB	NGO1851	-	DNA-directed RNA polymerase subunit beta
1700	 44.09	-1	1823807..1824178	-	123	59802173	rplL	NGO1852	-	50S ribosomal protein L7/L12
1701	 47.31	0	1824236..1824736	-	166	59802174	rplJ	NGO1853	-	50S ribosomal protein L10
1702	 44.54	-1	1824964..1825659	-	231	59802175	rplA	NGO1854	-	50S ribosomal protein L1
1703	 43.91	-1	1825659..1826093	-	144	59802176	rplK	NGO1855	-	50S ribosomal protein L11
1704	 43.58	-1	1826194..1826730	-	178	59802177	nusG	NGO1856	-	transcription antitermination protein NusG
1705	 36.92	-2	1826732..1827010	-	92	59802178	secE	NGO1857	-	preprotein translocase subunit SecE
1706	 53.16	0	1827207..1828391	-	394	59802179	-	NGO1858	-	elongation factor Tu
1707	 49.60	0	1828808..1829059	-	83	59802180	-	NGO1859	-	putative ferredoxin
1708	 53.33	0	1829182..1829751	-	189	59802181	-	NGO1860	-	putative DNA methylase
1709	 51.92	0	1829854..1830192	-	112	59802182	-	NGO1861	-	hypothetical protein
1710	 54.36	0	1832027..1834333	-	768	59802183	-	NGO1863	-	DNA topoisomerase I
1711	 53.68	0	1834411..1834872	-	153	59802184	-	NGO1864	-	hypothetical protein
1712	 61.28	+1	1834898..1836085	-	395	59802185	-	NGO1865	-	hypothetical protein
1713	 56.57	0	1836176..1837453	-	425	59802186	-	NGO1866	-	putative two-component system transcriptional response regulator
1714	 57.52	0	1837446..1839566	-	706	59802187	-	NGO1867	-	putative two-component system sensor kinase
1715	 54.83	0	1839566..1840165	-	199	59802188	-	NGO1868	-	hypothetical protein
1716	 58.73	0	1840131..1841390	-	419	59802189	-	NGO1869	-	putative 16S RNA methyltransferase
1717	 59.98	+1	1841469..1842395	-	308	59802190	-	NGO1870	-	hypothetical protein
1718	 54.96	0	1842483..1842986	-	167	59802191	def	NGO1871	-	peptide deformylase
1719	 44.44	-1	1843059..1843256	-	65	59802192	-	NGO1872	-	hypothetical protein
1720	 55.01	0	1843284..1844621	+	445	59802193	-	NGO1873	-	hypothetical protein
1721	 50.91	0	1844694..1844858	+	54	59802194	-	NGO1874	-	hypothetical protein
1722	 53.92	0	1845042..1845692	-	216	59802195	-	NGO1875	-	hypothetical protein
1723	 56.43	0	1845754..1846212	-	152	59802196	-	NGO1876	-	aspartate carbamoyltransferase regulatory subunit
1724	 58.41	0	1846222..1847142	-	306	59802197	pyrB	NGO1877	-	aspartate carbamoyltransferase catalytic subunit
1725	 58.24	0	1847378..1848220	+	280	59802198	-	NGO1878	-	hypothetical protein
1726	 22.36	-2	1848738..1848974	+	78	59802199	-	NGO18781	-	hypothetical protein
1727	 39.59	-1	1849022..1849612	+	196	59802200	-	NGO1879	-	hypothetical protein
1728	 58.88	0	1849888..1850439	-	183	59802201	-	NGO1880	-	hypothetical protein
1729	 60.08	+1	1851528..1853000	+	490	59802202	-	NGO1881	-	PykA
1730	 52.48	0	1854669..1855091	-	140	59802203	-	NGO1886	-	hypothetical protein
1731	 52.00	0	1855269..1855418	-	49	59802204	-	NGO1887	-	hypothetical protein
1732	 53.03	0	1855436..1855633	-	65	59802205	-	NGO1888	-	hypothetical protein
1733	 58.51	0	1855643..1856659	-	338	59802206	-	NGO1889	-	hypothetical protein
1734	 53.25	0	1856758..1857972	-	404	59802207	-	NGO1890	-	GltS
1735	 54.96	0	1858225..1858506	-	93	59802208	-	NGO1891	-	hypothetical protein
1736	 36.31	-2	1859711..1860718	-	335	59802209	-	NGO1893	-	DamH
1737	 40.12	-1	1860711..1861712	-	333	59802210	-	NGO1894	-	putative 5-methylcytosine methyltransferase
1738	 59.37	+1	1861743..1864016	-	757	59802211	-	NGO1895	-	hypothetical protein
1739	 55.95	0	1864135..1865151	+	338	59802212	-	NGO1896	-	hypothetical protein
1740	 55.72	0	1865152..1866192	+	346	59802213	-	NGO1897	-	hypothetical protein
1741	 54.21	0	1866297..1867163	+	288	59802214	-	NGO1898	-	glucose-1-phosphate thymidylyltransferase
1742	 54.04	0	1867902..1869920	-	672	59802215	-	NGO1900	-	hypothetical protein
1743	 53.03	0	1870115..1871236	-	373	59802216	-	NGO1901	-	putative heat shock protein/chaperone DnaJ
1744	 58.50	0	1872224..1872517	-	97	59802217	-	NGO1902	-	ComE4
1745	 50.36	0	1878578..1878994	-	138	59802218	-	NGO1904	-	DskA
1746	 54.29	0	1879145..1879936	-	263	59802219	-	NGO1905	-	putative pyrroline-5-carboxylate reductase
1747	 51.96	0	1879985..1880392	-	135	59802220	-	NGO1906	-	hypothetical protein
1748	 58.08	0	1880392..1881078	-	228	59802221	-	NGO1907	-	hypothetical protein
1749	 57.76	0	1881198..1882241	+	347	59802222	-	NGO1908	-	twitching motility/pilus retraction protein
1750	 55.58	0	1882405..1883631	+	408	59802223	-	NGO1909	-	putative twitching motility - like protein
1751	 60.99	+1	1883748..1885898	+	716	59802224	-	NGO1910	-	hypothetical protein
1752	 40.00	-1	1886380..1886664	-	94	59802225	-	NGO1911	-	hypothetical protein
1753	 38.93	-2	1891120..1891512	+	130	59802226	-	NGO1913	-	hypothetical protein
1754	 55.35	0	1891592..1893040	+	482	59802227	-	NGO1914	-	6-phosphogluconate dehydrogenase
1755	 60.38	+1	1893103..1894374	+	423	59802228	-	NGO1915	-	3-deoxy-D-manno-octulosonic-acid transferase
1756	 56.00	0	1894415..1894864	+	149	59802229	-	NGO1916	-	hypothetical protein
1757	 49.95	0	1894897..1895871	+	324	59802230	-	NGO1917	-	hypothetical protein
1758	 59.17	0	1896236..1897489	+	417	59802231	-	NGO1918	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1759	 58.29	0	1897570..1898763	+	397	59802232	pgk	NGO1919	-	phosphoglycerate kinase
1760	 53.41	0	1898815..1899063	-	82	59802233	-	NGO1920	-	hypothetical protein
1761	 55.66	0	1899156..1900073	-	305	59802234	-	NGO1921	-	hypothetical protein
1762	 56.22	0	1900070..1900720	-	216	59802235	-	NGO1922	-	hypothetical protein
1763	 55.07	0	1900914..1901396	-	160	59802236	-	NGO1923	-	putative thioredoxin
1764	 51.98	0	1901520..1901873	+	117	59802237	-	NGO1924	-	ArsC
1765	 55.86	0	1901870..1902526	+	218	59802238	-	NGO1925	-	hypothetical protein
1766	 54.19	0	1902642..1904036	+	464	59802239	gltX	NGO1926	-	glutamyl-tRNA synthetase
1767	 51.26	0	1904057..1904452	+	131	59802240	-	NGO1927	-	hypothetical protein
1768	 48.58	0	1904456..1904947	+	163	59802241	-	NGO1928	-	putative acetyltransferase
1769	 50.39	0	1904953..1905081	+	42	59802242	-	NGO1929	-	hypothetical protein
1770	 55.84	0	1905223..1907817	-	864	59802243	-	NGO1930	-	DNA mismatch repair protein
1771	 55.72	0	1908251..1909255	+	334	59802244	-	NGO1931	-	GapC
1772	 54.04	0	1909407..1910087	-	226	59802245	-	NGO1932	-	hypothetical protein
1773	 46.38	0	1910547..1911182	+	211	59802246	-	NGO1933	-	hypothetical protein
1774	 46.65	0	1911219..1912187	+	322	59802247	-	NGO1934	-	RfaC
1775	 46.53	0	1912413..1913162	+	249	59802248	-	NGO1935	-	EtfB
1776	 48.08	0	1913173..1914108	+	311	59802249	-	NGO1936	-	EtfA
1777	 42.16	-1	1914832..1915035	-	67	59802250	-	NGO1938	-	hypothetical protein
1778	 50.31	0	1915307..1916578	+	423	59802251	-	NGO1939	-	phosphoribosylamine--glycine ligase
1779	 48.09	0	1916612..1917214	+	200	59802252	-	NGO1940	-	hypothetical protein
1780	 36.43	-2	1917229..1917744	+	171	59802253	-	NGO1941	-	hypothetical protein
1781	 41.84	-1	1917896..1918318	-	140	59802254	-	NGO1942	-	hypothetical protein
1782	 43.89	-1	1918568..1918747	-	59	59802255	-	NGO1943	-	hypothetical protein
1783	 47.96	0	1918753..1919340	-	195	59802256	-	NGO1944	-	RNA polymerase sigma factor
1784	 49.40	0	1919362..1920108	-	248	59802257	-	NGO1945	-	hypothetical protein
1785	 55.16	0	1920098..1920940	-	280	59802258	-	NGO1946	-	hypothetical protein
1786	 55.46	0	1921058..1921396	-	112	59802259	-	NGO1947	-	hypothetical protein
1787	 49.78	0	1921470..1921919	-	149	59802260	-	NGO1948	-	hypothetical protein
1788	 53.71	0	1922250..1923152	+	300	59802261	-	NGO1949	-	hypothetical protein
1789	 53.08	0	1923255..1924358	+	367	59802262	prfB	NGO1951	-	peptide chain release factor 2
1790	 58.22	0	1924516..1924728	-	70	59802263	-	NGO1952	-	hypothetical protein
1791	 49.81	0	1924854..1925114	-	86	59802264	-	NGO1953	-	hypothetical protein
1792	 54.66	0	1925126..1926583	-	485	59802265	-	NGO1954	-	putative peptide transporter
1793	 59.66	+1	1927364..1931533	-	1389	59802266	-	NGO1955	-	hypothetical protein
1794	 58.65	0	1931588..1933495	-	635	59802267	-	NGO1956	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
