IslandPath Analysis: Neisseria gonorrhoeae FA 1090

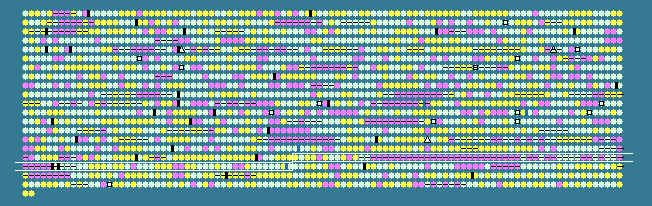

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1646	 56.79	0	1773621..1775999	+	792	59802119	-	NGO1801	-	hypothetical protein
1647	 53.76	0	1776008..1776565	+	185	59802120	-	NGO1802	-	hypothetical protein
1648	 60.44	+1	1776598..1777641	+	347	59802121	lpxD	NGO1803	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1649	 56.22	0	1777677..1778126	+	149	59802122	fabZ	NGO1804	-	(3R)-hydroxymyristoyl-ACP dehydratase
1650	 35.23	-2	1778333..1779019	+	228	59802123	-	NGO1805	-	hypothetical protein
1651	 58.56	0	1779062..1779838	+	258	59802124	-	NGO1806	-	UDP-N-acetylglucosamine acyltransferase
1652	 54.09	0	1780301..1781692	+	463	59802125	-	NGO1807	-	putative amino-acid transporter
1653	 55.08	0	1781771..1783030	+	419	59802126	-	NGO1808	-	D-amino acid dehydrogenase small subunit
1654	 56.31	0	1783135..1785972	+	945	59802127	valS	NGO1809	-	valyl-tRNA synthetase
1655	 48.17	0	1786049..1786513	+	154	59802128	-	NGO1810	-	hypothetical protein
1656	 62.28	+1	1787384..1788181	+	265	59802129	truA	NGO1811	-	tRNA pseudouridine synthase A
1657	 52.63	0	1788698..1789744	+	348	59802130	-	NGO1812	-	major outer membrane protein porin P.IB
1658	 53.20	0	1790265..1791185	-	306	59802131	-	NGO1813	-	LysR family transcriptional regulator
1659	 44.32	-1	1791189..1791452	-	87	59802132	-	NGO1814	-	hypothetical protein
1660	 44.82	-1	1792300..1793013	-	237	59802133	minC	NGO1816	-	septum formation inhibitor
1661	 46.34	0	1793160..1793528	-	122	59802134	rplQ	NGO1817	-	50S ribosomal protein L17
1662	 42.35	-1	1793552..1794538	-	328	59802135	-	NGO1818	-	DNA-directed RNA polymerase subunit alpha
1663	 43.80	-1	1794564..1795184	-	206	59802136	rpsD	NGO1819	-	30S ribosomal protein S4
1664	 45.20	-1	1795204..1795599	-	131	59802137	-	NGO1820	-	30S ribosomal protein S11
1665	 45.45	-1	1795619..1795981	-	120	59802138	rpsM	NGO1821	-	30S ribosomal protein S13
1666	 37.90	-2	1796181..1796399	-	72	59802139	infA	NGO18211	-	translation initiation factor IF-1
1667	 37.15	-2	1796404..1797714	-	436	59802140	secY	NGO1822	-	preprotein translocase subunit SecY
1668	 42.53	-1	1797726..1798160	-	144	59802141	rplO	NGO1823	-	50S ribosomal protein L15
1669	 40.86	-1	1798162..1798347	-	61	59802142	rpmD	NGO18231	-	50S ribosomal protein L30
1670	 43.74	-1	1798340..1798858	-	172	59802143	rpsE	NGO1824	-	30S ribosomal protein S5
1671	 43.50	-1	1798877..1799230	-	117	59802144	rplR	NGO18241	-	50S ribosomal protein L18
1672	 40.82	-1	1799244..1799777	-	177	59802145	rplF	NGO1825	-	50S ribosomal protein L6
1673	 39.44	-2	1799791..1800183	-	130	59802146	rpsH	NGO1826	-	30S ribosomal protein S8
1674	 46.08	-1	1800199..1800504	-	101	59802147	rpsN	NGO18261	-	30S ribosomal protein S14
1675	 38.89	-2	1800507..1801046	-	179	59802148	rplE	NGO1827	-	50S ribosomal protein L5
1676	 38.27	-2	1801056..1801379	-	107	59802149	rplX	NGO1828	-	50S ribosomal protein L24
1677	 44.44	-1	1801391..1801759	-	122	59802150	rplN	NGO1829	-	50S ribosomal protein L14
1678	 35.61	-2	1801981..1802244	-	87	59802151	rpsQ	NGO1830	-	30S ribosomal protein S17
1679	 38.54	-2	1802244..1802435	-	63	59802152	-	NGO1831	-	50S ribosomal protein L29
1680	 47.00	0	1802435..1802851	-	138	59802153	rplP	NGO18311	-	50S ribosomal protein L16
1681	 44.30	-1	1802835..1803527	-	230	59802154	rpsC	NGO1832	-	30S ribosomal protein S3
1682	 41.82	-1	1803537..1803866	-	109	59802155	rplV	NGO1833	-	50S ribosomal protein L22
1683	 45.16	-1	1803875..1804153	-	92	59802156	rpsS	NGO1834	-	30S ribosomal protein S19
1684	 51.08	0	1804159..1804992	-	277	59802157	rplB	NGO1835	-	50S ribosomal protein L2
1685	 42.99	-1	1804998..1805318	-	106	59802158	rplW	NGO1836	-	50S ribosomal protein L23
1686	 47.34	0	1805309..1805929	-	206	59802159	rplD	NGO1837	-	50S ribosomal protein L4
1687	 50.54	0	1805929..1806573	-	214	59802160	rplC	NGO1838	-	50S ribosomal protein L3
1688	 45.31	-1	1806791..1806982	-	63	59802161	-	NGO1839	-	hypothetical protein
1689	 46.47	0	1807359..1807670	-	103	59802162	rpsJ	NGO1841	-	30S ribosomal protein S10
1690	 53.08	0	1807688..1808872	-	394	59802163	-	NGO1842	-	elongation factor Tu
1691	 49.67	0	1808960..1811065	-	701	59802164	-	NGO1843	-	elongation factor G
1692	 49.68	0	1811084..1811554	-	156	59802165	-	NGO1844	-	30S ribosomal protein S7
1693	 50.54	0	1811672..1812043	-	123	59802166	rpsL	NGO1845	-	30S ribosomal protein S12
1694	 42.00	-1	1812222..1812371	-	49	59802167	-	NGO1846	-	hypothetical protein
1695	 48.92	0	1812378..1813307	-	309	59802168	-	NGO1847	-	hypothetical protein
1696	 55.56	0	1813279..1813521	-	80	59802169	-	NGO1848	-	hypothetical protein
1697	 41.24	-1	1813761..1814822	-	353	59802170	-	NGO1849	-	hypothetical protein
1698	 51.01	0	1815110..1819285	-	1391	59802171	-	NGO1850	-	DNA-directed RNA polymerase subunit beta'
1699	 50.25	0	1819438..1823616	-	1392	59802172	rpoB	NGO1851	-	DNA-directed RNA polymerase subunit beta
1700	 44.09	-1	1823807..1824178	-	123	59802173	rplL	NGO1852	-	50S ribosomal protein L7/L12
1701	 47.31	0	1824236..1824736	-	166	59802174	rplJ	NGO1853	-	50S ribosomal protein L10
1702	 44.54	-1	1824964..1825659	-	231	59802175	rplA	NGO1854	-	50S ribosomal protein L1
1703	 43.91	-1	1825659..1826093	-	144	59802176	rplK	NGO1855	-	50S ribosomal protein L11
1704	 43.58	-1	1826194..1826730	-	178	59802177	nusG	NGO1856	-	transcription antitermination protein NusG
1705	 36.92	-2	1826732..1827010	-	92	59802178	secE	NGO1857	-	preprotein translocase subunit SecE
1706	 53.16	0	1827207..1828391	-	394	59802179	-	NGO1858	-	elongation factor Tu
1707	 49.60	0	1828808..1829059	-	83	59802180	-	NGO1859	-	putative ferredoxin
1708	 53.33	0	1829182..1829751	-	189	59802181	-	NGO1860	-	putative DNA methylase
1709	 51.92	0	1829854..1830192	-	112	59802182	-	NGO1861	-	hypothetical protein
1710	 54.36	0	1832027..1834333	-	768	59802183	-	NGO1863	-	DNA topoisomerase I
1711	 53.68	0	1834411..1834872	-	153	59802184	-	NGO1864	-	hypothetical protein
1712	 61.28	+1	1834898..1836085	-	395	59802185	-	NGO1865	-	hypothetical protein
1713	 56.57	0	1836176..1837453	-	425	59802186	-	NGO1866	-	putative two-component system transcriptional response regulator
1714	 57.52	0	1837446..1839566	-	706	59802187	-	NGO1867	-	putative two-component system sensor kinase
1715	 54.83	0	1839566..1840165	-	199	59802188	-	NGO1868	-	hypothetical protein
1716	 58.73	0	1840131..1841390	-	419	59802189	-	NGO1869	-	putative 16S RNA methyltransferase
1717	 59.98	+1	1841469..1842395	-	308	59802190	-	NGO1870	-	hypothetical protein
1718	 54.96	0	1842483..1842986	-	167	59802191	def	NGO1871	-	peptide deformylase
1719	 44.44	-1	1843059..1843256	-	65	59802192	-	NGO1872	-	hypothetical protein
1720	 55.01	0	1843284..1844621	+	445	59802193	-	NGO1873	-	hypothetical protein
1721	 50.91	0	1844694..1844858	+	54	59802194	-	NGO1874	-	hypothetical protein
1722	 53.92	0	1845042..1845692	-	216	59802195	-	NGO1875	-	hypothetical protein
1723	 56.43	0	1845754..1846212	-	152	59802196	-	NGO1876	-	aspartate carbamoyltransferase regulatory subunit
1724	 58.41	0	1846222..1847142	-	306	59802197	pyrB	NGO1877	-	aspartate carbamoyltransferase catalytic subunit
1725	 58.24	0	1847378..1848220	+	280	59802198	-	NGO1878	-	hypothetical protein
1726	 22.36	-2	1848738..1848974	+	78	59802199	-	NGO18781	-	hypothetical protein
1727	 39.59	-1	1849022..1849612	+	196	59802200	-	NGO1879	-	hypothetical protein
1728	 58.88	0	1849888..1850439	-	183	59802201	-	NGO1880	-	hypothetical protein
1729	 60.08	+1	1851528..1853000	+	490	59802202	-	NGO1881	-	PykA
1730	 52.48	0	1854669..1855091	-	140	59802203	-	NGO1886	-	hypothetical protein
1731	 52.00	0	1855269..1855418	-	49	59802204	-	NGO1887	-	hypothetical protein
1732	 53.03	0	1855436..1855633	-	65	59802205	-	NGO1888	-	hypothetical protein
1733	 58.51	0	1855643..1856659	-	338	59802206	-	NGO1889	-	hypothetical protein
1734	 53.25	0	1856758..1857972	-	404	59802207	-	NGO1890	-	GltS
1735	 54.96	0	1858225..1858506	-	93	59802208	-	NGO1891	-	hypothetical protein
1736	 36.31	-2	1859711..1860718	-	335	59802209	-	NGO1893	-	DamH
1737	 40.12	-1	1860711..1861712	-	333	59802210	-	NGO1894	-	putative 5-methylcytosine methyltransferase
1738	 59.37	+1	1861743..1864016	-	757	59802211	-	NGO1895	-	hypothetical protein
1739	 55.95	0	1864135..1865151	+	338	59802212	-	NGO1896	-	hypothetical protein
1740	 55.72	0	1865152..1866192	+	346	59802213	-	NGO1897	-	hypothetical protein
1741	 54.21	0	1866297..1867163	+	288	59802214	-	NGO1898	-	glucose-1-phosphate thymidylyltransferase
1742	 54.04	0	1867902..1869920	-	672	59802215	-	NGO1900	-	hypothetical protein
1743	 53.03	0	1870115..1871236	-	373	59802216	-	NGO1901	-	putative heat shock protein/chaperone DnaJ
1744	 58.50	0	1872224..1872517	-	97	59802217	-	NGO1902	-	ComE4
1745	 50.36	0	1878578..1878994	-	138	59802218	-	NGO1904	-	DskA
52.66	MEAN

6.57	STD DEV
