IslandPath Analysis: Neisseria gonorrhoeae FA 1090

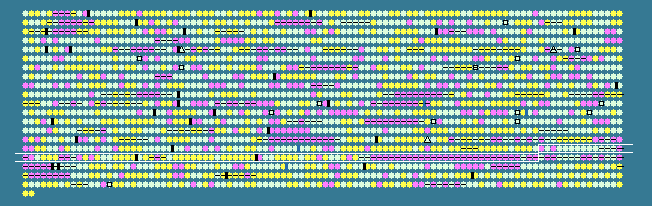

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1587	 34.19	-2	1698486..1699649	-	387	59802060	-	NGO1739	-	hypothetical protein
1588	 52.69	0	1699833..1701857	-	674	59802061	-	NGO1740	-	NADH dehydrogenase subunit L
1589	 48.04	0	1701860..1702165	-	101	59802062	-	NGO1741	-	NADH dehydrogenase subunit K
1590	 54.02	0	1702162..1702833	-	223	59802063	-	NGO1742	-	hypothetical protein
1591	 53.33	0	1702845..1703324	-	159	59802064	-	NGO1743	-	NADH dehydrogenase subunit I
1592	 53.76	0	1703405..1704481	-	358	59802065	-	NGO1744	-	hypothetical protein
1593	 55.44	0	1704484..1706745	-	753	59802066	-	NGO1745	-	NADH dehydrogenase subunit G
1594	 54.30	0	1707458..1708759	-	433	59802067	-	NGO1746	-	hypothetical protein
1595	 54.85	0	1709149..1709622	-	157	59802068	-	NGO1747	-	NADH dehydrogenase subunit E
1596	 55.77	0	1709622..1710878	-	418	59802069	-	NGO1748	-	NADH dehydrogenase subunit D
1597	 51.01	0	1710868..1711461	-	197	59802070	-	NGO1749	-	NADH dehydrogenase subunit C
1598	 55.69	0	1711474..1711956	-	160	59802071	-	NGO1750	-	NADH dehydrogenase subunit B
1599	 50.42	0	1711947..1712303	-	118	59802072	-	NGO1751	-	hypothetical protein
1600	 48.59	0	1712796..1714283	-	495	59802073	-	NGO1752	-	hypothetical protein
1601	 47.50	0	1714270..1714890	-	206	59802074	-	NGO1753	-	hypothetical protein
1602	 40.80	-1	1715118..1715465	-	115	59802075	-	NGO1754	-	MafI protein
1603	 50.25	0	1715638..1715838	-	66	59802076	-	NGO1755	-	hypothetical protein
1604	 58.10	0	1716172..1716486	-	104	59802077	-	NGO1756	-	hypothetical protein
1605	 57.93	0	1716628..1718835	-	735	59802078	-	NGO1757	-	hypothetical protein
1606	 58.05	0	1719259..1721949	-	896	59802079	-	NGO1758	-	GlnE
1607	 43.15	-1	1722143..1722478	-	111	59802080	-	NGO1759	-	hypothetical protein
1608	 41.35	-1	1722492..1722965	-	157	59802081	-	NGO1760	-	hypothetical protein
1609	 55.36	0	1723162..1724169	-	335	59802082	-	NGO1761	-	dihydroorotate dehydrogenase 2
1610	 47.26	0	1724401..1724637	+	78	59802083	-	NGO1762	-	hypothetical protein
1611	 60.18	+1	1724794..1726041	+	415	59802084	-	NGO1763	-	3-oxoacyl-(acyl carrier protein) synthase II
1612	 46.68	0	1728025..1729155	+	376	59802085	-	NGO1765	-	PglA
1613	 57.62	0	1730757..1732271	+	504	59802086	-	NGO1767	-	KatA
1614	 55.20	0	1732787..1733353	+	188	59802087	-	NGO1768	-	hypothetical protein
1615	 53.01	0	1733575..1734738	+	387	59802088	-	NGO1769	-	CcpR
1616	 57.14	0	1735319..1737355	-	678	59802089	-	NGO1770	-	PrlC
1617	 56.29	0	1737443..1738435	-	330	59802090	-	NGO1771	-	hypothetical protein
1618	 56.46	0	1738581..1740971	+	796	59802091	gyrB	NGO1772	-	DNA gyrase subunit B
1619	 60.25	+1	1741070..1742455	+	461	59802092	-	NGO1773	-	hypothetical protein
1620	 55.86	0	1743699..1745651	-	650	59802093	-	NGO1774	-	putative potassium-efflux system protein
1621	 64.88	+1	1745797..1746636	+	279	59802094	-	NGO1775	-	putative ferredoxin
1622	 57.56	0	1746835..1747866	+	343	59802095	-	NGO1776	-	glyceraldehyde-3-phosphate dehydrogenase
1623	 45.91	-1	1747904..1748062	+	52	59802096	-	NGO1777	-	hypothetical protein
1624	 58.40	0	1748121..1748846	-	241	59802097	aat	NGO1778	-	leucyl/phenylalanyl-tRNA--protein transferase
1625	 53.56	0	1748916..1749350	-	144	59802098	-	NGO1779	-	hypothetical protein
1626	 58.47	0	1749577..1749954	+	125	59802099	-	NGO1780	-	hypothetical protein
1627	 61.85	+1	1749964..1750773	+	269	59802100	-	NGO1781	-	dihydrodipicolinate reductase
1628	 58.57	0	1751413..1752585	-	390	59802101	-	NGO1782	-	LpxB
1629	 57.70	0	1752736..1753728	-	330	59802102	-	NGO1783	-	RluC
1630	 56.86	0	1753810..1754115	-	101	59802103	-	NGO1784	-	hypothetical protein
1631	 59.96	+1	1754221..1756980	+	919	59802104	-	NGO1785	-	Rne
1632	 61.43	+1	1757210..1758202	-	330	59802105	-	NGO1786	-	PdxA
1633	 55.88	0	1758361..1759788	+	475	59802106	-	NGO1787	-	putative amino-acid transport protein
1634	 58.08	0	1759970..1761856	+	628	59802107	-	NGO1788	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1635	 57.78	0	1761924..1762508	+	194	59802108	-	NGO1789	-	hypothetical protein
1636	 60.08	+1	1763256..1764029	-	257	59802109	-	NGO1790	-	putative parA family protein - putative ATPase
1637	 58.81	0	1764129..1764752	-	207	59802110	gidB	NGO1791	-	glucose-inhibited division protein B
1638	 59.55	+1	1764847..1765422	-	191	59802111	-	NGO1792	-	hypothetical protein
1639	 60.89	+1	1765476..1766705	+	409	59802112	-	NGO1793	-	hypothetical protein
1640	 47.08	0	1767623..1768648	+	341	59802113	-	NGO1795	-	DcmB
1641	 55.20	0	1768790..1769347	+	185	59802114	-	NGO1796	-	Rrf
1642	 54.22	0	1769403..1770149	+	248	59802115	-	NGO1797	-	putative undecaprenyl diphosphate synthase
1643	 57.27	0	1770152..1770949	+	265	59802116	-	NGO1798	-	putative phosphatidate cytidylyltransferase
1644	 57.97	0	1771005..1772189	+	394	59802117	-	NGO1799	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1645	 59.13	0	1772224..1773564	+	446	59802118	-	NGO1800	-	hypothetical protein
1646	 56.79	0	1773621..1775999	+	792	59802119	-	NGO1801	-	hypothetical protein
1647	 53.76	0	1776008..1776565	+	185	59802120	-	NGO1802	-	hypothetical protein
1648	 60.44	+1	1776598..1777641	+	347	59802121	lpxD	NGO1803	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1649	 56.22	0	1777677..1778126	+	149	59802122	fabZ	NGO1804	-	(3R)-hydroxymyristoyl-ACP dehydratase
1650	 35.23	-2	1778333..1779019	+	228	59802123	-	NGO1805	-	hypothetical protein
1651	 58.56	0	1779062..1779838	+	258	59802124	-	NGO1806	-	UDP-N-acetylglucosamine acyltransferase
1652	 54.09	0	1780301..1781692	+	463	59802125	-	NGO1807	-	putative amino-acid transporter
1653	 55.08	0	1781771..1783030	+	419	59802126	-	NGO1808	-	D-amino acid dehydrogenase small subunit
1654	 56.31	0	1783135..1785972	+	945	59802127	valS	NGO1809	-	valyl-tRNA synthetase
1655	 48.17	0	1786049..1786513	+	154	59802128	-	NGO1810	-	hypothetical protein
1656	 62.28	+1	1787384..1788181	+	265	59802129	truA	NGO1811	-	tRNA pseudouridine synthase A
1657	 52.63	0	1788698..1789744	+	348	59802130	-	NGO1812	-	major outer membrane protein porin P.IB
1658	 53.20	0	1790265..1791185	-	306	59802131	-	NGO1813	-	LysR family transcriptional regulator
1659	 44.32	-1	1791189..1791452	-	87	59802132	-	NGO1814	-	hypothetical protein
1660	 44.82	-1	1792300..1793013	-	237	59802133	minC	NGO1816	-	septum formation inhibitor
1661	 46.34	0	1793160..1793528	-	122	59802134	rplQ	NGO1817	-	50S ribosomal protein L17
1662	 42.35	-1	1793552..1794538	-	328	59802135	-	NGO1818	-	DNA-directed RNA polymerase subunit alpha
1663	 43.80	-1	1794564..1795184	-	206	59802136	rpsD	NGO1819	-	30S ribosomal protein S4
1664	 45.20	-1	1795204..1795599	-	131	59802137	-	NGO1820	-	30S ribosomal protein S11
1665	 45.45	-1	1795619..1795981	-	120	59802138	rpsM	NGO1821	-	30S ribosomal protein S13
1666	 37.90	-2	1796181..1796399	-	72	59802139	infA	NGO18211	-	translation initiation factor IF-1
1667	 37.15	-2	1796404..1797714	-	436	59802140	secY	NGO1822	-	preprotein translocase subunit SecY
1668	 42.53	-1	1797726..1798160	-	144	59802141	rplO	NGO1823	-	50S ribosomal protein L15
1669	 40.86	-1	1798162..1798347	-	61	59802142	rpmD	NGO18231	-	50S ribosomal protein L30
1670	 43.74	-1	1798340..1798858	-	172	59802143	rpsE	NGO1824	-	30S ribosomal protein S5
1671	 43.50	-1	1798877..1799230	-	117	59802144	rplR	NGO18241	-	50S ribosomal protein L18
1672	 40.82	-1	1799244..1799777	-	177	59802145	rplF	NGO1825	-	50S ribosomal protein L6
1673	 39.44	-2	1799791..1800183	-	130	59802146	rpsH	NGO1826	-	30S ribosomal protein S8
1674	 46.08	-1	1800199..1800504	-	101	59802147	rpsN	NGO18261	-	30S ribosomal protein S14
1675	 38.89	-2	1800507..1801046	-	179	59802148	rplE	NGO1827	-	50S ribosomal protein L5
1676	 38.27	-2	1801056..1801379	-	107	59802149	rplX	NGO1828	-	50S ribosomal protein L24
1677	 44.44	-1	1801391..1801759	-	122	59802150	rplN	NGO1829	-	50S ribosomal protein L14
1678	 35.61	-2	1801981..1802244	-	87	59802151	rpsQ	NGO1830	-	30S ribosomal protein S17
1679	 38.54	-2	1802244..1802435	-	63	59802152	-	NGO1831	-	50S ribosomal protein L29
1680	 47.00	0	1802435..1802851	-	138	59802153	rplP	NGO18311	-	50S ribosomal protein L16
1681	 44.30	-1	1802835..1803527	-	230	59802154	rpsC	NGO1832	-	30S ribosomal protein S3
1682	 41.82	-1	1803537..1803866	-	109	59802155	rplV	NGO1833	-	50S ribosomal protein L22
1683	 45.16	-1	1803875..1804153	-	92	59802156	rpsS	NGO1834	-	30S ribosomal protein S19
1684	 51.08	0	1804159..1804992	-	277	59802157	rplB	NGO1835	-	50S ribosomal protein L2
1685	 42.99	-1	1804998..1805318	-	106	59802158	rplW	NGO1836	-	50S ribosomal protein L23
1686	 47.34	0	1805309..1805929	-	206	59802159	rplD	NGO1837	-	50S ribosomal protein L4
52.66	MEAN

6.57	STD DEV
