IslandPath Analysis: Neisseria gonorrhoeae FA 1090

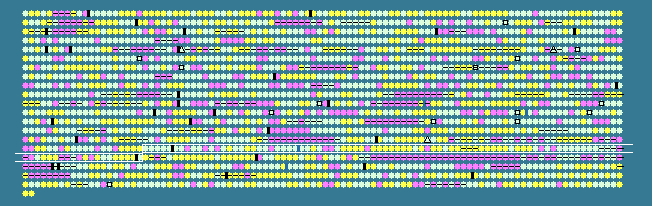

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.66   STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1521	 52.64	0	1624476..1625708	+	410	59801994	-	NGO1669	-	PilG
1522	 53.77	0	1625782..1626642	+	286	59801995	-	NGO1670	-	PilD
1523	 55.95	0	1626600..1627271	+	223	59801996	-	NGO1671	-	hypothetical protein
1524	 50.94	0	1627156..1627473	+	105	59801997	-	NGO1672	-	hypothetical protein
1525	 52.53	0	1627559..1629235	-	558	59801998	-	NGO1673	-	PilF
1526	 50.78	0	1629573..1630019	-	148	59801999	-	NGO1674	-	hypothetical protein
1527	 51.38	0	1630023..1630997	-	324	59802000	-	NGO1675	-	IspB
1528	 48.22	0	1631221..1631529	+	102	59802001	rplU	NGO1676	-	50S ribosomal protein L21
1529	 51.65	0	1631554..1631826	+	90	59802002	rpmA	NGO1677	-	50S ribosomal protein L27
1530	 52.74	0	1632061..1633245	+	394	59802003	-	NGO1678	-	hypothetical protein
1531	 43.59	-1	1633434..1633589	-	51	59802004	rpmG	NGO1679	-	50S ribosomal protein L33
1532	 51.28	0	1633621..1633854	-	77	59802005	rpmB	NGO1680	-	50S ribosomal protein L28
1533	 48.15	0	1633926..1634114	-	62	59802006	-	NGO1681	-	hypothetical protein
1534	 55.31	0	1634104..1635627	-	507	59802007	-	NGO1682	-	efflux pump protein, fatty acid resistance
1535	 59.83	+1	1635651..1636835	-	394	59802008	-	NGO1683	-	efflux pump protein, fatty acid resistance
1536	 52.11	0	1637094..1637567	+	157	59802009	-	NGO1684	-	7-cyano-7-deazaguanine reductase
1537	 54.29	0	1637642..1638328	+	228	59802010	-	NGO1685	-	hypothetical protein
1538	 61.25	+1	1638678..1639970	-	430	59802011	-	NGO1686	-	hypothetical protein
1539	 57.67	0	1639882..1641015	+	377	59802012	-	NGO1687	-	hypothetical protein
1540	 55.31	0	1641216..1642685	-	489	59802013	-	NGO1688	-	putative outer membrane protein OmpU
1541	 49.59	0	1644374..1644619	-	81	59802014	-	NGO1690	-	hypothetical protein
1542	 44.22	-1	1644588..1644734	+	48	59802015	-	NGO1691	-	hypothetical protein
1543	 55.02	0	1644722..1645159	+	145	59802016	-	NGO1692	-	hypothetical protein
1544	 51.57	0	1645171..1645647	+	158	59802017	-	NGO1693	-	hypothetical protein
1545	 54.81	0	1645677..1646165	-	162	59802018	-	NGO1694	-	hypothetical protein
1546	 53.79	0	1646233..1647288	-	351	59802019	-	NGO1695	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1547	 51.55	0	1655425..1656231	-	268	59802020	-	NGO1699	-	hypothetical protein
1548	 51.64	0	1656451..1657821	+	456	59802021	-	NGO1700	-	putative signal recognition particle protein
1549	 60.31	+1	1658077..1658532	+	151	59802022	-	NGO1701	-	hypothetical protein
1550	 51.81	0	1658587..1659111	-	174	59802023	-	NGO1702	-	hypothetical protein
1551	 46.63	0	1659056..1660018	+	320	59802024	-	NGO1703	-	Irg8
1552	 48.99	0	1660138..1660335	-	65	59802025	-	NGO1704	-	hypothetical protein
1553	 54.89	0	1660384..1660782	-	132	59802026	-	NGO1705	-	hypothetical protein
1554	 59.98	+1	1660890..1661801	+	303	59802027	-	NGO1706	-	LysR family transcriptional regulator
1555	 62.82	+1	1661791..1663089	+	432	59802028	-	NGO1707	-	putative deoxyribodopyrimidine photolyase
1556	 58.16	0	1663270..1665420	+	716	59802029	dinG	NGO1708	-	ATP-dependent DNA helicase DinG
1557	 57.24	0	1665456..1666070	+	204	59802030	-	NGO1709	-	hypothetical protein
1558	 49.17	0	1666206..1668074	-	622	59802031	-	NGO1710	-	putative trans-acylase protein
1559	 56.16	0	1668154..1669524	-	456	59802032	-	NGO1711	-	adenylosuccinate lyase
1560	 58.45	0	1669596..1670228	-	210	59802033	-	NGO1712	-	hypothetical protein
1561	 56.29	0	1670357..1672264	+	635	59802034	-	NGO1713	-	hypothetical protein
1562	 59.28	+1	1672744..1673745	-	333	59802035	-	NGO1714	-	putative cis-trans isomerase
1563	 59.23	0	1673847..1676252	-	801	59802036	-	NGO1715	-	OstA
1564	 56.22	0	1676322..1677326	+	334	59802037	-	NGO1716	-	hypothetical protein
1565	 57.16	0	1677383..1678087	-	234	59802038	-	NGO1717	-	putative thiol:disulphide interchange protein
1566	 55.36	0	1678525..1680063	+	512	59802039	-	NGO1718	-	hypothetical protein
1567	 61.77	+1	1680196..1681155	+	319	59802040	-	NGO1719	-	hypothetical protein
1568	 48.65	0	1681152..1681262	-	36	59802041	-	NGO1720	-	hypothetical protein
1569	 58.75	0	1681206..1681988	+	260	59802042	-	NGO1721	-	indole-3-glycerol-phosphate synthase
1570	 57.60	0	1682051..1684354	+	767	59802043	-	NGO1722	-	RecQ
1571	 51.61	0	1684391..1685692	-	433	59802044	-	NGO1723	-	hypothetical protein
1572	 59.44	+1	1686074..1686862	-	262	59802045	-	NGO1724	-	hypothetical protein
1573	 59.59	+1	1686859..1687635	-	258	59802046	-	NGO1725	-	putative bioH - biotin biosynthesis protein
1574	 57.30	0	1687607..1688332	+	241	59802047	-	NGO1726	-	hypothetical protein
1575	 59.78	+1	1688397..1688861	+	154	59802048	-	NGO1727	-	hypothetical protein
1576	 57.79	0	1688989..1689675	+	228	59802049	-	NGO1728	-	hypothetical protein
1577	 59.63	+1	1689736..1690062	+	108	59802050	-	NGO1729	-	hypothetical protein
1578	 56.75	0	1690144..1690728	+	194	59802051	ruvA	NGO1730	-	Holliday junction DNA helicase motor protein
1579	 58.70	0	1690728..1690865	+	45	59802052	-	NGO1731	-	hypothetical protein
1580	 59.29	+1	1690892..1692748	+	618	59802053	-	NGO1732	-	putative ABC transporter, ATP-binding protein
1581	 61.15	+1	1692753..1693676	+	307	59802054	-	NGO1733	-	ribosome-associated GTPase
1582	 53.33	0	1693789..1694013	+	74	59802055	-	NGO1734	-	putative exodeoxyribonuclease VII small subunit
1583	 58.97	0	1693997..1694893	+	298	59802056	-	NGO1735	-	hypothetical protein
1584	 57.26	0	1695010..1695360	-	116	59802057	-	NGO1736	-	hypothetical protein
1585	 56.15	0	1695421..1696866	-	481	59802058	-	NGO1737	-	NADH dehydrogenase subunit N
1586	 53.17	0	1696876..1698372	-	498	59802059	-	NGO1738	-	NADH dehydrogenase subunit M
1587	 34.19	-2	1698486..1699649	-	387	59802060	-	NGO1739	-	hypothetical protein
1588	 52.69	0	1699833..1701857	-	674	59802061	-	NGO1740	-	NADH dehydrogenase subunit L
1589	 48.04	0	1701860..1702165	-	101	59802062	-	NGO1741	-	NADH dehydrogenase subunit K
1590	 54.02	0	1702162..1702833	-	223	59802063	-	NGO1742	-	hypothetical protein
1591	 53.33	0	1702845..1703324	-	159	59802064	-	NGO1743	-	NADH dehydrogenase subunit I
1592	 53.76	0	1703405..1704481	-	358	59802065	-	NGO1744	-	hypothetical protein
1593	 55.44	0	1704484..1706745	-	753	59802066	-	NGO1745	-	NADH dehydrogenase subunit G
1594	 54.30	0	1707458..1708759	-	433	59802067	-	NGO1746	-	hypothetical protein
1595	 54.85	0	1709149..1709622	-	157	59802068	-	NGO1747	-	NADH dehydrogenase subunit E
1596	 55.77	0	1709622..1710878	-	418	59802069	-	NGO1748	-	NADH dehydrogenase subunit D
1597	 51.01	0	1710868..1711461	-	197	59802070	-	NGO1749	-	NADH dehydrogenase subunit C
1598	 55.69	0	1711474..1711956	-	160	59802071	-	NGO1750	-	NADH dehydrogenase subunit B
1599	 50.42	0	1711947..1712303	-	118	59802072	-	NGO1751	-	hypothetical protein
1600	 48.59	0	1712796..1714283	-	495	59802073	-	NGO1752	-	hypothetical protein
1601	 47.50	0	1714270..1714890	-	206	59802074	-	NGO1753	-	hypothetical protein
1602	 40.80	-1	1715118..1715465	-	115	59802075	-	NGO1754	-	MafI protein
1603	 50.25	0	1715638..1715838	-	66	59802076	-	NGO1755	-	hypothetical protein
1604	 58.10	0	1716172..1716486	-	104	59802077	-	NGO1756	-	hypothetical protein
1605	 57.93	0	1716628..1718835	-	735	59802078	-	NGO1757	-	hypothetical protein
1606	 58.05	0	1719259..1721949	-	896	59802079	-	NGO1758	-	GlnE
1607	 43.15	-1	1722143..1722478	-	111	59802080	-	NGO1759	-	hypothetical protein
1608	 41.35	-1	1722492..1722965	-	157	59802081	-	NGO1760	-	hypothetical protein
1609	 55.36	0	1723162..1724169	-	335	59802082	-	NGO1761	-	dihydroorotate dehydrogenase 2
1610	 47.26	0	1724401..1724637	+	78	59802083	-	NGO1762	-	hypothetical protein
1611	 60.18	+1	1724794..1726041	+	415	59802084	-	NGO1763	-	3-oxoacyl-(acyl carrier protein) synthase II
1612	 46.68	0	1728025..1729155	+	376	59802085	-	NGO1765	-	PglA
1613	 57.62	0	1730757..1732271	+	504	59802086	-	NGO1767	-	KatA
1614	 55.20	0	1732787..1733353	+	188	59802087	-	NGO1768	-	hypothetical protein
1615	 53.01	0	1733575..1734738	+	387	59802088	-	NGO1769	-	CcpR
1616	 57.14	0	1735319..1737355	-	678	59802089	-	NGO1770	-	PrlC
1617	 56.29	0	1737443..1738435	-	330	59802090	-	NGO1771	-	hypothetical protein
1618	 56.46	0	1738581..1740971	+	796	59802091	gyrB	NGO1772	-	DNA gyrase subunit B
1619	 60.25	+1	1741070..1742455	+	461	59802092	-	NGO1773	-	hypothetical protein
1620	 55.86	0	1743699..1745651	-	650	59802093	-	NGO1774	-	putative potassium-efflux system protein
52.66	MEAN

6.57	STD DEV
