IslandPath Analysis: Neisseria gonorrhoeae FA 1090

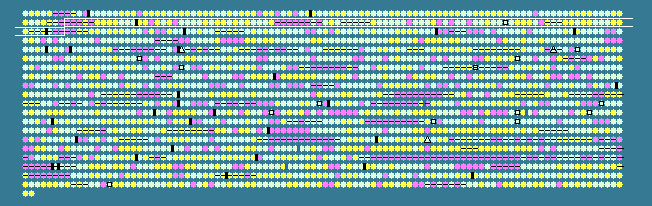

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
108	 44.24	-1	132575..133729	+	384	59800581	-	NGO0121	-	hypothetical protein
109	 42.16	-1	133904..134311	+	135	59800582	-	NGO0122	-	hypothetical protein
110	 48.78	0	134372..135646	+	424	59800583	-	NGO0123	-	putative secretion protein
111	 59.20	0	135831..136178	+	115	59800584	-	NGO0124	-	hypothetical protein
112	 45.37	-1	136192..136407	+	71	59800585	-	NGO0125	-	hypothetical protein
113	 56.15	0	137771..138997	-	408	59800586	rbn	NGO0127	-	fused ribonuclease BN/uncharacterized domain-containing protein
114	 56.69	0	139096..139476	+	126	59800587	-	NGO0128	-	hypothetical protein
115	 57.33	0	139485..140159	+	224	59800588	-	NGO0129	-	YbaX
116	 57.95	0	140187..140702	+	171	59800589	-	NGO0130	-	hypothetical protein
117	 53.66	0	140790..141212	+	140	59800590	-	NGO0131	-	putative 6-pyruvoyl-tetrahydropterin synthase
118	 55.85	0	141478..142485	+	335	59800591	-	NGO0132	-	hypothetical protein
119	 52.45	0	142700..142903	+	67	59800592	-	NGO0133	-	hypothetical protein
120	 58.29	0	142978..144063	-	361	59800593	-	NGO0135	-	beta-hexosaminidase
121	 56.41	0	144120..145640	-	506	59800594	-	NGO0136	-	hypothetical protein
122	 36.00	-2	145668..145817	+	49	59800595	-	NGO0137	-	hypothetical protein
123	 56.67	0	145843..147342	-	499	59800596	-	NGO0138	-	putative serine protease
124	 53.33	0	147480..148109	-	209	59800597	-	NGO0139	-	putative endonuclease III
125	 57.91	0	148156..148692	-	178	59800598	-	NGO0140	-	hypothetical protein
126	 39.46	-2	148719..148865	+	48	59800599	-	NGO0141	-	hypothetical protein
127	 52.69	0	148948..150228	+	426	59800600	-	NGO0142	-	putative sugar transporter
128	 54.78	0	150518..151897	+	459	59800601	-	NGO0143	-	hypothetical protein
129	 55.27	0	152040..152864	-	274	59800602	-	NGO0144	-	hypothetical protein
130	 51.26	0	152866..153501	-	211	59800603	-	NGO0145	-	hypothetical protein
131	 56.52	0	153500..154435	+	311	59800604	hemC	NGO0146	-	porphobilinogen deaminase
132	 56.08	0	156345..157430	-	361	59800605	-	NGO0147	-	hypothetical protein
133	 58.80	0	157367..157582	-	71	59800606	-	NGO0148	-	hypothetical protein
134	 58.30	0	157762..159135	-	457	59800607	-	NGO0149	-	putative ATP-dependent RNA helicase
135	 54.50	0	159159..159347	-	62	59800608	-	NGO0150	-	hypothetical protein
136	 60.90	+1	159349..160353	+	334	59800609	-	NGO0151	-	hypothetical protein
137	 50.61	0	160452..160781	+	109	59800610	-	NGO0152	-	hypothetical protein
138	 60.89	+1	160784..161320	+	178	161572978	ruvC	NGO0153	-	Holliday junction resolvase
139	 50.80	0	161371..162240	+	289	59800612	-	NGO0154	-	lipid A biosynthesis lauroyl acyltransferase
140	 54.07	0	162894..163028	+	44	59800613	-	NGO0155	-	hypothetical protein
141	 54.59	0	163144..163938	+	264	59800614	-	NGO0156	-	hypothetical protein
142	 57.45	0	164163..166766	+	867	59800615	-	NGO0158	-	putative aminopeptidase N
143	 41.67	-1	167614..167805	-	63	59800616	-	NGO0160	-	hypothetical protein
144	 25.21	-2	167838..168305	-	155	59800617	-	NGO0161	-	hypothetical protein
145	 40.42	-1	168362..168742	-	126	59800618	-	NGO0162	-	hypothetical protein
146	 30.42	-2	168745..169122	-	125	59800619	-	NGO0163	-	hypothetical protein
147	 36.07	-2	169180..169545	-	121	59800620	-	NGO0164	-	hypothetical protein
148	 47.59	0	169527..170066	-	179	59800621	-	NGO0165	-	hypothetical protein
149	 51.79	0	170109..170975	-	288	59800622	-	NGO0166	-	hypothetical protein
150	 31.48	-2	171011..171226	+	71	59800623	-	NGO0167	-	hypothetical protein
151	 54.48	0	171195..172121	-	308	59800624	-	NGO0168	-	MntC
152	 58.09	0	172198..173025	-	275	59800625	-	NGO0169	-	putative ABC transporter, membrane protein
153	 52.91	0	173108..173863	-	251	59800626	-	NGO0170	-	putative ABC transporter, ATP-binding protein
154	 54.10	0	174154..174519	-	121	59800627	rplS	NGO0171	-	50S ribosomal protein L19
155	 52.53	0	174534..175283	-	249	59800628	-	NGO0172	-	putative tRNA (guanine-N1)-methyltransferase
156	 51.18	0	175283..175792	-	169	59800629	rimM	NGO0173	-	16S rRNA-processing protein
157	 55.69	0	175808..176053	-	81	59800630	rpsP	NGO0174	-	30S ribosomal protein S16
158	 52.67	0	178639..180045	-	468	59800631	-	NGO0176	-	putative two-component system sensor kinase
159	 56.49	0	180058..180735	-	225	59800632	-	NGO0177	-	putative two-component system transcriptional response regulator
160	 56.09	0	180925..182739	-	604	59800633	-	NGO0178	-	hypothetical protein
161	 49.72	0	182729..183082	-	117	59800634	-	NGO0179	-	hypothetical protein
162	 54.94	0	183091..183738	-	215	59800635	-	NGO0180	-	hypothetical protein
163	 53.57	0	183743..184513	-	256	59800636	-	NGO0181	-	putative sec-independent protein translocase component
164	 55.02	0	184526..185212	-	228	59800637	-	NGO0182	-	putative sec-independent protein translocase component
165	 46.08	-1	185216..185419	-	67	59800638	-	NGO0183	-	hypothetical protein
166	 50.62	0	185466..185789	-	107	59800639	-	NGO0184	-	HitA
167	 52.78	0	185863..186186	-	107	59800640	-	NGO0185	-	putative phosphoribosyl-ATP cyclohydrolase
168	 56.06	0	186327..187391	-	354	59800641	-	NGO0186	-	putative zinc-binding alcohol dehydrogenas
169	 58.36	0	188256..189374	-	372	59800642	-	NGO0187	-	hypothetical protein
170	 48.31	0	189505..189771	+	88	59800643	-	NGO0188	-	hypothetical protein
171	 52.93	0	189979..191835	+	618	59800644	secD	NGO0189	-	preprotein translocase subunit SecD
172	 48.93	0	191839..192774	+	311	59800645	secF	NGO0190	-	preprotein translocase subunit SecF
173	 52.96	0	192979..193248	+	89	59800646	rpsO	NGO0191	-	30S ribosomal protein S15
174	 49.57	0	193358..194650	+	430	59800647	-	NGO0192	-	putative ABC transporter, ATP-binding protein, polyamine
175	 48.34	0	194984..195949	+	321	59800648	-	NGO0195	-	putative ABC transporter, permease protein, polyamine
176	 51.13	0	195949..196836	+	295	59800649	-	NGO0196	-	putative ABC transporter, permease protein, polyamine
177	 52.11	0	196858..198258	+	466	59800650	-	NGO0197	-	putative oxidoreductase
178	 56.85	0	198352..199818	-	488	59800651	-	NGO0198	-	putative transporter, ammonium
179	 54.21	0	200272..201531	-	419	59800652	rho	NGO0199	-	transcription termination factor Rho
180	 55.14	0	201752..204136	-	794	59800653	-	NGO0200	-	phosphoenolpyruvate synthase
181	 55.20	0	204491..205144	+	217	59800654	-	NGO0201	-	IS1016 transposase
182	 54.26	0	205270..206091	+	273	59800655	-	NGO0202	-	hypothetical protein
183	 59.07	0	206177..206887	-	236	59800656	-	NGO0203	-	putative phosphatase
184	 59.30	+1	206877..207704	-	275	59800657	-	NGO0204	-	hypothetical protein
185	 57.05	0	208087..208710	+	207	59800658	-	NGO0205	-	LolA
186	 55.15	0	208983..210119	+	378	59800659	-	NGO0206	-	putative ABC transporter, periplasmic binding protein, polyamine
187	 30.69	-2	210214..211197	+	327	59800660	-	NGO0207	-	putative sugar transferase
188	 57.06	0	211238..211768	+	176	59800661	-	NGO0208	-	hypothetical protein
189	 55.33	0	211936..213531	-	531	59800662	prfC	NGO0209	-	peptide chain release factor 3
190	 53.54	0	213638..214033	-	131	59800663	-	NGO0210	-	phosphoribosyl-AMP cyclohydrolase
191	 61.46	+1	214064..214831	-	255	59800664	-	NGO0211	-	imidazole glycerol phosphate synthase subunit HisF
192	 59.08	0	214844..215581	-	245	59800665	-	NGO0212	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
193	 54.93	0	215614..216252	-	212	59800666	hisH	NGO0213	-	imidazole glycerol phosphate synthase subunit HisH
194	 59.95	+1	216382..217884	-	500	59800667	-	NGO0214	-	putative phosphotransacetylase
195	 60.81	+1	218069..219127	-	352	59800668	-	NGO0215	-	ABC transporter, ATP-binding protein, iron related
196	 52.03	0	219148..220677	-	509	59800669	-	NGO0216	-	ABC transporter, permease protein, iron related
197	 55.82	0	220733..221728	-	331	59800670	-	NGO0217	-	ABC transporter, periplasmic binding protein, iron related
198	 52.92	0	222119..222460	-	113	59800671	-	NGO0218	-	hypothetical protein
199	 57.44	0	222518..223894	-	458	59800672	-	NGO0219	-	argininosuccinate lyase
200	 57.01	0	223913..224782	-	289	59800673	-	NGO0220	-	putative UTP--glucose-1-phosphate uridylyltransferase
201	 57.17	0	224810..225409	-	199	59800674	-	NGO0221	-	putative deoxyribonucleotide triphosphate pyrophosphatase
202	 56.84	0	225402..225635	-	77	59800675	-	NGO0222	-	hypothetical protein
203	 53.18	0	225743..226276	-	177	59800676	-	NGO0223	-	inorganic pyrophosphatase
204	 59.48	+1	226378..226836	-	152	59800677	ntpA	NGO0224	-	dATP pyrophosphohydrolase
205	 50.98	0	227386..229272	+	628	59800678	-	NGO0225	-	MafB1
206	 31.44	-2	229300..229722	+	140	59800679	-	NGO0226	-	hypothetical protein
207	 44.72	-1	230200..230445	+	81	59800680	-	NGO0227	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
