IslandPath Analysis: Neisseria gonorrhoeae FA 1090

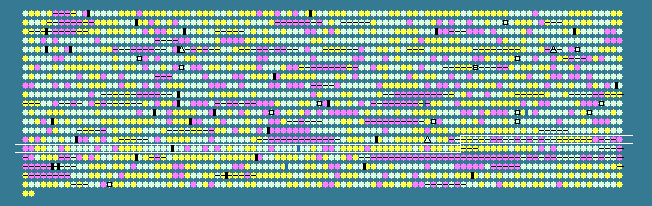

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1474	 56.28	0	1587600..1587782	-	60	59801947	-	NGO1619	-	putative phage associated protein
1475	 57.74	0	1587922..1588425	-	167	59801948	-	NGO1620	-	putative phage associated protein
1476	 51.85	0	1588677..1588838	-	53	59801949	-	NGO1621	-	putative phage associated protein
1477	 57.97	0	1588835..1589110	-	91	59801950	-	NGO1622	-	putative phage associated protein
1478	 54.86	0	1589263..1589550	-	95	59801951	-	NGO1623	-	putative phage associated protein
1479	 44.78	-1	1589736..1589936	-	66	59801952	-	NGO1624	-	putative phage associated protein
1480	 48.20	0	1590177..1590593	-	138	59801953	-	NGO1625	-	putative phage associated protein
1481	 50.93	0	1590602..1591249	-	215	59801954	-	NGO1626	-	putative phage associated protein
1482	 50.25	0	1591369..1591770	-	133	59801955	-	NGO1627	-	putative phage associated protein
1483	 43.72	-1	1591873..1592055	-	60	59801956	-	NGO1628	-	putative phage associated protein
1484	 54.33	0	1592225..1593043	-	272	59801957	-	NGO1629	-	putative phage associated protein
1485	 45.77	-1	1593316..1594071	-	251	59801958	-	NGO1630	-	putative phage repressor protein, putative phage associated protein
1486	 49.36	0	1594482..1594637	+	51	59801959	-	NGO1631	-	putative phage associated protein
1487	 46.56	0	1594614..1594802	-	62	59801960	-	NGO1632	-	putative phage associated protein
1488	 50.88	0	1594975..1595202	+	75	59801961	-	NGO1633	-	putative phage associated protein
1489	 51.27	0	1595199..1595750	+	183	59801962	-	NGO1634	-	putative phage associated protein
1490	 64.81	+1	1596026..1596241	+	71	59801963	-	NGO1635	-	putative phage associated protein
1491	 65.53	+1	1596419..1597036	+	205	59801964	-	NGO1636	-	putative DNA replication protein, putative phage associated protein
1492	 65.38	+1	1597106..1597261	+	51	59801965	-	NGO1637	-	putative phage associated protein
1493	 59.39	+1	1597352..1597846	+	164	59801966	-	NGO1638	-	putative phage associated protein
1494	 58.93	0	1597884..1598387	-	167	59801967	-	NGO1639	-	putative phage associated protein
1495	 64.06	+1	1598474..1599049	+	191	59801968	-	NGO1640	-	putative phage associated protein
1496	 46.52	0	1599378..1600340	-	320	59801969	-	NGO1641	-	putative invertase related gene 6 (Irg6), putative phage associated protein
1497	 42.59	-1	1600891..1601214	-	107	59801970	-	NGO1642	-	putative phage associated protein
1498	 49.54	0	1601335..1602420	-	361	59801971	-	NGO1643	-	putative phage associated protein
1499	 46.39	0	1602430..1602720	-	96	59801972	-	NGO1645	-	putative phage associated protein
1500	 44.91	-1	1603894..1604178	+	94	59801973	-	NGO1646	-	putative phage associated protein
1501	 46.30	0	1604179..1605366	+	395	59801974	-	NGO1647	-	putative phage associated protein
1502	 39.39	-2	1605581..1606537	+	318	59801975	-	NGO1648	-	Irg7
1503	 60.00	+1	1606828..1607367	+	179	59801976	-	NGO1649	-	putative phage associated protein
1504	 57.68	0	1607368..1607712	+	114	59801977	-	NGO1650	-	putative phage associated protein
1505	 50.13	0	1608229..1608609	+	126	59801978	-	NGO1651	-	putative phage associated protein
1506	 53.25	0	1608810..1609808	-	332	59801979	-	NGO1652	-	putative phage associated protein
1507	 29.94	-2	1610151..1610327	-	58	59801980	-	NGO1653	-	hypothetical protein
1508	 56.71	0	1610655..1611146	-	163	59801981	-	NGO1654	-	D-tyrosyl-tRNA deacylase
1509	 53.89	0	1611220..1611978	-	252	59801982	-	NGO1655	-	hypothetical protein
1510	 51.79	0	1612048..1612914	-	288	59801983	-	NGO1656	-	hypothetical protein
1511	 55.91	0	1612963..1613241	-	92	59801984	-	NGO1657	-	hypothetical protein
1512	 54.64	0	1613241..1613531	-	96	59801985	-	NGO1658	-	YciI-like protein
1513	 46.89	0	1613534..1614064	-	176	59801986	-	NGO1659	-	hypothetical protein
1514	 53.50	0	1617306..1618475	-	389	59801987	-	NGO1662	-	hypothetical protein
1515	 51.75	0	1618486..1618800	-	104	59801988	-	NGO1663	-	hypothetical protein
1516	 45.76	-1	1618903..1619079	+	58	59801989	-	NGO1664	-	hypothetical protein
1517	 56.36	0	1619110..1620108	+	332	59801990	-	NGO1665	-	branched-chain amino acid aminotransferase
1518	 57.76	0	1620353..1621138	-	261	59801991	-	NGO1666	-	enoyl-(acyl carrier protein) reductase
1519	 57.66	0	1621293..1622114	-	273	59801992	dapD	NGO1667	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1520	 59.31	+1	1622324..1623967	-	547	59801993	-	NGO1668	-	glucose-6-phosphate isomerase
1521	 52.64	0	1624476..1625708	+	410	59801994	-	NGO1669	-	PilG
1522	 53.77	0	1625782..1626642	+	286	59801995	-	NGO1670	-	PilD
1523	 55.95	0	1626600..1627271	+	223	59801996	-	NGO1671	-	hypothetical protein
1524	 50.94	0	1627156..1627473	+	105	59801997	-	NGO1672	-	hypothetical protein
1525	 52.53	0	1627559..1629235	-	558	59801998	-	NGO1673	-	PilF
1526	 50.78	0	1629573..1630019	-	148	59801999	-	NGO1674	-	hypothetical protein
1527	 51.38	0	1630023..1630997	-	324	59802000	-	NGO1675	-	IspB
1528	 48.22	0	1631221..1631529	+	102	59802001	rplU	NGO1676	-	50S ribosomal protein L21
1529	 51.65	0	1631554..1631826	+	90	59802002	rpmA	NGO1677	-	50S ribosomal protein L27
1530	 52.74	0	1632061..1633245	+	394	59802003	-	NGO1678	-	hypothetical protein
1531	 43.59	-1	1633434..1633589	-	51	59802004	rpmG	NGO1679	-	50S ribosomal protein L33
1532	 51.28	0	1633621..1633854	-	77	59802005	rpmB	NGO1680	-	50S ribosomal protein L28
1533	 48.15	0	1633926..1634114	-	62	59802006	-	NGO1681	-	hypothetical protein
1534	 55.31	0	1634104..1635627	-	507	59802007	-	NGO1682	-	efflux pump protein, fatty acid resistance
1535	 59.83	+1	1635651..1636835	-	394	59802008	-	NGO1683	-	efflux pump protein, fatty acid resistance
1536	 52.11	0	1637094..1637567	+	157	59802009	-	NGO1684	-	7-cyano-7-deazaguanine reductase
1537	 54.29	0	1637642..1638328	+	228	59802010	-	NGO1685	-	hypothetical protein
1538	 61.25	+1	1638678..1639970	-	430	59802011	-	NGO1686	-	hypothetical protein
1539	 57.67	0	1639882..1641015	+	377	59802012	-	NGO1687	-	hypothetical protein
1540	 55.31	0	1641216..1642685	-	489	59802013	-	NGO1688	-	putative outer membrane protein OmpU
1541	 49.59	0	1644374..1644619	-	81	59802014	-	NGO1690	-	hypothetical protein
1542	 44.22	-1	1644588..1644734	+	48	59802015	-	NGO1691	-	hypothetical protein
1543	 55.02	0	1644722..1645159	+	145	59802016	-	NGO1692	-	hypothetical protein
1544	 51.57	0	1645171..1645647	+	158	59802017	-	NGO1693	-	hypothetical protein
1545	 54.81	0	1645677..1646165	-	162	59802018	-	NGO1694	-	hypothetical protein
1546	 53.79	0	1646233..1647288	-	351	59802019	-	NGO1695	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1547	 51.55	0	1655425..1656231	-	268	59802020	-	NGO1699	-	hypothetical protein
1548	 51.64	0	1656451..1657821	+	456	59802021	-	NGO1700	-	putative signal recognition particle protein
1549	 60.31	+1	1658077..1658532	+	151	59802022	-	NGO1701	-	hypothetical protein
1550	 51.81	0	1658587..1659111	-	174	59802023	-	NGO1702	-	hypothetical protein
1551	 46.63	0	1659056..1660018	+	320	59802024	-	NGO1703	-	Irg8
1552	 48.99	0	1660138..1660335	-	65	59802025	-	NGO1704	-	hypothetical protein
1553	 54.89	0	1660384..1660782	-	132	59802026	-	NGO1705	-	hypothetical protein
1554	 59.98	+1	1660890..1661801	+	303	59802027	-	NGO1706	-	LysR family transcriptional regulator
1555	 62.82	+1	1661791..1663089	+	432	59802028	-	NGO1707	-	putative deoxyribodopyrimidine photolyase
1556	 58.16	0	1663270..1665420	+	716	59802029	dinG	NGO1708	-	ATP-dependent DNA helicase DinG
1557	 57.24	0	1665456..1666070	+	204	59802030	-	NGO1709	-	hypothetical protein
1558	 49.17	0	1666206..1668074	-	622	59802031	-	NGO1710	-	putative trans-acylase protein
1559	 56.16	0	1668154..1669524	-	456	59802032	-	NGO1711	-	adenylosuccinate lyase
1560	 58.45	0	1669596..1670228	-	210	59802033	-	NGO1712	-	hypothetical protein
1561	 56.29	0	1670357..1672264	+	635	59802034	-	NGO1713	-	hypothetical protein
1562	 59.28	+1	1672744..1673745	-	333	59802035	-	NGO1714	-	putative cis-trans isomerase
1563	 59.23	0	1673847..1676252	-	801	59802036	-	NGO1715	-	OstA
1564	 56.22	0	1676322..1677326	+	334	59802037	-	NGO1716	-	hypothetical protein
1565	 57.16	0	1677383..1678087	-	234	59802038	-	NGO1717	-	putative thiol:disulphide interchange protein
1566	 55.36	0	1678525..1680063	+	512	59802039	-	NGO1718	-	hypothetical protein
1567	 61.77	+1	1680196..1681155	+	319	59802040	-	NGO1719	-	hypothetical protein
1568	 48.65	0	1681152..1681262	-	36	59802041	-	NGO1720	-	hypothetical protein
1569	 58.75	0	1681206..1681988	+	260	59802042	-	NGO1721	-	indole-3-glycerol-phosphate synthase
1570	 57.60	0	1682051..1684354	+	767	59802043	-	NGO1722	-	RecQ
1571	 51.61	0	1684391..1685692	-	433	59802044	-	NGO1723	-	hypothetical protein
1572	 59.44	+1	1686074..1686862	-	262	59802045	-	NGO1724	-	hypothetical protein
1573	 59.59	+1	1686859..1687635	-	258	59802046	-	NGO1725	-	putative bioH - biotin biosynthesis protein
52.66	MEAN

6.57	STD DEV
