IslandPath Analysis: Neisseria gonorrhoeae FA 1090

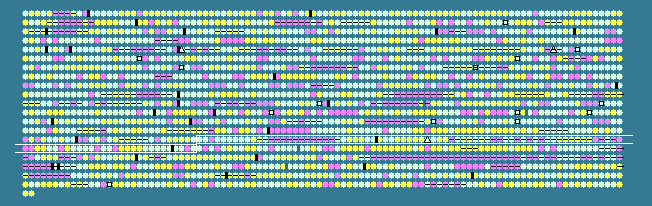

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1430	 54.32	0	1549313..1549798	-	161	59801903	-	NGO1574	-	hypothetical protein
1431	 54.96	0	1549791..1550747	-	318	59801904	-	NGO1575	-	thiamine monophosphate kinase
1432	 47.27	0	1551327..1551491	+	54	59801905	-	NGO1576	-	hypothetical protein
1433	 52.32	0	1551522..1552232	-	236	59801906	-	NGO1577	-	Omp3
1434	 52.58	0	1552596..1553546	+	316	59801907	-	NGO1578	-	transcriptional regulator CysB-like protein
1435	 52.52	0	1553659..1554393	-	244	59801908	-	NGO1579	-	putative anaerobic transcriptional regulator
1436	 54.29	0	1554528..1555949	+	473	59801909	-	NGO1580	-	coproporphyrinogen III oxidase
1437	 53.59	0	1556189..1557763	-	524	59801910	-	NGO1581	-	putative transport protein
1438	 50.00	0	1557793..1557990	+	65	59801911	-	NGO1582	-	hypothetical protein
1439	 60.04	+1	1558058..1559188	+	376	59801912	anmK	NGO1583	-	anhydro-N-acetylmuramic acid kinase
1440	 59.98	+1	1559307..1560248	+	313	59801913	-	NGO1584	-	MafA3
1441	 54.25	0	1560252..1561982	+	576	59801914	-	NGO1585	-	MafB4
1442	 34.40	-2	1561960..1562241	+	93	59801915	-	NGO1586	-	hypothetical protein
1443	 25.18	-2	1562941..1563357	+	138	59801916	-	NGO1588	-	hypothetical protein
1444	 45.72	-1	1563493..1564170	+	225	59801917	-	NGO1589	-	hypothetical protein
1445	 33.83	-2	1564176..1564574	+	132	59801918	-	NGO1590	-	hypothetical protein
1446	 35.19	-2	1564605..1564982	+	125	59801919	-	NGO1591	-	hypothetical protein
1447	 44.85	-1	1565113..1565850	+	245	59801920	-	NGO1592	-	hypothetical protein
1448	 35.36	-2	1565922..1566266	+	114	59801921	-	NGO1593	-	hypothetical protein
1449	 35.90	-2	1566514..1566786	+	90	59801922	-	NGO1594	-	hypothetical protein
1450	 36.45	-2	1566907..1567452	+	181	59801923	-	NGO1595	-	hypothetical protein
1451	 26.12	-2	1567856..1568257	+	133	59801924	-	NGO1596	-	hypothetical protein
1452	 47.57	0	1568599..1570263	-	554	59801925	-	NGO1597	-	hypothetical protein
1453	 51.81	0	1570369..1570644	-	91	59801926	-	NGO1598	-	hypothetical protein
1454	 54.91	0	1570641..1571924	-	427	59801927	-	NGO1599	-	AmpG
1455	 56.59	0	1572073..1573491	-	472	59801928	-	NGO1600	-	hypothetical protein
1456	 56.80	0	1572106..1573584	+	492	59801929	-	NGO1601	-	hypothetical protein
1457	 58.02	0	1573802..1574611	+	269	59801930	-	NGO1602	-	putative shikimate dehydrogenase
1458	 54.13	0	1574614..1575315	+	233	59801931	-	NGO1603	-	monofunctional peptidoglycan transglycosylase
1459	 49.79	0	1575327..1575569	+	80	59801932	-	NGO1604	-	hypothetical protein
1460	 56.60	0	1575855..1576589	-	244	59801933	-	NGO1605	-	putative ABC transporter, ATP-binding protein
1461	 53.86	0	1576660..1577190	-	176	59801934	-	NGO1606	-	hypothetical protein
1462	 49.66	0	1577171..1577752	-	193	59801935	-	NGO1607	-	hypothetical protein
1463	 57.62	0	1577749..1578312	-	187	59801936	-	NGO1608	-	hypothetical protein
1464	 58.90	0	1578351..1579406	-	351	59801937	-	NGO1609	-	KpsF
1465	 58.24	0	1579422..1580477	+	351	59801938	-	NGO1610	-	transaldolase
1466	 61.71	+1	1580935..1581822	+	295	59801939	-	NGO1611	-	glutamyl-Q tRNA(Asp) synthetase
1467	 56.83	0	1581892..1582938	-	348	59801940	-	NGO1612	-	tRNA-dihydrouridine synthase A
1468	 52.38	0	1583028..1584182	+	384	59801941	-	NGO1613	-	putative integrase/recombinase, putative phage associated protein
1469	 49.44	0	1584232..1584498	-	88	59801942	-	NGO1614	-	putative phage associated protein
1470	 56.22	0	1584606..1585754	-	382	59801943	-	NGO1615	-	putative phage associated protein
1471	 57.62	0	1585751..1586734	-	327	59801944	-	NGO1616	-	putative phage associated protein
1472	 32.87	-2	1586845..1587060	-	71	59801945	-	NGO1617	-	putative phage associated protein
1473	 52.44	0	1587112..1587603	-	163	59801946	-	NGO1618	-	putative phage associated protein
1474	 56.28	0	1587600..1587782	-	60	59801947	-	NGO1619	-	putative phage associated protein
1475	 57.74	0	1587922..1588425	-	167	59801948	-	NGO1620	-	putative phage associated protein
1476	 51.85	0	1588677..1588838	-	53	59801949	-	NGO1621	-	putative phage associated protein
1477	 57.97	0	1588835..1589110	-	91	59801950	-	NGO1622	-	putative phage associated protein
1478	 54.86	0	1589263..1589550	-	95	59801951	-	NGO1623	-	putative phage associated protein
1479	 44.78	-1	1589736..1589936	-	66	59801952	-	NGO1624	-	putative phage associated protein
1480	 48.20	0	1590177..1590593	-	138	59801953	-	NGO1625	-	putative phage associated protein
1481	 50.93	0	1590602..1591249	-	215	59801954	-	NGO1626	-	putative phage associated protein
1482	 50.25	0	1591369..1591770	-	133	59801955	-	NGO1627	-	putative phage associated protein
1483	 43.72	-1	1591873..1592055	-	60	59801956	-	NGO1628	-	putative phage associated protein
1484	 54.33	0	1592225..1593043	-	272	59801957	-	NGO1629	-	putative phage associated protein
1485	 45.77	-1	1593316..1594071	-	251	59801958	-	NGO1630	-	putative phage repressor protein, putative phage associated protein
1486	 49.36	0	1594482..1594637	+	51	59801959	-	NGO1631	-	putative phage associated protein
1487	 46.56	0	1594614..1594802	-	62	59801960	-	NGO1632	-	putative phage associated protein
1488	 50.88	0	1594975..1595202	+	75	59801961	-	NGO1633	-	putative phage associated protein
1489	 51.27	0	1595199..1595750	+	183	59801962	-	NGO1634	-	putative phage associated protein
1490	 64.81	+1	1596026..1596241	+	71	59801963	-	NGO1635	-	putative phage associated protein
1491	 65.53	+1	1596419..1597036	+	205	59801964	-	NGO1636	-	putative DNA replication protein, putative phage associated protein
1492	 65.38	+1	1597106..1597261	+	51	59801965	-	NGO1637	-	putative phage associated protein
1493	 59.39	+1	1597352..1597846	+	164	59801966	-	NGO1638	-	putative phage associated protein
1494	 58.93	0	1597884..1598387	-	167	59801967	-	NGO1639	-	putative phage associated protein
1495	 64.06	+1	1598474..1599049	+	191	59801968	-	NGO1640	-	putative phage associated protein
1496	 46.52	0	1599378..1600340	-	320	59801969	-	NGO1641	-	putative invertase related gene 6 (Irg6), putative phage associated protein
1497	 42.59	-1	1600891..1601214	-	107	59801970	-	NGO1642	-	putative phage associated protein
1498	 49.54	0	1601335..1602420	-	361	59801971	-	NGO1643	-	putative phage associated protein
1499	 46.39	0	1602430..1602720	-	96	59801972	-	NGO1645	-	putative phage associated protein
1500	 44.91	-1	1603894..1604178	+	94	59801973	-	NGO1646	-	putative phage associated protein
1501	 46.30	0	1604179..1605366	+	395	59801974	-	NGO1647	-	putative phage associated protein
1502	 39.39	-2	1605581..1606537	+	318	59801975	-	NGO1648	-	Irg7
1503	 60.00	+1	1606828..1607367	+	179	59801976	-	NGO1649	-	putative phage associated protein
1504	 57.68	0	1607368..1607712	+	114	59801977	-	NGO1650	-	putative phage associated protein
1505	 50.13	0	1608229..1608609	+	126	59801978	-	NGO1651	-	putative phage associated protein
1506	 53.25	0	1608810..1609808	-	332	59801979	-	NGO1652	-	putative phage associated protein
1507	 29.94	-2	1610151..1610327	-	58	59801980	-	NGO1653	-	hypothetical protein
1508	 56.71	0	1610655..1611146	-	163	59801981	-	NGO1654	-	D-tyrosyl-tRNA deacylase
1509	 53.89	0	1611220..1611978	-	252	59801982	-	NGO1655	-	hypothetical protein
1510	 51.79	0	1612048..1612914	-	288	59801983	-	NGO1656	-	hypothetical protein
1511	 55.91	0	1612963..1613241	-	92	59801984	-	NGO1657	-	hypothetical protein
1512	 54.64	0	1613241..1613531	-	96	59801985	-	NGO1658	-	YciI-like protein
1513	 46.89	0	1613534..1614064	-	176	59801986	-	NGO1659	-	hypothetical protein
1514	 53.50	0	1617306..1618475	-	389	59801987	-	NGO1662	-	hypothetical protein
1515	 51.75	0	1618486..1618800	-	104	59801988	-	NGO1663	-	hypothetical protein
1516	 45.76	-1	1618903..1619079	+	58	59801989	-	NGO1664	-	hypothetical protein
1517	 56.36	0	1619110..1620108	+	332	59801990	-	NGO1665	-	branched-chain amino acid aminotransferase
1518	 57.76	0	1620353..1621138	-	261	59801991	-	NGO1666	-	enoyl-(acyl carrier protein) reductase
1519	 57.66	0	1621293..1622114	-	273	59801992	dapD	NGO1667	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1520	 59.31	+1	1622324..1623967	-	547	59801993	-	NGO1668	-	glucose-6-phosphate isomerase
1521	 52.64	0	1624476..1625708	+	410	59801994	-	NGO1669	-	PilG
1522	 53.77	0	1625782..1626642	+	286	59801995	-	NGO1670	-	PilD
1523	 55.95	0	1626600..1627271	+	223	59801996	-	NGO1671	-	hypothetical protein
1524	 50.94	0	1627156..1627473	+	105	59801997	-	NGO1672	-	hypothetical protein
1525	 52.53	0	1627559..1629235	-	558	59801998	-	NGO1673	-	PilF
1526	 50.78	0	1629573..1630019	-	148	59801999	-	NGO1674	-	hypothetical protein
1527	 51.38	0	1630023..1630997	-	324	59802000	-	NGO1675	-	IspB
1528	 48.22	0	1631221..1631529	+	102	59802001	rplU	NGO1676	-	50S ribosomal protein L21
1529	 51.65	0	1631554..1631826	+	90	59802002	rpmA	NGO1677	-	50S ribosomal protein L27
52.66	MEAN

6.57	STD DEV
