IslandPath Analysis: Neisseria gonorrhoeae FA 1090

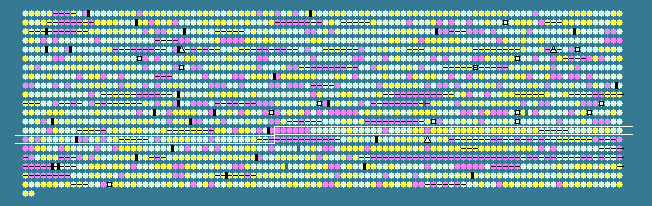

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 48.64	0	1439690..1440205	-	171	59801816	-	NGO1476	-	hypothetical protein
1344	 42.68	-1	1440881..1441126	-	81	59801817	-	NGO1478	-	hypothetical protein
1345	 48.10	0	1441350..1441979	-	209	59801818	-	NGO1479	-	hypothetical protein
1346	 42.91	-1	1443640..1444422	-	260	59801819	-	NGO1481	-	hypothetical protein
1347	 43.52	-1	1444410..1445057	-	215	59801820	-	NGO1482	-	hypothetical protein
1348	 44.18	-1	1445067..1446209	-	380	59801821	-	NGO1483	-	8-amino-7-oxononanoate synthase
1349	 53.67	0	1446432..1447508	+	358	59801822	-	NGO1484	-	hypothetical protein
1350	 50.44	0	1447712..1449178	-	488	59801823	-	NGO1485	-	hypothetical protein
1351	 53.25	0	1449376..1450299	-	307	59801824	-	NGO1486	-	agmatinase
1352	 49.45	0	1450398..1452290	-	630	59801825	-	NGO1487	-	arginine decarboxylase
1353	 50.18	0	1452457..1452741	-	94	59801826	-	NGO1488	-	hypothetical protein
1354	 53.77	0	1452891..1454441	-	516	59801827	-	NGO1489	-	aspartyl-tRNA synthetase
1355	 58.82	0	1454443..1454697	-	84	59801828	-	NGO1490	-	putative aspartyl-tRNA synthetase
1356	 52.57	0	1454755..1455492	-	245	59801829	-	NGO1491	-	hypothetical protein
1357	 53.96	0	1455598..1456746	-	382	59801830	-	NGO1492	-	putative phospholipase
1358	 53.79	0	1456906..1457169	-	87	59801831	rpsT	NGO1493	-	30S ribosomal protein S20
1359	 54.68	0	1457473..1458615	+	380	59801832	-	NGO1494	-	putative ABC transporter, periplasmic binding protein, polyamine
1360	 54.55	0	1460228..1462966	-	912	59801833	-	NGO1495	-	TbpA
1361	 47.59	0	1463053..1465164	-	703	59801834	-	NGO1496	-	TbpB
1362	 55.56	0	1465247..1465390	-	47	59801835	-	NGO1497	-	hypothetical protein
1363	 53.09	0	1465500..1465661	-	53	59801836	-	NGO1498	-	hypothetical protein
1364	 50.99	0	1467069..1468178	+	369	59801837	-	NGO1499	-	hypothetical protein
1365	 55.47	0	1468907..1469719	-	270	59801838	-	NGO1500	-	glutamate racemase
1366	 60.17	+1	1469908..1470369	+	153	59801839	-	NGO1501	-	hypothetical protein
1367	 60.97	+1	1470318..1471616	+	432	59801840	-	NGO1502	-	putative amidase
1368	 45.36	-1	1471644..1472516	+	290	59801841	-	NGO1503	-	hypothetical protein
1369	 59.32	+1	1472562..1473704	-	380	59801842	-	NGO1504	-	hypothetical protein
1370	 56.26	0	1473753..1474175	-	140	59801843	-	NGO1505	-	hypothetical protein
1371	 60.00	+1	1474168..1474977	-	269	59801844	-	NGO1506	-	putative NTP pyrophosphohydrolase
1372	 56.08	0	1475059..1475436	-	125	59801845	-	NGO1507	-	putative acyl-carrier protein synthase
1373	 58.98	0	1475486..1476214	-	242	59801846	-	NGO1508	-	pyridoxal phosphate biosynthetic protein PdxJ
1374	 60.48	+1	1476267..1477010	-	247	59801847	-	NGO1509	-	hypothetical protein
1375	 59.40	+1	1477047..1478174	-	375	59801848	-	NGO1510	-	putative chorismate mutase
1376	 58.95	0	1477747..1479249	-	500	59801849	-	NGO1511	-	putative drug resistance protein
1377	 59.59	+1	1479533..1480408	-	291	59801850	-	NGO1512	-	hypothetical protein
1378	 51.97	0	1481445..1482281	+	278	59801851	-	NGO1513	-	OpaD
1379	 59.67	+1	1482948..1483862	-	304	59801852	-	NGO1514	-	hypothetical protein
1380	 61.51	+1	1483845..1484717	+	290	59801853	-	NGO1515	-	putative oxidoreductase
1381	 57.44	0	1484775..1485977	-	400	59801854	-	NGO1516	-	hypothetical protein
1382	 57.45	0	1485974..1486342	-	122	59801855	-	NGO1517	-	hypothetical protein
1383	 55.68	0	1486339..1487112	-	257	59801856	-	NGO1518	-	hypothetical protein
1384	 58.33	0	1486516..1486959	+	147	59801857	-	NGO1519	-	hypothetical protein
1385	 55.32	0	1487121..1487825	-	234	59801858	-	NGO1520	-	hypothetical protein
1386	 57.50	0	1487852..1489051	-	399	59801859	-	NGO1521	-	putative acetate kinase
1387	 49.43	0	1493757..1494545	-	262	59801860	-	NGO1524	-	hypothetical protein
1388	 54.40	0	1494697..1495845	-	382	59801861	-	NGO1525	-	methylcitrate synthase
1389	 52.45	0	1495930..1496808	-	292	59801862	prpB	NGO1526	-	2-methylisocitrate lyase
1390	 53.85	0	1497426..1498736	-	436	59801863	-	NGO1527	-	hypothetical protein
1391	 52.67	0	1498872..1500050	-	392	59801864	-	NGO1528	-	cell division protein FtsZ
1392	 52.45	0	1500169..1501413	-	414	59801865	-	NGO1529	-	hypothetical protein
1393	 53.50	0	1501499..1502227	-	242	59801866	-	NGO1530	-	hypothetical protein
1394	 53.11	0	1502217..1503131	-	304	59801867	ddl	NGO1531	-	D-alanine--D-alanine ligase
1395	 55.67	0	1503243..1504652	-	469	161572972	murC	NGO1532	-	UDP-N-acetylmuramate--L-alanine ligase
1396	 59.08	0	1504807..1505874	-	355	59801869	-	NGO1533	-	hypothetical protein
1397	 53.58	0	1505878..1507176	-	432	59801870	-	NGO1534	-	hypothetical protein
1398	 56.58	0	1507328..1508665	-	445	59801871	murD	NGO1535	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1399	 51.97	0	1508750..1509130	-	126	59801872	-	NGO1536	-	hypothetical protein
1400	 55.22	0	1509255..1510337	-	360	59801873	mraY	NGO1537	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1401	 49.18	0	1510582..1510764	-	60	59801874	-	NGO1538	-	hypothetical protein
1402	 56.29	0	1510761..1512119	-	452	59801875	-	NGO1539	-	putative UDP-MurNAc-pentapeptide synthetase
1403	 48.45	0	1512244..1513890	-	548	59801876	-	NGO1540	-	Dca
1404	 57.27	0	1513913..1515391	-	492	59801877	murE	NGO1541	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1405	 55.00	0	1515416..1517164	-	582	59801878	-	NGO1542	-	Pbp2
1406	 49.24	0	1517225..1517488	-	87	59801879	-	NGO1543	-	hypothetical protein
1407	 57.89	0	1517515..1518471	-	318	59801880	mraW	NGO1544	-	S-adenosyl-methyltransferase MraW
1408	 53.29	0	1518468..1518923	-	151	59801881	-	NGO1545	-	cell division protein MraZ
1409	 50.96	0	1519202..1520449	+	415	59801882	-	NGO1546	-	hypothetical protein
1410	 46.47	0	1520890..1521711	-	273	59801883	-	NGO1547	-	hypothetical protein
1411	 47.91	0	1521744..1522388	-	214	59801884	-	NGO1548	-	DsbA
1412	 51.49	0	1522391..1523260	-	289	59801885	-	NGO1549	-	hypothetical protein
1413	 59.19	0	1523360..1524856	-	498	59801886	-	NGO1550	-	hypothetical protein
1414	 46.73	0	1524870..1525526	-	218	59801887	-	NGO1551	-	hypothetical protein
1415	 55.53	0	1525688..1527205	+	505	59801888	-	NGO1552	-	putative sodium/proline symporter, proline permease
1416	 58.40	0	1532253..1532615	-	120	59801889	-	NGO1556	-	hypothetical protein
1417	 59.29	+1	1532654..1532992	+	112	59801890	-	NGO1557	-	hypothetical protein
1418	 57.99	0	1533130..1533348	-	72	59801891	-	NGO1558	-	hypothetical protein
1419	 62.54	+1	1533468..1534145	+	225	59801892	-	NGO1559	-	hypothetical protein
1420	 53.06	0	1534233..1534379	+	48	59801893	-	NGO1560	-	hypothetical protein
1421	 55.90	0	1534419..1535189	-	256	59801894	-	NGO1561	-	putative exodeoxyribonuclease III
1422	 53.55	0	1535249..1535530	-	93	59801895	-	NGO1562	-	ArsR family transcriptional regulator
1423	 36.02	-2	1535587..1535772	+	61	59801896	-	NGO1563	-	hypothetical protein
1424	 53.97	0	1535783..1536034	+	83	59801897	-	NGO1564	-	hypothetical protein
1425	 63.04	+1	1536265..1537146	-	293	59801898	-	NGO1565	-	putative nicotinate-nucleotide pyrophosphorylase
1426	 60.92	+1	1537222..1538160	-	312	59801899	-	NGO1566	-	hypothetical protein
1427	 59.12	0	1538362..1539474	+	370	59801900	-	NGO1567	-	quinolinate synthetase
1428	 61.90	+1	1539526..1541034	+	502	59801901	-	NGO1568	-	hypothetical protein
1429	 54.50	0	1547577..1549253	+	558	59801902	-	NGO1573	-	putative ABC transporter ATP-binding protein
1430	 54.32	0	1549313..1549798	-	161	59801903	-	NGO1574	-	hypothetical protein
1431	 54.96	0	1549791..1550747	-	318	59801904	-	NGO1575	-	thiamine monophosphate kinase
1432	 47.27	0	1551327..1551491	+	54	59801905	-	NGO1576	-	hypothetical protein
1433	 52.32	0	1551522..1552232	-	236	59801906	-	NGO1577	-	Omp3
1434	 52.58	0	1552596..1553546	+	316	59801907	-	NGO1578	-	transcriptional regulator CysB-like protein
1435	 52.52	0	1553659..1554393	-	244	59801908	-	NGO1579	-	putative anaerobic transcriptional regulator
1436	 54.29	0	1554528..1555949	+	473	59801909	-	NGO1580	-	coproporphyrinogen III oxidase
1437	 53.59	0	1556189..1557763	-	524	59801910	-	NGO1581	-	putative transport protein
1438	 50.00	0	1557793..1557990	+	65	59801911	-	NGO1582	-	hypothetical protein
1439	 60.04	+1	1558058..1559188	+	376	59801912	anmK	NGO1583	-	anhydro-N-acetylmuramic acid kinase
1440	 59.98	+1	1559307..1560248	+	313	59801913	-	NGO1584	-	MafA3
1441	 54.25	0	1560252..1561982	+	576	59801914	-	NGO1585	-	MafB4
1442	 34.40	-2	1561960..1562241	+	93	59801915	-	NGO1586	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
