IslandPath Analysis: Neisseria gonorrhoeae FA 1090

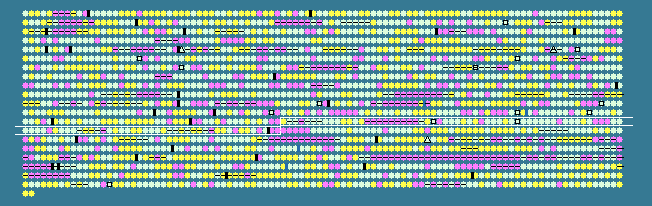

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1244	 56.28	0	1330703..1333909	-	1068	59801717	-	NGO1369	-	putative exodeoxyribonuclease V
1245	 53.55	0	1334010..1335419	-	469	59801718	-	NGO1370	-	hypothetical protein
1246	 50.61	0	1335763..1337082	-	439	59801719	-	NGO1371	-	CcoP
1247	 39.18	-2	1337106..1337276	-	56	59801720	-	NGO1372	-	hypothetical protein
1248	 52.29	0	1337281..1337892	-	203	59801721	-	NGO1373	-	CcoO
1249	 51.66	0	1337919..1339364	-	481	59801722	-	NGO1374	-	CcoN
1250	 51.29	0	1339678..1341426	+	582	59801723	-	NGO1375	-	hypothetical protein
1251	 55.98	0	1341452..1341919	+	155	59801724	-	NGO1376	-	hypothetical protein
1252	 51.72	0	1342420..1342854	-	144	59801725	-	NGO1377	-	hypothetical protein
1253	 54.43	0	1342857..1343567	-	236	59801726	-	NGO1378	-	ExbB
1254	 57.86	0	1343585..1344436	-	283	59801727	-	NGO1379	-	TonB
1255	 56.18	0	1344692..1345330	+	212	59801728	-	NGO1380	-	hypothetical protein
1256	 50.00	0	1345402..1346043	-	213	59801729	-	NGO1381	-	glutaredoxin 2
1257	 58.27	0	1346186..1348399	+	737	59801730	-	NGO1382	-	putative GTP pyrophosphokinase
1258	 36.51	-2	1348463..1348840	-	125	59801731	-	NGO1383	-	hypothetical protein
1259	 33.95	-2	1348909..1349394	-	161	59801732	-	NGO1384	-	hypothetical protein
1260	 44.44	-1	1349345..1349974	-	209	59801733	-	NGO1385	-	hypothetical protein
1261	 45.25	-1	1350801..1351505	-	234	59801734	-	NGO1386	-	hypothetical protein
1262	 35.17	-2	1351641..1352183	-	180	59801735	-	NGO1387	-	hypothetical protein
1263	 34.65	-2	1352310..1352537	-	75	59801736	-	NGO1388	-	hypothetical protein
1264	 32.10	-2	1352596..1352919	-	107	59801737	-	NGO1389	-	hypothetical protein
1265	 37.29	-2	1352909..1353262	-	117	59801738	-	NGO1390	-	hypothetical protein
1266	 38.62	-2	1353559..1354107	-	182	59801739	-	NGO1391	-	hypothetical protein
1267	 54.29	0	1354097..1355914	-	605	59801740	-	NGO1392	-	MafB3
1268	 59.98	+1	1355918..1356859	-	313	59801741	-	NGO1393	-	MafA2
1269	 55.81	0	1356999..1357652	-	217	59801742	-	NGO1394	-	IS1016 transposase
1270	 48.80	0	1357719..1358300	+	193	59801743	-	NGO1395	-	hypothetical protein
1271	 53.45	0	1358282..1360090	+	602	59801744	-	NGO1396	-	putative electron transfer flavoprotein-ubiquinone oxidoreductase
1272	 52.73	0	1360224..1360718	-	164	59801745	-	NGO1397	-	NosL
1273	 54.99	0	1360715..1361545	-	276	59801746	-	NGO1398	-	hypothetical protein
1274	 58.14	0	1361542..1362468	-	308	59801747	-	NGO1399	-	putative ABC transporter, ATP-binding protein
1275	 54.65	0	1368673..1369920	-	415	59801748	hemA	NGO1403	-	glutamyl-tRNA reductase
1276	 56.59	0	1370073..1370459	-	128	59801749	-	NGO1404	-	glycine cleavage system protein H
1277	 44.44	-1	1370511..1371050	-	179	59801750	-	NGO1405	-	hypothetical protein
1278	 55.59	0	1371197..1372297	-	366	59801751	gcvT	NGO1406	-	glycine cleavage system aminomethyltransferase T
1279	 51.55	0	1372809..1373291	+	160	59801752	-	NGO1407	-	AsnC family transcriptional regulator
1280	 50.50	0	1373338..1373943	+	201	59801753	-	NGO1408	-	hypothetical protein
1281	 56.39	0	1373940..1374299	+	119	59801754	-	NGO1410	-	hypothetical protein
1282	 54.62	0	1374586..1376079	+	497	59801755	-	NGO1411	-	hypothetical protein
1283	 55.05	0	1376153..1376806	-	217	59801756	-	NGO1412	-	IS1016 transposase
1284	 53.94	0	1377044..1378387	+	447	59801757	-	NGO1413	-	Na(+)-translocating NADH-quinone reductase subunit A
1285	 54.91	0	1378390..1379622	+	410	59801758	-	NGO1414	-	Na(+)-translocating NADH-quinone reductase subunit B
1286	 53.80	0	1379615..1380391	+	258	59801759	-	NGO1415	-	Na(+)-translocating NADH-quinone reductase subunit C
1287	 52.15	0	1380391..1381017	+	208	59801760	-	NGO1416	-	Na(+)-translocating NADH-quinone reductase subunit D
1288	 50.00	0	1381021..1381614	+	197	59801761	-	NGO1417	-	Na(+)-translocating NADH-quinone reductase subunit E
1289	 52.63	0	1381628..1382845	+	405	59801762	-	NGO1418	-	Na(+)-translocating NADH-quinone reductase subunit F
1290	 42.86	-1	1383027..1383194	+	55	59801763	-	NGO1419	-	hypothetical protein
1291	 52.08	0	1383362..1384417	+	351	59801764	-	NGO1420	-	hypothetical protein
1292	 50.46	0	1384443..1384658	+	71	59801765	-	NGO1421	-	hypothetical protein
1293	 54.06	0	1384782..1385360	-	192	59801766	-	NGO1422	-	putative heat shock protein
1294	 56.41	0	1385543..1386361	+	272	59801767	-	NGO1423	-	hypothetical protein
1295	 54.83	0	1386565..1388076	-	503	59801768	ubiB	NGO1424	-	putative ubiquinone biosynthesis protein UbiB
1296	 46.61	0	1388728..1389066	-	112	59801769	-	NGO1426	-	iron-sulfur cluster insertion protein ErpA
1297	 46.41	0	1389199..1389909	-	236	59801770	-	NGO1427	-	putative transcriptional regulator, repressor
1298	 44.69	-1	1390072..1390344	+	90	59801771	-	NGO1428	-	hypothetical protein
1299	 51.06	0	1390552..1392480	+	642	59801772	dnaK	NGO1429	-	molecular chaperone DnaK
1300	 52.16	0	1392703..1393950	+	415	59801773	-	NGO1430	-	hypothetical protein
1301	 55.41	0	1393922..1394623	+	233	59801774	-	NGO1431	-	hypothetical protein
1302	 53.07	0	1394680..1395657	+	325	59801775	-	NGO1432	-	hypothetical protein
1303	 54.84	0	1396210..1396911	+	233	59801776	-	NGO1433	-	putative ABC transporter, permease protein
1304	 55.01	0	1397102..1397710	+	202	59801777	-	NGO1434	-	putative ABC transporter, ATP-binding protein
1305	 29.35	-2	1397890..1398516	+	208	59801778	-	NGO1435	-	CadB
1306	 59.63	+1	1399954..1402143	-	729	59801779	-	NGO1437	-	primosome assembly protein PriA
1307	 55.09	0	1402283..1403068	+	261	59801780	-	NGO1438	-	hypothetical protein
1308	 55.25	0	1403167..1405101	-	644	59801781	-	NGO1439	-	putative ABC transporter, ATP-binding protein
1309	 55.47	0	1405167..1406345	-	392	59801782	-	NGO1440	-	putative ABC transporter, periplasmic protein
1310	 52.31	0	1406571..1406960	+	129	59801783	-	NGO1441	-	putative type IV pilin protein
1311	 56.48	0	1407240..1408280	+	346	161572973	-	NGO1442	-	alcohol dehydrogenase
1312	 59.81	+1	1408581..1412066	-	1161	59801785	-	NGO1443	-	hypothetical protein
1313	 50.56	0	1412050..1412229	+	59	59801786	-	NGO1444	-	hypothetical protein
1314	 44.69	-1	1412494..1413162	+	222	59801787	-	NGO1445	-	hypothetical protein
1315	 54.12	0	1413134..1413619	+	161	59801788	-	NGO1446	-	hypothetical protein
1316	 57.72	0	1413742..1413864	+	40	59801789	-	NGO1447	-	hypothetical protein
1317	 55.74	0	1413828..1414550	+	240	59801790	-	NGO1448	-	UDP-2,3-diacylglucosamine hydrolase
1318	 53.94	0	1414819..1416405	+	528	59801791	-	NGO1449	-	LctP
1319	 56.86	0	1416571..1416774	-	67	59801792	-	NGO1450	-	hypothetical protein
1320	 58.23	0	1416890..1417387	+	165	59801793	-	NGO1451	-	hypothetical protein
1321	 50.71	0	1417469..1418659	+	396	59801794	-	NGO1452	-	aromatic amino acid aminotransferase
1322	 54.43	0	1419715..1421226	-	503	59801795	lysS	NGO1454	-	lysyl-tRNA synthetase
1323	 55.10	0	1421381..1422634	-	417	59801796	-	NGO1455	-	hypothetical protein
1324	 61.44	+1	1423093..1424889	+	598	59801797	-	NGO1456	-	putative aminopeptidase
1325	 53.48	0	1425019..1425291	+	90	59801798	-	NGO1457	-	hypothetical protein
1326	 53.33	0	1425288..1425692	+	134	59801799	-	NGO1458	-	hypothetical protein
1327	 56.59	0	1425714..1425971	+	85	59801800	-	NGO1459	-	hypothetical protein
1328	 55.00	0	1425993..1426172	+	59	59801801	-	NGO1460	-	hypothetical protein
1329	 56.17	0	1426490..1427032	-	180	59801802	-	NGO1461	-	hypothetical protein
1330	 58.40	0	1427071..1427433	+	120	59801803	-	NGO1462	-	hypothetical protein
1331	 50.56	0	1427461..1427640	+	59	59801804	-	NGO1463	-	hypothetical protein
1332	 48.79	0	1428738..1429151	-	137	59801805	-	NGO1465	-	hypothetical protein
1333	 58.32	0	1429169..1430749	-	526	59801806	purH	NGO1466	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1334	 58.88	0	1430910..1432052	-	380	59801807	-	NGO1467	-	hypothetical protein
1335	 53.84	0	1432197..1433030	-	277	59801808	-	NGO1468	-	hypothetical protein
1336	 47.29	0	1433076..1433204	+	42	59801809	-	NGO1469	-	hypothetical protein
1337	 58.61	0	1433319..1434857	+	512	59801810	pntA	NGO1470	-	NAD(P) transhydrogenase subunit alpha
1338	 57.29	0	1434861..1435244	+	127	59801811	-	NGO1471	-	hypothetical protein
1339	 55.12	0	1435324..1436709	+	461	59801812	pntB	NGO1472	-	pyridine nucleotide transhydrogenase
1340	 47.84	0	1436917..1437495	-	192	59801813	-	NGO1473	-	MdaB
1341	 49.45	0	1437734..1438645	+	303	59801814	-	NGO1474	-	LysR family transcriptional regulator
1342	 46.39	0	1439310..1439669	-	119	59801815	-	NGO1475	-	hypothetical protein
1343	 48.64	0	1439690..1440205	-	171	59801816	-	NGO1476	-	hypothetical protein
52.66	MEAN

6.57	STD DEV
