IslandPath Analysis: Neisseria gonorrhoeae FA 1090

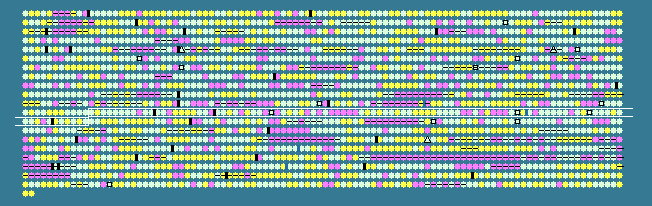

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1112	 55.78	0	1175807..1176247	-	146	59801585	-	NGO1226	-	HolC
1113	 56.29	0	1176310..1177716	-	468	59801586	-	NGO1227	-	AmpA
1114	 54.12	0	1177890..1179005	+	371	59801587	-	NGO1228	-	hypothetical protein
1115	 55.74	0	1179002..1180072	+	356	59801588	-	NGO1229	-	hypothetical protein
1116	 49.38	0	1180077..1180238	+	53	59801589	-	NGO1230	-	hypothetical protein
1117	 55.72	0	1180387..1182972	+	861	59801590	-	NGO1231	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1118	 54.32	0	1183114..1184109	+	331	59801591	-	NGO1232	-	ornithine carbamoyltransferase
1119	 52.37	0	1184228..1185241	-	337	59801592	-	NGO1233	-	ketol-acid reductoisomerase
1120	 46.94	0	1185321..1185614	-	97	59801593	-	NGO1234	-	hypothetical protein
1121	 49.59	0	1185681..1186172	-	163	59801594	-	NGO1235	-	acetolactate synthase 3 regulatory subunit
1122	 52.03	0	1186183..1187910	-	575	59801595	-	NGO1236	-	IlvI
1123	 54.59	0	1188975..1189628	+	217	59801596	-	NGO1237	-	hypothetical protein
1124	 54.95	0	1189707..1190372	+	221	59801597	hisG	NGO1238	-	ATP phosphoribosyltransferase catalytic subunit
1125	 45.16	-1	1190464..1191351	+	295	59801598	-	NGO1239	-	hypothetical protein
1126	 58.22	0	1191348..1192637	+	429	59801599	hisD	NGO1240	-	histidinol dehydrogenase
1127	 57.13	0	1192683..1193762	+	359	59801600	-	NGO1241	-	histidinol-phosphate aminotransferase
1128	 57.69	0	1193956..1194690	+	244	59801601	hisB	NGO1242	-	imidazoleglycerol-phosphate dehydratase
1129	 56.67	0	1194766..1195635	+	289	59801602	-	NGO1243	-	hypothetical protein
1130	 49.31	0	1195870..1196301	+	143	59801603	-	NGO1244	-	MarR family transcriptional regulator
1131	 53.75	0	1196312..1197178	+	288	59801604	-	NGO1245	-	hypothetical protein
1132	 48.24	0	1197229..1198281	-	350	59801605	-	NGO1246	-	putative periplasmic protease
1133	 49.29	0	1199032..1199595	-	187	59801606	-	NGO1247	-	hypothetical protein
1134	 49.88	0	1199701..1200123	-	140	59801607	-	NGO1248	-	hypothetical protein
1135	 56.25	0	1200302..1200637	-	111	59801608	-	NGO1249	-	hypothetical protein
1136	 53.14	0	1200818..1201660	+	280	59801609	-	NGO1250	-	mtrCDE transcriptional regulator, activator
1137	 48.01	0	1201722..1202300	-	192	59801610	-	NGO1251	-	hypothetical protein
1138	 56.70	0	1202358..1203260	+	300	59801611	-	NGO1252	-	hypothetical protein
1139	 50.93	0	1203301..1204431	-	376	59801612	-	NGO1253	-	putative ABC transporter, periplasmic binding protein, polyamine
1140	 55.31	0	1204635..1207259	+	874	59801613	-	NGO1254	-	hypothetical protein
1141	 35.38	-2	1207321..1207662	+	113	59801614	-	NGO1255	-	hypothetical protein
1142	 54.74	0	1208062..1208715	+	217	59801615	-	NGO1256	-	IS1016 transposase
1143	 45.83	-1	1209532..1209675	-	47	59801616	-	NGO1257	-	hypothetical protein
1144	 54.97	0	1209692..1210375	-	227	59801617	-	NGO1258	-	phosphoglyceromutase
1145	 56.47	0	1210524..1212827	+	767	59801618	-	NGO1259	-	DNA topoisomerase IV subunit A
1146	 55.94	0	1212847..1214571	+	574	59801619	-	NGO1260	-	Rsp
1147	 59.50	+1	1214671..1215423	+	250	59801620	-	NGO1261	-	hypothetical protein
1148	 46.52	0	1215967..1216929	-	320	59801621	-	NGO1262	-	Irg5
1149	 49.54	0	1217922..1219007	-	361	59801622	-	NGO1263	-	putative phage associated protein
1150	 46.39	0	1219017..1219307	-	96	59801623	-	NGO1264	-	putative phage associated protein
1151	 50.20	0	1219308..1220831	-	507	59801624	-	NGO1265	-	TspB3
1152	 34.53	-2	1220815..1221147	-	110	59801625	-	NGO1266	-	putative phage associated protein
1153	 47.31	0	1221260..1221538	-	92	59801626	-	NGO1267	-	putative phage associated protein
1154	 49.12	0	1221545..1221829	-	94	59801627	-	NGO1268	-	putative phage associated protein
1155	 42.93	-1	1221837..1222034	-	65	59801628	-	NGO1269	-	putative phage associated protein
1156	 46.96	0	1222039..1222383	-	114	59801629	-	NGO1270	-	putative phage associated protein
1157	 54.81	0	1224369..1224773	+	134	59801630	-	NGO1273	-	hypothetical protein
1158	 57.87	0	1224813..1225994	+	393	59801631	-	NGO1274	-	hypothetical protein
1159	 54.26	0	1226096..1228207	-	703	59801632	-	NGO1275	-	NorB
1160	 56.83	0	1228725..1229903	+	392	59801633	-	NGO1276	-	AniA
1161	 55.16	0	1230081..1230836	+	251	59801634	-	NGO1277	-	hypothetical protein
1162	 53.76	0	1232381..1232938	-	185	59801635	-	NGO1279	-	hypothetical protein
1163	 56.83	0	1234709..1235023	-	104	59801636	-	NGO1282	-	hypothetical protein
1164	 53.03	0	1235044..1236150	-	368	59801637	-	NGO1283	-	phosphoserine aminotransferase
1165	 52.22	0	1236499..1236948	+	149	59801638	-	NGO1284	-	hypothetical protein
1166	 56.62	0	1236976..1238478	+	500	161572974	nusA	NGO1285	-	transcription elongation factor NusA
1167	 57.70	0	1238490..1241321	+	943	59801640	infB	NGO1286	-	translation initiation factor IF-2
1168	 60.63	+1	1241481..1242821	-	446	59801641	-	NGO1287	-	hypothetical protein
1169	 57.94	0	1242895..1244235	-	446	59801642	-	NGO1288	-	hypothetical protein
1170	 51.04	0	1244378..1245004	+	208	59801643	-	NGO1289	-	hypothetical protein
1171	 51.87	0	1245069..1246487	-	472	59801644	-	NGO1290	-	putative amino-acid transporter, sodium/alanine symporter
1172	 55.28	0	1246814..1247542	+	242	59801645	-	NGO1291	-	hypothetical protein
1173	 55.21	0	1247601..1248089	-	162	59801646	-	NGO1292	-	Dsb
1174	 40.00	-1	1248518..1248802	-	94	59801647	-	NGO1293	-	hypothetical protein
1175	 46.24	0	1249111..1249575	-	154	59801648	-	NGO1294	-	AsnC family transcriptional regulator
1176	 52.60	0	1249797..1250855	+	352	59801649	-	NGO1295	-	hypothetical protein
1177	 35.52	-2	1251143..1251325	-	60	59801650	-	NGO1296	-	hypothetical protein
1178	 56.64	0	1251397..1252752	-	451	59801651	-	NGO1297	-	hypothetical protein
1179	 44.32	-1	1252767..1253039	-	90	59801652	-	NGO1298	-	hypothetical protein
1180	 45.39	-1	1253164..1253901	-	245	59801653	-	NGO1299	-	hypothetical protein
1181	 46.93	0	1254039..1254950	-	303	59801654	-	NGO1300	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1182	 50.07	0	1255045..1255755	+	236	59801655	-	NGO1301	-	hypothetical protein
1183	 55.35	0	1255895..1256548	+	217	59801656	-	NGO1302	-	IS1016 transposase
1184	 58.50	0	1257496..1257789	-	97	59801657	-	NGO1304	-	ComE2
1185	 52.43	0	1263560..1263847	-	95	59801658	-	NGO1306	-	hypothetical protein
1186	 48.35	0	1263920..1265104	+	394	59801659	-	NGO1307	-	putative flavoprotein
1187	 51.32	0	1265171..1267327	-	718	59801660	-	NGO1308	-	putative guanosine-3',5'-bis(diphosphate)3'-pyrophosphohydrolase
1188	 51.69	0	1267420..1267626	-	68	59801661	-	NGO1309	-	hypothetical protein
1189	 54.05	0	1267684..1268301	-	205	59801662	-	NGO1310	-	KguA
1190	 54.67	0	1268429..1269028	+	199	59801663	-	NGO1311	-	adenine phosphoribosyltransferase
1191	 53.83	0	1269074..1269883	-	269	59801664	-	NGO1312	-	hypothetical protein
1192	 45.95	-1	1269916..1270026	+	36	59801665	-	NGO1313	-	hypothetical protein
1193	 54.13	0	1270187..1271542	+	451	59801666	-	NGO1314	-	putative protease
1194	 60.55	+1	1271673..1272146	+	157	59801667	-	NGO1315	-	hypothetical protein
1195	 55.96	0	1274941..1275594	+	217	59801668	-	NGO1317	-	IS1016 transposase
1196	 52.38	0	1275619..1276311	-	230	59801669	-	NGO1318	-	hypothetical protein
1197	 55.94	0	1276589..1277893	+	434	59801670	-	NGO1319	-	PqiA
1198	 52.95	0	1277886..1279547	+	553	59801671	-	NGO1320	-	PqiB
1199	 58.77	0	1279547..1280065	+	172	59801672	-	NGO1321	-	hypothetical protein
1200	 50.72	0	1280069..1280620	+	183	59801673	-	NGO1322	-	putative DNA-3-methyladenineglycosylase I
1201	 55.14	0	1280610..1281251	+	213	59801674	-	NGO1323	-	hypothetical protein
1202	 55.83	0	1281422..1281781	+	119	59801675	-	NGO1324	-	hypothetical protein
1203	 56.54	0	1281812..1284664	+	950	59801676	-	NGO1325	-	glycine dehydrogenase
1204	 32.61	-2	1285805..1285942	+	45	59801677	-	NGO1327	-	hypothetical protein
1205	 55.36	0	1286026..1286865	-	279	59801678	-	NGO1328	-	putative cytochrome
1206	 56.53	0	1287290..1288483	-	397	59801679	-	NGO1329	-	aromatic amino acid aminotransferase
1207	 52.25	0	1288503..1289591	-	362	59801680	-	NGO1330	-	tRNA (uracil-5-)-methyltransferase
1208	 59.85	+1	1289738..1290838	+	366	59801681	-	NGO1331	-	chorismate synthase
1209	 54.46	0	1290929..1291354	+	141	59801682	-	NGO1332	-	hypothetical protein
1210	 57.91	0	1291428..1293413	-	661	59801683	-	NGO1333	-	DNA topoisomerase IV subunit B
1211	 55.34	0	1293480..1294088	-	202	59801684	-	NGO1334	-	dinucleoside polyphosphate hydrolase
52.66	MEAN

6.57	STD DEV
