IslandPath Analysis: Neisseria gonorrhoeae FA 1090

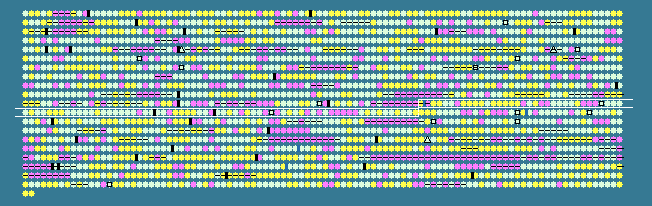

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.66   STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1067	 58.67	0	1115387..1115686	-	99	59801540	-	NGO1178	-	ComE1
1068	 43.38	-1	1121383..1121601	+	72	59801541	-	NGO1179	-	hypothetical protein
1069	 57.52	0	1123800..1124138	-	112	59801542	-	NGO1182	-	putative nitrogen regulatory protein P-II
1070	 56.61	0	1124290..1128246	+	1318	59801543	-	NGO1183	-	phosphoribosylformylglycinamidine synthase
1071	 51.56	0	1128345..1129463	-	372	59801544	-	NGO1184	-	hypothetical protein
1072	 50.00	0	1129602..1129913	-	103	59801545	-	NGO1185	-	ArsR family transcriptional regulator
1073	 41.03	-1	1129938..1130132	-	64	59801546	-	NGO1186	-	hypothetical protein
1074	 60.29	+1	1130145..1130897	+	250	59801547	-	NGO1187	-	hypothetical protein
1075	 57.87	0	1131131..1132585	+	484	59801548	-	NGO1188	-	MgtE
1076	 58.42	0	1132671..1133579	-	302	59801549	hslO	NGO1189	-	Hsp33-like chaperonin
1077	 61.30	+1	1133860..1134492	+	210	59801550	-	NGO1190	-	GNA2001
1078	 52.51	0	1134511..1134729	+	72	59801551	-	NGO1191	-	hypothetical protein
1079	 58.26	0	1134874..1135218	+	114	59801552	-	NGO1192	-	hypothetical protein
1080	 59.31	+1	1135218..1135910	+	230	59801553	-	NGO1193	-	hypothetical protein
1081	 61.18	+1	1135977..1137197	+	406	59801554	argJ	NGO1194	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1082	 61.42	+1	1137257..1138666	+	469	59801555	-	NGO1195	-	hypothetical protein
1083	 56.47	0	1138854..1140245	+	463	59801556	-	NGO1196	-	putative ATP-dependent DNA helicase related protein
1084	 29.88	-2	1140196..1141815	+	539	59801557	-	NGO1197	-	hypothetical protein
1085	 49.46	0	1142045..1143619	+	524	59801558	-	NGO1198	-	hypothetical protein
1086	 56.58	0	1143685..1146915	+	1076	59801559	-	NGO1199	-	HrpA
1087	 46.63	0	1147035..1147997	-	320	59801560	-	NGO1200	-	Irg4
1088	 36.04	-2	1148343..1148453	-	36	59801561	-	NGO1201	-	hypothetical protein
1089	 53.45	0	1149327..1150355	-	342	59801562	-	NGO1203	-	anthranilate phosphoribosyltransferase
1090	 51.95	0	1150419..1151009	-	196	59801563	-	NGO1204	-	anthranilate synthase component II
1091	 55.73	0	1151402..1153696	+	764	59801564	-	NGO1205	-	putative TonB-dependent receptor protein
1092	 52.82	0	1154088..1154867	-	259	59801565	-	NGO1206	-	phosphatidylserine decarboxylase
1093	 56.98	0	1155021..1157870	+	949	59801566	uvrA	NGO1207	-	excinuclease ABC subunit A
1094	 43.30	-1	1157888..1158529	+	213	59801567	-	NGO1208	-	NgoMIIIM
1095	 41.71	-1	1158533..1159666	+	377	59801568	-	NGO1209	-	DNA cytosine methyltransferase M.NgoMIII
1096	 48.84	0	1159776..1160162	+	128	59801569	-	NGO1210	-	hypothetical protein
1097	 55.05	0	1160159..1160812	-	217	59801570	-	NGO1211	-	IS1016 transposase
1098	 55.66	0	1160954..1162588	-	544	59801571	-	NGO1212	-	CTP synthetase
1099	 52.90	0	1162700..1164370	-	556	59801572	-	NGO1213	-	putative long-chain-fatty-acid--CoA-ligase
1100	 52.95	0	1164441..1165592	-	383	59801573	trmU	NGO1214	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1101	 54.22	0	1165669..1166142	-	157	59801574	-	NGO1215	-	hypothetical protein
1102	 56.51	0	1166274..1166657	-	127	59801575	-	NGO1216	-	diacylglycerol kinase
1103	 54.17	0	1166816..1167775	-	319	59801576	-	NGO1217	-	glutathione synthetase
1104	 54.36	0	1167864..1169585	-	573	59801577	-	NGO1218	-	glutaminyl-tRNA synthetase
1105	 57.49	0	1169664..1170437	-	257	59801578	-	NGO1219	-	DeoR family transcriptional regulator
1106	 56.81	0	1170480..1171382	-	300	59801579	-	NGO1220	-	hypothetical protein
1107	 56.76	0	1171531..1172247	-	238	59801580	-	NGO1221	-	GntR family transcriptional regulator
1108	 55.27	0	1172769..1173119	-	116	59801581	-	NGO1222	-	hypothetical protein
1109	 53.72	0	1173309..1173980	-	223	59801582	-	NGO1223	-	hypothetical protein
1110	 55.50	0	1173996..1174622	-	208	59801583	-	NGO1224	-	putative phosphoribosylglycinamidetransformylase
1111	 54.33	0	1174729..1175547	-	272	59801584	-	NGO1225	-	putative peptidyl-prolylisomerase
1112	 55.78	0	1175807..1176247	-	146	59801585	-	NGO1226	-	HolC
1113	 56.29	0	1176310..1177716	-	468	59801586	-	NGO1227	-	AmpA
1114	 54.12	0	1177890..1179005	+	371	59801587	-	NGO1228	-	hypothetical protein
1115	 55.74	0	1179002..1180072	+	356	59801588	-	NGO1229	-	hypothetical protein
1116	 49.38	0	1180077..1180238	+	53	59801589	-	NGO1230	-	hypothetical protein
1117	 55.72	0	1180387..1182972	+	861	59801590	-	NGO1231	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1118	 54.32	0	1183114..1184109	+	331	59801591	-	NGO1232	-	ornithine carbamoyltransferase
1119	 52.37	0	1184228..1185241	-	337	59801592	-	NGO1233	-	ketol-acid reductoisomerase
1120	 46.94	0	1185321..1185614	-	97	59801593	-	NGO1234	-	hypothetical protein
1121	 49.59	0	1185681..1186172	-	163	59801594	-	NGO1235	-	acetolactate synthase 3 regulatory subunit
1122	 52.03	0	1186183..1187910	-	575	59801595	-	NGO1236	-	IlvI
1123	 54.59	0	1188975..1189628	+	217	59801596	-	NGO1237	-	hypothetical protein
1124	 54.95	0	1189707..1190372	+	221	59801597	hisG	NGO1238	-	ATP phosphoribosyltransferase catalytic subunit
1125	 45.16	-1	1190464..1191351	+	295	59801598	-	NGO1239	-	hypothetical protein
1126	 58.22	0	1191348..1192637	+	429	59801599	hisD	NGO1240	-	histidinol dehydrogenase
1127	 57.13	0	1192683..1193762	+	359	59801600	-	NGO1241	-	histidinol-phosphate aminotransferase
1128	 57.69	0	1193956..1194690	+	244	59801601	hisB	NGO1242	-	imidazoleglycerol-phosphate dehydratase
1129	 56.67	0	1194766..1195635	+	289	59801602	-	NGO1243	-	hypothetical protein
1130	 49.31	0	1195870..1196301	+	143	59801603	-	NGO1244	-	MarR family transcriptional regulator
1131	 53.75	0	1196312..1197178	+	288	59801604	-	NGO1245	-	hypothetical protein
1132	 48.24	0	1197229..1198281	-	350	59801605	-	NGO1246	-	putative periplasmic protease
1133	 49.29	0	1199032..1199595	-	187	59801606	-	NGO1247	-	hypothetical protein
1134	 49.88	0	1199701..1200123	-	140	59801607	-	NGO1248	-	hypothetical protein
1135	 56.25	0	1200302..1200637	-	111	59801608	-	NGO1249	-	hypothetical protein
1136	 53.14	0	1200818..1201660	+	280	59801609	-	NGO1250	-	mtrCDE transcriptional regulator, activator
1137	 48.01	0	1201722..1202300	-	192	59801610	-	NGO1251	-	hypothetical protein
1138	 56.70	0	1202358..1203260	+	300	59801611	-	NGO1252	-	hypothetical protein
1139	 50.93	0	1203301..1204431	-	376	59801612	-	NGO1253	-	putative ABC transporter, periplasmic binding protein, polyamine
1140	 55.31	0	1204635..1207259	+	874	59801613	-	NGO1254	-	hypothetical protein
1141	 35.38	-2	1207321..1207662	+	113	59801614	-	NGO1255	-	hypothetical protein
1142	 54.74	0	1208062..1208715	+	217	59801615	-	NGO1256	-	IS1016 transposase
1143	 45.83	-1	1209532..1209675	-	47	59801616	-	NGO1257	-	hypothetical protein
1144	 54.97	0	1209692..1210375	-	227	59801617	-	NGO1258	-	phosphoglyceromutase
1145	 56.47	0	1210524..1212827	+	767	59801618	-	NGO1259	-	DNA topoisomerase IV subunit A
1146	 55.94	0	1212847..1214571	+	574	59801619	-	NGO1260	-	Rsp
1147	 59.50	+1	1214671..1215423	+	250	59801620	-	NGO1261	-	hypothetical protein
1148	 46.52	0	1215967..1216929	-	320	59801621	-	NGO1262	-	Irg5
1149	 49.54	0	1217922..1219007	-	361	59801622	-	NGO1263	-	putative phage associated protein
1150	 46.39	0	1219017..1219307	-	96	59801623	-	NGO1264	-	putative phage associated protein
1151	 50.20	0	1219308..1220831	-	507	59801624	-	NGO1265	-	TspB3
1152	 34.53	-2	1220815..1221147	-	110	59801625	-	NGO1266	-	putative phage associated protein
1153	 47.31	0	1221260..1221538	-	92	59801626	-	NGO1267	-	putative phage associated protein
1154	 49.12	0	1221545..1221829	-	94	59801627	-	NGO1268	-	putative phage associated protein
1155	 42.93	-1	1221837..1222034	-	65	59801628	-	NGO1269	-	putative phage associated protein
1156	 46.96	0	1222039..1222383	-	114	59801629	-	NGO1270	-	putative phage associated protein
1157	 54.81	0	1224369..1224773	+	134	59801630	-	NGO1273	-	hypothetical protein
1158	 57.87	0	1224813..1225994	+	393	59801631	-	NGO1274	-	hypothetical protein
1159	 54.26	0	1226096..1228207	-	703	59801632	-	NGO1275	-	NorB
1160	 56.83	0	1228725..1229903	+	392	59801633	-	NGO1276	-	AniA
1161	 55.16	0	1230081..1230836	+	251	59801634	-	NGO1277	-	hypothetical protein
1162	 53.76	0	1232381..1232938	-	185	59801635	-	NGO1279	-	hypothetical protein
1163	 56.83	0	1234709..1235023	-	104	59801636	-	NGO1282	-	hypothetical protein
1164	 53.03	0	1235044..1236150	-	368	59801637	-	NGO1283	-	phosphoserine aminotransferase
1165	 52.22	0	1236499..1236948	+	149	59801638	-	NGO1284	-	hypothetical protein
1166	 56.62	0	1236976..1238478	+	500	161572974	nusA	NGO1285	-	transcription elongation factor NusA
52.66	MEAN

6.57	STD DEV
