IslandPath Analysis: Neisseria gonorrhoeae FA 1090

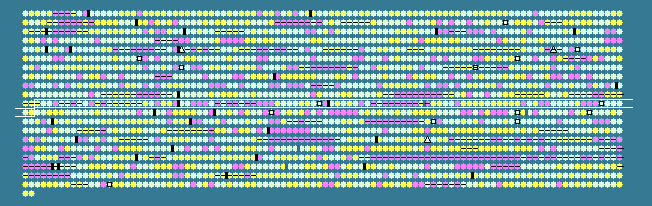

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.66   STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1003	 58.95	0	1066185..1066469	-	94	59801476	-	NGO1109	-	putative phage associated protein
1004	 54.48	0	1066486..1067847	-	453	59801477	-	NGO1110	-	putative replicative DNA helicase, putative phage associated protein
1005	 52.08	0	1067844..1068974	-	376	59801478	-	NGO1111	-	putative phage associated protein
1006	 46.05	-1	1069092..1069319	-	75	59801479	-	NGO1112	-	putative phage associated protein
1007	 49.21	0	1069492..1069680	+	62	59801480	-	NGO1113	-	putative phage associated protein
1008	 49.36	0	1069657..1069812	-	51	59801481	-	NGO1114	-	putative phage associated protein
1009	 38.10	-2	1069893..1070081	-	62	59801482	-	NGO1115	-	putative phage associated protein
1010	 55.71	0	1070260..1070907	+	215	59801483	-	NGO1116	-	putative phage repressor protein, putative phage associated protein
1011	 52.04	0	1071067..1071606	+	179	59801484	-	NGO1117	-	putative phage associated protein
1012	 48.61	0	1071607..1071966	+	119	59801485	-	NGO1118	-	putative phage associated protein
1013	 58.45	0	1071983..1072201	-	72	59801486	-	NGO1119	-	putative phage associated protein
1014	 42.79	-1	1072684..1072884	+	66	59801487	-	NGO1120	-	putative phage associated protein
1015	 50.94	0	1072917..1073393	+	158	59801488	-	NGO1121	-	putative phage associated protein
1016	 65.22	+1	1073390..1073665	+	91	59801489	-	NGO1122	-	putative phage associated protein
1017	 55.86	0	1073806..1074138	+	110	59801490	-	NGO1123	-	putative phage associated protein
1018	 59.77	+1	1074307..1074567	+	86	59801491	-	NGO1124	-	putative phage associated protein
1019	 51.85	0	1074564..1074725	+	53	59801492	-	NGO1125	-	putative phage associated protein
1020	 55.60	0	1074794..1075480	+	228	59801493	-	NGO1126	-	putative phage associated protein
1021	 56.28	0	1075620..1075802	+	60	59801494	-	NGO1127	-	putative phage associated protein
1022	 52.44	0	1075799..1076290	+	163	59801495	-	NGO1128	-	putative phage associated protein
1023	 32.87	-2	1076342..1076557	+	71	59801496	-	NGO1129	-	putative phage associated protein
1024	 57.62	0	1076668..1077651	+	327	59801497	-	NGO1130	-	putative phage associated protein
1025	 60.39	+1	1077648..1078061	+	137	59801498	-	NGO1131	-	putative phage associated protein
1026	 46.67	0	1078087..1078281	+	64	59801499	-	NGO1132	-	putative phage associated protein
1027	 54.22	0	1078572..1079246	+	224	59801500	-	NGO1133	-	hypothetical protein
1028	 54.21	0	1079239..1079832	+	197	59801501	-	NGO1134	-	putative GTP cyclohydrolase II
1029	 45.51	-1	1079913..1080224	-	103	59801502	-	NGO1135	-	hypothetical protein
1030	 44.76	-1	1079991..1080200	+	69	59801503	-	NGO1136	-	hypothetical protein
1031	 46.42	0	1080185..1081147	+	320	59801504	-	NGO1137	-	Irg2
1032	 49.45	0	1082262..1083347	-	361	59801505	-	NGO1138	-	putative phage associated protein
1033	 46.46	0	1083352..1083648	-	98	59801506	-	NGO1139	-	putative phage associated protein
1034	 50.20	0	1083649..1085172	-	507	59801507	-	NGO1140	-	TspB1
1035	 34.53	-2	1085156..1085488	-	110	59801508	-	NGO1141	-	putative phage associated protein
1036	 47.31	0	1085601..1085879	-	92	59801509	-	NGO1142	-	putative phage associated protein
1037	 51.14	0	1085886..1086104	-	72	59801510	-	NGO1143	-	putative phage associated protein
1038	 38.73	-2	1086190..1086393	-	67	59801511	-	NGO1144	-	putative phage associated protein
1039	 44.55	-1	1086407..1086718	-	103	59801512	-	NGO1145	-	putative phage associated protein
1040	 45.44	-1	1086789..1088060	-	423	59801513	-	NGO1146	-	putative phage associated protein
1041	 37.78	-2	1088047..1088271	-	74	59801514	-	NGO1147	-	hypothetical protein
1042	 42.03	-1	1088667..1088873	-	68	59801515	-	NGO1148	-	hypothetical protein
1043	 57.80	0	1088968..1090128	-	386	59801516	-	NGO1149	-	putative O-succinylhomoserine sulfhydrolase
1044	 54.35	0	1090274..1091044	-	256	59801517	-	NGO1150	-	hypothetical protein
1045	 52.38	0	1091146..1091397	+	83	59801518	-	NGO1151	-	hypothetical protein
1046	 52.79	0	1091449..1092255	+	268	59801519	-	NGO1152	-	ABC transporter, periplasmic histidine-binding protein precursor
1047	 58.88	0	1094183..1095595	+	470	59801520	trkA	NGO1154	-	potassium transporter peripheral membrane component
1048	 58.61	0	1096079..1096537	-	152	59801521	-	NGO1155	-	hypothetical protein
1049	 52.87	0	1096627..1097481	-	284	59801522	-	NGO1156	-	hypothetical protein
1050	 55.66	0	1097814..1098467	+	217	59801523	-	NGO1157	-	IS1016 transposase
1051	 47.04	0	1098435..1099703	-	422	59801524	-	NGO1158	-	hypothetical protein
1052	 54.25	0	1100191..1100343	-	50	59801525	-	NGO1159	-	hypothetical protein
1053	 57.50	0	1100403..1101209	+	268	59801526	-	NGO1160	-	phosphomethylpyrimidine kinase
1054	 55.40	0	1101267..1102136	-	289	59801527	-	NGO1161	-	tellurite resistance protein TehB
1055	 57.99	0	1102249..1102686	+	145	59801528	-	NGO1162	-	ribonuclease H
1056	 50.94	0	1102723..1102881	+	52	59801529	-	NGO1163	-	hypothetical protein
1057	 46.52	0	1103017..1103979	-	320	59801530	-	NGO1164	-	Irg3
1058	 49.45	0	1104972..1106057	-	361	59801531	-	NGO1165	-	putative phage associated protein
1059	 46.46	0	1106062..1106358	-	98	59801532	-	NGO1166	-	putative phage associated protein
1060	 49.40	0	1106359..1107939	-	526	59801533	-	NGO1167	-	TspB2
1061	 49.12	0	1108606..1108890	-	94	59801534	-	NGO1168	-	putative phage associated protein
1062	 42.93	-1	1108898..1109095	-	65	59801535	-	NGO1169	-	putative phage associated protein
1063	 46.96	0	1109100..1109444	-	114	59801536	-	NGO1170	-	putative phage associated protein
1064	 38.06	-2	1110897..1111319	-	140	59801537	-	NGO1173	-	putative DNA mismatch endonuclease, patch repair protein
1065	 48.30	0	1114327..1114473	+	48	59801538	-	NGO1176	-	hypothetical protein
1066	 37.56	-2	1114850..1115299	-	149	59801539	-	NGO1177	-	hypothetical protein
1067	 58.67	0	1115387..1115686	-	99	59801540	-	NGO1178	-	ComE1
1068	 43.38	-1	1121383..1121601	+	72	59801541	-	NGO1179	-	hypothetical protein
1069	 57.52	0	1123800..1124138	-	112	59801542	-	NGO1182	-	putative nitrogen regulatory protein P-II
1070	 56.61	0	1124290..1128246	+	1318	59801543	-	NGO1183	-	phosphoribosylformylglycinamidine synthase
1071	 51.56	0	1128345..1129463	-	372	59801544	-	NGO1184	-	hypothetical protein
1072	 50.00	0	1129602..1129913	-	103	59801545	-	NGO1185	-	ArsR family transcriptional regulator
1073	 41.03	-1	1129938..1130132	-	64	59801546	-	NGO1186	-	hypothetical protein
1074	 60.29	+1	1130145..1130897	+	250	59801547	-	NGO1187	-	hypothetical protein
1075	 57.87	0	1131131..1132585	+	484	59801548	-	NGO1188	-	MgtE
1076	 58.42	0	1132671..1133579	-	302	59801549	hslO	NGO1189	-	Hsp33-like chaperonin
1077	 61.30	+1	1133860..1134492	+	210	59801550	-	NGO1190	-	GNA2001
1078	 52.51	0	1134511..1134729	+	72	59801551	-	NGO1191	-	hypothetical protein
1079	 58.26	0	1134874..1135218	+	114	59801552	-	NGO1192	-	hypothetical protein
1080	 59.31	+1	1135218..1135910	+	230	59801553	-	NGO1193	-	hypothetical protein
1081	 61.18	+1	1135977..1137197	+	406	59801554	argJ	NGO1194	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1082	 61.42	+1	1137257..1138666	+	469	59801555	-	NGO1195	-	hypothetical protein
1083	 56.47	0	1138854..1140245	+	463	59801556	-	NGO1196	-	putative ATP-dependent DNA helicase related protein
1084	 29.88	-2	1140196..1141815	+	539	59801557	-	NGO1197	-	hypothetical protein
1085	 49.46	0	1142045..1143619	+	524	59801558	-	NGO1198	-	hypothetical protein
1086	 56.58	0	1143685..1146915	+	1076	59801559	-	NGO1199	-	HrpA
1087	 46.63	0	1147035..1147997	-	320	59801560	-	NGO1200	-	Irg4
1088	 36.04	-2	1148343..1148453	-	36	59801561	-	NGO1201	-	hypothetical protein
1089	 53.45	0	1149327..1150355	-	342	59801562	-	NGO1203	-	anthranilate phosphoribosyltransferase
1090	 51.95	0	1150419..1151009	-	196	59801563	-	NGO1204	-	anthranilate synthase component II
1091	 55.73	0	1151402..1153696	+	764	59801564	-	NGO1205	-	putative TonB-dependent receptor protein
1092	 52.82	0	1154088..1154867	-	259	59801565	-	NGO1206	-	phosphatidylserine decarboxylase
1093	 56.98	0	1155021..1157870	+	949	59801566	uvrA	NGO1207	-	excinuclease ABC subunit A
1094	 43.30	-1	1157888..1158529	+	213	59801567	-	NGO1208	-	NgoMIIIM
1095	 41.71	-1	1158533..1159666	+	377	59801568	-	NGO1209	-	DNA cytosine methyltransferase M.NgoMIII
1096	 48.84	0	1159776..1160162	+	128	59801569	-	NGO1210	-	hypothetical protein
1097	 55.05	0	1160159..1160812	-	217	59801570	-	NGO1211	-	IS1016 transposase
1098	 55.66	0	1160954..1162588	-	544	59801571	-	NGO1212	-	CTP synthetase
1099	 52.90	0	1162700..1164370	-	556	59801572	-	NGO1213	-	putative long-chain-fatty-acid--CoA-ligase
1100	 52.95	0	1164441..1165592	-	383	59801573	trmU	NGO1214	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1101	 54.22	0	1165669..1166142	-	157	59801574	-	NGO1215	-	hypothetical protein
1102	 56.51	0	1166274..1166657	-	127	59801575	-	NGO1216	-	diacylglycerol kinase
52.66	MEAN

6.57	STD DEV
