IslandPath Analysis: Neisseria gonorrhoeae FA 1090

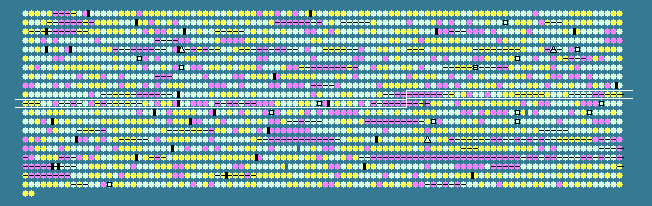

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
965	 45.42	-1	1027291..1028697	+	468	59801438	-	NGO1068	-	MafB2
966	 27.06	-2	1028713..1029015	+	100	59801439	-	NGO1069	-	hypothetical protein
967	 25.47	-2	1029707..1030024	+	105	59801440	-	NGO1070	-	hypothetical protein
968	 37.54	-2	1030403..1030687	+	94	59801441	-	NGO1072	-	hypothetical protein
969	 24.69	-2	1030690..1031013	+	107	59801442	-	NGO1073	-	hypothetical protein
970	 41.09	-1	1031165..1031512	+	115	59801443	-	NGO1074	-	MafI protein 2
971	 55.46	0	1035986..1036333	-	115	59801444	-	NGO1077	-	hypothetical protein
972	 57.05	0	1036789..1037235	+	148	59801445	-	NGO1078	-	putative acyl-CoA hydrolase
973	 53.41	0	1037286..1038107	-	273	59801446	-	NGO1079	-	putative oxidoreductase
974	 56.86	0	1038226..1038684	+	152	59801447	-	NGO1080	-	putative C-type cytochrome
975	 47.67	0	1038827..1039963	-	378	59801448	-	NGO1081	-	alpha-2,3-sialyltransferase
976	 55.30	0	1040336..1042561	+	741	59801449	-	NGO1082	-	putative isocitrate dehydrogenase
977	 49.53	0	1042858..1043178	+	106	59801450	-	NGO1083	-	hypothetical protein
978	 32.74	-2	1044120..1044287	+	55	59801451	-	NGO1084	-	hypothetical protein
979	 55.32	0	1044447..1045292	+	281	59801452	-	NGO1085	-	putative phage associated protein
980	 52.24	0	1045279..1045479	-	66	59801453	-	NGO1086	-	putative phage associated protein
981	 60.50	+1	1045494..1046174	+	226	59801454	-	NGO1087	-	putative phage associated protein
982	 58.85	0	1046153..1046638	-	161	59801455	-	NGO1088	-	putative phage associated protein
983	 56.96	0	1046644..1047117	-	157	59801456	-	NGO1089	-	putative phage associated protein
984	 59.34	+1	1047173..1048468	-	431	59801457	-	NGO1090	-	putative phage associated protein
985	 59.65	+1	1048489..1048887	-	132	59801458	-	NGO1091	-	putative phage associated protein
986	 61.71	+1	1049094..1055027	-	1977	59801459	-	NGO1092	-	putative phage associated protein
987	 65.33	+1	1055027..1056445	-	472	59801460	-	NGO1093	-	putative phage associated protein
988	 61.82	+1	1056442..1057638	-	398	59801461	-	NGO1094	-	putative phage associated protein
989	 52.32	0	1057849..1058322	-	157	59801462	-	NGO1095	-	putative phage associated protein
990	 49.54	0	1058422..1058637	-	71	59801463	-	NGO1096	-	putative phage associated protein
991	 59.96	+1	1058674..1060926	-	750	59801464	-	NGO1097	-	putative phage associated protein
992	 54.90	0	1060926..1062200	-	424	59801465	-	NGO1098	-	putative phage associated protein
993	 53.09	0	1062181..1062423	-	80	59801466	-	NGO1099	-	putative phage associated protein
994	 54.73	0	1062478..1062720	-	80	59801467	-	NGO1100	-	putative phage associated protein
995	 52.06	0	1062720..1063034	-	104	59801468	-	NGO1101	-	putative phage associated protein
996	 33.53	-2	1063207..1063725	-	172	59801469	-	NGO1102	-	putative phage associated protein
997	 41.15	-1	1063716..1064099	-	127	59801470	-	NGO1103	-	putative phage associated protein
998	 62.42	+1	1064096..1064401	-	101	59801471	-	NGO1104	-	putative phage associated protein
999	 63.61	+1	1064373..1064993	+	206	59801472	-	NGO1105	-	putative phage associated protein
1000	 60.67	+1	1065119..1065268	-	49	59801473	-	NGO1106	-	putative phage associated protein
1001	 57.45	0	1065246..1065614	+	122	59801474	-	NGO1107	-	putative phage associated protein
1002	 59.39	+1	1065652..1066146	-	164	59801475	-	NGO1108	-	putative phage associated protein
1003	 58.95	0	1066185..1066469	-	94	59801476	-	NGO1109	-	putative phage associated protein
1004	 54.48	0	1066486..1067847	-	453	59801477	-	NGO1110	-	putative replicative DNA helicase, putative phage associated protein
1005	 52.08	0	1067844..1068974	-	376	59801478	-	NGO1111	-	putative phage associated protein
1006	 46.05	-1	1069092..1069319	-	75	59801479	-	NGO1112	-	putative phage associated protein
1007	 49.21	0	1069492..1069680	+	62	59801480	-	NGO1113	-	putative phage associated protein
1008	 49.36	0	1069657..1069812	-	51	59801481	-	NGO1114	-	putative phage associated protein
1009	 38.10	-2	1069893..1070081	-	62	59801482	-	NGO1115	-	putative phage associated protein
1010	 55.71	0	1070260..1070907	+	215	59801483	-	NGO1116	-	putative phage repressor protein, putative phage associated protein
1011	 52.04	0	1071067..1071606	+	179	59801484	-	NGO1117	-	putative phage associated protein
1012	 48.61	0	1071607..1071966	+	119	59801485	-	NGO1118	-	putative phage associated protein
1013	 58.45	0	1071983..1072201	-	72	59801486	-	NGO1119	-	putative phage associated protein
1014	 42.79	-1	1072684..1072884	+	66	59801487	-	NGO1120	-	putative phage associated protein
1015	 50.94	0	1072917..1073393	+	158	59801488	-	NGO1121	-	putative phage associated protein
1016	 65.22	+1	1073390..1073665	+	91	59801489	-	NGO1122	-	putative phage associated protein
1017	 55.86	0	1073806..1074138	+	110	59801490	-	NGO1123	-	putative phage associated protein
1018	 59.77	+1	1074307..1074567	+	86	59801491	-	NGO1124	-	putative phage associated protein
1019	 51.85	0	1074564..1074725	+	53	59801492	-	NGO1125	-	putative phage associated protein
1020	 55.60	0	1074794..1075480	+	228	59801493	-	NGO1126	-	putative phage associated protein
1021	 56.28	0	1075620..1075802	+	60	59801494	-	NGO1127	-	putative phage associated protein
1022	 52.44	0	1075799..1076290	+	163	59801495	-	NGO1128	-	putative phage associated protein
1023	 32.87	-2	1076342..1076557	+	71	59801496	-	NGO1129	-	putative phage associated protein
1024	 57.62	0	1076668..1077651	+	327	59801497	-	NGO1130	-	putative phage associated protein
1025	 60.39	+1	1077648..1078061	+	137	59801498	-	NGO1131	-	putative phage associated protein
1026	 46.67	0	1078087..1078281	+	64	59801499	-	NGO1132	-	putative phage associated protein
1027	 54.22	0	1078572..1079246	+	224	59801500	-	NGO1133	-	hypothetical protein
1028	 54.21	0	1079239..1079832	+	197	59801501	-	NGO1134	-	putative GTP cyclohydrolase II
1029	 45.51	-1	1079913..1080224	-	103	59801502	-	NGO1135	-	hypothetical protein
1030	 44.76	-1	1079991..1080200	+	69	59801503	-	NGO1136	-	hypothetical protein
1031	 46.42	0	1080185..1081147	+	320	59801504	-	NGO1137	-	Irg2
1032	 49.45	0	1082262..1083347	-	361	59801505	-	NGO1138	-	putative phage associated protein
1033	 46.46	0	1083352..1083648	-	98	59801506	-	NGO1139	-	putative phage associated protein
1034	 50.20	0	1083649..1085172	-	507	59801507	-	NGO1140	-	TspB1
1035	 34.53	-2	1085156..1085488	-	110	59801508	-	NGO1141	-	putative phage associated protein
1036	 47.31	0	1085601..1085879	-	92	59801509	-	NGO1142	-	putative phage associated protein
1037	 51.14	0	1085886..1086104	-	72	59801510	-	NGO1143	-	putative phage associated protein
1038	 38.73	-2	1086190..1086393	-	67	59801511	-	NGO1144	-	putative phage associated protein
1039	 44.55	-1	1086407..1086718	-	103	59801512	-	NGO1145	-	putative phage associated protein
1040	 45.44	-1	1086789..1088060	-	423	59801513	-	NGO1146	-	putative phage associated protein
1041	 37.78	-2	1088047..1088271	-	74	59801514	-	NGO1147	-	hypothetical protein
1042	 42.03	-1	1088667..1088873	-	68	59801515	-	NGO1148	-	hypothetical protein
1043	 57.80	0	1088968..1090128	-	386	59801516	-	NGO1149	-	putative O-succinylhomoserine sulfhydrolase
1044	 54.35	0	1090274..1091044	-	256	59801517	-	NGO1150	-	hypothetical protein
1045	 52.38	0	1091146..1091397	+	83	59801518	-	NGO1151	-	hypothetical protein
1046	 52.79	0	1091449..1092255	+	268	59801519	-	NGO1152	-	ABC transporter, periplasmic histidine-binding protein precursor
1047	 58.88	0	1094183..1095595	+	470	59801520	trkA	NGO1154	-	potassium transporter peripheral membrane component
1048	 58.61	0	1096079..1096537	-	152	59801521	-	NGO1155	-	hypothetical protein
1049	 52.87	0	1096627..1097481	-	284	59801522	-	NGO1156	-	hypothetical protein
1050	 55.66	0	1097814..1098467	+	217	59801523	-	NGO1157	-	IS1016 transposase
1051	 47.04	0	1098435..1099703	-	422	59801524	-	NGO1158	-	hypothetical protein
1052	 54.25	0	1100191..1100343	-	50	59801525	-	NGO1159	-	hypothetical protein
1053	 57.50	0	1100403..1101209	+	268	59801526	-	NGO1160	-	phosphomethylpyrimidine kinase
1054	 55.40	0	1101267..1102136	-	289	59801527	-	NGO1161	-	tellurite resistance protein TehB
1055	 57.99	0	1102249..1102686	+	145	59801528	-	NGO1162	-	ribonuclease H
1056	 50.94	0	1102723..1102881	+	52	59801529	-	NGO1163	-	hypothetical protein
1057	 46.52	0	1103017..1103979	-	320	59801530	-	NGO1164	-	Irg3
1058	 49.45	0	1104972..1106057	-	361	59801531	-	NGO1165	-	putative phage associated protein
1059	 46.46	0	1106062..1106358	-	98	59801532	-	NGO1166	-	putative phage associated protein
1060	 49.40	0	1106359..1107939	-	526	59801533	-	NGO1167	-	TspB2
1061	 49.12	0	1108606..1108890	-	94	59801534	-	NGO1168	-	putative phage associated protein
1062	 42.93	-1	1108898..1109095	-	65	59801535	-	NGO1169	-	putative phage associated protein
1063	 46.96	0	1109100..1109444	-	114	59801536	-	NGO1170	-	putative phage associated protein
1064	 38.06	-2	1110897..1111319	-	140	59801537	-	NGO1173	-	putative DNA mismatch endonuclease, patch repair protein
52.66	MEAN

6.57	STD DEV
