IslandPath Analysis: Mycobacterium tuberculosis F11

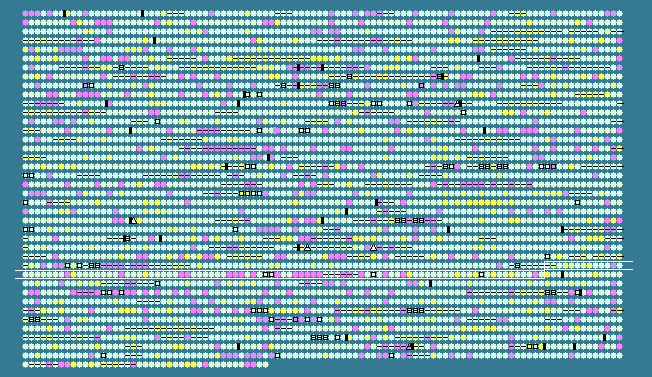

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.47 STD DEV: 3.40
Mycobacterium tuberculosis F11, complete genome - 1..4424435
3941 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2888	 63.77	0	3210648..3211511	-	287	148824079	rpsB	TBFG_12904	-	30S ribosomal protein S2
2889	 71.47	+1	3211795..3212544	+	249	148824080	-	TBFG_12905	-	hypothetical protein
2890	 67.89	0	3212323..3213549	-	408	148824081	-	TBFG_12906	-	PPE family protein
2891	 69.43	+1	3213949..3214926	+	325	148824082	-	TBFG_12907	-	oxidoreductase
2892	 70.79	+1	3214923..3215819	-	298	148824083	xerC	TBFG_12908	-	site-specific tyrosine recombinase XerC
2893	 67.61	0	3215910..3216761	-	283	148824084	-	TBFG_12909	-	mycobactin utilization protein viuB
2894	 71.71	+1	3216794..3217963	-	389	148824085	-	TBFG_12910	-	hypothetical protein
2895	 68.98	+1	3217960..3219471	-	503	148824086	-	TBFG_12911	-	hypothetical protein
2896	 67.84	0	3219471..3219896	-	141	148824087	-	TBFG_12912	-	hypothetical protein
2897	 64.98	0	3220105..3220935	-	276	148824088	-	TBFG_12913	-	formate dehydrogenase accessory protein
2898	 65.47	0	3220935..3223274	-	779	148824089	-	TBFG_12914	-	formate dehydrogenase H fdhF
2899	 56.21	-2	3223332..3223637	-	101	148824090	-	TBFG_12915	-	hypothetical protein
2900	 68.18	0	3223691..3224485	-	264	148824091	rnhB	TBFG_12916	-	ribonuclease HII
2901	 65.08	0	3224499..3225383	-	294	148824092	-	TBFG_12917	-	signal peptidase I lepB (leader peptidase I)
2902	 63.45	0	3225441..3225782	-	113	148824093	rplS	TBFG_12918	-	50S ribosomal protein L19
2903	 66.24	0	3226157..3227101	+	314	148824094	-	TBFG_12919	-	lipoprotein lppW
2904	 65.80	0	3227194..3227886	-	230	148824095	trmD	TBFG_12920	-	tRNA (guanine-N(1)-)-methyltransferase
2905	 62.90	0	3227890..3228420	-	176	148824096	rimM	TBFG_12921	-	16S rRNA-processing protein
2906	 63.37	0	3228434..3228676	-	80	148824097	-	TBFG_12922	-	hypothetical protein
2907	 65.44	0	3228684..3229172	-	162	148824098	rpsP	TBFG_12923	-	30S ribosomal protein S16
2908	 58.56	-2	3229356..3229799	-	147	148824099	-	TBFG_12924	-	hypothetical protein
2909	 69.06	+1	3229868..3230743	+	291	148824100	-	TBFG_12925	-	D-alanyl-D-alanine carboxypeptidase dacB2
2910	 64.46	0	3230803..3231390	-	195	148824101	-	TBFG_12926	-	TetR family transcriptional regulator
2911	 64.81	0	3231392..3233227	-	611	148824102	-	TBFG_12927	-	D-amino acid aminohydrolase
2912	 67.29	0	3233296..3235053	-	585	148824103	-	TBFG_12928	-	transmembrane serine/threonine-protein kinase I pknI
2913	 68.19	0	3235097..3236209	-	370	148824104	-	TBFG_12929	-	hypothetical protein
2914	 66.35	0	3236237..3237814	-	525	148824105	-	TBFG_12930	-	signal recognition particle protein ffh
2915	 67.46	0	3237892..3239772	+	626	148824106	-	TBFG_12931	-	hypothetical protein
2916	 66.67	0	3239783..3242209	-	808	148824107	-	TBFG_12932	-	PII uridylyl-transferase
2917	 60.77	-1	3242267..3242605	-	112	148824108	-	TBFG_12933	-	nitrogen regulatory protein P-II glnB
2918	 63.18	0	3242602..3244035	-	477	148824109	-	TBFG_12934	-	ammonium-transport integral membrane protein amt
2919	 68.48	0	3244344..3245612	-	422	148824110	-	TBFG_12935	-	cell division protein ftsY
2920	 67.22	0	3245662..3249279	-	1205	148824111	-	TBFG_12936	-	chromosome partitioning protein smc
2921	 70.57	+1	3249291..3249572	-	93	148824112	-	TBFG_12937	-	acylphosphate phosphohydrolase acyP
2922	 67.87	0	3249559..3249972	-	137	148824113	-	TBFG_12938	-	hypothetical protein
2923	 67.13	0	3250074..3250943	-	289	148824114	-	TBFG_12939	-	formamidopyrimidine-DNA glycosylase
2924	 64.18	0	3251302..3252024	-	240	148824115	rnc	TBFG_12940	-	ribonuclease III
2925	 65.54	0	3252021..3252644	-	207	148824116	-	TBFG_12941	-	hypothetical protein
2926	 63.82	0	3252695..3253432	-	245	148824117	-	TBFG_12942	-	hypothetical protein
2927	 54.45	-2	3253671..3254456	+	261	148824118	-	TBFG_12943	-	thioesterase tesA
2928	 60.71	-1	3255041..3256921	+	626	148824119	-	TBFG_12944	-	acyl-CoA synthetase
2929	 65.39	0	3256918..3262548	+	1876	148824120	-	TBFG_12945	-	phenolpthiocerol synthesis type-I polyketide synthase ppsA
2930	 65.37	0	3262548..3267161	+	1537	148824121	-	TBFG_12946	-	phenolpthiocerol synthesis type-I polyketide synthase ppsB
2931	 66.18	0	3267158..3273724	+	2188	148824122	-	TBFG_12947	-	phenolpthiocerol synthesis type-I polyketide synthase ppsC
2932	 66.92	0	3273721..3279204	+	1827	148824123	-	TBFG_12948	-	phenolpthiocerol synthesis type-I polyketide synthase ppsD
2933	 65.68	0	3279210..3283676	+	1488	148824124	-	TBFG_12949	-	phenolpthiocerol synthesis type-I polyketide synthase ppsE
2934	 62.75	0	3283687..3284682	+	331	148824125	-	TBFG_12950	-	daunorubicin-dim-transport ATP-binding protein ABC transporter drrA
2935	 59.43	-1	3284679..3285548	+	289	148824126	-	TBFG_12951	-	daunorubicin-dim-transport integral membrane protein ABC transporter drrB
2936	 57.52	-2	3285545..3286375	+	276	148824127	-	TBFG_12952	-	daunorubicin-dim-transport integral membrane protein ABC transporter drrC
2937	 60.44	-1	3286422..3287690	+	422	148824128	-	TBFG_12953	-	acyltransferase PapA5
2938	 66.49	0	3287853..3294188	-	2111	148824129	-	TBFG_12954	-	multi-functional membrane-associated mycocerosic acid synthase mas
2939	 59.44	-1	3294808..3296550	+	580	148824130	-	TBFG_12955	-	acyl-CoA synthetase
2940	 66.02	0	3296543..3299305	+	920	148824131	-	TBFG_12956	-	transmembrane transport protein mmpL7
2941	 67.31	0	3299937..3301178	+	413	148824132	-	TBFG_12957	-	transposase
2942	 65.27	0	3301263..3301979	+	238	148824133	-	TBFG_12958	-	transposase
2943	 59.97	-1	3302097..3302798	-	233	148824134	-	TBFG_12959	-	lipoprotein lppX
2944	 68.38	0	3302976..3307826	-	1616	148824135	-	TBFG_12960	-	polyketide synthase pks1
2945	 65.86	0	3307823..3309313	-	496	148824136	-	TBFG_12961	-	polyketide synthase pks15
2946	 61.47	-1	3309310..3311427	-	705	148824137	-	TBFG_12962	-	acyl-CoA synthetase
2947	 52.50	-2	3311444..3312043	-	199	148824138	-	TBFG_12963	-	hypothetical protein
2948	 60.00	-1	3312069..3313928	-	619	148824139	-	TBFG_12964	-	acyl-CoA synthetase
2949	 61.26	-1	3314576..3315721	-	381	148824140	-	TBFG_12965	-	oxidoreductase
2950	 61.99	-1	3315914..3316726	+	270	148824141	-	TBFG_12966	-	methyltransferase
2951	 64.84	0	3316752..3318008	+	418	148824142	-	TBFG_12967	-	hypothetical protein
2952	 62.81	0	3318139..3318864	-	241	148824143	-	TBFG_12968	-	hypothetical protein
2953	 67.70	0	3319053..3320018	-	321	148824144	-	TBFG_12969	-	hypothetical protein
2954	 53.69	-2	3320141..3320872	+	243	148824145	-	TBFG_12970	-	hypothetical protein
2955	 60.02	-1	3320943..3321770	+	275	148824146	-	TBFG_12971	-	glycosyl transferase
2956	 64.88	0	3322187..3323473	-	428	148824147	-	TBFG_12972	-	glycosyl transferase
2957	 53.66	-2	3323574..3324311	-	245	148824148	-	TBFG_12973	-	methyltransferase
2958	 64.66	0	3324426..3324674	-	82	148824149	-	TBFG_12974	-	hypothetical protein
2959	 65.64	0	3324756..3325145	+	129	148824150	-	TBFG_12975	-	transposase
2960	 65.70	0	3325246..3326595	-	449	148824151	-	TBFG_12976	-	glycosyl transferase
2961	 61.51	-1	3326709..3327929	+	406	148824152	-	TBFG_12977	-	hypothetical protein
2962	 62.27	0	3328002..3328934	+	310	148824153	-	TBFG_12978	-	formyltetrahydrofolate deformylase
2963	 65.32	0	3328940..3329458	+	172	148824154	-	TBFG_12979	-	hypothetical protein
2964	 61.11	-1	3329803..3330288	-	161	148824155	coaD	TBFG_12980	-	phosphopantetheine adenylyltransferase
2965	 69.84	+1	3330374..3330940	-	188	148824156	-	TBFG_12981	-	methyltransferase
2966	 65.28	0	3331136..3334519	-	1127	148824157	-	TBFG_12982	-	pyruvate carboxylase
2967	 62.72	0	3334544..3335176	-	210	148824158	-	TBFG_12983	-	integral membrane protein
2968	 63.28	0	3335182..3335949	-	255	148824159	-	TBFG_12984	-	membrane or secreted protein
2969	 65.34	0	3336046..3337176	-	376	148824160	-	TBFG_12985	-	lipase/esterase lipN
2970	 63.72	0	3337574..3338422	+	282	148824161	-	TBFG_12986	-	oxidoreductase
2971	 65.41	0	3338496..3339209	-	237	148824162	-	TBFG_12987	-	membrane or exported protein
2972	 64.59	0	3339206..3341419	-	737	148824163	-	TBFG_12988	-	ATP-dependent DNA helicase recG
2973	 70.70	+1	3341422..3342834	-	470	148824164	-	TBFG_12989	-	hypothetical protein
2974	 65.13	0	3343327..3343521	+	64	148824165	rpmB	TBFG_12990	-	50S ribosomal protein L28
2975	 67.11	0	3343544..3344227	-	227	148824166	-	TBFG_12991	-	uracil-DNA glycosylase
2976	 69.56	+1	3344260..3345261	-	333	148824167	-	TBFG_12992	-	thiamine monophosphate kinase
2977	 65.87	0	3345258..3346637	-	459	148824168	-	TBFG_12993	-	transposase
2978	 65.30	0	3346637..3347221	-	194	148824169	-	TBFG_12994	-	resolvase
2979	 70.70	+1	3347433..3347978	+	181	148824170	-	TBFG_12995	-	hypothetical protein
2980	 67.56	0	3348505..3349626	-	373	148824171	ddl	TBFG_12996	-	D-alanyl-alanine synthetase A
2981	 67.36	0	3349704..3350708	-	334	148824172	gpsA	TBFG_12997	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2982	 69.61	+1	3350827..3351471	+	214	148824173	-	TBFG_12998	-	hypothetical protein
2983	 63.43	0	3351566..3353791	+	741	148824174	-	TBFG_12999	-	polyphosphate kinase
2984	 65.41	0	3353874..3354827	+	317	148824175	-	TBFG_13000	-	hydrolase mutT1
2985	 64.65	0	3354885..3355529	-	214	148824176	-	TBFG_13001	-	DNA-binding protein hupB (histone-like protein)
2986	 59.97	-1	3355742..3356338	-	198	148824177	leuD	TBFG_13002	-	isopropylmalate isomerase small subunit
2987	 66.60	0	3356363..3357784	-	473	148824178	-	TBFG_13003	-	isopropylmalate isomerase large subunit
65.47	MEAN

3.40	STD DEV
