IslandPath Analysis: Mycobacterium tuberculosis F11

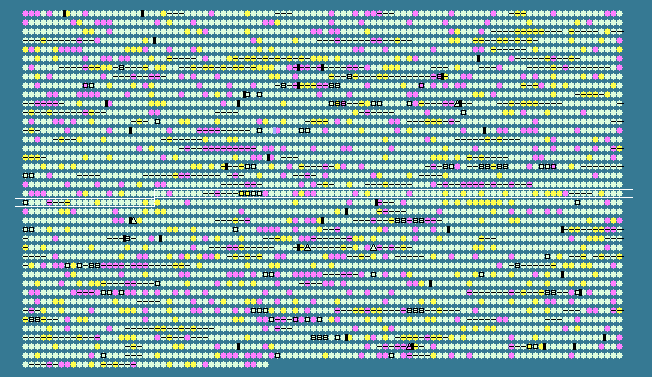

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.47 STD DEV: 3.40
Mycobacterium tuberculosis F11, complete genome - 1..4424435
3941 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2023	 68.71	0	2252070..2253392	-	440	148823214	-	TBFG_12031	-	integral membrane protein
2024	 62.33	0	2253463..2255076	+	537	148823215	-	TBFG_12032	-	hypothetical protein
2025	 61.22	-1	2255086..2255838	+	250	148823216	-	TBFG_12033	-	hypothetical protein
2026	 63.35	0	2255914..2256696	+	260	148823217	-	TBFG_12034	-	20-beta-hydroxysteroid dehydrogenase fabG3
2027	 67.83	0	2256817..2257674	-	285	148823218	-	TBFG_12035	-	hypothetical protein
2028	 64.73	0	2257732..2259228	-	498	148823219	-	TBFG_12036	-	hypothetical protein
2029	 64.19	0	2259250..2260137	-	295	148823220	-	TBFG_12037	-	hypothetical protein
2030	 63.78	0	2260256..2264239	+	1327	148823221	-	TBFG_12038	-	trehalose-6-phosphate phosphatase otsB1
2031	 62.90	0	2264338..2264682	-	114	148823222	-	TBFG_12039	-	ferredoxin fdxA
2032	 62.97	0	2264871..2266196	-	441	148823223	-	TBFG_12040	-	hypothetical protein
2033	 61.32	-1	2266284..2266526	+	80	148823224	-	TBFG_12041	-	hypothetical protein
2034	 64.91	0	2266527..2266925	+	132	148823225	-	TBFG_12042	-	hypothetical protein
2035	 64.81	0	2267108..2267539	-	143	148823226	-	TBFG_12043	-	hypothetical protein
2036	 62.02	-1	2267580..2268074	+	164	148823227	-	TBFG_12044	-	hypothetical protein
2037	 71.01	+1	2268778..2269398	+	206	148823228	-	TBFG_12045	-	transposase
2038	 70.39	+1	2269352..2269942	+	196	148823229	-	TBFG_12046	-	transposase
2039	 63.84	0	2270484..2271368	-	294	148823230	-	TBFG_12048	-	transposase
2040	 65.75	0	2271419..2271745	-	108	148823231	-	TBFG_12049	-	transposase
2041	 60.78	-1	2273002..2273613	+	203	148823232	-	TBFG_12051	-	hypothetical protein
2042	 63.78	0	2273610..2274650	+	346	148823233	-	TBFG_12052	-	transcriptional regulator
2043	 64.86	0	2274892..2275611	+	239	148823234	-	TBFG_12053	-	hypothetical protein
2044	 62.11	0	2275667..2276017	+	116	148823235	-	TBFG_12054	-	hypothetical protein
2045	 63.40	0	2276417..2276722	-	101	148823236	-	TBFG_12056	-	transcriptional regulator
2046	 61.88	-1	2276731..2277336	-	201	148823237	-	TBFG_12057	-	hypothetical protein
2047	 70.00	+1	2277361..2277720	-	119	148823238	-	TBFG_12058	-	hypothetical protein
2048	 48.23	-2	2277880..2278557	-	225	148823239	-	TBFG_12059	-	hypothetical protein
2049	 59.09	-1	2278952..2279848	-	298	148823240	-	TBFG_12060	-	hypothetical protein
2050	 66.17	0	2285362..2286360	-	332	148823241	-	TBFG_12062	-	hypothetical protein
2051	 63.05	0	2286475..2287359	-	294	148823242	-	TBFG_12063	-	hypothetical protein
2052	 65.39	0	2287399..2289120	-	573	148823243	-	TBFG_12064	-	histidine kinase response regulator
2053	 67.86	0	2289181..2290020	-	279	148823244	-	TBFG_12065	-	hypothetical protein
2054	 64.80	0	2290017..2291036	-	339	148823245	-	TBFG_12066	-	phosphofructokinase pfkB
2055	 66.86	0	2291053..2293098	-	681	148823246	-	TBFG_12067	-	hypothetical protein
2056	 61.61	-1	2293110..2293544	-	144	148823247	-	TBFG_12068	-	heat shock protein hspX
2057	 63.76	0	2293741..2294736	+	331	148823248	-	TBFG_12069	-	hypothetical protein
2058	 69.99	+1	2294852..2295694	-	280	148823249	-	TBFG_12070	-	hypothetical protein
2059	 66.03	0	2295759..2296229	+	156	148823250	-	TBFG_12071	-	ArsR-type repressor protein
2060	 62.99	0	2296226..2296714	+	162	148823251	-	TBFG_12072	-	hypothetical protein
2061	 64.33	0	2296711..2297352	+	213	148823252	-	TBFG_12073	-	hypothetical protein
2062	 64.82	0	2297359..2298333	-	324	148823253	-	TBFG_12074	-	transmembrane protein
2063	 62.85	0	2298335..2299408	-	357	148823254	-	TBFG_12075	-	sugar ABC transporter ATP-binding protein
2064	 62.04	-1	2299411..2300253	-	280	148823255	-	TBFG_12076	-	sugar ABC transporter membrane protein
2065	 59.36	-1	2300240..2301142	-	300	148823256	-	TBFG_12077	-	sugar ABC transporter membrane protein
2066	 63.64	0	2301139..2302458	-	439	148823257	-	TBFG_12078	-	sugar-binding lipoprotein
2067	 65.79	0	2302496..2303293	-	265	148823258	-	TBFG_12079	-	hypothetical protein
2068	 64.71	0	2303293..2303853	-	186	148823259	-	TBFG_12080	-	pyrazinamidase/nicotinamidase pncA
2069	 62.39	0	2303894..2304244	-	116	148823260	-	TBFG_12081	-	hypothetical protein
2070	 65.49	0	2304297..2305832	-	511	148823261	-	TBFG_12082	-	carboxylesterase lipT
2071	 70.32	+1	2305881..2306537	+	218	148823262	-	TBFG_12083	-	lipoprotein lppI
2072	 67.37	0	2306574..2309138	-	854	148823263	-	TBFG_12084	-	hypothetical protein
2073	 67.50	0	2309143..2321598	-	4151	148823264	-	TBFG_12085	-	hypothetical protein
2074	 70.80	+1	2321905..2322267	-	120	148823265	-	TBFG_12086	-	hypothetical protein
2075	 65.18	0	2322433..2322768	+	111	148823266	-	TBFG_12087	-	hypothetical protein
2076	 67.01	0	2322743..2325367	-	874	148823267	-	TBFG_12088	-	polyprenol-monophosphomannose synthase ppm1
2077	 71.21	+1	2325525..2327129	-	534	148823268	-	TBFG_12089	-	hypothetical protein
2078	 67.23	0	2327134..2327661	-	175	148823269	fxsA	TBFG_12090	-	FxsA
2079	 65.27	0	2327737..2328450	+	237	148823270	-	TBFG_12091	-	hypothetical protein
2080	 63.30	0	2328699..2328965	-	88	148823271	-	TBFG_12092	-	30S ribosomal protein S18
2081	 69.28	+1	2328966..2329271	-	101	148823272	rpsN	TBFG_12093	-	30S ribosomal protein S14
2082	 63.03	0	2329273..2329437	-	54	148823273	rpmG	TBFG_12094	-	50S ribosomal protein L33
2083	 64.14	0	2329437..2329673	-	78	148823274	rpmB	TBFG_12095	-	50S ribosomal protein L28
2084	 67.32	0	2329786..2331321	+	511	148823275	-	TBFG_12096	-	hypothetical protein
2085	 64.69	0	2331293..2331697	-	134	148823276	-	TBFG_12097	-	hypothetical protein
2086	 69.18	+1	2331781..2335365	-	1194	148823277	cobN	TBFG_12098	-	cobaltochelatase
2087	 67.09	0	2335443..2335676	+	77	148823278	-	TBFG_12099	-	hypothetical protein
2088	 72.89	+2	2336063..2337154	+	363	148823279	-	TBFG_12100	-	cobalamin biosynthesis protein cobG
2089	 72.25	+1	2337164..2337790	+	208	148823280	cobH	TBFG_12101	-	precorrin-8X methylmutase
2090	 70.73	+1	2337787..2339313	+	508	148823281	-	TBFG_12102	-	bifunctional protein, cobI-cobJ fusion protein: S-adenosyl-L-methionine-precorrin-2 methyl transferase + precorrin-3 methylase
2091	 59.48	-1	2339259..2340482	-	407	148823282	-	TBFG_12103	-	hypothetical protein
2092	 66.02	0	2340498..2341421	-	307	148823284	-	TBFG_12104	-	class A beta-lactamase blaC
2093	 67.41	0	2341178..2342113	+	311	148823283	-	TBFG_12105	-	RNA polymerase sigma factor SigC
2094	 66.67	0	2342103..2342837	-	244	148823285	-	TBFG_12106	-	cobalt-precorrin-6x reductase
2095	 67.33	0	2342834..2343589	-	251	148823286	-	TBFG_12107	-	precorrin-4 C11-methyltransferase cobM
2096	 68.29	0	2343586..2344758	-	390	148823287	-	TBFG_12108	-	precorrin-6y methyltransferase cobL
2097	 70.93	+1	2344826..2345575	-	249	148823288	-	TBFG_12109	-	short-chain type dehydrogenase
2098	 66.91	0	2345605..2346018	+	137	148823289	-	TBFG_12110	-	hypothetical protein
2099	 68.31	0	2346028..2347491	-	487	148823290	-	TBFG_12111	-	hypothetical protein
2100	 64.92	0	2347935..2348906	-	323	148823291	-	TBFG_12112	-	transmembrane protein
2101	 65.75	0	2349340..2349666	+	108	148823292	-	TBFG_12113	-	transposase
2102	 63.84	0	2349717..2350601	+	294	148823293	-	TBFG_12114	-	hypothetical protein
2103	 62.16	0	2350822..2351265	-	147	148823294	-	TBFG_12115	-	hypothetical protein
2104	 64.38	0	2351325..2353295	+	656	148823295	-	TBFG_12116	-	hypothetical protein
2105	 61.35	-1	2353276..2353839	+	187	148823296	-	TBFG_12117	-	lipoprotein lppJ
2106	 65.56	0	2354035..2354484	-	149	148823297	-	TBFG_12118	-	hypothetical protein
2107	 67.17	0	2354680..2356845	+	721	148823298	-	TBFG_12119	-	hypothetical protein
2108	 70.79	+1	2356842..2357786	+	314	148823299	-	TBFG_12120	-	hypothetical protein
2109	 65.70	0	2357779..2358915	+	378	148823300	-	TBFG_12121	-	hypothetical protein
2110	 66.01	0	2359282..2359887	+	201	148823301	-	TBFG_12122	-	hypothetical protein
2111	 64.97	0	2360382..2362151	+	589	148823302	-	TBFG_12123	-	transmembrane serine/threonine-protein kinase J pknJ
2112	 66.31	0	2362168..2363295	-	375	148823303	-	TBFG_12124	-	dipeptidase pepE
2113	 69.37	+1	2363344..2364525	+	393	148823304	-	TBFG_12125	-	5'-3' exonuclease
2114	 66.26	0	2364529..2365263	-	244	148823305	-	TBFG_12126	-	hypothetical protein
2115	 67.07	0	2365305..2368025	-	906	148823306	-	TBFG_12127	-	ATP-dependent DNA helicase helY
2116	 63.11	0	2368142..2369068	-	308	148823307	-	TBFG_12128	-	sec-independent protein translocase transmembrane protein tatC
2117	 62.36	0	2369085..2369432	-	115	148823308	tatA	TBFG_12129	-	twin argininte translocase protein A
2118	 68.56	0	2369404..2370354	-	316	148823309	-	TBFG_12130	-	hypothetical protein
2119	 67.27	0	2370351..2371349	-	332	148823310	-	TBFG_12131	-	hypothetical protein
2120	 63.65	0	2371358..2372716	-	452	148823311	-	TBFG_12132	-	hypothetical protein
2121	 77.52	+2	2372768..2373937	-	389	148823312	-	TBFG_12133	-	PE-PGRS family protein
2122	 68.72	0	2374425..2376077	+	550	148823313	-	TBFG_12134	-	hypothetical protein
65.47	MEAN

3.40	STD DEV
