IslandPathversion 1.0

IslandPath Analysis: Mycobacterium tuberculosis F11

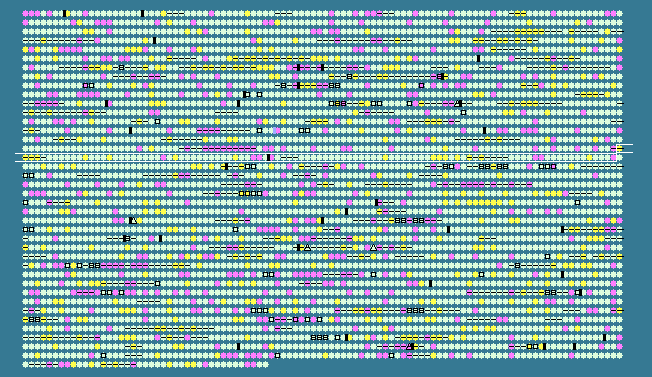

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.47 STD DEV: 3.40
Mycobacterium tuberculosis F11, complete genome - 1..4424435
3941 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1600	 69.63	+1	1780030..1781343	+	437	148822790	-	TBFG_11600	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1601	 72.44	+2	1781340..1782500	+	386	148822792	-	TBFG_11601	-	8-amino-7-oxononanoate synthase
1602	 72.69	+2	1782497..1783177	+	226	148822793	bioD	TBFG_11602	-	dithiobiotin synthetase
1603	 71.76	+1	1783177..1783686	+	169	148822794	-	TBFG_11603	-	hypothetical protein
1604	 67.50	0	1783832..1784554	-	240	148822795	-	TBFG_11604	-	REP13E12 repeat-containing protein
1605	 65.92	0	1784559..1785227	-	222	148822796	-	TBFG_11605	-	REP13E12 repeat-containing protein
1606	 67.43	0	1785675..1786724	+	349	148822797	-	TBFG_11606	-	biotin synthase
1607	 66.97	0	1786961..1787626	+	221	148822798	-	TBFG_11607	-	hypothetical protein
1608	 64.88	0	1787791..1789131	-	446	148822799	-	TBFG_11608	-	hypothetical protein
1609	 64.98	0	1789388..1790098	-	236	148822800	-	TBFG_11609	-	hypothetical protein
1610	 65.81	0	1790147..1791196	+	349	148822801	-	TBFG_11610	-	quinolinate synthetase
1611	 70.33	+1	1791196..1792779	+	527	148822802	-	TBFG_11611	-	L-aspartate oxidase
1612	 66.08	0	1792779..1793636	+	285	148822803	-	TBFG_11612	-	nicotinate-nucleotide pyrophosphorylase
1613	 65.35	0	1793685..1794443	+	252	148822804	-	TBFG_11613	-	hypothetical protein
1614	 64.72	0	1794464..1794874	-	136	148822805	-	TBFG_11614	-	hypothetical protein
1615	 69.81	+1	1794956..1796290	+	444	148822806	hisD	TBFG_11615	-	histidinol dehydrogenase
1616	 62.99	0	1796287..1797429	+	380	148822807	-	TBFG_11616	-	histidinol-phosphate aminotransferase
1617	 63.82	0	1797426..1798058	+	210	148822808	hisB	TBFG_11617	-	imidazoleglycerol-phosphate dehydratase
1618	 64.25	0	1798055..1798675	+	206	148822809	hisH	TBFG_11618	-	imidazole glycerol phosphate synthase subunit HisH
1619	 66.67	0	1798688..1799422	+	244	148822810	-	TBFG_11619	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1620	 64.94	0	1799430..1800242	+	270	148822811	-	TBFG_11620	-	inositol-monophosphatase impA
1621	 68.28	0	1800244..1801047	+	267	148822812	-	TBFG_11621	-	imidazole glycerol phosphate synthase subunit HisF
1622	 62.07	-1	1801044..1801391	+	115	148822813	hisI	TBFG_11622	-	phosphoribosyl-AMP cyclohydrolase
1623	 66.48	0	1801572..1802654	+	360	148822814	-	TBFG_11623	-	ionic transporter integral membrane protein chaA
1624	 61.29	-1	1802689..1803153	-	154	148822815	-	TBFG_11624	-	peroxidoxin bcpB
1625	 65.38	0	1803294..1804844	+	516	148822816	-	TBFG_11625	-	anthranilate synthase component I
1626	 70.48	+1	1804834..1805541	+	235	148822817	-	TBFG_11626	-	hypothetical protein
1627	 66.43	0	1805601..1806449	+	282	148822818	trpC	TBFG_11627	-	indole-3-glycerol-phosphate synthase
1628	 62.77	0	1806518..1807750	+	410	148822819	-	TBFG_11628	-	tryptophan synthase subunit beta
1629	 65.81	0	1807750..1808562	+	270	148822820	trpA	TBFG_11629	-	tryptophan synthase subunit alpha
1630	 64.39	0	1808562..1809968	+	468	148822821	-	TBFG_11630	-	prolipoprotein diacylglyceryl transferase
1631	 63.72	0	1810644..1811084	+	146	148822822	-	TBFG_11631	-	hypothetical protein
1632	 63.41	0	1811074..1811472	+	132	148822823	-	TBFG_11632	-	hypothetical protein
1633	 66.31	0	1811580..1812998	+	472	148822824	-	TBFG_11633	-	pyruvate kinase
1634	 62.24	0	1813006..1813908	+	300	148822825	-	TBFG_11634	-	acyl-CoA thioesterase II tesB1
1635	 65.98	0	1813966..1815420	+	484	148822826	-	TBFG_11635	-	hypothetical protein
1636	 69.15	+1	1815354..1817084	-	576	148822827	-	TBFG_11636	-	transmembrane ATP-binding protein ABC transporter cydC
1637	 68.62	0	1817081..1818664	-	527	148822828	-	TBFG_11637	-	transmembrane ATP-binding protein ABC transporter cydD
1638	 63.78	0	1818751..1819791	-	346	148822829	-	TBFG_11638	-	integral membrane cytochrome D ubiquinol oxidase subunit II cydB
1639	 61.39	-1	1819821..1821278	-	485	148822830	-	TBFG_11639	-	integral membrane cytochrome D ubiquinol oxidase subunit I cydA
1640	 61.05	-1	1821389..1821976	-	195	148822831	-	TBFG_11640	-	hypothetical protein
1641	 65.47	0	1822005..1823336	-	443	148822832	-	TBFG_11641	-	membrane-anchored adenylyl cyclase cya
1642	 61.65	-1	1823571..1824188	+	205	148822833	-	TBFG_11642	-	two component system transcriptional regulator
1643	 67.66	0	1824256..1825464	-	402	148822834	-	TBFG_11643	-	lipid-transfer protein
1644	 66.06	0	1825461..1825952	-	163	148822835	-	TBFG_11644	-	hypothetical protein
1645	 67.48	0	1826056..1828770	+	904	148822836	-	TBFG_11645	-	DNA polymerase I
1646	 62.93	0	1828933..1830378	+	481	148822837	rpsA	TBFG_11646	-	30S ribosomal protein S1
1647	 67.16	0	1830404..1831627	+	407	148822838	coaE	TBFG_11647	-	fused dephospho-CoA kinase/unknown domain-containing protein
1648	 67.12	0	1831778..1832221	-	147	148822839	-	TBFG_11648	-	hypothetical protein
1649	 66.00	0	1832466..1834562	+	698	148822840	-	TBFG_11649	-	excinuclease ABC subunit B
1650	 67.02	0	1834559..1835974	+	471	148822841	-	TBFG_11650	-	drug efflux membrane protein
1651	 64.84	0	1835963..1837660	-	565	148822842	-	TBFG_11651	-	transmembrane protein
1652	 63.72	0	1837842..1838282	+	146	148822843	-	TBFG_11652	-	hypothetical protein
1653	 66.54	0	1838289..1839083	-	264	148822844	-	TBFG_11653	-	hypothetical protein
1654	 66.36	0	1839132..1842050	+	972	148822845	uvrA	TBFG_11654	-	excinuclease ABC subunit A
1655	 65.50	0	1842107..1842364	-	85	148822846	-	TBFG_11655	-	hypothetical protein
1656	 66.53	0	1842380..1843849	-	489	148822847	-	TBFG_11656	-	hypothetical protein
1657	 64.65	0	1843908..1847426	-	1172	148822848	lysS	TBFG_11657	-	lysyl-tRNA synthetase
1658	 62.05	-1	1847664..1848269	+	201	148822849	infC	TBFG_11658	-	translation initiation factor IF-3
1659	 68.21	0	1848319..1848513	+	64	148822850	rpmI	TBFG_11659	-	50S ribosomal protein L35
1660	 66.15	0	1848575..1848964	+	129	148822851	rplT	TBFG_11660	-	50S ribosomal protein L20
1661	 69.73	+1	1848997..1849779	+	260	148822852	-	TBFG_11661	-	23S rRNA methyltransferase tsnR
1662	 63.45	0	1849790..1850845	-	351	148822853	-	TBFG_11662	-	hypothetical protein
1663	 65.17	0	1851155..1852087	+	310	148822854	-	TBFG_11663	-	PE family protein
1664	 66.88	0	1852165..1853115	+	316	148822855	-	TBFG_11664	-	hypothetical protein
1665	 66.67	0	1853122..1853928	+	268	148822856	-	TBFG_11665	-	hypothetical protein
1666	 66.28	0	1854124..1855149	+	341	148822857	pheS	TBFG_11666	-	phenylalanyl-tRNA synthetase subunit alpha
1667	 68.95	+1	1855149..1857644	+	831	148822858	pheT	TBFG_11667	-	phenylalanyl-tRNA synthetase subunit beta
1668	 67.18	0	1857738..1858898	-	386	148822859	-	TBFG_11668	-	PE-PGRS family protein
1669	 73.76	+2	1859123..1860772	-	549	148822860	-	TBFG_11669	-	PE-PGRS family protein
1670	 69.69	+1	1860966..1862024	+	352	148822861	argC	TBFG_11670	-	N-acetyl-gamma-glutamyl-phosphate reductase
1671	 71.19	+1	1862021..1863235	+	404	148822862	argJ	TBFG_11671	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1672	 68.25	0	1863232..1864116	+	294	148822863	-	TBFG_11672	-	acetylglutamate kinase
1673	 71.82	+1	1864113..1865315	+	400	148822864	argD	TBFG_11673	-	acetylornithine aminotransferase
1674	 68.83	0	1865312..1866235	+	307	148822865	-	TBFG_11674	-	ornithine carbamoyltransferase
1675	 72.88	+2	1866214..1866744	+	176	148822866	-	TBFG_11675	-	arginine repressor
1676	 67.84	0	1866753..1867949	+	398	148822867	-	TBFG_11676	-	argininosuccinate synthase
1677	 71.05	+1	1868029..1869441	+	470	148822868	-	TBFG_11677	-	argininosuccinate lyase
1678	 66.48	0	1869550..1870611	+	353	148822869	-	TBFG_11678	-	chalcone synthase pks10
1679	 67.37	0	1870694..1877074	+	2126	148822870	-	TBFG_11679	-	polyketide synthase pks7
1680	 64.84	0	1877094..1881902	+	1602	148822871	-	TBFG_11680	-	polyketide synthase pks8
1681	 62.96	0	1881902..1883410	+	502	148822872	-	TBFG_11681	-	polyketide synthase pks17
1682	 63.79	0	1883416..1886469	+	1017	148822873	-	TBFG_11682	-	polyketide synthase pks9
1683	 65.35	0	1886616..1887677	+	353	148822874	-	TBFG_11683	-	chalcone synthase pks11
1684	 65.74	0	1887660..1888952	-	430	148822875	-	TBFG_11684	-	cytochrome P450 139 cyp139
1685	 67.62	0	1888967..1890742	-	591	148822876	-	TBFG_11685	-	macrolide ABC transporter ATP-binding protein
1686	 60.61	-1	1890954..1891316	+	120	148822877	-	TBFG_11686	-	hypothetical protein
1687	 61.21	-1	1891349..1891696	+	115	148822878	-	TBFG_11687	-	hypothetical protein
1688	 62.09	0	1891704..1892096	+	130	148822879	-	TBFG_11688	-	hypothetical protein
1689	 67.64	0	1892105..1893436	-	443	148822880	-	TBFG_11689	-	integral membrane transport protein
1690	 63.99	0	1893529..1894461	-	310	148822881	-	TBFG_11690	-	hypothetical protein
1691	 64.54	0	1894489..1895145	-	218	148822882	-	TBFG_11691	-	transcriptional regulator
1692	 64.63	0	1895470..1896204	-	244	148822883	-	TBFG_11692	-	transcriptional regulator
1693	 62.13	0	1896276..1896980	+	234	148822884	-	TBFG_11693	-	hypothetical protein
1694	 63.75	0	1896977..1897525	+	182	148822885	-	TBFG_11694	-	lipoprotein dsbF
1695	 69.10	+1	1897626..1898528	+	300	148822886	-	TBFG_11695	-	hypothetical protein
1696	 67.47	0	1898528..1899649	+	373	148822887	-	TBFG_11696	-	acyl-CoA dehydrogenase fadE16
1697	 64.85	0	1899658..1900482	+	274	148822888	-	TBFG_11697	-	hypothetical protein
1698	 68.28	0	1900479..1901471	+	330	148822889	-	TBFG_11698	-	molybdopterin biosynthesis protein moeX
1699	 60.02	-1	1901632..1902549	+	305	148822890	-	TBFG_11699	-	hypothetical protein
65.47	MEAN

3.40	STD DEV
