IslandPath Analysis: Mycobacterium tuberculosis H37Ra

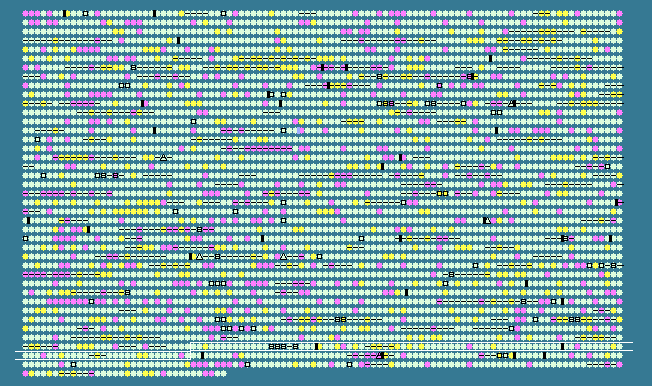

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.43 STD DEV: 3.37
Mycobacterium tuberculosis H37Ra, complete genome - 1..4419977
4034 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3729	 67.50	0	4070974..4071696	+	240	148663486	lpqG	MRA_3659	-	putative lipoprotein LpqG
3730	 64.67	0	4071701..4072351	-	216	148663487	hpt	MRA_3660	-	hypoxanthine-guanine phosphoribosyltransferase
3731	 70.88	+1	4072348..4073319	-	323	148663488	mesJ	MRA_3661	-	putative cell cycle protein MesJ
3732	 66.48	0	4073298..4074350	-	350	148663489	-	MRA_3662	-	hypothetical protein
3733	 68.47	0	4074347..4075732	-	461	148663490	-	MRA_3663	-	D-alanyl-D-alanine carboxypeptidase
3734	 63.80	0	4075870..4076358	+	162	148663491	ppa	MRA_3664	-	inorganic pyrophosphatase
3735	 62.11	0	4076404..4077501	-	365	148663492	-	MRA_3665	-	putative integral membrane protein
3736	 67.52	0	4077622..4078917	+	431	148663493	-	MRA_3666	-	putative integral membrane protein
3737	 63.09	0	4078961..4079686	+	241	148663494	-	MRA_3667	-	glycosyl transferase
3738	 62.03	-1	4079683..4080027	+	114	148663495	-	MRA_3668	-	hypothetical protein
3739	 64.84	0	4080238..4081113	+	291	148663496	-	MRA_3669	-	hypothetical protein
3740	 64.87	0	4081114..4082058	-	314	148663497	galE1	MRA_3670	-	NAD-dependent epimerase/dehydratase family protein
3741	 66.84	0	4082081..4083856	+	591	148663498	-	MRA_3671	-	hypothetical protein
3742	 66.38	0	4084199..4084546	+	115	148663499	-	MRA_3672	-	ISMt3-like transposase A1
3743	 65.27	0	4084931..4085431	+	166	148663500	-	MRA_3673	-	ISMt3-like transposase A2
3744	 65.19	0	4085431..4086177	+	248	148663501	-	MRA_3674	-	transposase
3745	 67.72	0	4086331..4086897	-	188	148663502	-	MRA_3675	-	hypothetical protein
3746	 64.55	0	4086967..4088196	-	409	148663503	-	MRA_3676	-	IS1245-like transposase
3747	 63.21	0	4088372..4089007	-	211	148663504	fic	MRA_3677	-	putative cell filamentation protein Fic
3748	 65.13	0	4089018..4089212	-	64	148663505	-	MRA_3677A	-	hypothetical protein
3749	 66.67	0	4089607..4089798	+	63	148663506	-	MRA_3678	-	hypothetical protein
3750	 69.73	+1	4089963..4091168	-	401	148663507	-	MRA_3679	-	DNA polymerase III subunit delta'
3751	 65.88	0	4091254..4092903	+	549	148663508	-	MRA_3680	-	putative adenylate cyclase
3752	 65.85	0	4092900..4095704	-	934	148663509	topA	MRA_3681	-	DNA topoisomerase I
3753	 70.29	+1	4096057..4096635	-	192	148663510	-	MRA_3682	-	hypothetical protein
3754	 59.80	-1	4096775..4096978	-	67	148663511	cspA	MRA_3683	-	putative cold shock protein A
3755	 68.44	0	4097228..4099543	+	771	148663512	-	MRA_3684	-	DeaD/DeaH box family ATP-dependent RNA helicase
3756	 70.88	+1	4099680..4099964	+	94	148663513	-	MRA_3685	-	PE family protein
3757	 63.78	0	4100288..4101325	+	345	148663514	-	MRA_3686	-	hypothetical protein
3758	 66.26	0	4101840..4102085	-	81	148663515	-	MRA_3687	-	hypothetical protein
3759	 76.54	+2	4102246..4102974	+	242	148663516	-	MRA_3688	-	PE-PGRS family protein
3760	 73.46	+2	4103107..4103430	-	107	148663517	-	MRA_3689	-	hypothetical protein
3761	 65.19	0	4103447..4103989	-	180	148663518	-	MRA_3690	-	hypothetical protein
3762	 72.39	+2	4103986..4104666	-	226	148663519	-	MRA_3691	-	putative alanine rich membrane protein
3763	 70.54	+1	4104585..4105385	-	266	148663520	-	MRA_3692	-	putative transmembrane protein
3764	 68.65	0	4105382..4106440	-	352	148663521	-	MRA_3693	-	putative secretory protein
3765	 70.66	+1	4106542..4107594	-	350	148663522	-	MRA_3694	-	hypothetical protein
3766	 65.97	0	4108093..4108956	+	287	148663523	-	MRA_3695	-	hypothetical protein
3767	 72.50	+2	4109711..4110481	-	256	148663524	-	MRA_3696	-	hypothetical protein
3768	 66.91	0	4110478..4112124	-	548	148663525	dppD	MRA_3697	-	peptide ABC transporter ATP-binding protein
3769	 64.04	0	4112121..4112921	-	266	148663526	dppC	MRA_3698	-	peptide ABC transporter permease protein
3770	 63.75	0	4112977..4113903	-	308	148663527	dppB	MRA_3699	-	peptide ABC transporter permease protein
3771	 64.94	0	4113905..4115530	-	541	148663528	dppA	MRA_3700	-	peptide ABC transporter permease protein
3772	 66.67	0	4115616..4115972	+	118	148663529	-	MRA_3701	-	peptide ABC transporter substrate-binding protein
3773	 65.34	0	4116238..4118193	+	651	148663530	acs	MRA_3702	-	acetyl-CoA synthetase
3774	 66.67	0	4118229..4118927	-	232	148663531	-	MRA_3703	-	putative protease
3775	 61.08	-1	4119273..4119791	+	172	148663532	-	MRA_3704	-	putative transmembrane protein
3776	 67.99	0	4119792..4120775	+	327	148663533	ephE	MRA_3705	-	putative epoxide hydrolase EphE
3777	 66.25	0	4120768..4121961	-	397	148663534	-	MRA_3706	-	membrane-associated serine protease
3778	 68.61	0	4121967..4122788	-	273	148663535	-	MRA_3707	-	hypothetical protein
3779	 69.74	+1	4122920..4123603	-	227	148663536	-	MRA_3708	-	thioredoxin-related protein
3780	 64.91	0	4123603..4124340	-	245	148663537	nth	MRA_3709	-	ultraviolet N-glycosylase/AP lyase
3781	 62.43	0	4124448..4124825	+	125	148663538	-	MRA_3710	-	hypothetical protein
3782	 64.74	0	4124924..4125598	+	224	148663539	-	MRA_3711	-	Crp/Fnr family transcriptional regulator
3783	 65.03	0	4125704..4126498	-	264	148663540	-	MRA_3712	-	putative hydrolase
3784	 67.11	0	4126505..4126960	-	151	148663541	-	MRA_3713	-	hypothetical protein
3785	 63.93	0	4127222..4128244	+	340	148663542	-	MRA_3714	-	putative anion transporter ATPase
3786	 64.17	0	4128241..4129401	+	386	148663543	-	MRA_3715	-	putative anion transporter ATPase
3787	 62.46	0	4129644..4130000	-	118	148663544	whiB4	MRA_3716	-	WhiB-related protein
3788	 65.31	0	4130362..4132794	+	810	148663545	ponA2	MRA_3717	-	bifunctional membrane-associated penicillin-binding protein 1A/1B PonA2
3789	 67.08	0	4132863..4133822	+	319	148663546	-	MRA_3718	-	hypothetical protein
3790	 65.61	0	4133885..4134925	+	346	148663547	-	MRA_3719	-	cysteine synthase/cystathionine beta-synthase family protein
3791	 65.97	0	4135741..4137171	-	476	148663548	cyp137	MRA_3720	-	putative cytochrome p450 137 CYP137
3792	 67.57	0	4137197..4137529	-	110	148663549	-	MRA_3721	-	hypothetical protein
3793	 58.27	-2	4137769..4138137	-	122	148663550	rsfB	MRA_3722	-	anti-anti-sigma factor RsfB
3794	 63.87	0	4138339..4138803	-	154	148663551	-	MRA_3723	-	hypothetical protein
3795	 67.26	0	4138803..4140158	+	451	148663552	-	MRA_3724	-	putative transmembrane protein
3796	 64.22	0	4140185..4140838	+	217	148663553	-	MRA_3725	-	hypothetical protein
3797	 65.57	0	4140964..4141965	+	333	148663554	-	MRA_3726	-	hypothetical protein
3798	 66.48	0	4141962..4143038	+	358	148663555	moxR2	MRA_3727	-	putative methanol dehydrogenase transcriptional regulatory protein MoxR2
3799	 69.46	+1	4143172..4144494	+	440	148663556	-	MRA_3728	-	hypothetical protein
3800	 64.55	0	4144568..4145560	-	330	148663557	-	MRA_3729	-	hypothetical protein
3801	 67.42	0	4145652..4146584	+	310	148663558	-	MRA_3730	-	hypothetical protein
3802	 64.29	0	4146648..4148201	-	517	148663559	glpK	MRA_3731	-	glycerol kinase
3803	 62.33	0	4148251..4148688	-	145	148663560	-	MRA_3732	-	hypothetical protein
3804	 60.89	-1	4148685..4148909	-	74	148663561	-	MRA_3733	-	hypothetical protein
3805	 63.27	0	4148939..4150468	+	509	148663562	-	MRA_3734	-	hypothetical protein
3806	 65.53	0	4150490..4151191	+	233	148663563	-	MRA_3735	-	hypothetical protein
3807	 70.42	+1	4151194..4152366	-	390	148663564	-	MRA_3736	-	pyridoxal-phosphate-dependent transferase
3808	 63.56	0	4152397..4153362	-	321	148663565	-	MRA_3737	-	hypothetical protein
3809	 66.81	0	4153359..4154060	-	233	148663566	-	MRA_3738	-	hypothetical protein
3810	 68.78	0	4154060..4155337	-	425	148663567	-	MRA_3739	-	hypothetical protein
3811	 68.28	0	4155334..4156632	-	432	148663568	gshA	MRA_3740	-	putative glutamate--cysteine ligase
3812	 65.74	0	4156764..4157408	-	214	148663569	-	MRA_3741	-	hypothetical protein
3813	 69.49	+1	4157537..4157926	-	129	148663570	-	MRA_3742	-	hypothetical protein
3814	 67.29	0	4158037..4158357	-	106	148663571	-	MRA_3743	-	hypothetical protein
3815	 68.55	0	4158476..4159486	-	336	148663572	-	MRA_3744	-	hypothetical protein
3816	 68.69	0	4159626..4160663	-	345	148663573	asd	MRA_3745	-	aspartate-semialdehyde dehydrogenase
3817	 66.03	0	4160664..4161929	-	421	148663574	ask	MRA_3746	-	aspartate kinase
3818	 66.10	0	4162186..4164120	+	644	148663575	leuA	MRA_3747	-	2-isopropylmalate synthase
3819	 67.58	0	4164186..4165175	-	329	148663576	dnaQ	MRA_3748	-	DNA polymerase III subunit epsilon
3820	 70.45	+1	4165427..4166668	+	413	148663577	-	MRA_3749	-	putative ligase
3821	 69.40	+1	4166673..4167368	+	231	148663578	cobQ2	MRA_3750	-	cobyric acid synthase
3822	 65.43	0	4167377..4168267	-	296	148663579	-	MRA_3751	-	hypothetical protein
3823	 65.69	0	4168335..4168946	-	203	148663580	recR	MRA_3752	-	recombination protein RecR
3824	 67.91	0	4168958..4169359	-	133	148663581	-	MRA_3753	-	hypothetical protein
3825	 66.39	0	4169494..4170219	+	241	148663582	-	MRA_3754	-	hypothetical protein
3826	 63.51	0	4170261..4170704	-	147	148663583	-	MRA_3755	-	hypothetical protein
3827	 61.92	-1	4170752..4172164	+	470	148663584	-	MRA_3756	-	hypothetical protein
3828	 63.82	0	4172182..4173444	+	420	148663585	-	MRA_3757	-	putative fatty acid synthase
65.43	MEAN

3.37	STD DEV
