IslandPath Analysis: Mycobacterium tuberculosis H37Ra

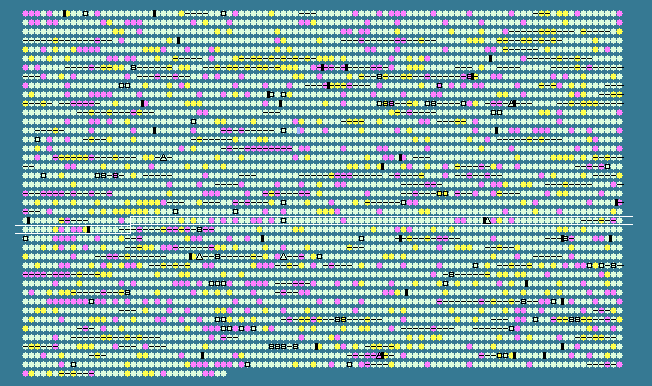

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.43 STD DEV: 3.37
Mycobacterium tuberculosis H37Ra, complete genome - 1..4419977
4034 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2319	 66.15	0	2538884..2539078	-	64	148662076	-	MRA_2275	-	hypothetical protein
2320	 63.47	0	2538998..2539216	+	72	148662077	-	MRA_2276	-	hypothetical protein
2321	 67.23	0	2539245..2539778	-	177	148662078	-	MRA_2277	-	hypothetical protein
2322	 68.50	0	2539908..2540726	-	272	148662079	-	MRA_2278	-	hypothetical protein
2323	 64.69	0	2540740..2541801	-	353	148662080	-	MRA_2279	-	putative transcriptional regulatory protein
2324	 66.57	0	2542149..2543234	+	361	148662081	adhE2	MRA_2280	-	zinc-dependent alcohol dehydrogenase AdhE2
2325	 66.67	0	2543234..2543869	+	211	148662082	-	MRA_2281	-	hypothetical protein
2326	 64.54	0	2543946..2544368	-	140	148662083	-	MRA_2281A	-	hypothetical protein
2327	 69.44	+1	2544374..2545456	-	360	148662084	-	MRA_2282	-	apolipoprotein N-acyltransferase
2328	 66.77	0	2545545..2546498	+	317	148662085	-	MRA_2283	-	short chain dehydrogenase
2329	 69.08	+1	2546476..2548254	-	592	148662086	-	MRA_2284	-	hypothetical protein
2330	 67.56	0	2548604..2549833	+	409	148662087	-	MRA_2285	-	putative integral membrane protein
2331	 63.01	0	2550008..2551294	+	428	148662088	cyp124	MRA_2286	-	putative cytochrome p450 124 CYP124
2332	 56.90	-2	2551548..2552714	-	388	148662089	-	MRA_2287	-	hypothetical protein
2333	 64.42	0	2552711..2554180	-	489	148662090	cyp128	MRA_2288	-	putative cytochrome p450 128 CYP128
2334	 61.26	-1	2554193..2554525	-	110	148662091	-	MRA_2288A	-	hypothetical protein
2335	 63.64	0	2554602..2555129	+	175	148662092	lppN	MRA_2289	-	putative lipoprotein LppN
2336	 60.00	-1	2555236..2555535	+	99	148662093	-	MRA_2290	-	hypothetical protein
2337	 68.29	0	2555641..2556009	+	122	148662094	-	MRA_2291	-	putative transmembrane protein
2338	 66.67	0	2556006..2556335	+	109	148662095	-	MRA_2292	-	putative transmembrane protein
2339	 61.32	-1	2556392..2556709	-	105	148662096	-	MRA_2293	-	hypothetical protein
2340	 61.49	-1	2556787..2557656	+	289	148662097	-	MRA_2294	-	hypothetical protein
2341	 62.22	0	2557653..2558843	+	396	148662098	cyp121	MRA_2295	-	cytochrome p450 121 cyp121
2342	 61.92	-1	2559028..2559933	-	301	148662099	-	MRA_2296	-	putative glycerolphosphodiesterase
2343	 65.75	0	2559969..2560295	+	108	148662100	-	MRA_2297	-	IS6110 hypothetical protein
2344	 63.84	0	2560346..2561230	+	294	148662101	-	MRA_2298	-	IS6110 transposase
2345	 63.91	0	2561464..2562843	+	459	148662102	-	MRA_2299	-	putative dehydrogenase
2346	 62.09	0	2563077..2564735	+	552	148662103	pitB	MRA_2300	-	putative phosphate-transport permease PitB
2347	 65.39	0	2564842..2565780	-	312	148662104	-	MRA_2301	-	LysR family transcriptional regulator
2348	 66.67	0	2565845..2566039	+	64	148662105	-	MRA_2301A	-	hypothetical protein
2349	 65.59	0	2566049..2567344	+	431	148662106	lipM	MRA_2302	-	esterase LipM
2350	 65.62	0	2567377..2568714	+	445	148662107	-	MRA_2303	-	hypothetical protein
2351	 62.77	0	2568781..2569473	-	230	148662108	-	MRA_2304	-	hypothetical protein
2352	 65.87	0	2569607..2571235	+	542	148662109	yjcE	MRA_2305	-	Na+/H+ exchanger
2353	 64.29	0	2571232..2571609	+	125	148662110	-	MRA_2305A	-	hypothetical protein
2354	 57.47	-2	2571579..2572361	+	260	148662111	cdh	MRA_2306	-	CDP-diacylglycerol pyrophosphatase
2355	 63.57	0	2572503..2573018	+	171	148662112	lppO	MRA_2307	-	putative lipoprotein LppO
2356	 65.85	0	2573078..2573932	+	284	148662113	sseB	MRA_2308	-	putative thiosulfate sulfurtransferase SseB
2357	 67.56	0	2573933..2574157	-	74	148662114	-	MRA_2309	-	hypothetical protein
2358	 63.56	0	2574196..2574936	-	246	148662115	-	MRA_2310	-	hypothetical protein
2359	 64.79	0	2575231..2576454	+	407	148662116	-	MRA_2311	-	putative aminotransferase
2360	 64.48	0	2576676..2577314	+	212	148662117	-	MRA_2312	-	hypothetical protein
2361	 66.33	0	2577408..2578310	+	300	148662118	-	MRA_2313	-	haloalkane dehalogenase
2362	 64.02	0	2578342..2578794	+	150	148662119	-	MRA_2314	-	hypothetical protein
2363	 66.26	0	2578986..2579957	+	323	148662120	-	MRA_2315	-	putative oxidoreductase
2364	 62.04	-1	2579963..2581906	-	647	148662121	htpG	MRA_2316	-	heat shock protein 90
2365	 64.84	0	2581980..2582912	-	310	148662122	-	MRA_2317	-	hypothetical protein
2366	 65.80	0	2582919..2583611	+	230	148662123	cut2	MRA_2318	-	putative cutinase Cut2
2367	 66.26	0	2583717..2583959	+	80	148662124	-	MRA_2318A	-	hypothetical protein
2368	 62.34	0	2584000..2584923	-	307	148662125	-	MRA_2319	-	putative antibiotic-resistance protein
2369	 66.67	0	2584920..2585129	-	69	148662126	-	MRA_2320	-	hypothetical protein
2370	 67.44	0	2585713..2587002	+	429	148662127	-	MRA_2321	-	hypothetical protein
2371	 68.28	0	2587392..2587826	+	144	148662128	-	MRA_2322	-	hypothetical protein
2372	 67.61	0	2587755..2588600	-	281	148662129	-	MRA_2323	-	hypothetical protein
2373	 56.77	-2	2589132..2589323	-	63	148662130	-	MRA_2324	-	hypothetical protein
2374	 54.86	-2	2589408..2589839	-	143	148662131	-	MRA_2325	-	hypothetical protein
2375	 65.83	0	2589942..2590181	-	79	148662132	-	MRA_2326	-	hypothetical protein
2376	 62.76	0	2590323..2591039	+	238	148662133	-	MRA_2327	-	hypothetical protein
2377	 67.78	0	2591112..2591381	+	89	148662134	-	MRA_2328	-	hypothetical protein
2378	 63.82	0	2591747..2592202	-	151	148662135	-	MRA_2329	-	putative integrase
2379	 57.64	-2	2592949..2593236	+	95	148662136	-	MRA_2329A	-	hypothetical protein
2380	 70.14	+1	2593339..2593683	+	114	148662137	-	MRA_2330	-	putative excisionase
2381	 66.86	0	2593788..2594312	+	174	148662138	-	MRA_2331	-	hypothetical protein
2382	 60.74	-1	2594390..2594659	+	89	148662139	-	MRA_2332	-	hypothetical protein
2383	 64.68	0	2594956..2595810	-	284	148662140	-	MRA_2333	-	hypothetical protein
2384	 66.81	0	2595821..2597194	-	457	148662141	-	MRA_2334	-	hypothetical protein
2385	 65.09	0	2597191..2598708	-	505	148662142	-	MRA_2335	-	hypothetical protein
2386	 65.86	0	2598742..2599614	+	290	148662143	uspA	MRA_2336	-	sugar ABC transporter permease protein UspA
2387	 62.06	0	2599601..2600425	+	274	148662144	uspB	MRA_2337	-	sugar ABC transporter permease protein UspB
2388	 65.00	0	2600422..2601744	+	440	148662145	uspC	MRA_2338	-	sugar ABC transporter substrate-binding protein UspC
2389	 66.67	0	2601752..2602630	-	292	148662146	-	MRA_2339	-	hypothetical protein
2390	 64.43	0	2602627..2604057	-	476	148662147	rocE	MRA_2340	-	cationic amino acid transport integral membrane protein RocE
2391	 64.65	0	2604058..2604603	-	181	148662148	rocD2	MRA_2341	-	putative ornithine aminotransferase RocD2
2392	 64.86	0	2604603..2605268	-	221	148662149	rocD1	MRA_2342	-	putative ornithine aminotransferase RocD1
2393	 62.82	0	2605265..2606173	-	302	148662150	-	MRA_2343	-	hypothetical protein
2394	 65.55	0	2606238..2606684	+	148	148662151	-	MRA_2344	-	transcription regulator AsnC
2395	 66.55	0	2606913..2607761	-	282	148662152	-	MRA_2345	-	hypothetical protein
2396	 68.05	0	2607758..2609851	-	697	148662153	-	MRA_2346	-	cobalt ABC transporter ATP-binding protein
2397	 71.34	+1	2609892..2610383	+	163	148662154	-	MRA_2347	-	hypothetical protein
2398	 64.49	0	2610635..2611783	+	382	148662155	-	MRA_2348	-	PE family protein
2399	 61.76	-1	2611818..2613365	-	515	148662156	narK1	MRA_2349	-	nitrite extrusion protein 1 NarK1
2400	 62.31	0	2613599..2614126	-	175	148662157	lppP	MRA_2350	-	putative lipoprotein LppP
2401	 63.31	0	2614201..2614587	+	128	148662158	-	MRA_2351	-	hypothetical protein
2402	 62.83	0	2614644..2614982	+	112	148662159	-	MRA_2351A	-	hypothetical protein
2403	 63.45	0	2615012..2616658	+	548	148662160	mez	MRA_2352	-	malate dehydrogenase
2404	 65.24	0	2616612..2618225	-	537	148662161	-	MRA_2353	-	putative integral membrane transport protein
2405	 65.38	0	2618700..2619632	+	310	148662162	cysK1	MRA_2354	-	cysteine synthase
2406	 69.28	+1	2619636..2620325	+	229	148662163	cysE	MRA_2355	-	putative serine acetyltransferase CysE
2407	 56.24	-2	2620741..2621709	+	322	148662164	-	MRA_2356	-	hypothetical protein
2408	 64.08	0	2621773..2622891	-	372	148662165	-	MRA_2357	-	hypothetical protein
2409	 55.28	-2	2623011..2623967	-	318	148662166	moeW	MRA_2358	-	hypothetical protein
2410	 58.36	-2	2624597..2627485	+	962	148662167	mmpL9	MRA_2359	-	transmembrane transport protein MmpL9
2411	 70.85	+1	2627571..2628812	-	413	148662168	-	MRA_2360	-	PE-PGRS family protein
2412	 64.52	0	2629501..2629920	+	139	148662169	lppQ	MRA_2361	-	putative lipoprotein LppQ
2413	 65.89	0	2630176..2630433	+	85	148662170	-	MRA_2362	-	hypothetical protein
2414	 66.93	0	2630437..2632356	-	639	148662171	dnaG	MRA_2363	-	DNA primase
2415	 66.98	0	2632361..2633656	-	431	148662172	dgt	MRA_2364	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
2416	 67.83	0	2633725..2635707	+	660	148662173	-	MRA_2365	-	putative transmembrane protein
2417	 63.16	0	2635792..2636076	-	94	148662174	esxO	MRA_2366	-	putative esat-6 like protein EsxO
2418	 62.96	0	2636127..2636423	-	98	148662175	esxP	MRA_2367	-	putative esat-6 like protein EsxP
65.43	MEAN

3.37	STD DEV
