IslandPath Analysis: Mycobacterium tuberculosis H37Ra

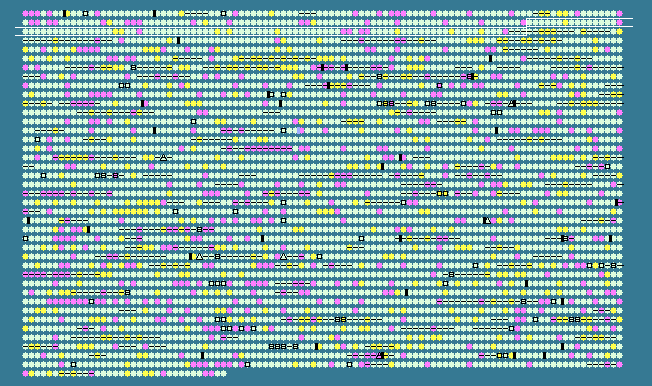

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.43 STD DEV: 3.37
Mycobacterium tuberculosis H37Ra, complete genome - 1..4419977
4034 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
185	 63.81	0	210298..211032	+	244	148659942	-	MRA_0186	-	putative Mce associated membrane protein
186	 64.23	0	211063..212172	-	369	148659943	lprO	MRA_0187	-	putative lipoprotein LprO
187	 63.94	0	212252..213610	-	452	148659944	-	MRA_0188	-	putative transmembrane protein
188	 63.13	0	213637..214371	-	244	148659945	-	MRA_0189	-	hypothetical protein
189	 65.77	0	214388..215500	-	370	148659946	sigG	MRA_0190	-	RNA polymerase factor sigma-70
190	 66.55	0	215448..216287	+	279	148659947	-	MRA_0191	-	putative lysophospholipase
191	 69.60	+1	216329..217078	+	249	148659948	-	MRA_0192	-	hypothetical protein
192	 66.86	0	217075..217584	+	169	148659949	-	MRA_0193	-	hypothetical protein
193	 65.90	0	217629..219704	+	691	148659950	bglS	MRA_0194	-	putative beta-glucosidase
194	 67.12	0	220065..220727	+	220	148659951	-	MRA_0195	-	O-methyltransferase
195	 62.27	0	220846..221277	+	143	148659952	-	MRA_0196	-	putative transmembrane protein
196	 65.86	0	221356..223083	-	575	148659953	ilvD	MRA_0197	-	dihydroxy-acid dehydratase
197	 64.26	0	223231..223521	+	96	148659954	-	MRA_0198	-	hypothetical protein
198	 67.87	0	223649..224890	+	413	148659955	-	MRA_0199	-	putative integral membrane protein
199	 66.30	0	224924..226024	+	366	148659956	-	MRA_0200	-	hypothetical protein
200	 61.58	-1	226084..227931	-	615	148659957	-	MRA_0201	-	hypothetical protein
201	 66.81	0	228238..231822	+	1194	148659958	-	MRA_0202	-	drugs ABC transporter ATP-binding protein
202	 63.21	0	232259..232894	+	211	148659959	-	MRA_0203	-	LuxR family transcriptional regulator
203	 67.86	0	233007..233591	+	194	148659960	-	MRA_0204	-	putative transcriptional regulatory protein
204	 66.44	0	233591..235837	+	748	148659961	-	MRA_0205	-	putative oxidoreductase
205	 63.65	0	235878..237869	-	663	148659962	-	MRA_0206	-	putative zinc metalloprotease
206	 64.24	0	237912..238571	+	219	148659963	-	MRA_0207	-	hypothetical protein
207	 67.10	0	238568..239257	+	229	148659964	-	MRA_0208	-	putative transmembrane protein
208	 67.26	0	239254..239757	-	167	148659965	-	MRA_0209	-	hypothetical protein
209	 65.91	0	239754..242654	-	966	148659966	mmpL11	MRA_0210	-	membrane protein MmpL11
210	 67.15	0	242876..243286	+	136	148659967	-	MRA_0211	-	hypothetical protein
211	 66.98	0	243338..244621	-	427	148659968	-	MRA_0212	-	putative transmembrane protein
212	 65.13	0	244746..245849	+	367	148659969	-	MRA_0213	-	putative transmembrane protein
213	 65.29	0	245846..248680	-	944	148659970	mmpL3	MRA_0214	-	putative transmembrane transport protein MmpL3
214	 64.61	0	248746..249474	-	242	148659971	-	MRA_0215	-	hypothetical protein
215	 64.77	0	249477..250268	-	263	148659972	trmB	MRA_0216	-	tRNA (guanine-N(7))-methyltransferase
216	 70.17	+1	250400..251485	+	361	148659973	-	MRA_0217	-	hypothetical protein
217	 69.44	+1	251482..252960	+	492	148659974	-	MRA_0218	-	hypothetical protein
218	 64.09	0	253144..254964	+	606	148659975	pckA	MRA_0219	-	phosphoenolpyruvate carboxykinase
219	 65.64	0	255031..256002	-	323	148659976	nadR	MRA_0220	-	putative transcriptional regulatory protein NadR
220	 61.87	-1	255999..257312	-	437	148659977	-	MRA_0221	-	putative methyltransferase
221	 63.38	0	257426..259039	+	537	148659978	fadD4	MRA_0222	-	acyl-CoA synthetase
222	 65.08	0	259145..260218	-	357	148659979	fadE3	MRA_0223	-	acyl-CoA dehydrogenase FadE3
223	 66.07	0	260275..261288	+	337	148659980	-	MRA_0224	-	hypothetical protein
224	 67.22	0	261285..262193	-	302	148659981	lipW	MRA_0225	-	putative esterase LipW
225	 67.12	0	262286..263614	+	442	148659982	-	MRA_0226	-	putative transmembrane protein
226	 66.48	0	263616..264164	+	182	148659983	-	MRA_0227	-	putative transmembrane protein
227	 65.68	0	264174..265385	+	403	148659984	lipC	MRA_0228	-	esterase LipC
228	 62.70	0	265429..266838	+	469	148659985	-	MRA_0229	-	hypothetical protein
229	 65.15	0	266869..267657	+	262	148659986	echA1	MRA_0230	-	enoyl-CoA hydratase
230	 64.07	0	267663..269126	-	487	148659987	-	MRA_0231	-	aldehyde dehydrogenase
231	 66.93	0	269225..269989	-	254	148659988	-	MRA_0232	-	putative methyltransferase
232	 66.32	0	270025..271179	+	384	148659989	-	MRA_0233	-	glycosyltransferase
233	 69.50	+1	271196..272926	-	576	148659990	-	MRA_0234	-	putative transmembrane protein
234	 65.32	0	272936..274201	-	421	148659991	-	MRA_0235	-	hypothetical protein
235	 69.20	+1	274417..275640	+	407	148659992	-	MRA_0236	-	putative integral membrane acyltransferase
236	 61.97	-1	275668..276348	-	226	148659993	-	MRA_0237	-	hypothetical protein
237	 65.85	0	276345..277325	-	326	148659994	php	MRA_0238	-	phosphotriesterase
238	 63.56	0	277420..279126	+	568	148659995	fadE4	MRA_0239	-	acyl-CoA dehydrogenase FadE4
239	 67.10	0	279261..279950	+	229	148659996	-	MRA_0240	-	TetR/AcrR-family transcriptional regulator
240	 64.87	0	279947..280891	+	314	148659997	nrdB	MRA_0241	-	ribonucleotide-diphosphate reductase subunit beta
241	 66.80	0	280967..282502	-	511	148659998	gabD1	MRA_0242	-	succinic semialdehyde dehydrogenase
242	 62.73	0	282528..283976	-	482	148659999	-	MRA_0243	-	putative transmembrane protein
243	 71.45	+1	284011..288213	-	1400	148660000	-	MRA_0244	-	putative transmembrane protein
244	 64.94	0	288260..288433	-	57	148660001	-	MRA_0245	-	small secreted protein
245	 68.64	0	288548..289714	+	388	148660002	lpqI	MRA_0246	-	putative lipoprotein LpqI
246	 63.74	0	289790..290404	+	204	148660003	-	MRA_0247	-	TetR family transcriptional regulator
247	 65.38	0	290466..290699	+	77	148660004	-	MRA_0248	-	hypothetical protein
248	 62.79	0	290707..291144	+	145	148660005	-	MRA_0249	-	hypothetical protein
249	 66.31	0	291174..292016	-	280	148660006	-	MRA_0250	-	hypothetical protein
250	 67.99	0	292027..293391	-	454	148660007	fabG	MRA_0251	-	3-ketoacyl-(acyl-carrier-protein) reductase
251	 67.88	0	293533..294855	+	440	148660008	fadA2	MRA_0252	-	acetyl-CoA acetyltransferase
252	 64.27	0	295160..296995	-	611	148660009	fadE5	MRA_0253	-	acyl-CoA dehydrogenase FadE5
253	 64.21	0	297367..297855	+	162	148660010	-	MRA_0254	-	putative oxidoreductase
254	 60.34	-1	298171..299481	+	436	148660011	-	MRA_0255	-	putative integral membrane protein
255	 58.63	-2	299478..300224	-	248	148660012	-	MRA_0256	-	fumarate reductase iron-sulfur subunit
256	 63.83	0	300225..302165	-	646	148660013	sdhA	MRA_0257	-	succinate dehydrogenase flavoprotein subunit
257	 58.39	-2	302196..303017	-	273	148660014	-	MRA_0258	-	putative succinate dehydrogenase
258	 61.90	-1	303097..303390	-	97	148660015	-	MRA_0259	-	hypothetical protein
259	 66.67	0	303535..304014	-	159	148660016	hsp	MRA_0260	-	heat shock protein Hsp
260	 65.61	0	304228..306789	+	853	148660017	nirB	MRA_0261	-	NAD(P)H-dependent nitrite reductase large subunit
261	 64.71	0	306815..307171	+	118	148660018	nirD	MRA_0262	-	putative nitrite reductase
262	 67.24	0	307187..307711	-	174	148660019	cobU	MRA_0263	-	cobinamide kinase/cobinamide phosphate guanylyltransferase
263	 69.49	+1	307736..309220	-	494	148660020	cobQ1	MRA_0264	-	cobyric acid synthase
264	 66.73	0	309239..310801	-	520	148660021	-	MRA_0265	-	PPE family protein
265	 62.13	0	311061..311435	+	124	148660022	-	MRA_0265A	-	hypothetical protein
266	 62.94	0	311656..312111	-	151	148660023	-	MRA_0266	-	hypothetical protein
267	 66.13	0	312136..312879	-	247	148660024	-	MRA_0267	-	hypothetical protein
268	 64.83	0	312876..314021	-	381	148660025	-	MRA_0268	-	bifunctional uroporphyrinogen-III synthetase/response regulator domain-containing protein
269	 63.90	0	314121..315530	-	469	148660026	narK3	MRA_0269	-	integral membrane nitrite extrusion protein NarK3
270	 68.13	0	315671..316216	-	181	148660027	aac	MRA_0270	-	aminoglycoside 2-N-acetyltransferase
271	 68.33	0	316226..317128	-	300	148660028	-	MRA_0271	-	hypothetical protein
272	 69.04	+1	317145..317777	-	210	148660029	-	MRA_0272	-	hypothetical protein
273	 66.26	0	317873..318865	-	330	148660030	-	MRA_0273	-	iron ABC transporter substrate-binding protein
274	 68.71	0	318887..322516	-	1209	148660031	oplA	MRA_0274	-	putative 5-oxoprolinase OplA
275	 65.45	0	322693..324084	+	463	148660032	narU	MRA_0275	-	integral membrane nitrite extrusion protein NarU
276	 61.96	-1	324126..324635	-	169	148660033	-	MRA_0276	-	hypothetical protein
277	 69.26	+1	324700..325893	-	397	148660034	-	MRA_0277	-	hypothetical protein
278	 64.65	0	325929..327611	+	560	148660035	fadD2	MRA_0278	-	acyl-CoA synthetase
279	 66.71	0	327628..329823	-	731	148660036	fadE6	MRA_0279	-	acyl-CoA dehydrogenase FadE6
280	 65.08	0	329937..331070	-	377	148660037	-	MRA_0280	-	hypothetical protein
281	 61.84	-1	331067..331687	-	206	148660038	-	MRA_0281	-	putative transcriptional regulatory protein
282	 62.20	0	331784..332365	+	193	148660039	-	MRA_0282	-	hypothetical protein
283	 68.04	0	332295..333020	-	241	148660040	-	MRA_0283	-	MarR family transcriptional regulator
284	 66.88	0	333110..334030	+	306	148660041	-	MRA_0284	-	hypothetical protein
65.43	MEAN

3.37	STD DEV
