IslandPath Analysis: Mycobacterium tuberculosis H37Ra

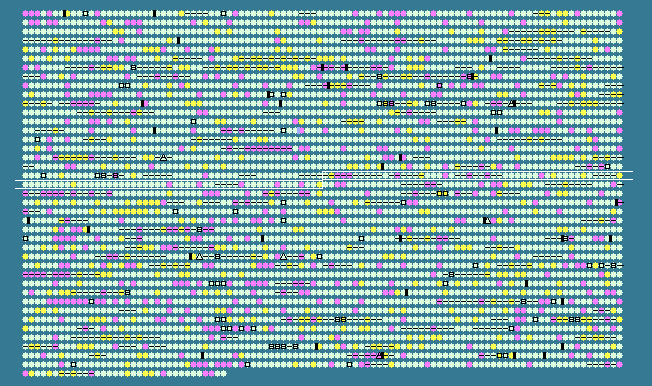

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.43 STD DEV: 3.37
Mycobacterium tuberculosis H37Ra, complete genome - 1..4419977
4034 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1851	 66.52	0	2053316..2054707	+	463	148661608	-	MRA_1815	-	PPE family protein
1852	 70.10	+1	2054855..2056807	-	650	148661609	-	MRA_1816	-	PE-PGRS family protein
1853	 59.33	-1	2056955..2057281	-	108	148661610	-	MRA_1817	-	hypothetical protein
1854	 60.63	-1	2057619..2057966	-	115	148661611	-	MRA_1817A	-	hypothetical protein
1855	 61.00	-1	2058004..2058303	+	99	148661612	-	MRA_1818	-	PE family protein
1856	 68.65	0	2058318..2059529	+	403	148661613	-	MRA_1819	-	PPE family protein
1857	 67.80	0	2059853..2061082	+	409	148661614	-	MRA_1820	-	PPE family protein
1858	 65.60	0	2061214..2062620	+	468	148661615	-	MRA_1821	-	PPE family protein
1859	 62.18	0	2062865..2063221	+	118	148661616	-	MRA_1822	-	hypothetical protein
1860	 65.25	0	2063375..2064079	+	234	148661617	mgtC	MRA_1823	-	Mg2+ transport P-type ATPase C
1861	 66.75	0	2064089..2065291	-	400	148661618	-	MRA_1824	-	putative dehydrogenase
1862	 62.96	0	2065613..2066044	-	143	148661619	-	MRA_1825	-	hypothetical protein
1863	 61.35	-1	2066453..2067355	+	300	148661620	erg3	MRA_1826	-	sterol desaturase-related protein
1864	 65.62	0	2067460..2068125	+	221	148661621	-	MRA_1827	-	hypothetical protein
1865	 63.83	0	2068188..2068892	+	234	148661622	-	MRA_1828	-	putative transcriptional regulatory protein
1866	 64.48	0	2069527..2070990	+	487	148661623	-	MRA_1829	-	hypothetical protein
1867	 78.16	+2	2071110..2072606	-	498	148661624	-	MRA_1830	-	PE-PGRS family protein
1868	 62.24	0	2072741..2074660	-	639	148661625	-	MRA_1831	-	ABC transporter ATP-binding protein
1869	 67.82	0	2074731..2076374	+	547	148661626	ilvG	MRA_1832	-	hypothetical protein
1870	 64.32	0	2076389..2078815	+	808	148661627	secA2	MRA_1833	-	preprotein translocase subunit SecA
1871	 60.32	-1	2079012..2079641	+	209	148661628	pgsA2	MRA_1834	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1872	 67.10	0	2079634..2080557	+	307	148661629	-	MRA_1835	-	hypothetical protein
1873	 63.11	0	2080586..2080951	+	121	148661630	-	MRA_1836	-	small basic protein
1874	 62.46	0	2080968..2081846	+	292	148661631	-	MRA_1837	-	hypothetical protein
1875	 61.48	-1	2081884..2082288	+	134	148661632	gcvH	MRA_1838	-	glycine cleavage system protein H
1876	 62.58	0	2082528..2083016	+	162	148661633	cfp17	MRA_1839	-	hypothetical protein
1877	 65.73	0	2083013..2083756	+	247	148661634	-	MRA_1840	-	hypothetical protein
1878	 58.99	-1	2083875..2084369	+	164	148661635	-	MRA_1841	-	hypothetical protein
1879	 63.86	0	2084773..2085450	+	225	148661636	-	MRA_1842	-	hypothetical protein
1880	 62.79	0	2085503..2085760	+	85	148661637	-	MRA_1842A	-	hypothetical protein
1881	 66.14	0	2085809..2088634	+	941	148661638	gcvB	MRA_1843	-	glycine dehydrogenase
1882	 64.58	0	2088861..2089721	-	286	148661639	-	MRA_1844	-	haloalkane dehalogenase
1883	 66.09	0	2089762..2090628	+	288	148661640	-	MRA_1845	-	putative hydrolase
1884	 66.56	0	2090633..2092519	-	628	148661641	-	MRA_1846	-	hypothetical protein
1885	 65.54	0	2092535..2094568	-	677	148661642	-	MRA_1847	-	hypothetical protein
1886	 63.93	0	2094688..2096913	-	741	148661643	glcB	MRA_1848	-	malate synthase G
1887	 60.10	-1	2097189..2097584	-	131	148661644	-	MRA_1849	-	hypothetical protein
1888	 65.91	0	2097581..2097844	-	87	148661645	-	MRA_1850	-	hypothetical protein
1889	 75.65	+2	2097903..2099450	-	515	148661646	-	MRA_1851	-	PE-PGRS family protein
1890	 64.84	0	2099613..2100650	-	345	148661647	-	MRA_1852	-	hypothetical protein
1891	 67.25	0	2100650..2102017	-	455	148661648	-	MRA_1853	-	hypothetical protein
1892	 67.36	0	2102191..2103630	-	479	148661649	guaB1	MRA_1854	-	inositol-5-monophosphate dehydrogenase
1893	 65.23	0	2103663..2105120	-	485	148661650	gnd1	MRA_1855	-	6-phosphogluconate dehydrogenase
1894	 72.13	+1	2105150..2106100	-	316	148661651	-	MRA_1856	-	hypothetical protein
1895	 64.75	0	2106115..2106531	-	138	148661652	-	MRA_1857	-	putative transcriptional regulatory protein
1896	 64.54	0	2106809..2107231	+	140	148661653	-	MRA_1858	-	hypothetical protein
1897	 67.00	0	2107280..2107582	+	100	148661654	ureA	MRA_1859	-	urease subunit gamma
1898	 64.76	0	2107579..2107893	+	104	148661655	ureB	MRA_1860	-	urease subunit beta
1899	 65.80	0	2107893..2109626	+	577	148661656	ureC	MRA_1861	-	urease subunit alpha
1900	 71.07	+1	2109626..2110261	+	211	148661657	ureF	MRA_1862	-	urease accessory protein UreF
1901	 67.26	0	2110272..2110946	+	224	148661658	ureG	MRA_1863	-	urease accessory protein UreG
1902	 68.26	0	2110954..2111580	+	208	148661659	ureD	MRA_1864	-	putative urease accessory protein UreD
1903	 64.08	0	2111583..2112974	-	463	148661660	ndh	MRA_1865	-	NADH dehydrogenase Ndh
1904	 63.64	0	2113116..2114039	-	307	148661661	-	MRA_1866	-	putative oxidoreductase
1905	 68.88	+1	2114078..2114755	-	225	148661662	-	MRA_1867	-	short chain dehydrogenase
1906	 62.85	0	2114917..2115702	+	261	148661663	modA	MRA_1868	-	molybdate ABC transporter substrate-binding protein
1907	 66.54	0	2115705..2116499	+	264	148661664	modB	MRA_1869	-	molybdate ABC transporter permease protein
1908	 67.48	0	2116506..2117615	+	369	148661665	modC	MRA_1870	-	molybdate ABC transporter ATP-binding protein
1909	 69.33	+1	2117668..2118645	+	325	148661666	apa	MRA_1871	-	alanine and proline rich secreted protein Apa
1910	 62.42	0	2119097..2119402	+	101	148661667	-	MRA_1872	-	putative transmembrane protein
1911	 68.59	0	2119476..2120516	+	346	148661668	adhA	MRA_1873	-	alcohol dehydrogenase AdhA
1912	 64.07	0	2120523..2121293	-	256	148661669	-	MRA_1874	-	putative integral membrane protein
1913	 65.21	0	2121286..2122041	-	251	148661670	-	MRA_1875	-	hypothetical protein
1914	 63.07	0	2122038..2122898	-	286	148661671	-	MRA_1876	-	short chain dehydrogenase
1915	 66.63	0	2122994..2125408	+	804	148661672	-	MRA_1877	-	hypothetical protein
1916	 66.60	0	2125696..2127180	+	494	148661673	-	MRA_1878	-	acetyl-CoA acetyltransferase
1917	 66.86	0	2127279..2129378	+	699	148661674	-	MRA_1879	-	hypothetical protein
1918	 64.56	0	2129392..2130627	-	411	148661675	-	MRA_1880	-	ferredoxin reductase
1919	 62.58	0	2130727..2131362	-	211	148661676	-	MRA_1881	-	hypothetical protein
1920	 63.85	0	2131427..2131816	-	129	148661677	-	MRA_1882	-	hypothetical protein
1921	 66.27	0	2131839..2133083	-	414	148661678	lldD2	MRA_1883	-	L-lactate dehydrogenase
1922	 63.47	0	2133106..2133543	+	145	148661679	-	MRA_1884	-	hypothetical protein
1923	 63.32	0	2133616..2134302	+	228	148661680	-	MRA_1885	-	hypothetical protein
1924	 65.77	0	2134313..2134756	+	147	148661681	-	MRA_1886	-	hypothetical protein
1925	 56.67	-2	2135272..2135751	+	159	148661682	bfrA	MRA_1887	-	bacterioferritin
1926	 64.39	0	2135836..2137899	+	687	148661683	-	MRA_1888	-	putative integral membrane protein
1927	 64.67	0	2137954..2139306	+	450	148661684	glnA3	MRA_1889	-	putative glutamine synthetase
1928	 63.15	0	2139309..2140445	+	378	148661685	-	MRA_1890	-	hypothetical protein
1929	 64.24	0	2140473..2141789	-	438	148661686	cyp140	MRA_1891	-	putative cytochrome p450 140 CYP140
1930	 61.23	-1	2141839..2142261	-	140	148661687	lppE	MRA_1892	-	putative lipoprotein LppE
1931	 64.27	0	2142302..2143135	-	277	148661688	-	MRA_1893	-	short chain dehydrogenase
1932	 62.55	0	2143163..2143624	-	153	148661689	-	MRA_1894	-	hypothetical protein
1933	 63.09	0	2143663..2144193	-	176	148661690	rpfC	MRA_1895	-	putative resuscitation-promoting factor RpfC
1934	 64.33	0	2144205..2144804	-	199	148661691	-	MRA_1896	-	chorismate mutase
1935	 64.21	0	2144822..2145799	-	325	148661692	fbpB	MRA_1897	-	secreted antigen 85-B FbpB
1936	 66.32	0	2146190..2147332	+	380	148661693	-	MRA_1898	-	hypothetical protein
1937	 60.43	-1	2147451..2148011	-	186	148661694	-	MRA_1899	-	putative transmembrane protein
1938	 68.39	0	2148376..2148549	-	57	148661695	-	MRA_1899A	-	hypothetical protein
1939	 65.83	0	2148593..2148949	-	118	148661696	-	MRA_1900	-	hypothetical protein
1940	 63.07	0	2149008..2149619	-	203	148661697	-	MRA_1901	-	hypothetical protein
1941	 66.18	0	2149673..2150080	+	135	148661698	-	MRA_1902	-	hypothetical protein
1942	 63.78	0	2150097..2150408	+	103	148661699	-	MRA_1903	-	hypothetical protein
1943	 61.19	-1	2150418..2150636	+	72	148661700	-	MRA_1904	-	hypothetical protein
1944	 63.84	0	2150671..2151801	-	376	148661701	-	MRA_1905	-	hypothetical protein
1945	 65.51	0	2151874..2152305	+	143	148661702	-	MRA_1906	-	hypothetical protein
1946	 66.06	0	2152453..2153607	+	384	148661703	-	MRA_1907	-	putative dehydrogenase
1947	 61.73	-1	2153467..2154378	-	303	148661704	-	MRA_1908	-	hypothetical protein
1948	 66.67	0	2154383..2154814	-	143	148661705	-	MRA_1909	-	D-tyrosyl-tRNA deacylase
1949	 66.34	0	2154872..2155180	+	102	148661706	-	MRA_1909A	-	hypothetical protein
1950	 70.35	+1	2155146..2156177	-	343	148661707	lppD	MRA_1910	-	putative lipoprotein LppD
65.43	MEAN

3.37	STD DEV
