IslandPath Analysis: Mycobacterium sp. KMS

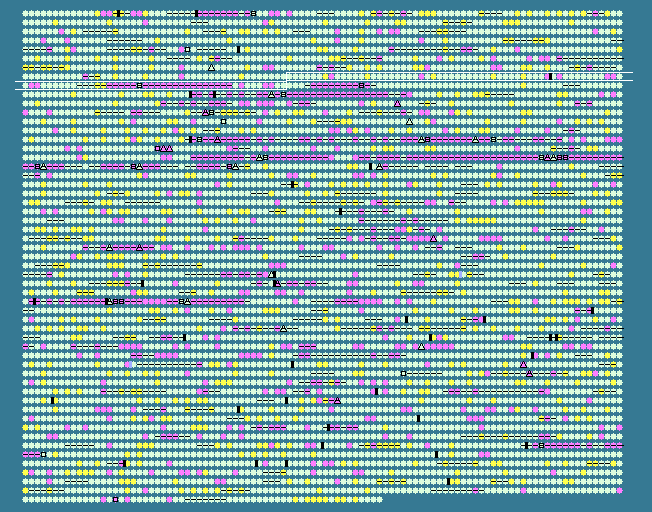

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.56   STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
745	 67.34	0	787702..788586	+	294	119866802	-	Mkms_0748	-	hypothetical protein
746	 69.74	0	788595..789506	-	303	119866803	-	Mkms_0749	-	naphthoate synthase
747	 68.63	0	789518..789976	-	152	119866804	-	Mkms_0750	-	hypothetical protein
748	 70.42	0	789984..790676	-	230	119866805	-	Mkms_0751	-	HAD family hydrolase
749	 71.30	0	790686..791936	-	416	119866806	-	Mkms_0752	-	RNA polymerase ECF-subfamily sigma factor
750	 68.23	0	792018..793616	-	532	119866807	-	Mkms_0753	-	acyl-CoA synthetase
751	 72.73	+1	793853..794116	+	87	119866808	-	Mkms_0754	-	hypothetical protein
752	 64.30	-1	794110..794616	-	168	119866809	-	Mkms_0755	-	DGPFAETKE family protein
753	 69.09	0	794733..796343	+	536	119866810	-	Mkms_0756	-	amidohydrolase 3
754	 68.07	0	796375..797943	+	522	119866811	-	Mkms_0757	-	AMP-dependent synthetase and ligase
755	 71.75	0	797963..798925	+	320	119866812	-	Mkms_0758	-	O-succinylbenzoate synthase
756	 70.43	0	798979..799935	+	318	119866813	-	Mkms_0759	-	hypothetical protein
757	 69.93	0	799946..800527	+	193	119866814	-	Mkms_0760	-	TetR family transcriptional regulator
758	 72.67	+1	800607..801572	+	321	119866815	-	Mkms_0761	-	AraC family transcriptional regulator
759	 71.95	+1	801584..802321	+	245	119866816	-	Mkms_0762	-	ThiJ/PfpI domain-containing protein
760	 68.85	0	802332..802835	+	167	119866817	-	Mkms_0763	-	hypothetical protein
761	 68.32	0	802843..803688	+	281	119866818	-	Mkms_0764	-	alpha/beta hydrolase fold
762	 72.02	+1	803691..805334	+	547	119866819	-	Mkms_0765	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
763	 70.18	0	805331..805843	+	170	119866820	-	Mkms_0766	-	putative transmembrane protein
764	 68.05	0	805898..806404	+	168	119866821	-	Mkms_0767	-	hypothetical protein
765	 65.72	0	806417..807583	+	388	119866822	-	Mkms_0768	-	alcohol dehydrogenase
766	 67.72	0	807593..808255	-	220	119866823	-	Mkms_0769	-	hypothetical protein
767	 64.50	-1	808398..809642	+	414	119866824	-	Mkms_0770	-	peptidase M14, carboxypeptidase A
768	 69.14	0	809639..812668	+	1009	119866825	-	Mkms_0771	-	hypothetical protein
769	 72.40	+1	812665..815769	+	1034	119866826	-	Mkms_0772	-	hypothetical protein
770	 69.53	0	815766..820232	+	1488	119866827	-	Mkms_0773	-	hypothetical protein
771	 71.26	0	820229..821947	+	572	119866828	-	Mkms_0774	-	hypothetical protein
772	 71.53	0	822007..823137	+	376	119866829	-	Mkms_0775	-	glycosyl transferase, group 1
773	 68.61	0	823141..823965	-	274	119866830	-	Mkms_0776	-	short chain dehydrogenase
774	 71.57	0	824037..824729	+	230	119866831	ubiE	Mkms_0777	-	ubiquinone/menaquinone biosynthesis methyltransferase
775	 66.61	0	824829..826613	+	594	119866832	-	Mkms_0778	-	amine oxidase
776	 67.73	0	826616..827464	-	282	119866833	-	Mkms_0779	-	extradiol ring-cleavage dioxygenase III subunit B
777	 67.83	0	827499..828101	-	200	119866834	-	Mkms_0780	-	hypothetical protein
778	 69.64	0	828157..828795	-	212	119866835	-	Mkms_0781	-	hypothetical protein
779	 73.29	+1	828818..831082	-	754	119866836	-	Mkms_0782	-	phospholipase D/transphosphatidylase
780	 71.20	0	831114..831554	-	146	119866837	-	Mkms_0783	-	hypothetical protein
781	 71.83	+1	831817..833037	-	406	119866838	-	Mkms_0784	-	geranylgeranyl reductase
782	 69.58	0	833037..834065	+	342	119866839	-	Mkms_0785	-	trans-hexaprenyltranstransferase
783	 67.12	0	834132..835007	+	291	119866840	-	Mkms_0786	-	heat shock protein HtpX
784	 72.62	+1	835128..835715	+	195	119866841	-	Mkms_0787	-	hypothetical protein
785	 67.74	0	835719..836744	-	341	119866842	-	Mkms_0788	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
786	 71.05	0	836852..838699	+	615	119866843	-	Mkms_0789	-	hypothetical protein
787	 70.43	0	838677..839234	+	185	119866844	-	Mkms_0790	-	hypothetical protein
788	 62.78	-1	839221..839760	-	179	119866845	-	Mkms_0791	-	nucleotide-binding protein
789	 65.22	-1	840393..840599	+	68	119866846	-	Mkms_0792	-	hypothetical protein
790	 64.10	-1	840765..841193	-	142	119866847	-	Mkms_0793	-	hypothetical protein
791	 66.17	0	841620..844619	+	999	119866848	-	Mkms_0794	-	PKD domain-containing protein
792	 70.90	0	844638..847403	-	921	119866849	-	Mkms_0795	-	regulatory protein, LuxR
793	 69.40	0	847566..848150	-	194	119866850	-	Mkms_0796	-	MarR family transcriptional regulator
794	 70.47	0	848393..850207	+	604	119866851	-	Mkms_0797	-	protein kinase
795	 70.74	0	850300..851550	+	416	119866852	-	Mkms_0798	-	3-oxoacyl-(acyl carrier protein) synthase II
796	 70.87	0	851624..853882	+	752	119866853	-	Mkms_0799	-	hypothetical protein
797	 71.43	0	853887..855230	+	447	119866854	-	Mkms_0800	-	cytochrome P450
798	 64.04	-1	855223..856134	-	303	119866855	-	Mkms_0801	-	cyclopropane-fatty-acyl-phospholipid synthase
799	 61.41	-2	856199..857131	-	310	119866856	-	Mkms_0802	-	cyclopropane-fatty-acyl-phospholipid synthase
800	 68.29	0	857351..858523	-	390	119866857	-	Mkms_0803	-	NAD(P) transhydrogenase subunit alpha
801	 69.80	0	858871..860052	+	393	119866858	-	Mkms_0804	-	glycosyl transferase, group 1
802	 61.64	-2	860148..860306	+	52	119866859	-	Mkms_0805	-	hypothetical protein
803	 62.12	-1	860308..860505	+	65	119866860	-	Mkms_0806	-	hypothetical protein
804	 69.08	0	860507..860920	+	137	119866861	-	Mkms_0807	-	hypothetical protein
805	 70.65	0	861217..862671	+	484	119866862	-	Mkms_0808	-	diacylglycerol O-acyltransferase
806	 68.75	0	862737..864608	+	623	119866863	-	Mkms_0809	-	protein kinase
807	 70.30	0	864643..865992	+	449	119866864	-	Mkms_0810	-	putative adenylate/guanylate cyclase
808	 65.54	0	865993..866877	-	294	119866865	-	Mkms_0811	-	hypothetical protein
809	 66.67	0	866874..867356	-	160	119866866	-	Mkms_0812	-	hypothetical protein
810	 71.49	0	867358..868581	-	407	119866867	-	Mkms_0813	-	hypothetical protein
811	 70.40	0	868623..870767	-	714	119866868	-	Mkms_0814	-	hypothetical protein
812	 68.62	0	870761..871834	-	357	119866869	-	Mkms_0815	-	hypothetical protein
813	 73.12	+1	871904..872833	-	309	119866870	-	Mkms_0816	-	alpha/beta hydrolase fold
814	 72.09	+1	872944..873201	+	85	119866871	-	Mkms_0817	-	hypothetical protein
815	 64.52	-1	873671..880048	+	2125	119866872	-	Mkms_0818	-	putative DNA helicase
816	 55.09	-2	880068..880922	+	284	119866873	-	Mkms_0819	-	hypothetical protein
817	 62.16	-1	881141..884512	+	1123	119866874	-	Mkms_0820	-	hypothetical protein
818	 62.41	-1	884509..889140	+	1543	119866875	-	Mkms_0821	-	DEAD/DEAH box helicase domain-containing protein
819	 58.93	-2	889174..890310	+	378	119866876	-	Mkms_0822	-	hypothetical protein
820	 66.43	0	890330..891577	-	415	119866877	-	Mkms_0823	-	transposase, mutator type
821	 61.09	-2	891978..892712	-	244	119866878	-	Mkms_0824	-	hypothetical protein
822	 60.84	-2	892709..894973	-	754	119866879	-	Mkms_0825	-	hypothetical protein
823	 62.55	-1	894970..897081	-	703	119866880	-	Mkms_0826	-	UvrD/REP helicase
824	 63.26	-1	897485..901090	+	1201	119866881	-	Mkms_0827	-	helicase domain-containing protein
825	 60.75	-2	901087..905106	+	1339	119866882	-	Mkms_0828	-	hypothetical protein
826	 60.17	-2	905103..908765	+	1220	119866883	-	Mkms_0829	-	helicase domain-containing protein
827	 60.92	-2	908762..910831	+	689	119866884	-	Mkms_0830	-	hypothetical protein
828	 61.65	-2	910867..911544	+	225	119866885	-	Mkms_0831	-	hypothetical protein
829	 57.95	-2	911600..912448	-	282	119866886	-	Mkms_0832	-	hypothetical protein
830	 63.04	-1	912445..913602	-	385	119866887	-	Mkms_0833	-	DNA-cytosine methyltransferase
831	 61.44	-2	913716..914117	-	133	119866888	-	Mkms_0834	-	DNA mismatch endonuclease vsr
832	 59.56	-2	914218..914667	+	149	119866889	-	Mkms_0835	-	hypothetical protein
833	 63.38	-1	914843..916180	-	445	119866890	-	Mkms_0836	-	hypothetical protein
834	 62.12	-1	916563..916958	+	131	119866891	-	Mkms_0837	-	hypothetical protein
835	 58.83	-2	916991..917947	+	318	119866892	-	Mkms_0838	-	hypothetical protein
836	 65.15	-1	918454..920436	-	660	119866893	-	Mkms_0839	-	hypothetical protein
837	 64.86	-1	920576..920908	+	110	119866894	-	Mkms_0840	-	AbrB family transcriptional regulator
838	 68.51	0	920905..921339	+	144	119866895	-	Mkms_0841	-	PilT domain-containing protein
839	 68.45	0	921858..923036	-	392	119866896	-	Mkms_0843	-	hypothetical protein
840	 67.67	0	923141..924832	+	563	119866897	-	Mkms_0844	-	hypothetical protein
841	 60.87	-2	924869..925954	-	361	119866898	-	Mkms_0845	-	5-methylcytosine-specific restriction enzyme subunit McrC
842	 60.05	-2	925951..927780	-	609	119866899	-	Mkms_0846	-	ATPase
843	 69.33	0	927774..928148	-	124	119866900	-	Mkms_0847	-	hypothetical protein
844	 67.32	0	928157..928768	-	203	119866901	-	Mkms_0848	-	hypothetical protein
68.56	MEAN

3.23	STD DEV
