IslandPath Analysis: Mycobacterium sp. KMS

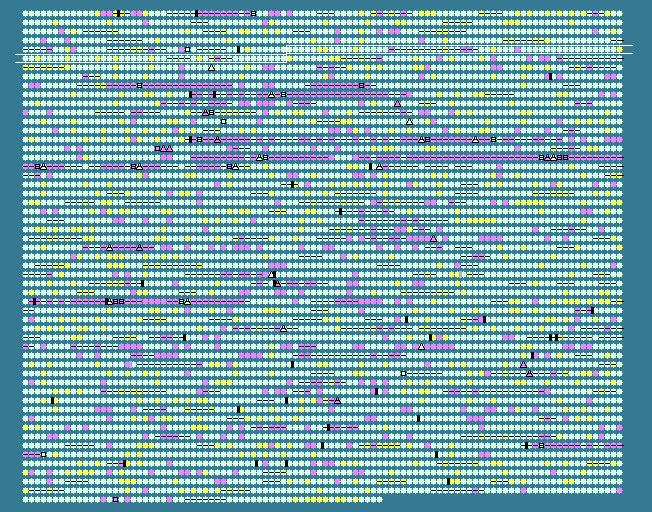

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
445	 69.99	0	493395..494387	-	330	119866502	-	Mkms_0448	-	molybdopterin dehydrogenase, FAD-binding
446	 67.24	0	494398..494919	-	173	119866503	-	Mkms_0449	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
447	 71.22	0	494916..496190	-	424	119866504	-	Mkms_0450	-	YibE/F family protein
448	 66.43	0	496194..497480	-	428	119866505	-	Mkms_0451	-	aminotransferase AlaT
449	 68.23	0	497563..500703	-	1046	119866506	-	Mkms_0452	-	hypothetical protein
450	 74.19	+1	500840..503377	-	845	119866507	-	Mkms_0453	-	LuxR family transcriptional regulator
451	 74.20	+1	503387..505192	-	601	119866508	-	Mkms_0454	-	hypothetical protein
452	 70.10	0	505440..505964	+	174	119866509	-	Mkms_0455	-	hypothetical protein
453	 68.55	0	506080..507300	+	406	119866510	-	Mkms_0456	-	hypothetical protein
454	 68.71	0	507396..509255	+	619	119866511	-	Mkms_0457	-	hypothetical protein
455	 70.91	0	509342..510850	+	502	119866512	-	Mkms_0458	-	isoniazid inductible gene protein IniC
456	 75.00	+1	510881..512716	+	611	119866513	-	Mkms_0459	-	hypothetical protein
457	 68.98	0	512825..513343	-	172	119866514	-	Mkms_0460	-	hypothetical protein
458	 69.25	0	513370..513834	-	154	119866515	-	Mkms_0461	-	hypothetical protein
459	 70.18	0	513875..514813	-	312	119866516	-	Mkms_0462	-	luciferase family protein
460	 71.68	0	514815..515432	-	205	119866517	-	Mkms_0463	-	hypothetical protein
461	 67.11	0	515707..516615	+	302	119866518	-	Mkms_0464	-	hypothetical protein
462	 61.46	-2	516666..516857	+	63	119866519	-	Mkms_0465	-	ferredoxin (3Fe-4S)
463	 71.16	0	516861..518063	+	400	119866520	-	Mkms_0466	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
464	 68.68	0	518073..518420	-	115	119866521	-	Mkms_0467	-	hypothetical protein
465	 68.80	0	518518..518985	+	155	119866522	-	Mkms_0468	-	hypothetical protein
466	 71.91	+1	518979..519455	+	158	119866523	-	Mkms_0469	-	hypothetical protein
467	 68.29	0	519463..520878	-	471	119866524	-	Mkms_0470	-	glucose-6-phosphate 1-dehydrogenase
468	 71.48	0	520931..521491	-	186	119866525	-	Mkms_0471	-	putative lipoprotein LpqJ
469	 66.26	0	521501..522244	-	247	119866526	-	Mkms_0472	-	hypothetical protein
470	 66.13	0	522460..524328	+	622	119866527	-	Mkms_0473	-	molecular chaperone DnaK
471	 72.38	+1	524325..524972	+	215	119866528	-	Mkms_0474	-	GrpE protein
472	 70.65	0	525001..526179	+	392	119866529	-	Mkms_0475	-	chaperone protein DnaJ
473	 70.77	0	526182..526571	+	129	119866530	-	Mkms_0476	-	MerR family transcriptional regulator
474	 61.50	-2	527431..528747	+	438	119866531	pimE	Mkms_0477	-	mannosyltransferase
475	 64.72	-1	528744..530030	+	428	119866532	pimE	Mkms_0478	-	mannosyltransferase
476	 67.38	0	530023..531291	+	422	119866533	pimE	Mkms_0479	-	mannosyltransferase
477	 70.10	0	531288..532190	-	300	119866534	-	Mkms_0480	-	aldose 1-epimerase
478	 70.27	0	532238..533404	-	388	119866535	-	Mkms_0481	-	oxidoreductase FAD-binding subunit
479	 73.85	+1	533421..534422	-	333	119866536	-	Mkms_0482	-	hypothetical protein
480	 69.24	0	534576..535157	+	193	119866537	-	Mkms_0483	-	TetR family transcriptional regulator
481	 67.72	0	535145..535810	-	221	119866538	-	Mkms_0484	-	hypothetical protein
482	 66.36	0	535958..536287	-	109	119866539	-	Mkms_0485	-	hypothetical protein
483	 61.83	-2	536321..537064	-	247	119866540	-	Mkms_0486	-	hypothetical protein
484	 65.16	-1	537451..537981	+	176	119866541	-	Mkms_0487	-	hypothetical protein
485	 66.54	0	537978..538757	+	259	119866542	-	Mkms_0488	-	hypothetical protein
486	 68.71	0	538888..541434	+	848	119866543	-	Mkms_0489	-	ATPase
487	 70.93	0	541639..542505	+	288	119866544	-	Mkms_0490	-	hypothetical protein
488	 70.91	0	542521..543297	+	258	119866545	-	Mkms_0491	-	short-chain dehydrogenase/reductase SDR
489	 69.68	0	543304..544200	+	298	119866546	-	Mkms_0492	-	hypothetical protein
490	 68.99	0	544193..544837	+	214	119866547	-	Mkms_0493	-	tRNA/rRNA methyltransferase (SpoU)
491	 70.85	0	544730..546307	-	525	119866548	-	Mkms_0494	-	major facilitator superfamily transporter
492	 70.59	0	546304..546864	-	186	119866549	-	Mkms_0495	-	TetR family transcriptional regulator
493	 71.65	0	546938..548101	+	387	119866550	-	Mkms_0496	-	glycoside hydrolase family protein
494	 68.62	0	548098..549939	+	613	119866551	-	Mkms_0497	-	Na+/H+ antiporter NhaA
495	 69.28	0	549945..550901	-	318	119866552	-	Mkms_0498	-	LysR family transcriptional regulator
496	 71.66	0	550937..552097	+	386	119866553	-	Mkms_0499	-	hypothetical protein
497	 70.09	0	552155..553030	+	291	119866554	-	Mkms_0500	-	carbon monoxide dehydrogenase, medium subunit
498	 67.88	0	553033..553608	+	191	119866555	-	Mkms_0501	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
499	 67.75	0	553605..555995	+	796	119866556	-	Mkms_0502	-	carbon monoxide dehydrogenase, large subunit apoprotein
500	 73.41	+1	555998..556768	+	256	119866557	-	Mkms_0503	-	hypothetical protein
501	 68.65	0	556941..557645	+	234	119866558	-	Mkms_0504	-	putative oxidoreductase
502	 69.21	0	557658..558326	+	222	119866559	-	Mkms_0505	-	carbon monoxide dehydrogenase subunit G
503	 72.97	+1	558323..559591	+	422	119866560	-	Mkms_0506	-	VWA containing CoxE family protein
504	 71.23	0	559585..560439	+	284	119866561	-	Mkms_0507	-	alpha/beta hydrolase fold
505	 71.60	0	560469..561380	+	303	119866562	-	Mkms_0508	-	hypothetical protein
506	 67.38	0	561457..562866	+	469	119866563	-	Mkms_0509	-	selenium-binding protein
507	 65.79	0	562857..563543	-	228	119866564	-	Mkms_0510	-	short chain dehydrogenase
508	 74.10	+1	563630..564652	+	340	119866565	-	Mkms_0511	-	2-nitropropane dioxygenase, NPD
509	 67.39	0	564649..565344	-	231	119866566	-	Mkms_0512	-	hypothetical protein
510	 71.79	+1	565432..566445	+	337	119866567	-	Mkms_0513	-	alcohol dehydrogenase
511	 65.22	-1	566476..567513	+	345	119866568	-	Mkms_0514	-	fructose-bisphosphate aldolase
512	 71.34	0	567510..568343	-	277	119866569	-	Mkms_0515	-	hypothetical protein
513	 72.59	+1	568403..568858	+	151	119866570	-	Mkms_0516	-	hypothetical protein
514	 70.23	0	568884..569780	-	298	119866571	-	Mkms_0517	-	cation diffusion facilitator family transporter
515	 69.49	0	569837..570616	-	259	119866572	-	Mkms_0518	-	peptidase M50
516	 73.80	+1	570648..571376	-	242	119866573	-	Mkms_0519	-	GntR family transcriptional regulator
517	 70.50	0	571432..572109	+	225	119866574	-	Mkms_0520	-	peptidase C26
518	 71.39	0	572150..573355	+	401	119866575	-	Mkms_0521	-	iron-containing alcohol dehydrogenase
519	 68.00	0	573363..575009	+	548	119866576	-	Mkms_0522	-	cyclohexanone monooxygenase
520	 68.81	0	575006..576406	+	466	119866577	-	Mkms_0523	-	glutamate--ammonia ligase
521	 67.28	0	576431..577909	+	492	119866578	-	Mkms_0524	-	amino acid permease-associated region
522	 74.96	+1	577902..578528	-	208	119866579	-	Mkms_0525	-	hypothetical protein
523	 67.67	0	578600..579895	+	431	119866580	-	Mkms_0526	-	adenylosuccinate synthetase
524	 69.91	0	579892..580539	+	215	119866581	-	Mkms_0527	-	thioesterase superfamily protein
525	 67.75	0	580648..581292	+	214	119866582	-	Mkms_0528	-	hypothetical protein
526	 68.72	0	581249..581443	-	64	119866583	-	Mkms_0529	-	putative ferredoxin
527	 70.43	0	581448..582668	-	406	119866584	-	Mkms_0530	-	cytochrome P450
528	 71.51	0	582705..584729	-	674	119866585	-	Mkms_0531	-	MMPL domain-containing protein
529	 70.89	0	584788..585261	+	157	119866586	-	Mkms_0532	-	MarR family transcriptional regulator
530	 72.85	+1	585273..586874	-	533	119866587	-	Mkms_0533	-	Na+/H+ antiporter
531	 71.52	0	586940..587269	+	109	119866588	-	Mkms_0534	-	zinc finger, UBP-type protein
532	 72.96	+1	587292..588578	+	428	119866589	-	Mkms_0535	-	phosphoribosylglycinamide formyltransferase 2
533	 64.92	-1	588582..589040	+	152	119866590	-	Mkms_0536	-	hypothetical protein
534	 68.36	0	589060..589473	+	137	119866591	-	Mkms_0537	-	rhodanese domain-containing protein
535	 67.72	0	589470..590708	+	412	119866592	-	Mkms_0538	-	O-succinylhomoserine sulfhydrylase
536	 67.88	0	590709..591119	+	136	119866593	-	Mkms_0539	-	hypothetical protein
537	 67.71	0	591207..592070	-	287	119866594	-	Mkms_0540	-	short chain dehydrogenase
538	 70.51	0	592129..592623	+	164	119866595	-	Mkms_0541	-	GCN5-related N-acetyltransferase
539	 69.90	0	592644..592952	+	102	119866596	-	Mkms_0542	-	hypothetical protein
540	 71.74	0	592949..593677	-	242	119866597	-	Mkms_0543	-	beta-lactamase domain-containing protein
541	 65.97	0	593741..594751	+	336	119866598	-	Mkms_0544	-	luciferase family protein
542	 69.93	0	594755..596407	-	550	119866599	-	Mkms_0545	-	hypothetical protein
543	 70.25	0	596404..598326	-	640	119866600	-	Mkms_0546	-	hypothetical protein
544	 65.52	0	598352..599746	-	464	119866601	-	Mkms_0547	-	hypothetical protein
68.56	MEAN

3.23	STD DEV
