IslandPath Analysis: Mycobacterium sp. KMS

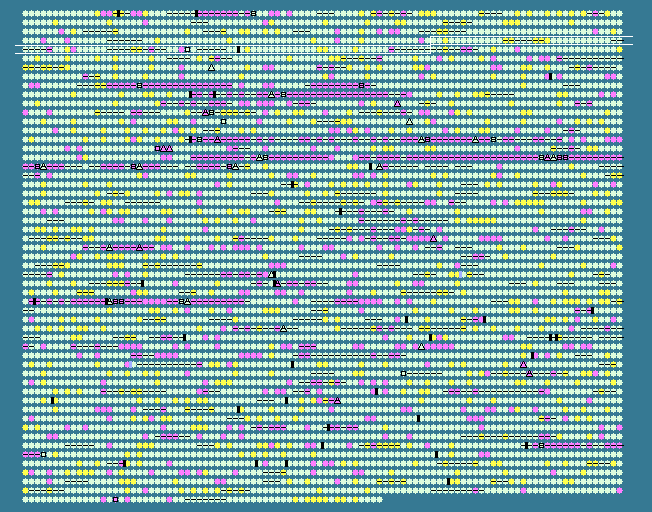

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
369	 66.15	0	409840..411573	+	577	119866426	-	Mkms_0371	-	acyl-CoA synthetase
370	 65.37	0	411577..411885	-	102	119866427	-	Mkms_0372	-	hypothetical protein
371	 74.61	+1	411946..412851	+	301	119866428	-	Mkms_0373	-	ADP-ribosylation/crystallin J1
372	 68.76	0	412811..414097	-	428	119866429	-	Mkms_0374	-	major facilitator transporter
373	 67.01	0	414184..414477	-	97	119866430	-	Mkms_0375	-	hypothetical protein
374	 68.95	0	414579..416771	-	730	119866431	-	Mkms_0376	-	acyl-CoA dehydrogenase domain-containing protein
375	 69.42	0	416831..417448	-	205	119866432	-	Mkms_0377	-	TetR family transcriptional regulator
376	 68.86	0	417523..418434	+	303	119866433	-	Mkms_0378	-	hypothetical protein
377	 70.76	0	418451..419353	+	300	119866434	-	Mkms_0379	-	putative methyltransferase
378	 69.86	0	419549..421333	+	594	119866435	-	Mkms_0380	-	ATPase central domain-containing protein
379	 71.57	0	421330..422880	+	516	119866436	-	Mkms_0381	-	hypothetical protein
380	 69.06	0	422877..426842	+	1321	119866437	-	Mkms_0382	-	cell divisionFtsK/SpoIIIE
381	 74.76	+1	426842..427150	+	102	119866438	-	Mkms_0383	-	PE domain-containing protein
382	 73.26	+1	427151..428728	+	525	119866439	-	Mkms_0384	-	PPE protein
383	 69.73	0	428778..429071	+	97	119866440	-	Mkms_0385	-	hypothetical protein
384	 67.36	0	429101..429388	+	95	119866441	-	Mkms_0386	-	hypothetical protein
385	 71.53	0	429425..430369	+	314	119866442	-	Mkms_0387	-	putative DNA-binding protein
386	 73.55	+1	430332..431726	+	464	119866443	-	Mkms_0388	-	hypothetical protein
387	 73.59	+1	431723..433108	+	461	119866444	-	Mkms_0389	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
388	 72.33	+1	433105..434058	+	317	119866445	-	Mkms_0390	-	putative transmembrane protein
389	 70.40	0	434044..435033	-	329	119866446	-	Mkms_0391	-	malate dehydrogenase (NAD)
390	 69.32	0	435136..436983	+	615	119866447	-	Mkms_0392	-	pyruvate kinase
391	 66.67	0	436990..437397	-	135	119866448	-	Mkms_0393	-	hypothetical protein
392	 69.09	0	437453..438649	-	398	119866449	-	Mkms_0394	-	hypothetical protein
393	 71.24	0	438776..439540	+	254	119866450	-	Mkms_0395	-	trans-aconitate 2-methyltransferase
394	 69.03	0	439537..441396	-	619	119866451	-	Mkms_0396	-	sulfate adenylyltransferase subunit 1 / adenylylsulfate kinase
395	 68.62	0	441396..442316	-	306	119866452	-	Mkms_0397	-	sulfate adenylyltransferase subunit 2
396	 68.91	0	442313..443116	-	267	119866453	-	Mkms_0398	-	hypothetical protein
397	 66.38	0	443183..444580	-	465	119866454	-	Mkms_0399	-	sulfatase
398	 67.38	0	444670..445092	+	140	119866455	-	Mkms_0400	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
399	 69.36	0	445117..445599	-	160	119866456	-	Mkms_0401	-	hypothetical protein
400	 69.09	0	445647..446306	+	219	119866457	-	Mkms_0402	-	phosphoesterase, PA-phosphatase related
401	 70.89	0	446260..447750	-	496	119866458	-	Mkms_0403	-	phosphoesterase, PA-phosphatase related
402	 71.55	0	447813..448406	+	197	119866459	-	Mkms_0404	-	hypothetical protein
403	 70.48	0	448445..449230	+	261	119866460	-	Mkms_0405	-	activator of Hsp90 ATPase 1 family protein
404	 68.81	0	449266..449919	+	217	119866461	-	Mkms_0406	-	hypothetical protein
405	 63.83	-1	449924..450382	-	152	119866462	-	Mkms_0407	-	hypothetical protein
406	 68.21	0	450489..451202	+	237	119866463	-	Mkms_0408	-	hypothetical protein
407	 69.37	0	451197..452711	-	504	119866464	-	Mkms_0409	-	FAD dependent oxidoreductase
408	 72.66	+1	452794..454578	+	594	119866465	-	Mkms_0410	-	hypothetical protein
409	 65.04	-1	454809..455915	+	368	119866466	-	Mkms_0411	-	fatty acid desaturase
410	 69.63	0	455951..456826	+	291	119866467	-	Mkms_0412	-	alpha/beta hydrolase fold
411	 70.05	0	456916..457773	+	285	119866468	-	Mkms_0413	-	endoglucanase family protein
412	 69.89	0	457770..459011	+	413	119866469	-	Mkms_0414	-	putative GAF sensor protein
413	 66.67	0	459008..460984	+	658	119866470	-	Mkms_0415	-	cellulose synthase (UDP-forming)
414	 65.20	-1	460984..461325	+	113	119866471	-	Mkms_0416	-	anti-sigma-factor antagonist
415	 68.60	0	461312..461725	+	137	119866472	-	Mkms_0417	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
416	 65.46	0	461763..462341	+	192	119866473	-	Mkms_0418	-	TetR family transcriptional regulator
417	 65.46	0	462393..462641	-	82	119866474	-	Mkms_0419	-	hypothetical protein
418	 65.86	0	462981..465086	+	701	119866475	-	Mkms_0420	-	hypothetical protein
419	 73.17	+1	465118..465594	+	158	119866476	-	Mkms_0421	-	hypothetical protein
420	 74.92	+1	465689..466972	+	427	119866477	-	Mkms_0422	-	hypothetical protein
421	 70.46	0	467343..467948	+	201	119866478	-	Mkms_0423	-	hypothetical protein
422	 60.58	-2	468089..468943	+	284	119866479	-	Mkms_0424	-	hypothetical protein
423	 67.14	0	469026..469877	+	283	119866480	-	Mkms_0425	-	glycoside hydrolase family protein
424	 69.11	0	470192..470314	-	40	119866481	-	Mkms_0426	-	hypothetical protein
425	 65.96	0	470381..470806	-	141	119866482	-	Mkms_0427	-	hypothetical protein
426	 65.69	0	470885..471910	-	341	119866483	-	Mkms_0428	-	hypothetical protein
427	 62.10	-2	471947..472384	-	145	119866484	-	Mkms_0429	-	hypothetical protein
428	 66.43	0	473086..474333	-	415	119866485	-	Mkms_0431	-	transposase, mutator type
429	 70.45	0	474632..476032	+	466	119866486	-	Mkms_0432	-	NAD-dependent epimerase/dehydratase
430	 67.81	0	476042..476917	+	291	119866487	-	Mkms_0433	-	short-chain dehydrogenase/reductase SDR
431	 66.22	0	476929..478272	-	447	119866488	-	Mkms_0434	-	triacylglycerol lipase
432	 65.87	0	478389..479642	-	417	119866489	-	Mkms_0435	-	hypothetical protein
433	 69.61	0	479962..481254	-	430	119866490	-	Mkms_0436	-	hypothetical protein
434	 70.40	0	481399..483033	+	544	119866491	-	Mkms_0437	-	LuxR family transcriptional regulator
435	 66.67	0	483270..484106	+	278	119866492	-	Mkms_0438	-	methyltransferase type 11
436	 68.49	0	484153..484809	+	218	119866493	-	Mkms_0439	-	hypothetical protein
437	 65.97	0	484953..485525	+	190	119866494	dcd	Mkms_0440	-	deoxycytidine triphosphate deaminase
438	 72.85	+1	485801..487612	+	603	119866495	-	Mkms_0441	-	hypothetical protein
439	 65.55	0	487605..487961	+	118	119866496	-	Mkms_0442	-	hypothetical protein
440	 70.09	0	487961..489304	+	447	119866497	-	Mkms_0443	-	cytochrome P450
441	 71.73	0	489306..490055	+	249	119866498	-	Mkms_0444	-	hypothetical protein
442	 66.12	0	490076..490444	+	122	119866499	-	Mkms_0445	-	hypothetical protein
443	 66.32	0	490444..491307	+	287	119866500	-	Mkms_0446	-	glucose-1-phosphate thymidylyltransferase
444	 69.63	0	491308..493398	-	696	119866501	-	Mkms_0447	-	xanthine dehydrogenase, molybdenum binding subunit apoprotein
445	 69.99	0	493395..494387	-	330	119866502	-	Mkms_0448	-	molybdopterin dehydrogenase, FAD-binding
446	 67.24	0	494398..494919	-	173	119866503	-	Mkms_0449	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
447	 71.22	0	494916..496190	-	424	119866504	-	Mkms_0450	-	YibE/F family protein
448	 66.43	0	496194..497480	-	428	119866505	-	Mkms_0451	-	aminotransferase AlaT
449	 68.23	0	497563..500703	-	1046	119866506	-	Mkms_0452	-	hypothetical protein
450	 74.19	+1	500840..503377	-	845	119866507	-	Mkms_0453	-	LuxR family transcriptional regulator
451	 74.20	+1	503387..505192	-	601	119866508	-	Mkms_0454	-	hypothetical protein
452	 70.10	0	505440..505964	+	174	119866509	-	Mkms_0455	-	hypothetical protein
453	 68.55	0	506080..507300	+	406	119866510	-	Mkms_0456	-	hypothetical protein
454	 68.71	0	507396..509255	+	619	119866511	-	Mkms_0457	-	hypothetical protein
455	 70.91	0	509342..510850	+	502	119866512	-	Mkms_0458	-	isoniazid inductible gene protein IniC
456	 75.00	+1	510881..512716	+	611	119866513	-	Mkms_0459	-	hypothetical protein
457	 68.98	0	512825..513343	-	172	119866514	-	Mkms_0460	-	hypothetical protein
458	 69.25	0	513370..513834	-	154	119866515	-	Mkms_0461	-	hypothetical protein
459	 70.18	0	513875..514813	-	312	119866516	-	Mkms_0462	-	luciferase family protein
460	 71.68	0	514815..515432	-	205	119866517	-	Mkms_0463	-	hypothetical protein
461	 67.11	0	515707..516615	+	302	119866518	-	Mkms_0464	-	hypothetical protein
462	 61.46	-2	516666..516857	+	63	119866519	-	Mkms_0465	-	ferredoxin (3Fe-4S)
463	 71.16	0	516861..518063	+	400	119866520	-	Mkms_0466	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
464	 68.68	0	518073..518420	-	115	119866521	-	Mkms_0467	-	hypothetical protein
465	 68.80	0	518518..518985	+	155	119866522	-	Mkms_0468	-	hypothetical protein
466	 71.91	+1	518979..519455	+	158	119866523	-	Mkms_0469	-	hypothetical protein
467	 68.29	0	519463..520878	-	471	119866524	-	Mkms_0470	-	glucose-6-phosphate 1-dehydrogenase
468	 71.48	0	520931..521491	-	186	119866525	-	Mkms_0471	-	putative lipoprotein LpqJ
68.56	MEAN

3.23	STD DEV
