IslandPathversion 1.0

IslandPath Analysis: Mycobacterium sp. KMS

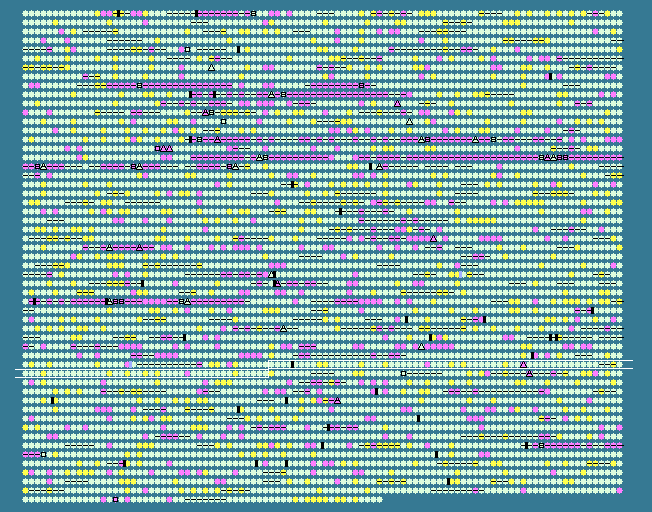

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3942	 69.44	0	4181869..4182951	-	360	119869999	-	Mkms_3969	-	threonine synthase
3943	 68.83	0	4182948..4184285	-	445	119870000	-	Mkms_3970	-	homoserine dehydrogenase
3944	 70.39	0	4184282..4185706	-	474	119870001	-	Mkms_3971	-	diaminopimelate decarboxylase
3945	 68.91	0	4185703..4187355	-	550	119870002	argS	Mkms_3972	-	arginyl-tRNA synthetase
3946	 67.56	0	4187576..4188922	-	448	119870003	-	Mkms_3973	-	hypothetical protein
3947	 70.75	0	4189064..4191049	+	661	119870004	-	Mkms_3974	-	stage II sporulation E family protein
3948	 69.57	0	4191321..4191803	+	160	119870005	-	Mkms_3975	-	hypothetical protein
3949	 66.24	0	4191883..4192116	-	77	119870006	-	Mkms_3976	-	hypothetical protein
3950	 72.69	+1	4192214..4193308	-	364	119870007	-	Mkms_3977	-	alcohol dehydrogenase
3951	 72.21	+1	4193301..4194275	-	324	119870008	-	Mkms_3978	-	oxidoreductase domain-containing protein
3952	 71.68	0	4194370..4195605	+	411	119870009	-	Mkms_3979	-	glycosyl transferase, group 1
3953	 67.56	0	4195508..4196179	-	223	119870010	-	Mkms_3980	-	protein of unknown function DUF899, thioredoxin family protein
3954	 70.63	0	4196183..4197064	-	293	119870011	-	Mkms_3981	-	luciferase family protein
3955	 69.80	0	4197167..4198474	+	435	119870012	-	Mkms_3982	-	integral membrane sensor signal transduction histidine kinase
3956	 67.29	0	4198462..4199106	+	214	119870013	-	Mkms_3983	-	two component LuxR family transcriptional regulator
3957	 72.89	+1	4199126..4200025	+	299	119870014	-	Mkms_3984	-	hypothetical protein
3958	 65.45	0	4200092..4200421	+	109	119870015	-	Mkms_3985	-	hypothetical protein
3959	 66.92	0	4200450..4200851	+	133	119870016	-	Mkms_3986	-	glyoxalase/bleomycin resistance protein/dioxygenase
3960	 66.67	0	4200836..4202218	-	460	119870017	-	Mkms_3987	-	general substrate transporter
3961	 72.06	+1	4202248..4203843	-	531	119870018	-	Mkms_3988	-	hypothetical protein
3962	 70.76	0	4203880..4204368	-	162	119870019	-	Mkms_3989	-	BadM/Rrf2 family transcriptional regulator
3963	 68.83	0	4204378..4204977	-	199	119870020	-	Mkms_3990	-	isochorismatase hydrolase
3964	 71.19	0	4204992..4205720	-	242	119870021	-	Mkms_3991	-	inositol monophosphatase
3965	 67.80	0	4205717..4207576	-	619	119870022	-	Mkms_3992	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
3966	 67.96	0	4207576..4208505	-	309	119870023	-	Mkms_3993	-	sulfate adenylyltransferase subunit 2
3967	 69.29	0	4208652..4210178	+	508	119870024	-	Mkms_3994	-	hypothetical protein
3968	 64.43	-1	4210213..4210704	-	163	119870025	-	Mkms_3995	-	carbonic anhydrase
3969	 71.38	0	4210749..4212617	-	622	119870026	-	Mkms_3996	-	glycosyl transferase family protein
3970	 70.30	0	4212650..4213915	-	421	119870027	-	Mkms_3997	-	glycosyl transferase family protein
3971	 71.76	0	4213970..4215835	-	621	119870028	-	Mkms_3998	-	glycosyl transferase family protein
3972	 74.26	+1	4215850..4217403	-	517	119870029	-	Mkms_3999	-	integral membrane sensor signal transduction histidine kinase
3973	 67.32	0	4217423..4218187	-	254	119870030	-	Mkms_4000	-	two component transcriptional regulator
3974	 79.39	+2	4218292..4218519	+	75	119870031	-	Mkms_4001	-	hypothetical protein
3975	 67.89	0	4218583..4219560	+	325	119870032	-	Mkms_4002	-	binding-protein-dependent transport systems inner membrane component
3976	 66.77	0	4219560..4220483	+	307	119870033	-	Mkms_4003	-	binding-protein-dependent transport systems inner membrane component
3977	 71.51	0	4220480..4222315	+	611	119870034	-	Mkms_4004	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
3978	 67.45	0	4222327..4223994	+	555	119870035	-	Mkms_4005	-	extracellular solute-binding protein
3979	 70.07	0	4224069..4225271	+	400	119870036	-	Mkms_4006	-	acyl-CoA dehydrogenase type 2
3980	 68.60	0	4225285..4225854	-	189	119870037	-	Mkms_4007	-	hypothetical protein
3981	 72.10	+1	4225959..4228592	-	877	119870038	-	Mkms_4008	-	hypothetical protein
3982	 70.75	0	4228589..4229740	-	383	119870039	-	Mkms_4009	-	metallophosphoesterase
3983	 71.02	0	4229776..4230372	+	198	119870040	-	Mkms_4010	-	putative phosphohistidine phosphatase, SixA
3984	 64.97	-1	4230440..4231441	+	333	119870041	-	Mkms_4011	-	integrase catalytic subunit
3985	 70.11	0	4231516..4232067	-	183	119870042	-	Mkms_4012	-	putative lipoprotein LprC
3986	 66.50	0	4232064..4232651	-	195	119870043	-	Mkms_4013	-	putative lipoprotein LprB
3987	 68.79	0	4232684..4234471	+	595	119870044	-	Mkms_4014	-	ABC transporter related
3988	 67.99	0	4234480..4236375	+	631	119870045	-	Mkms_4015	-	ABC transporter, transmembrane region
3989	 70.27	0	4236393..4238558	+	721	119870046	-	Mkms_4016	-	formate dehydrogenase
3990	 69.61	0	4238555..4239166	-	203	119870047	-	Mkms_4017	-	hypothetical protein
3991	 68.99	0	4239179..4240081	-	300	119870048	-	Mkms_4018	-	hypothetical protein
3992	 68.86	0	4240154..4240975	+	273	119870049	-	Mkms_4019	-	hypothetical protein
3993	 71.44	0	4240972..4242543	+	523	119870050	-	Mkms_4020	-	AMP-dependent synthetase and ligase
3994	 68.14	0	4242590..4242793	+	67	119870051	-	Mkms_4021	-	heavy metal transport/detoxification protein
3995	 71.82	+1	4242790..4245003	+	737	119870052	-	Mkms_4022	-	heavy metal translocating P-type ATPase
3996	 71.75	0	4245007..4246128	-	373	119870053	-	Mkms_4023	-	putative adenylate/guanylate cyclase
3997	 68.88	0	4246173..4246670	+	165	119870054	-	Mkms_4024	-	hypothetical protein
3998	 67.47	0	4246897..4247145	+	82	119870055	-	Mkms_4025	-	hypothetical protein
3999	 72.20	+1	4247219..4248049	-	276	119870056	-	Mkms_4026	-	AraC family transcriptional regulator
4000	 69.44	0	4248076..4248543	+	155	119870057	-	Mkms_4027	-	glyoxalase/bleomycin resistance protein/dioxygenase
4001	 68.29	0	4248566..4248997	+	143	119870058	-	Mkms_4028	-	histidine triad (HIT) protein
4002	 65.54	0	4249062..4249505	+	147	119870059	-	Mkms_4029	-	hypothetical protein
4003	 71.52	0	4249502..4250551	-	349	119870060	-	Mkms_4030	-	luciferase family protein
4004	 73.84	+1	4250591..4251412	-	273	119870061	-	Mkms_4031	-	uracil-DNA glycosylase superfamily protein
4005	 70.88	0	4251456..4252712	+	418	119870062	-	Mkms_4032	-	H+ antiporter protein
4006	 70.22	0	4252687..4253334	-	215	119870063	-	Mkms_4033	-	HxlR family transcriptional regulator
4007	 70.39	0	4253411..4253893	+	160	119870064	-	Mkms_4034	-	hypothetical protein
4008	 70.52	0	4253918..4255291	+	457	119870065	-	Mkms_4035	-	D-lactate dehydrogenase (cytochrome)
4009	 69.59	0	4255336..4256532	+	398	119870066	-	Mkms_4036	-	cytochrome P450
4010	 69.76	0	4256533..4257114	+	193	119870067	-	Mkms_4037	-	TetR family transcriptional regulator
4011	 67.13	0	4257071..4259452	-	793	119870068	-	Mkms_4038	-	sulfatase
4012	 68.90	0	4259571..4260287	-	238	119870069	-	Mkms_4039	-	siderophore-interacting protein
4013	 68.81	0	4260377..4261540	-	387	119870070	-	Mkms_4040	-	acyltransferase 3
4014	 67.86	0	4261537..4263210	-	557	119870071	-	Mkms_4041	-	DEAD/DEAH box helicase domain-containing protein
4015	 72.56	+1	4263317..4263859	+	180	119870072	-	Mkms_4042	-	LprE
4016	 70.98	0	4263889..4267320	+	1143	119870073	-	Mkms_4043	-	RecB family-like nuclease
4017	 70.43	0	4267296..4269236	-	646	119870074	-	Mkms_4044	-	EmrB/QacA family drug resistance transporter
4018	 72.50	+1	4269325..4270644	-	439	119870075	-	Mkms_4045	-	Bcr/CflA subfamily drug resistance transporter
4019	 70.62	0	4270794..4271552	+	252	119870076	-	Mkms_4046	-	hypothetical protein
4020	 66.30	0	4271732..4275541	+	1269	119870077	kgd	Mkms_4047	-	alpha-ketoglutarate decarboxylase
4021	 73.44	+1	4275566..4275934	-	122	119870078	-	Mkms_4048	-	hypothetical protein
4022	 67.27	0	4276037..4276867	+	276	119870079	-	Mkms_4049	-	short-chain dehydrogenase/reductase SDR
4023	 74.97	+1	4276875..4277705	-	276	119870080	-	Mkms_4050	-	substrate-binding region of ABC-type glycine betaine transport system
4024	 70.41	0	4277720..4278895	-	391	119870081	-	Mkms_4051	-	malate dehydrogenase
4025	 66.10	0	4278956..4280017	+	353	119870082	-	Mkms_4052	-	magnesium and cobalt transport protein CorA
4026	 71.89	+1	4280014..4280607	-	197	119870083	-	Mkms_4053	-	hypothetical protein
4027	 65.76	0	4280604..4281821	-	405	119870084	-	Mkms_4054	-	ABC transporter related
4028	 64.16	-1	4281826..4282662	-	278	119870085	-	Mkms_4055	-	binding-protein-dependent transport systems inner membrane component
4029	 66.45	0	4282663..4283589	-	308	119870086	-	Mkms_4056	-	binding-protein-dependent transport systems inner membrane component
4030	 68.17	0	4283586..4284983	-	465	119870087	-	Mkms_4057	-	extracellular solute-binding protein
4031	 67.99	0	4285138..4285665	-	175	119870088	-	Mkms_4058	-	hypothetical protein
4032	 70.79	0	4285770..4286327	+	185	119870089	-	Mkms_4059	-	hypothetical protein
4033	 69.11	0	4286331..4287314	-	327	119870090	-	Mkms_4060	-	citrate (pro-3S)-lyase
4034	 69.98	0	4287340..4288635	+	431	119870091	-	Mkms_4061	-	MgtE intracellular region
4035	 69.38	0	4288632..4289147	+	171	119870092	-	Mkms_4062	-	hypothetical protein
4036	 75.68	+2	4289275..4290606	+	443	119870093	-	Mkms_4063	-	hypothetical protein
4037	 71.03	0	4290665..4291810	+	381	119870094	-	Mkms_4064	-	hypothetical protein
4038	 67.15	0	4291815..4292228	-	137	119870095	-	Mkms_4065	-	sec-independent translocase
4039	 69.32	0	4292228..4293733	-	501	119870096	-	Mkms_4066	-	peptidase S1 and S6, chymotrypsin/Hap
4040	 66.67	0	4293793..4294191	-	132	119870097	-	Mkms_4067	-	hypothetical protein
4041	 68.07	0	4294280..4295062	-	260	119870098	-	Mkms_4068	-	RNA polymerase sigma factor SigE
68.56	MEAN

3.23	STD DEV
