IslandPath Analysis: Mycobacterium sp. KMS

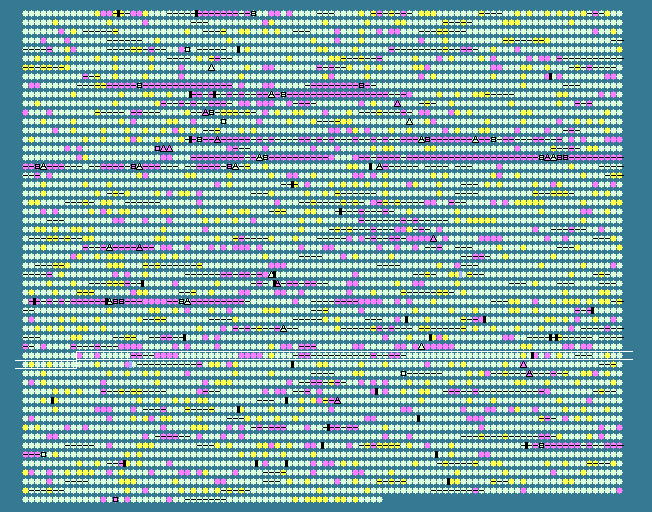

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3810	 64.63	-1	4052094..4053077	-	327	119869867	-	Mkms_3836	-	enoyl-CoA hydratase/isomerase
3811	 69.75	0	4053070..4054203	-	377	119869868	-	Mkms_3837	-	peptidase M24
3812	 68.32	0	4054193..4055461	-	422	119869869	-	Mkms_3838	-	peptidase M24
3813	 64.19	-1	4055461..4056633	-	390	119869870	-	Mkms_3839	-	amidohydrolase 2
3814	 67.47	0	4056667..4057905	-	412	119869871	-	Mkms_3840	-	cytochrome P450
3815	 66.67	0	4057907..4058101	-	64	119869872	-	Mkms_3841	-	putative ferredoxin
3816	 68.64	0	4058101..4058808	-	235	119869873	-	Mkms_3842	-	TetR family transcriptional regulator
3817	 68.55	0	4058805..4059653	-	282	119869874	-	Mkms_3843	-	short-chain dehydrogenase/reductase SDR
3818	 70.44	0	4059653..4060501	-	282	119869875	-	Mkms_3844	-	alpha/beta hydrolase fold
3819	 62.02	-2	4060565..4061854	-	429	119869876	-	Mkms_3845	-	N-6 DNA methylase
3820	 59.29	-2	4062065..4062484	-	139	119869877	-	Mkms_3846	-	hypothetical protein
3821	 67.48	0	4062481..4063338	-	285	119869878	-	Mkms_3847	-	hypothetical protein
3822	 65.15	-1	4063666..4063995	-	109	119869879	-	Mkms_3848	-	hypothetical protein
3823	 60.84	-2	4064037..4064345	-	102	119869880	-	Mkms_3849	-	hypothetical protein
3824	 56.83	-2	4064342..4065601	-	419	119869881	-	Mkms_3850	-	restriction endonuclease S subunits-like protein
3825	 64.44	-1	4065598..4065912	-	104	119869882	-	Mkms_3851	-	type I site-specific deoxyribonuclease
3826	 64.18	-1	4065909..4068320	-	803	119869883	-	Mkms_3852	-	type III restriction enzyme, res subunit
3827	 69.59	0	4068524..4069105	-	193	119869884	-	Mkms_3853	-	NADPH-dependent FMN reductase
3828	 67.68	0	4069117..4070106	-	329	119869885	-	Mkms_3854	-	hypothetical protein
3829	 69.45	0	4070108..4070932	-	274	119869886	-	Mkms_3855	-	3-alpha-hydroxysteroid dehydrogenase
3830	 66.97	0	4070941..4072251	-	436	119869887	-	Mkms_3856	-	luciferase family protein
3831	 68.74	0	4072248..4074029	-	593	119869888	-	Mkms_3857	-	3-ketosteroid-delta-1-dehydrogenase
3832	 68.98	0	4074026..4074976	-	316	119869889	-	Mkms_3858	-	3-(2,3-dihydroxyphenyl)propionate dioxygenase
3833	 68.99	0	4074891..4076612	-	573	119869890	-	Mkms_3859	-	3-(3-hydroxyphenyl)propionate hydroxylase
3834	 68.17	0	4076612..4077475	-	287	119869891	-	Mkms_3860	-	alpha/beta hydrolase fold
3835	 68.33	0	4077534..4078316	+	260	119869892	-	Mkms_3861	-	regulatory proteins, IclR
3836	 70.97	0	4078348..4079949	+	533	119869893	-	Mkms_3862	-	fumarate reductase/succinate dehydrogenase flavoprotein domain-containing protein
3837	 62.96	-1	4079976..4080272	-	98	119869894	-	Mkms_3863	-	hypothetical protein
3838	 60.30	-2	4080276..4080872	-	198	119869895	-	Mkms_3864	-	cytochrome c oxidase, subunit III
3839	 63.38	-1	4080869..4081690	-	273	119869896	-	Mkms_3865	-	hypothetical protein
3840	 63.99	-1	4081687..4082397	-	236	119869897	-	Mkms_3866	-	hypothetical protein
3841	 67.88	0	4082502..4083077	+	191	119869898	-	Mkms_3867	-	TetR family transcriptional regulator
3842	 72.39	+1	4083079..4083951	-	290	119869899	-	Mkms_3868	-	LAO/AO transport system ATPase
3843	 70.05	0	4083964..4085115	-	383	119869900	-	Mkms_3869	-	acetyl-CoA acetyltransferases
3844	 68.37	0	4085194..4085958	+	254	119869901	-	Mkms_3870	-	short-chain dehydrogenase/reductase SDR
3845	 69.64	0	4085955..4086695	+	246	119869902	-	Mkms_3871	-	short-chain dehydrogenase/reductase SDR
3846	 65.53	0	4086692..4086955	-	87	119869903	-	Mkms_3872	-	hypothetical protein
3847	 65.01	-1	4087068..4087730	-	220	119869904	-	Mkms_3873	-	hypothetical protein
3848	 63.47	-1	4087754..4088128	-	124	119869905	-	Mkms_3874	-	hypothetical protein
3849	 70.00	0	4088922..4089281	-	119	119869906	-	Mkms_3875	-	HNH endonuclease
3850	 71.43	0	4089281..4089595	-	104	119869907	-	Mkms_3876	-	hypothetical protein
3851	 70.30	0	4089612..4089941	-	109	119869908	-	Mkms_3877	-	hypothetical protein
3852	 66.67	0	4090212..4091069	-	285	119869909	-	Mkms_3878	-	phage major capsid protein, HK97
3853	 72.00	+1	4091298..4091522	-	74	119869910	-	Mkms_3879	-	hypothetical protein
3854	 70.83	0	4091522..4092169	-	215	119869911	-	Mkms_3880	-	hypothetical protein
3855	 68.49	0	4092172..4092390	-	72	119869912	-	Mkms_3881	-	hypothetical protein
3856	 67.46	0	4092368..4092619	-	83	119869913	-	Mkms_3882	-	hypothetical protein
3857	 67.38	0	4092704..4092982	-	92	119869914	-	Mkms_3883	-	hypothetical protein
3858	 65.15	-1	4093008..4093403	-	131	119869915	-	Mkms_3884	-	hypothetical protein
3859	 60.77	-2	4093396..4093938	-	180	119869916	-	Mkms_3885	-	excinuclease ABC subunit C
3860	 70.40	0	4093977..4094297	-	106	119869917	-	Mkms_3886	-	hypothetical protein
3861	 68.38	0	4094287..4094520	-	77	119869918	-	Mkms_3887	-	hypothetical protein
3862	 63.64	-1	4094517..4095341	-	274	119869919	-	Mkms_3888	-	hypothetical protein
3863	 64.04	-1	4095556..4095822	-	88	119869920	-	Mkms_3889	-	hypothetical protein
3864	 70.21	0	4096083..4097492	-	469	119869921	-	Mkms_3890	-	recombinase
3865	 66.67	0	4098693..4099460	-	255	119869922	-	Mkms_3892	-	enoyl-CoA hydratase/isomerase
3866	 67.91	0	4099491..4100537	-	348	119869923	-	Mkms_3893	-	acyl-CoA dehydrogenase domain-containing protein
3867	 69.61	0	4100569..4101384	-	271	119869924	-	Mkms_3894	-	acyl-CoA dehydrogenase domain-containing protein
3868	 69.13	0	4101362..4102783	-	473	119869925	-	Mkms_3895	-	AMP-dependent synthetase and ligase
3869	 69.81	0	4102891..4103208	+	105	119869926	-	Mkms_3896	-	ferredoxin
3870	 69.00	0	4103196..4104266	-	356	119869927	-	Mkms_3897	-	L-carnitine dehydratase/bile acid-inducible protein F
3871	 68.23	0	4104367..4105323	-	318	119869928	-	Mkms_3898	-	luciferase family protein
3872	 70.18	0	4105406..4105804	-	132	119869929	-	Mkms_3899	-	cobalamin B12-binding domain-containing protein
3873	 66.67	0	4105821..4107467	-	548	119869930	-	Mkms_3900	-	methylmalonyl-CoA mutase
3874	 67.60	0	4107611..4108468	+	285	119869931	-	Mkms_3901	-	short chain dehydrogenase
3875	 70.10	0	4108465..4109979	+	504	119869932	-	Mkms_3902	-	AMP-dependent synthetase and ligase
3876	 68.59	0	4109976..4110287	+	103	119869933	-	Mkms_3903	-	hypothetical protein
3877	 70.77	0	4110299..4111759	+	486	119869934	-	Mkms_3904	-	putative adenylate/guanylate cyclase
3878	 66.67	0	4111829..4113139	+	436	119869935	-	Mkms_3905	-	general substrate transporter
3879	 68.59	0	4113194..4114492	+	432	119869936	-	Mkms_3906	-	major facilitator superfamily transporter
3880	 68.90	0	4114500..4115573	-	357	119869937	-	Mkms_3907	-	hypothetical protein
3881	 65.60	0	4115570..4116784	-	404	119869938	-	Mkms_3908	-	cytochrome P450
3882	 70.40	0	4116872..4117861	-	329	119869939	-	Mkms_3909	-	LacI family transcription regulator
3883	 68.40	0	4117866..4119191	-	441	119869940	-	Mkms_3910	-	general substrate transporter
3884	 73.33	+1	4119237..4119716	-	159	119869941	-	Mkms_3911	-	hypothetical protein
3885	 70.14	0	4119703..4120134	-	143	119869942	-	Mkms_3912	-	hypothetical protein
3886	 60.70	-2	4120328..4121098	+	256	119869943	-	Mkms_3913	-	hypothetical protein
3887	 69.29	0	4121079..4121459	+	126	119869944	-	Mkms_3914	-	putative lipoprotein
3888	 64.72	-1	4121456..4121815	+	119	119869945	-	Mkms_3915	-	hypothetical protein
3889	 71.38	0	4121793..4123724	-	643	119869946	-	Mkms_3916	-	major facilitator superfamily transporter
3890	 74.11	+1	4123779..4124369	-	196	119869947	-	Mkms_3917	-	putative deoxyribonucleotide triphosphate pyrophosphatase
3891	 69.73	0	4124378..4125160	-	260	119869948	rph	Mkms_3918	-	ribonuclease PH
3892	 69.64	0	4125186..4125959	-	257	119869949	-	Mkms_3919	-	beta-lactamase domain-containing protein
3893	 71.06	0	4126036..4126878	-	280	119869950	-	Mkms_3920	-	glutamate racemase
3894	 69.13	0	4126875..4127564	-	229	119869951	-	Mkms_3921	-	rhomboid family protein
3895	 67.49	0	4127555..4128526	-	323	119869952	-	Mkms_3922	-	cysteine synthase
3896	 67.02	0	4128529..4128810	-	93	119869953	-	Mkms_3923	-	thiamineS protein
3897	 67.87	0	4128846..4129259	-	137	119869954	-	Mkms_3924	-	Mov34/MPN/PAD-1 family protein
3898	 74.98	+1	4129288..4130310	-	340	119869955	-	Mkms_3925	-	peptidase S58, DmpA
3899	 67.52	0	4130307..4130894	-	195	119869956	-	Mkms_3926	-	hypothetical protein
3900	 65.54	0	4130907..4131173	-	88	119869957	clpS	Mkms_3927	-	ATP-dependent Clp protease adaptor protein ClpS
3901	 72.03	+1	4131255..4132577	+	440	119869958	-	Mkms_3928	-	nicotinate phosphoribosyltransferase
3902	 73.42	+1	4132580..4134577	+	665	119869959	-	Mkms_3929	-	helicase c2
3903	 70.54	0	4134620..4136065	+	481	119869960	-	Mkms_3930	-	LpqM
3904	 68.93	0	4136069..4136776	-	235	119869961	-	Mkms_3931	-	hypothetical protein
3905	 72.48	+1	4136857..4137699	-	280	119869962	-	Mkms_3932	-	hydrolase
3906	 68.83	0	4137696..4140278	-	860	119869963	-	Mkms_3933	-	alpha-glucan phosphorylases
3907	 67.67	0	4140473..4142560	+	695	119869964	-	Mkms_3934	-	alpha amylase, catalytic region
3908	 68.42	0	4142569..4144848	+	759	119869965	-	Mkms_3935	-	glycogen branching enzyme
3909	 71.56	0	4144855..4145754	-	299	119869966	-	Mkms_3936	-	thioredoxin domain-containing protein
68.56	MEAN

3.23	STD DEV
