IslandPath Analysis: Mycobacterium sp. KMS

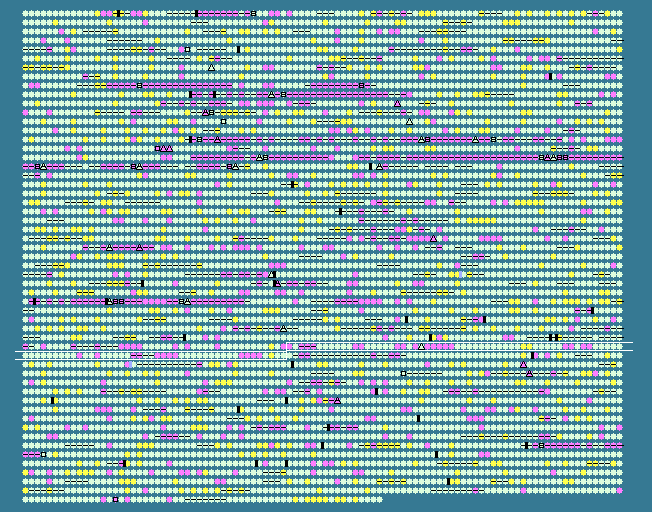

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3745	 64.78	-1	3988343..3989560	+	405	119869802	-	Mkms_3771	-	cytochrome P450
3746	 67.83	0	3989565..3990335	+	256	119869803	-	Mkms_3772	-	esterase EstC, putative
3747	 63.13	-1	3990332..3990784	-	150	119869804	-	Mkms_3773	-	hypothetical protein
3748	 63.81	-1	3990781..3991305	-	174	119869805	-	Mkms_3774	-	hypothetical protein
3749	 63.89	-1	3991302..3992669	-	455	119869806	-	Mkms_3775	-	Rieske (2Fe-2S) domain-containing protein
3750	 66.50	0	3992955..3993554	+	199	119869807	-	Mkms_3776	-	TetR family transcriptional regulator
3751	 67.01	0	3993576..3993863	-	95	119869808	-	Mkms_3777	-	hypothetical protein
3752	 66.67	0	3993882..3994073	-	63	119869809	-	Mkms_3778	-	ferredoxin 1
3753	 67.97	0	3994070..3995377	-	435	119869810	-	Mkms_3779	-	cytochrome P450
3754	 69.49	0	3995472..3996002	-	176	119869811	-	Mkms_3780	-	carboxymuconolactone decarboxylase
3755	 68.20	0	3995999..3996844	-	281	119869812	-	Mkms_3781	-	taurine catabolism dioxygenase TauD/TfdA
3756	 64.55	-1	3996864..3997193	-	109	119869813	-	Mkms_3782	-	hypothetical protein
3757	 64.24	-1	3997190..3998467	-	425	119869814	-	Mkms_3783	-	Rieske (2Fe-2S) domain-containing protein
3758	 67.74	0	3998504..3999247	-	247	119869815	-	Mkms_3784	-	short-chain dehydrogenase/reductase SDR
3759	 66.86	0	3999258..4000277	-	339	119869816	-	Mkms_3785	-	ferredoxin
3760	 68.06	0	4000342..4001421	+	359	119869817	-	Mkms_3786	-	dihydrodipicolinate reductase
3761	 68.43	0	4001425..4001877	-	150	119869818	-	Mkms_3787	-	MarR family transcriptional regulator
3762	 70.18	0	4001921..4003174	-	417	119869819	-	Mkms_3788	-	amidohydrolase
3763	 62.15	-1	4003171..4003524	-	117	119869820	-	Mkms_3789	-	hypothetical protein
3764	 63.62	-1	4003521..4004798	-	425	119869821	-	Mkms_3790	-	Rieske (2Fe-2S) domain-containing protein
3765	 70.85	0	4004947..4006428	+	493	119869822	-	Mkms_3791	-	aldehyde dehydrogenase
3766	 64.04	-1	4006439..4007200	+	253	119869823	-	Mkms_3792	-	hypothetical protein
3767	 65.32	-1	4007211..4008176	-	321	119869824	-	Mkms_3793	-	integrase catalytic subunit
3768	 64.67	-1	4008280..4009482	-	400	119869825	-	Mkms_3794	-	cytochrome P450
3769	 64.37	-1	4009507..4010115	-	202	119869826	-	Mkms_3795	-	TetR family transcriptional regulator
3770	 63.31	-1	4010223..4011353	+	376	119869827	-	Mkms_3796	-	hypothetical protein
3771	 63.18	-1	4011405..4012007	-	200	119869828	-	Mkms_3797	-	TetR family transcriptional regulator
3772	 62.11	-1	4012142..4013305	+	387	119869829	-	Mkms_3798	-	hypothetical protein
3773	 67.14	0	4013306..4014154	+	282	119869830	-	Mkms_3799	-	ATPase
3774	 67.66	0	4014151..4015863	+	570	119869831	-	Mkms_3800	-	von Willebrand factor, type A
3775	 70.56	0	4015876..4016619	-	247	119869832	-	Mkms_3801	-	alpha/beta hydrolase fold
3776	 66.45	0	4016720..4017643	+	307	119869833	-	Mkms_3802	-	NAD-dependent epimerase/dehydratase
3777	 70.97	0	4017655..4018398	+	247	119869834	-	Mkms_3803	-	hypothetical protein
3778	 70.85	0	4018411..4019367	+	318	119869835	-	Mkms_3804	-	luciferase family protein
3779	 67.81	0	4019402..4020718	-	438	119869836	-	Mkms_3805	-	hypothetical protein
3780	 68.86	0	4020763..4021308	-	181	119869837	-	Mkms_3806	-	hypothetical protein
3781	 68.82	0	4021384..4022034	+	216	119869838	-	Mkms_3807	-	TetR family transcriptional regulator
3782	 66.13	0	4022053..4023354	+	433	119869839	-	Mkms_3808	-	acyl-CoA dehydrogenase domain-containing protein
3783	 69.04	0	4023351..4024403	+	350	119869840	-	Mkms_3809	-	aminoglycoside phosphotransferase
3784	 72.60	+1	4024400..4025377	+	325	119869841	-	Mkms_3810	-	alcohol dehydrogenase
3785	 72.13	+1	4025374..4025904	-	176	119869842	-	Mkms_3811	-	hypothetical protein
3786	 67.30	0	4025901..4026533	-	210	119869843	-	Mkms_3812	-	TetR family transcriptional regulator
3787	 67.45	0	4026660..4027808	-	382	119869844	-	Mkms_3813	-	acyl-CoA dehydrogenase domain-containing protein
3788	 70.57	0	4027839..4028990	-	383	119869845	-	Mkms_3814	-	acetyl-CoA acetyltransferases
3789	 69.31	0	4029020..4030228	-	402	119869846	-	Mkms_3815	-	L-carnitine dehydratase/bile acid-inducible protein F
3790	 69.55	0	4030228..4030989	-	253	119869847	-	Mkms_3816	-	short-chain dehydrogenase/reductase SDR
3791	 64.12	-1	4030991..4032205	-	404	119869848	-	Mkms_3817	-	acyl-CoA dehydrogenase domain-containing protein
3792	 64.28	-1	4032262..4033560	-	432	119869849	-	Mkms_3818	-	amidohydrolase 2
3793	 67.42	0	4033796..4034326	+	176	119869850	-	Mkms_3819	-	carboxymuconolactone decarboxylase
3794	 63.49	-1	4034333..4035655	+	440	119869851	-	Mkms_3820	-	Rieske (2Fe-2S) domain-containing protein
3795	 63.19	-1	4035648..4035992	+	114	119869852	-	Mkms_3821	-	hypothetical protein
3796	 67.64	0	4036075..4037301	+	408	119869853	-	Mkms_3822	-	amidohydrolase
3797	 65.10	-1	4037285..4037731	+	148	119869854	-	Mkms_3823	-	hypothetical protein
3798	 67.63	0	4037728..4038870	+	380	119869855	-	Mkms_3824	-	acyl-CoA dehydrogenase domain-containing protein
3799	 70.27	0	4038867..4039670	+	267	119869856	-	Mkms_3825	-	acyl-CoA dehydrogenase domain-containing protein
3800	 67.05	0	4039698..4040480	-	260	119869857	-	Mkms_3826	-	enoyl-CoA hydratase
3801	 69.20	0	4040490..4041671	-	393	119869858	-	Mkms_3827	-	acyl-CoA dehydrogenase domain-containing protein
3802	 66.53	0	4041793..4042512	+	239	119869859	-	Mkms_3828	-	TetR family transcriptional regulator
3803	 66.43	0	4042729..4043565	+	278	119869860	-	Mkms_3829	-	short-chain dehydrogenase/reductase SDR
3804	 68.46	0	4043738..4045189	+	483	119869861	-	Mkms_3830	-	diacylglycerol O-acyltransferase
3805	 69.46	0	4045186..4046832	-	548	119869862	-	Mkms_3831	-	acyl-CoA synthetase
3806	 69.07	0	4046829..4047659	-	276	119869863	-	Mkms_3832	-	phospholipid/glycerol acyltransferase
3807	 71.16	0	4047769..4048836	+	355	119869864	-	Mkms_3833	-	NAD-dependent epimerase/dehydratase
3808	 72.00	+1	4048833..4049639	-	268	119869865	-	Mkms_3834	-	short-chain dehydrogenase/reductase SDR
3809	 70.98	0	4049656..4052091	-	811	119869866	-	Mkms_3835	-	L-carnitine dehydratase/bile acid-inducible protein F
3810	 64.63	-1	4052094..4053077	-	327	119869867	-	Mkms_3836	-	enoyl-CoA hydratase/isomerase
3811	 69.75	0	4053070..4054203	-	377	119869868	-	Mkms_3837	-	peptidase M24
3812	 68.32	0	4054193..4055461	-	422	119869869	-	Mkms_3838	-	peptidase M24
3813	 64.19	-1	4055461..4056633	-	390	119869870	-	Mkms_3839	-	amidohydrolase 2
3814	 67.47	0	4056667..4057905	-	412	119869871	-	Mkms_3840	-	cytochrome P450
3815	 66.67	0	4057907..4058101	-	64	119869872	-	Mkms_3841	-	putative ferredoxin
3816	 68.64	0	4058101..4058808	-	235	119869873	-	Mkms_3842	-	TetR family transcriptional regulator
3817	 68.55	0	4058805..4059653	-	282	119869874	-	Mkms_3843	-	short-chain dehydrogenase/reductase SDR
3818	 70.44	0	4059653..4060501	-	282	119869875	-	Mkms_3844	-	alpha/beta hydrolase fold
3819	 62.02	-2	4060565..4061854	-	429	119869876	-	Mkms_3845	-	N-6 DNA methylase
3820	 59.29	-2	4062065..4062484	-	139	119869877	-	Mkms_3846	-	hypothetical protein
3821	 67.48	0	4062481..4063338	-	285	119869878	-	Mkms_3847	-	hypothetical protein
3822	 65.15	-1	4063666..4063995	-	109	119869879	-	Mkms_3848	-	hypothetical protein
3823	 60.84	-2	4064037..4064345	-	102	119869880	-	Mkms_3849	-	hypothetical protein
3824	 56.83	-2	4064342..4065601	-	419	119869881	-	Mkms_3850	-	restriction endonuclease S subunits-like protein
3825	 64.44	-1	4065598..4065912	-	104	119869882	-	Mkms_3851	-	type I site-specific deoxyribonuclease
3826	 64.18	-1	4065909..4068320	-	803	119869883	-	Mkms_3852	-	type III restriction enzyme, res subunit
3827	 69.59	0	4068524..4069105	-	193	119869884	-	Mkms_3853	-	NADPH-dependent FMN reductase
3828	 67.68	0	4069117..4070106	-	329	119869885	-	Mkms_3854	-	hypothetical protein
3829	 69.45	0	4070108..4070932	-	274	119869886	-	Mkms_3855	-	3-alpha-hydroxysteroid dehydrogenase
3830	 66.97	0	4070941..4072251	-	436	119869887	-	Mkms_3856	-	luciferase family protein
3831	 68.74	0	4072248..4074029	-	593	119869888	-	Mkms_3857	-	3-ketosteroid-delta-1-dehydrogenase
3832	 68.98	0	4074026..4074976	-	316	119869889	-	Mkms_3858	-	3-(2,3-dihydroxyphenyl)propionate dioxygenase
3833	 68.99	0	4074891..4076612	-	573	119869890	-	Mkms_3859	-	3-(3-hydroxyphenyl)propionate hydroxylase
3834	 68.17	0	4076612..4077475	-	287	119869891	-	Mkms_3860	-	alpha/beta hydrolase fold
3835	 68.33	0	4077534..4078316	+	260	119869892	-	Mkms_3861	-	regulatory proteins, IclR
3836	 70.97	0	4078348..4079949	+	533	119869893	-	Mkms_3862	-	fumarate reductase/succinate dehydrogenase flavoprotein domain-containing protein
3837	 62.96	-1	4079976..4080272	-	98	119869894	-	Mkms_3863	-	hypothetical protein
3838	 60.30	-2	4080276..4080872	-	198	119869895	-	Mkms_3864	-	cytochrome c oxidase, subunit III
3839	 63.38	-1	4080869..4081690	-	273	119869896	-	Mkms_3865	-	hypothetical protein
3840	 63.99	-1	4081687..4082397	-	236	119869897	-	Mkms_3866	-	hypothetical protein
3841	 67.88	0	4082502..4083077	+	191	119869898	-	Mkms_3867	-	TetR family transcriptional regulator
3842	 72.39	+1	4083079..4083951	-	290	119869899	-	Mkms_3868	-	LAO/AO transport system ATPase
3843	 70.05	0	4083964..4085115	-	383	119869900	-	Mkms_3869	-	acetyl-CoA acetyltransferases
3844	 68.37	0	4085194..4085958	+	254	119869901	-	Mkms_3870	-	short-chain dehydrogenase/reductase SDR
68.56	MEAN

3.23	STD DEV
