IslandPathversion 1.0

IslandPath Analysis: Mycobacterium sp. KMS

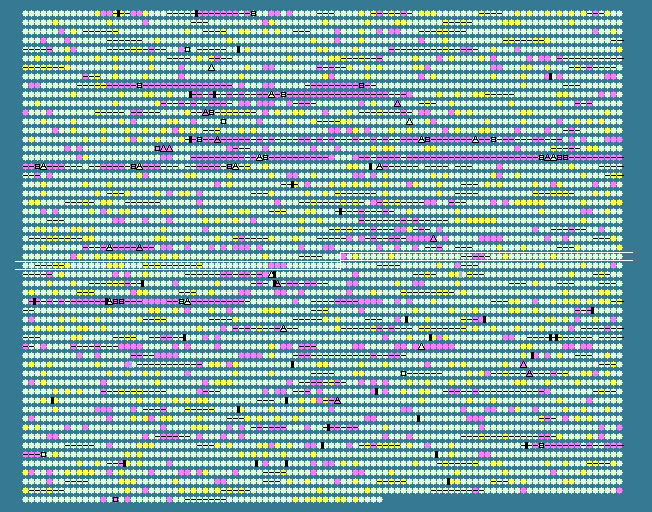

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2754	 64.41	-1	2898914..2899798	-	294	119868811	-	Mkms_2779	-	cyclopropane-fatty-acyl-phospholipid synthase
2755	 66.67	0	2900037..2900252	+	71	119868812	-	Mkms_2780	-	hypothetical protein
2756	 72.66	+1	2900264..2900830	+	188	119868813	-	Mkms_2781	-	chorismate mutase
2757	 70.20	0	2900849..2901697	+	282	119868814	-	Mkms_2782	-	short chain dehydrogenase
2758	 67.32	0	2901859..2902320	+	153	119868815	-	Mkms_2783	-	cyclase/dehydrase
2759	 67.34	0	2902317..2904242	-	641	119868816	-	Mkms_2784	-	hypothetical protein
2760	 67.79	0	2904293..2904739	+	148	119868817	-	Mkms_2785	-	hypothetical protein
2761	 67.13	0	2904750..2906033	+	427	119868818	-	Mkms_2786	-	cytochrome P450
2762	 72.77	+1	2905996..2907339	-	447	119868819	-	Mkms_2787	-	FAD dependent oxidoreductase
2763	 71.01	0	2907398..2908042	+	214	119868820	-	Mkms_2788	-	TetR family transcriptional regulator
2764	 69.30	0	2908105..2909205	+	366	119868821	-	Mkms_2789	-	hypothetical protein
2765	 66.53	0	2909190..2909912	-	240	119868822	-	Mkms_2790	-	HAD family hydrolase
2766	 70.94	0	2909909..2910517	-	202	119868823	-	Mkms_2791	-	hypothetical protein
2767	 70.52	0	2910593..2911759	-	388	119868824	-	Mkms_2792	-	glycosyl transferase, group 1
2768	 68.07	0	2911880..2913301	+	473	119868825	-	Mkms_2793	-	hypothetical protein
2769	 69.52	0	2913289..2914200	-	303	119868826	-	Mkms_2794	-	dienelactone hydrolase
2770	 69.37	0	2914267..2915190	+	307	119868827	-	Mkms_2795	-	short chain dehydrogenase
2771	 68.17	0	2915273..2917069	+	598	119868828	-	Mkms_2796	-	hypothetical protein
2772	 66.67	0	2917059..2917502	+	147	119868829	-	Mkms_2797	-	limonene-1,2-epoxide hydrolase
2773	 69.62	0	2917539..2918891	-	450	119868830	-	Mkms_2798	-	glutamine synthetase, catalytic region
2774	 67.68	0	2918936..2919430	-	164	119868831	-	Mkms_2799	-	carboxymuconolactone decarboxylase
2775	 68.77	0	2919457..2921505	-	682	119868832	-	Mkms_2800	-	EmrB/QacA family drug resistance transporter
2776	 57.50	-2	2921664..2922143	-	159	119868833	-	Mkms_2801	-	bacterioferritin
2777	 64.30	-1	2922382..2923014	+	210	119868834	-	Mkms_2802	-	FadD16
2778	 68.52	0	2923026..2923241	+	71	119868835	-	Mkms_2803	-	BFD/(2Fe-2S)-binding domain-containing protein
2779	 69.43	0	2923246..2924004	-	252	119868836	-	Mkms_2804	-	enoyl-CoA hydratase/isomerase
2780	 69.08	0	2924020..2924724	-	234	119868837	-	Mkms_2805	-	hypothetical protein
2781	 72.21	+1	2924818..2926767	+	649	119868838	-	Mkms_2806	-	membrane protein-like protein
2782	 68.38	0	2926736..2927437	-	233	119868839	-	Mkms_2807	-	thioesterase superfamily protein
2783	 70.30	0	2927483..2928886	+	467	119868840	-	Mkms_2808	-	amidase
2784	 68.11	0	2928883..2929575	+	230	119868841	-	Mkms_2809	-	isochorismatase hydrolase
2785	 67.29	0	2929585..2931177	+	530	119868842	-	Mkms_2810	-	xanthine/uracil/vitamin C permease
2786	 70.77	0	2931266..2931826	+	186	119868843	-	Mkms_2811	-	TetR family transcriptional regulator
2787	 71.86	+1	2931848..2932867	+	339	119868844	-	Mkms_2812	-	integral membrane protein
2788	 70.57	0	2932845..2934536	+	563	119868845	-	Mkms_2813	-	TPR repeat-containing protein
2789	 72.92	+1	2934567..2935046	+	159	119868846	-	Mkms_2814	-	CMP/dCMP deaminase, zinc-binding
2790	 69.12	0	2935043..2936344	+	433	119868847	-	Mkms_2815	-	alpha amylase, catalytic region
2791	 68.53	0	2936349..2936777	-	142	119868848	-	Mkms_2816	-	hypothetical protein
2792	 65.67	0	2936977..2937981	+	334	119868849	-	Mkms_2817	-	putative esterase
2793	 71.28	0	2938089..2938565	+	158	119868850	-	Mkms_2818	-	hypothetical protein
2794	 70.28	0	2938631..2940982	+	783	119868851	-	Mkms_2819	-	ATP-dependent protease La
2795	 70.57	0	2941054..2941386	+	110	119868852	-	Mkms_2820	-	hypothetical protein
2796	 70.30	0	2941424..2942056	+	210	119868853	-	Mkms_2821	-	hypothetical protein
2797	 69.25	0	2942053..2942787	+	244	119868854	-	Mkms_2822	-	hypothetical protein
2798	 71.52	0	2942835..2943452	+	205	119868855	-	Mkms_2823	-	hypothetical protein
2799	 65.81	0	2943532..2944587	-	351	119868856	-	Mkms_2824	-	periplasmic binding protein/LacI transcriptional regulator
2800	 65.62	0	2944635..2945684	-	349	119868857	-	Mkms_2825	-	periplasmic binding protein/LacI transcriptional regulator
2801	 65.40	0	2945727..2946755	-	342	119868858	-	Mkms_2826	-	inner-membrane translocator
2802	 67.51	0	2946752..2948293	-	513	119868859	-	Mkms_2827	-	ABC transporter related
2803	 70.64	0	2948297..2949328	-	343	119868860	-	Mkms_2828	-	alcohol dehydrogenase
2804	 67.45	0	2949322..2950089	-	255	119868861	-	Mkms_2829	-	short-chain dehydrogenase/reductase SDR
2805	 68.52	0	2950089..2951114	-	341	119868862	-	Mkms_2830	-	alcohol dehydrogenase
2806	 72.50	+1	2951116..2951766	-	216	119868863	-	Mkms_2831	-	ribulose-phosphate 3-epimerase
2807	 72.13	+1	2951763..2953244	-	493	119868864	-	Mkms_2832	-	xylulokinase
2808	 72.87	+1	2953241..2953885	-	214	119868865	-	Mkms_2833	-	sugar isomerase (SIS)
2809	 69.71	0	2954043..2954963	+	306	119868866	-	Mkms_2834	-	DeoR family transcriptional regulator
2810	 70.04	0	2954992..2955762	+	256	119868867	-	Mkms_2835	-	short chain dehydrogenase
2811	 69.57	0	2955755..2957233	-	492	119868868	-	Mkms_2836	-	acetyl-CoA acetyltransferase
2812	 67.29	0	2957415..2959835	+	806	119868869	-	Mkms_2837	-	putative phosphoketolase
2813	 68.98	0	2959864..2960598	+	244	119868870	-	Mkms_2838	-	abortive infection protein
2814	 65.96	0	2960705..2960989	+	94	119868871	-	Mkms_2839	-	hypothetical protein
2815	 74.55	+1	2961081..2962082	-	333	119868872	-	Mkms_2840	-	fibronectin-attachment family protein
2816	 74.74	+1	2962282..2963358	-	358	119868873	-	Mkms_2841	-	ABC transporter related
2817	 72.59	+1	2963355..2964164	-	269	119868874	-	Mkms_2842	-	NifC-like ABC-type porter
2818	 70.16	0	2964298..2964984	+	228	119868875	-	Mkms_2843	-	short chain dehydrogenase
2819	 65.16	-1	2965003..2965932	+	309	119868876	-	Mkms_2844	-	luciferase family protein
2820	 67.89	0	2966043..2967428	+	461	119868877	-	Mkms_2845	-	NADH dehydrogenase
2821	 72.67	+1	2967421..2968053	-	210	119868878	-	Mkms_2846	-	putative urease accessory protein
2822	 69.12	0	2968053..2968745	-	230	119868879	-	Mkms_2847	-	urease accessory protein UreG
2823	 74.37	+1	2968771..2969406	-	211	119868880	-	Mkms_2848	-	urease accessory protein UreF
2824	 69.63	0	2969423..2971144	-	573	119868881	ureC	Mkms_2849	-	urease subunit alpha
2825	 70.75	0	2971141..2971458	-	105	119868882	-	Mkms_2850	-	urease, beta subunit
2826	 70.63	0	2971467..2971769	-	100	119868883	ureA	Mkms_2851	-	urease subunit gamma
2827	 67.65	0	2971818..2972222	-	134	119868884	-	Mkms_2852	-	hypothetical protein
2828	 71.83	+1	2972397..2973170	-	257	119868885	-	Mkms_2853	-	hypothetical protein
2829	 71.22	0	2973374..2973790	+	138	119868886	-	Mkms_2854	-	CopY family transcriptional regulator
2830	 72.87	+1	2973805..2974755	+	316	119868887	-	Mkms_2855	-	peptidase M48, Ste24p
2831	 67.49	0	2974804..2976264	+	486	119868888	-	Mkms_2856	-	6-phosphogluconate dehydrogenase
2832	 70.91	0	2976348..2977784	+	478	119868889	-	Mkms_2857	-	inositol-5-monophosphate dehydrogenase
2833	 69.92	0	2977991..2979406	+	471	119868890	-	Mkms_2858	-	hypothetical protein
2834	 69.13	0	2979406..2980461	+	351	119868891	-	Mkms_2859	-	hypothetical protein
2835	 69.35	0	2980521..2981378	+	285	119868892	-	Mkms_2860	-	hypothetical protein
2836	 66.39	0	2981438..2983633	+	731	119868893	-	Mkms_2861	-	malate synthase G
2837	 70.65	0	2983739..2985796	+	685	119868894	-	Mkms_2862	-	hypothetical protein
2838	 70.36	0	2985881..2987233	+	450	119868895	-	Mkms_2863	-	hypothetical protein
2839	 65.92	0	2987218..2988024	-	268	119868896	-	Mkms_2864	-	short-chain dehydrogenase/reductase SDR
2840	 68.26	0	2988224..2990104	+	626	119868897	-	Mkms_2865	-	X-Pro dipeptidyl-peptidase domain-containing protein
2841	 65.33	-1	2990091..2990612	-	173	119868898	-	Mkms_2866	-	hypothetical protein
2842	 63.43	-1	2990701..2991132	+	143	119868899	-	Mkms_2867	-	hypothetical protein
2843	 64.07	-1	2991077..2991499	-	140	119868900	-	Mkms_2868	-	hypothetical protein
2844	 61.20	-2	2991580..2993208	-	542	119868901	-	Mkms_2869	-	hypothetical protein
2845	 65.38	0	2993775..2995253	+	492	119868902	-	Mkms_2870	-	hypothetical protein
2846	 66.67	0	2995275..2996159	-	294	119868903	-	Mkms_2871	-	O-methyltransferase domain-containing protein
2847	 65.69	0	2996175..2997407	-	410	119868904	-	Mkms_2872	-	acyltransferase PapA5
2848	 65.74	0	2997478..2998341	-	287	119868905	-	Mkms_2873	-	daunorubicin resistance ABC transporter, inner membrane subunit C
2849	 65.80	0	2998341..2999150	-	269	119868906	-	Mkms_2874	-	multidrug ABC transporter inner membrane protein
2850	 67.48	0	2999147..3000247	-	366	119868907	-	Mkms_2875	-	daunorubicin resistance ABC transporter ATPase subunit
2851	 68.97	0	3000304..3004722	-	1472	119868908	-	Mkms_2876	-	beta-ketoacyl synthase
2852	 69.14	0	3004719..3009281	-	1520	119868909	-	Mkms_2877	-	beta-ketoacyl synthase
2853	 69.52	0	3009287..3012859	-	1190	119868910	-	Mkms_2878	-	beta-ketoacyl synthase
68.56	MEAN

3.23	STD DEV
