IslandPathversion 1.0

IslandPath Analysis: Mycobacterium sp. KMS

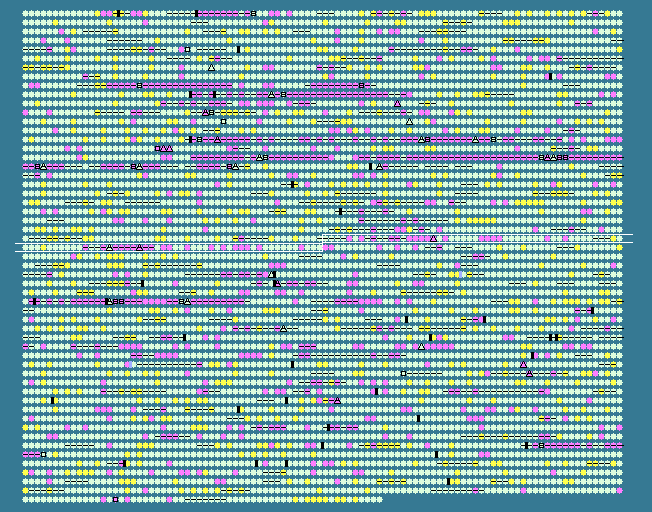

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2551	 70.48	0	2702618..2703430	+	270	119868608	-	Mkms_2573	-	hypothetical protein
2552	 70.31	0	2703452..2704933	+	493	119868609	-	Mkms_2574	-	carbohydrate kinase, FGGY
2553	 69.77	0	2705036..2706001	+	321	119868610	-	Mkms_2575	-	luciferase family protein
2554	 66.39	0	2706017..2707090	+	357	119868611	-	Mkms_2576	-	dihydrodipicolinate reductase
2555	 63.23	-1	2707113..2708306	+	397	119868612	-	Mkms_2577	-	cytochrome P450
2556	 65.74	0	2708346..2709641	-	431	119868613	-	Mkms_2578	-	virulence factor Mce family protein
2557	 61.90	-2	2709815..2711095	-	426	119868614	-	Mkms_2579	-	amidohydrolase 2
2558	 65.54	0	2711110..2712084	-	324	119868615	-	Mkms_2580	-	short-chain dehydrogenase/reductase SDR
2559	 63.48	-1	2712189..2712752	-	187	119868616	-	Mkms_2581	-	acyl-CoA dehydrogenases-like protein
2560	 68.71	0	2712807..2714522	+	571	119868617	-	Mkms_2582	-	von Willebrand factor, type A
2561	 66.43	0	2714664..2715515	+	283	119868618	-	Mkms_2583	-	ATPase
2562	 63.81	-1	2715599..2716717	+	372	119868619	-	Mkms_2584	-	hypothetical protein
2563	 62.09	-2	2716722..2717858	+	378	119868620	-	Mkms_2585	-	hypothetical protein
2564	 66.86	0	2717839..2718885	+	348	119868621	-	Mkms_2586	-	short-chain dehydrogenase/reductase SDR
2565	 64.60	-1	2718878..2720380	+	500	119868622	-	Mkms_2587	-	aldehyde dehydrogenase
2566	 64.12	-1	2720451..2721668	+	405	119868623	-	Mkms_2588	-	cytochrome P450
2567	 63.84	-1	2721792..2723063	+	423	119868624	-	Mkms_2589	-	cytochrome P450
2568	 64.85	-1	2723084..2724460	+	458	119868625	-	Mkms_2590	-	diacylglycerol O-acyltransferase
2569	 64.97	-1	2724528..2725529	+	333	119868626	-	Mkms_2591	-	integrase catalytic subunit
2570	 66.17	0	2725550..2726359	-	269	119868627	-	Mkms_2592	-	phospholipid/glycerol acyltransferase
2571	 64.32	-1	2726505..2727953	-	482	119868628	-	Mkms_2593	-	TetR family transcriptional regulator
2572	 66.67	0	2728143..2729021	+	292	119868629	-	Mkms_2594	-	short-chain dehydrogenase/reductase SDR
2573	 68.49	0	2729018..2729674	-	218	119868630	-	Mkms_2595	-	TetR family transcriptional regulator
2574	 66.41	0	2729861..2730649	+	262	119868631	-	Mkms_2596	-	hypothetical protein
2575	 66.25	0	2730660..2731865	+	401	119868632	-	Mkms_2597	-	cytochrome P450
2576	 71.23	0	2731869..2732897	-	342	119868633	-	Mkms_2598	-	DeoR family transcriptional regulator
2577	 64.92	-1	2733015..2734103	+	362	119868634	-	Mkms_2599	-	alcohol dehydrogenase
2578	 64.71	-1	2734124..2735551	+	475	119868635	-	Mkms_2600	-	extracellular solute-binding protein
2579	 63.11	-1	2735564..2736520	+	318	119868636	-	Mkms_2601	-	binding-protein-dependent transport systems inner membrane component
2580	 63.59	-1	2736523..2737401	+	292	119868637	-	Mkms_2602	-	binding-protein-dependent transport systems inner membrane component
2581	 68.73	0	2737401..2738516	+	371	119868638	-	Mkms_2603	-	ABC transporter related
2582	 68.17	0	2738513..2739640	+	375	119868639	-	Mkms_2604	-	ABC transporter related
2583	 71.88	+1	2739637..2741382	+	581	119868640	-	Mkms_2605	-	Glycerone kinase
2584	 66.67	0	2741379..2741858	+	159	119868641	-	Mkms_2606	-	ribose 5-phosphate isomerase
2585	 68.97	0	2741874..2742350	-	158	119868642	-	Mkms_2607	-	hypothetical protein
2586	 71.94	+1	2742627..2743460	+	277	119868643	-	Mkms_2608	-	hypothetical protein
2587	 65.73	0	2743543..2744400	-	285	119868644	-	Mkms_2609	-	binding-protein-dependent transport systems inner membrane component
2588	 62.90	-1	2744397..2745272	-	291	119868645	-	Mkms_2610	-	binding-protein-dependent transport systems inner membrane component
2589	 67.17	0	2745282..2746472	-	396	119868646	-	Mkms_2611	-	extracellular solute-binding protein
2590	 66.67	0	2746545..2747711	-	388	119868647	-	Mkms_2612	-	spermidine/putrescine ABC transporter ATPase subunit
2591	 64.81	-1	2748034..2748465	+	143	119868648	-	Mkms_2613	-	hypothetical protein
2592	 70.77	0	2748462..2749925	-	487	119868649	-	Mkms_2614	-	major facilitator superfamily transporter
2593	 68.33	0	2750038..2750517	+	159	119868650	-	Mkms_2615	-	TspO and MBR like proteins
2594	 65.53	0	2750575..2751102	+	175	119868651	-	Mkms_2616	-	hypothetical protein
2595	 70.18	0	2751106..2752188	-	360	119868652	-	Mkms_2617	-	3-isopropylmalate dehydrogenase
2596	 69.71	0	2752251..2753303	-	350	119868653	-	Mkms_2618	-	tartrate dehydrogenase
2597	 67.04	0	2753300..2754904	-	534	119868654	-	Mkms_2619	-	anion transporter
2598	 69.05	0	2755003..2755422	-	139	119868655	-	Mkms_2620	-	hypothetical protein
2599	 72.28	+1	2755547..2755813	-	88	119868656	-	Mkms_2621	-	hypothetical protein
2600	 66.19	0	2755908..2756324	-	138	119868657	-	Mkms_2622	-	hypothetical protein
2601	 67.08	0	2756350..2756832	-	160	119868658	-	Mkms_2623	-	MarR family transcriptional regulator
2602	 69.46	0	2756870..2757763	+	297	119868659	-	Mkms_2624	-	hypothetical protein
2603	 68.87	0	2757773..2758180	-	135	119868660	-	Mkms_2625	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2604	 72.17	+1	2758177..2759775	-	532	119868661	-	Mkms_2626	-	fumarate reductase/succinate dehydrogenase flavoprotein domain-containing protein
2605	 71.54	0	2759759..2760496	-	245	119868662	-	Mkms_2627	-	ABC transporter related
2606	 67.13	0	2760493..2761362	-	289	119868663	-	Mkms_2628	-	binding-protein-dependent transport systems inner membrane component
2607	 67.29	0	2761359..2762318	-	319	119868664	-	Mkms_2629	-	ABC-type nitrate/sulfonate/bicarbonate transport systems periplasmic components-like protein
2608	 66.19	0	2762500..2763126	+	208	119868665	-	Mkms_2630	-	uncharacterized peroxidase-related enzyme
2609	 68.78	0	2763131..2764027	-	298	119868666	-	Mkms_2631	-	6-phosphogluconate dehydrogenase, NAD-binding
2610	 68.42	0	2764558..2765526	+	322	119868667	-	Mkms_2633	-	putative integral membrane protein
2611	 61.90	-2	2765822..2766052	-	76	119868668	-	Mkms_2634	-	hypothetical protein
2612	 68.59	0	2766275..2767576	+	433	119868669	-	Mkms_2635	-	tryptophan synthase subunit beta
2613	 69.07	0	2767638..2768177	+	179	119868670	-	Mkms_2636	-	hypothetical protein
2614	 64.06	-1	2768671..2769015	+	114	119868671	-	Mkms_2637	-	Fis family transcriptional regulator
2615	 65.12	-1	2769093..2769932	+	279	119868672	-	Mkms_2638	-	integrase catalytic subunit
2616	 59.91	-2	2771423..2774086	-	887	119868673	-	Mkms_2640	-	hypothetical protein
2617	 58.75	-2	2774633..2774872	+	79	119868674	-	Mkms_2641	-	hypothetical protein
2618	 63.79	-1	2774948..2776405	-	485	119868675	-	Mkms_2642	-	Fis family transcriptional regulator
2619	 61.48	-2	2776383..2776748	-	121	119868676	-	Mkms_2643	-	hypothetical protein
2620	 59.80	-2	2776741..2777862	-	373	119868677	-	Mkms_2644	-	phage integrase family protein
2621	 55.81	-2	2778343..2778600	-	85	119868678	-	Mkms_2645	-	hypothetical protein
2622	 64.67	-1	2778857..2779408	+	183	119868679	-	Mkms_2646	-	YaeQ family protein
2623	 71.90	+1	2779620..2779829	+	69	119868680	-	Mkms_2647	-	hypothetical protein
2624	 64.00	-1	2780263..2780712	+	149	119868681	-	Mkms_2648	-	hypothetical protein
2625	 64.89	-1	2781188..2782366	+	392	119868682	-	Mkms_2649	-	acyl-CoA dehydrogenase type 2
2626	 65.22	-1	2782369..2783334	+	321	119868683	-	Mkms_2650	-	fumarylacetoacetate (FAA) hydrolase
2627	 67.55	0	2783340..2785256	+	638	119868684	-	Mkms_2651	-	acyl-CoA synthetase
2628	 64.88	-1	2785213..2785659	-	148	119868685	-	Mkms_2652	-	hypothetical protein
2629	 66.67	0	2785752..2786600	+	282	119868686	-	Mkms_2653	-	LysR family transcriptional regulator
2630	 66.99	0	2786692..2787315	+	207	119868687	-	Mkms_2654	-	TetR family transcriptional regulator
2631	 68.93	0	2787335..2787511	-	58	119868688	-	Mkms_2655	-	putative 3,4-dihydroxyphenylacetate 2,3-dioxygenase
2632	 64.14	-1	2787521..2788390	-	289	119868689	-	Mkms_2656	-	3,4-dihydroxyphenylacetate 2,3-dioxygenase
2633	 65.27	-1	2788424..2789926	-	500	119868690	-	Mkms_2657	-	5-carboxymethyl-2-hydroxymuconate semialdehyde dehydrogenase
2634	 64.35	-1	2789923..2790873	-	316	119868691	-	Mkms_2658	-	dihydrodipicolinate synthase
2635	 67.25	0	2790870..2792399	-	509	119868692	-	Mkms_2659	-	hypothetical protein
2636	 64.62	-1	2792582..2793118	+	178	119868693	-	Mkms_2660	-	flavin reductase domain-containing protein
2637	 64.31	-1	2793293..2794651	+	452	119868694	-	Mkms_2661	-	4-hydroxyphenylacetate 3-monooxygenase, oxygenase subunit
2638	 63.67	-1	2794692..2796527	+	611	119868695	-	Mkms_2662	-	acyl-CoA dehydrogenase domain-containing protein
2639	 68.04	0	2797132..2798004	+	290	119868696	-	Mkms_2663	-	short-chain dehydrogenase/reductase SDR
2640	 64.38	-1	2798013..2798492	+	159	119868697	-	Mkms_2664	-	MerR family transcriptional regulator
2641	 65.41	0	2798595..2799392	+	265	119868698	-	Mkms_2665	-	dienelactone hydrolase
2642	 66.00	0	2799374..2800267	-	297	119868699	-	Mkms_2666	-	helix-turn-helix domain-containing protein
2643	 66.08	0	2800311..2801165	-	284	119868700	-	Mkms_2667	-	short-chain dehydrogenase/reductase SDR
2644	 67.91	0	2801240..2801800	-	186	119868701	-	Mkms_2668	-	TetR family transcriptional regulator
2645	 66.93	0	2801891..2802637	+	248	119868702	-	Mkms_2669	-	short-chain dehydrogenase/reductase SDR
2646	 67.97	0	2802650..2803342	-	230	119868703	-	Mkms_2670	-	helix-turn-helix, type 11 domain-containing protein
2647	 63.95	-1	2803364..2803768	-	134	119868704	-	Mkms_2671	-	hypothetical protein
2648	 65.96	0	2803971..2805665	+	564	119868705	-	Mkms_2672	-	glucose-methanol-choline oxidoreductase
2649	 67.41	0	2805758..2806567	+	269	119868706	-	Mkms_2673	-	hypothetical protein
2650	 70.63	0	2806783..2807160	-	125	119868707	-	Mkms_2674	-	hypothetical protein
68.56	MEAN

3.23	STD DEV
