IslandPath Analysis: Mycobacterium sp. KMS

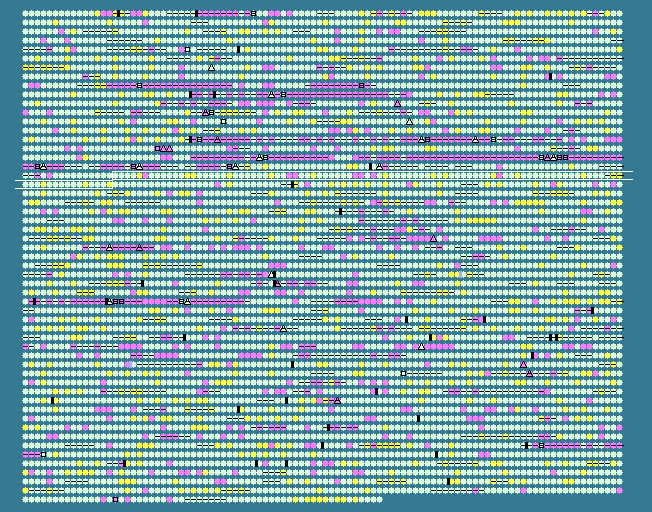

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.56 STD DEV: 3.23
Mycobacterium sp. KMS, complete genome - 1..5737227
5460 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1816	 69.71	0	1947347..1947970	-	207	119867873	-	Mkms_1834	-	isochorismatase hydrolase
1817	 65.37	0	1947967..1948965	-	332	119867874	-	Mkms_1835	-	Rieske (2Fe-2S) domain-containing protein
1818	 70.99	0	1949060..1950100	+	346	119867875	-	Mkms_1836	-	NAD-dependent epimerase/dehydratase
1819	 68.89	0	1950097..1951716	+	539	119867876	-	Mkms_1837	-	hypothetical protein
1820	 72.16	+1	1951713..1952822	+	369	119867877	-	Mkms_1838	-	hypothetical protein
1821	 62.40	-1	1952889..1953263	+	124	119867878	-	Mkms_1839	-	hypothetical protein
1822	 68.10	0	1953257..1954303	+	348	119867879	-	Mkms_1840	-	luciferase family protein
1823	 68.87	0	1954360..1955856	-	498	119867880	-	Mkms_1841	-	propionyl-CoA carboxylase
1824	 68.64	0	1955918..1956979	+	353	119867881	-	Mkms_1842	-	putative oxidoreductase
1825	 68.44	0	1956976..1958217	+	413	119867882	-	Mkms_1843	-	cytochrome P450
1826	 70.29	0	1958221..1958358	-	45	119867883	-	Mkms_1844	-	hypothetical protein
1827	 67.54	0	1958358..1960652	-	764	119867884	-	Mkms_1845	-	carbon starvation protein CstA
1828	 72.87	+1	1960743..1962305	-	520	119867885	ligB	Mkms_1846	-	ATP-dependent DNA ligase
1829	 73.33	+1	1962327..1962716	-	129	119867886	-	Mkms_1847	-	GatB/YqeY
1830	 71.93	+1	1962787..1964325	-	512	119867887	-	Mkms_1848	-	oxidoreductase, molybdopterin binding
1831	 69.96	0	1964426..1965184	+	252	119867888	-	Mkms_1849	-	short-chain dehydrogenase/reductase SDR
1832	 68.60	0	1965242..1965913	-	223	119867889	-	Mkms_1850	-	HxlR family transcriptional regulator
1833	 71.62	0	1966041..1966868	+	275	119867890	-	Mkms_1851	-	methyltransferase type 11
1834	 69.20	0	1966881..1967945	+	354	119867891	-	Mkms_1852	-	aminoglycoside phosphotransferase
1835	 72.90	+1	1967951..1968784	-	277	119867892	-	Mkms_1853	-	hypothetical protein
1836	 71.93	+1	1968903..1969415	+	170	119867893	-	Mkms_1854	-	hypothetical protein
1837	 65.86	0	1969425..1970918	-	497	119867894	-	Mkms_1855	-	cytochrome P450
1838	 68.87	0	1971038..1971673	+	211	119867895	-	Mkms_1856	-	TetR family transcriptional regulator
1839	 68.41	0	1971704..1972561	+	285	119867896	-	Mkms_1857	-	short chain dehydrogenase
1840	 71.78	0	1972569..1973741	-	390	119867897	-	Mkms_1858	-	hypothetical protein
1841	 70.41	0	1973751..1974818	-	355	119867898	-	Mkms_1859	-	DNA polymerase IV
1842	 73.30	+1	1974822..1975424	-	200	119867899	-	Mkms_1860	-	TetR family transcriptional regulator
1843	 68.96	0	1975520..1976086	+	188	119867900	-	Mkms_1861	-	NADPH-dependent FMN reductase
1844	 66.27	0	1976552..1976803	+	83	119867901	-	Mkms_1862	-	ribonucleoside-diphosphate reductase class Ib glutaredoxin subunit
1845	 63.40	-1	1976836..1977294	+	152	119867902	nrdI	Mkms_1863	-	ribonucleotide reductase stimulatory protein
1846	 61.05	-2	1977348..1979429	+	693	119867903	-	Mkms_1864	-	ribonucleotide-diphosphate reductase subunit alpha
1847	 69.46	0	1979437..1980690	-	417	119867904	-	Mkms_1865	-	putative transmembrane protein
1848	 68.04	0	1980746..1981108	-	120	119867905	-	Mkms_1866	-	hypothetical protein
1849	 72.97	+1	1981161..1981874	+	237	119867906	-	Mkms_1867	-	LysR family transcriptional regulator
1850	 71.30	0	1982547..1983344	-	265	119867907	-	Mkms_1869	-	short-chain dehydrogenase/reductase SDR
1851	 68.14	0	1983523..1985085	+	520	119867908	-	Mkms_1870	-	extracellular solute-binding protein
1852	 68.14	0	1985091..1985702	+	203	119867909	-	Mkms_1871	-	TetR family transcriptional regulator
1853	 69.40	0	1985738..1986835	+	365	119867910	-	Mkms_1872	-	agmatinase
1854	 66.58	0	1986910..1988091	-	393	119867911	-	Mkms_1873	-	geranylgeranyl reductase
1855	 67.07	0	1988234..1988974	+	246	119867912	-	Mkms_1874	-	TetR family transcriptional regulator
1856	 62.51	-1	1989112..1990074	+	320	119867913	nrdF	Mkms_1875	-	ribonucleotide-diphosphate reductase subunit beta
1857	 64.51	-1	1990161..1990670	+	169	119867914	-	Mkms_1876	-	hypothetical protein
1858	 68.48	0	1990774..1991103	+	109	119867915	-	Mkms_1877	-	hypothetical protein
1859	 64.71	-1	1991148..1991606	-	152	119867916	-	Mkms_1878	-	hypothetical protein
1860	 67.96	0	1991786..1993177	+	463	119867917	-	Mkms_1879	-	general substrate transporter
1861	 72.56	+1	1993188..1993628	-	146	119867918	-	Mkms_1880	-	hypothetical protein
1862	 66.94	0	1993670..1994029	-	119	119867919	-	Mkms_1881	-	hypothetical protein
1863	 68.44	0	1994302..1995261	+	319	119867920	-	Mkms_1882	-	putative esterase
1864	 67.81	0	1995332..1996384	-	350	119867921	-	Mkms_1883	-	alcohol dehydrogenase
1865	 68.75	0	1996497..1996832	-	111	119867922	-	Mkms_1884	-	YCII-related
1866	 71.97	+1	1996924..1997847	+	307	119867923	-	Mkms_1885	-	hypothetical protein
1867	 69.46	0	1997844..1998488	+	214	119867924	-	Mkms_1886	-	hypothetical protein
1868	 71.89	+1	1998485..2002102	+	1205	119867925	-	Mkms_1887	-	biotin carboxylation domain-containing protein
1869	 73.46	+1	2002099..2003835	+	578	119867926	-	Mkms_1888	-	amidase
1870	 70.04	0	2003814..2004494	-	226	119867927	-	Mkms_1889	-	TetR family transcriptional regulator
1871	 72.42	+1	2004737..2006734	+	665	119867928	-	Mkms_1890	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1872	 71.28	0	2006734..2007600	+	288	119867929	-	Mkms_1891	-	binding-protein-dependent transport systems inner membrane component
1873	 68.36	0	2007609..2008613	+	334	119867930	-	Mkms_1892	-	binding-protein-dependent transport systems inner membrane component
1874	 67.90	0	2008614..2009264	+	216	119867931	-	Mkms_1893	-	isochorismatase hydrolase
1875	 66.54	0	2009261..2010841	+	526	119867932	-	Mkms_1894	-	extracellular solute-binding protein
1876	 67.98	0	2010841..2011677	+	278	119867933	-	Mkms_1895	-	beta-lactamase domain-containing protein
1877	 71.40	0	2011674..2012222	+	182	119867934	-	Mkms_1896	-	hypothetical protein
1878	 68.20	0	2012219..2013259	+	346	119867935	-	Mkms_1897	-	2OG-Fe(II) oxygenase
1879	 72.98	+1	2013252..2014313	-	353	119867936	-	Mkms_1898	-	periplasmic binding protein
1880	 64.41	-1	2014521..2016251	+	576	119867937	-	Mkms_1899	-	cytochrome-c oxidase
1881	 70.18	0	2016289..2017542	+	417	119867938	-	Mkms_1900	-	phosphoserine phosphatase SerB
1882	 70.49	0	2017599..2019035	-	478	119867939	-	Mkms_1901	-	GntR family transcriptional regulator
1883	 72.83	+1	2019264..2019944	+	226	119867940	-	Mkms_1902	-	hypothetical protein
1884	 69.99	0	2019914..2020786	+	290	119867941	-	Mkms_1903	-	ABC transporter related
1885	 71.74	0	2020783..2021610	+	275	119867942	-	Mkms_1904	-	NUDIX hydrolase
1886	 70.81	0	2021615..2022265	+	216	119867943	-	Mkms_1905	-	enoyl-CoA hydratase
1887	 68.19	0	2022276..2023262	+	328	119867944	-	Mkms_1906	-	methyltransferase type 11
1888	 71.59	0	2023196..2024434	+	412	119867945	-	Mkms_1907	-	hypothetical protein
1889	 69.81	0	2024457..2025155	+	232	119867946	-	Mkms_1908	-	immunogenic protein MPB64/MPT64 precursor
1890	 66.93	0	2025152..2026690	-	512	119867947	-	Mkms_1909	-	amino acid carrier protein
1891	 71.88	+1	2026826..2028109	-	427	119867948	-	Mkms_1910	-	Pyrrolo-quinoline quinone
1892	 66.40	0	2028187..2028924	+	245	119867949	-	Mkms_1911	-	putative transferase
1893	 70.06	0	2030446..2031684	-	412	119867950	-	Mkms_1913	-	glycosyl transferase, group 1
1894	 72.73	+1	2031695..2033260	-	521	119867951	-	Mkms_1914	-	glycoside hydrolase family protein
1895	 68.97	0	2033257..2034036	-	259	119867952	-	Mkms_1915	-	methyltransferase type 11
1896	 66.67	0	2034243..2035043	+	266	119867953	-	Mkms_1916	-	electron transfer flavoprotein beta-subunit
1897	 69.59	0	2035084..2036040	+	318	119867954	-	Mkms_1917	-	electron transfer flavoprotein, alpha subunit
1898	 69.46	0	2036197..2037018	+	273	119867955	-	Mkms_1918	-	short-chain dehydrogenase/reductase SDR
1899	 72.18	+1	2037117..2037950	+	277	119867956	-	Mkms_1919	-	ornithine-acyl[acyl carrier protein] N-acyltransferase
1900	 73.95	+1	2037947..2038783	+	278	119867957	-	Mkms_1920	-	lyso-ornithine lipid acyltransferase
1901	 71.94	+1	2038831..2040024	+	397	119867958	-	Mkms_1921	-	aminotransferase, class V
1902	 71.48	0	2040024..2041103	+	359	119867959	trmU	Mkms_1922	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1903	 67.92	0	2041184..2041822	-	212	119867960	-	Mkms_1923	-	LpqA
1904	 74.38	+1	2041875..2042885	+	336	119867961	-	Mkms_1924	-	methionine synthase, vitamin-B12 independent
1905	 69.59	0	2042964..2044571	-	535	119867962	-	Mkms_1925	-	AMP-dependent synthetase and ligase
1906	 68.24	0	2044609..2044989	-	126	119867963	-	Mkms_1926	-	phosphoribosylglycinamide formyltransferase protein
1907	 70.47	0	2045051..2047156	+	701	119867964	ligA	Mkms_1927	-	NAD-dependent DNA ligase LigA
1908	 71.53	0	2047153..2048715	-	520	119867965	-	Mkms_1928	-	spermidine synthase
1909	 69.08	0	2048729..2049184	-	151	119867966	-	Mkms_1929	-	hypothetical protein
1910	 69.91	0	2049207..2049638	-	143	119867967	-	Mkms_1930	-	hypothetical protein
1911	 74.46	+1	2049635..2050147	-	170	119867968	-	Mkms_1931	-	hypothetical protein
1912	 69.88	0	2050156..2050746	-	196	119867969	-	Mkms_1932	-	hypothetical protein
1913	 67.87	0	2050857..2051438	-	193	119867970	-	Mkms_1933	-	hemerythrin HHE cation binding domain-containing protein
1914	 68.24	0	2051580..2051834	+	84	119867971	-	Mkms_1934	-	hypothetical protein
1915	 72.50	+1	2051838..2052506	-	222	119867972	-	Mkms_1935	-	amino acid-binding ACT domain-containing protein
68.56	MEAN

3.23	STD DEV
