IslandPathversion 1.0

IslandPath Analysis: Mycoplasma penetrans HF-2

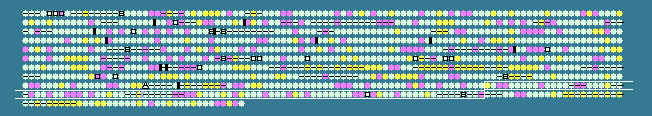

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
878	 30.28	+1	1180895..1182073	-	392	26554330	-	MYPE8770	-	oligopeptide ABC transporter permease protein
879	 27.71	0	1182077..1183321	-	414	26554331	-	MYPE8780	-	oligopeptide ABC transporter permease protein
880	 16.37	-2	1183561..1183731	-	56	26554332	-	MYPE8790	-	hypothetical protein
881	 21.90	-1	1184312..1184827	+	171	26554333	-	MYPE8800	-	hypothetical protein
882	 27.90	0	1184942..1185364	-	140	26554334	-	MYPE8810	-	hypothetical protein
883	 25.56	0	1185818..1188520	-	900	26554335	ileS	MYPE8820	-	isoleucyl-tRNA synthetase
884	 23.81	0	1188699..1189685	-	328	26554336	-	MYPE8830	-	putative glycosyltransferase
885	 28.18	0	1189724..1190770	-	348	26554337	-	MYPE8840	-	transcription antitermination factor
886	 24.01	0	1190805..1191158	-	117	26554338	-	MYPE8850	-	preprotein translocase subunit SecE
887	 21.67	-1	1191716..1192675	+	319	26554339	-	MYPE8860	-	hypothetical protein
888	 29.00	0	1192810..1194078	-	422	26554340	-	MYPE8870	-	hypothetical protein
889	 22.97	0	1194198..1194911	-	237	26554341	-	MYPE8880	-	hypothetical protein
890	 27.25	0	1194933..1196921	-	662	26554342	-	MYPE8890	-	excinuclease ABC subunit B
891	 27.21	0	1196989..1197804	-	271	26554343	-	MYPE8900	-	hypothetical protein
892	 24.63	0	1197903..1200119	-	738	26554344	-	MYPE8910	-	ATP-dependent DNA helicase
893	 21.18	-1	1200122..1200919	-	265	26554345	-	MYPE8920	-	hypothetical protein
894	 20.73	-1	1200933..1201892	-	319	26554346	-	MYPE8930	-	glycosyltransferase
895	 23.76	0	1201998..1202300	-	100	26554347	-	MYPE8940	-	hypothetical protein
896	 28.75	0	1202326..1203678	-	450	26554348	-	MYPE8950	-	leucyl aminopeptidase
897	 23.45	0	1203839..1204546	-	235	26554349	-	MYPE8960	-	heat shock protein GrpE
898	 32.73	+1	1204550..1205716	-	388	26554350	-	MYPE8970	-	heat shock protein DnaJ
899	 25.11	0	1206125..1206586	+	153	26554351	-	MYPE8980	-	phosphotyrosine protein phosphatase
900	 29.49	0	1207053..1208093	-	346	26554352	-	MYPE8990	-	NADH-dependent flavin oxidoreductase
901	 27.01	0	1208453..1210129	-	558	26554353	-	MYPE9000	-	hypothetical protein
902	 21.84	-1	1210287..1210808	-	173	26554354	-	MYPE9010	-	hypothetical protein
903	 23.44	0	1210894..1211712	-	272	26554355	-	MYPE9020	-	hypothetical protein
904	 25.00	0	1211705..1212268	-	187	26554356	-	MYPE9030	-	cysteinyl-tRNA synthetase
905	 22.33	-1	1212412..1215537	-	1041	26554357	-	MYPE9040	-	helicase/SNF2 domain-containing protein
906	 23.73	0	1215586..1216449	-	287	26554358	-	MYPE9050	-	hypothetical protein
907	 26.77	0	1216451..1217578	-	375	26554359	-	MYPE9060	-	serine/threonine protein kinase
908	 21.71	-1	1217816..1218340	-	174	26554360	-	MYPE9070	-	hypothetical protein
909	 22.01	-1	1218609..1219076	-	155	26554361	-	MYPE9080	-	hypothetical protein
910	 22.22	-1	1219638..1220195	-	185	26554362	-	MYPE9090	-	hypothetical protein
911	 28.19	0	1220198..1223056	-	952	26554363	uvrA	MYPE9100	-	excinuclease ABC subunit A
912	 22.43	-1	1223114..1225057	-	647	26554364	-	MYPE9110	-	hypothetical protein
913	 26.31	0	1225077..1225574	-	165	26554365	-	MYPE9120	-	flavodoxin FldA
914	 27.87	0	1225787..1226152	-	121	26554366	-	MYPE9130	-	hypothetical protein
915	 30.75	+1	1226351..1226698	-	115	26554367	rplT	MYPE9150	-	50S ribosomal protein L20
916	 26.12	0	1226940..1227452	-	170	26554368	infC	MYPE9160	-	translation initiation factor IF-3
917	 26.00	0	1227840..1232216	-	1458	26554369	-	MYPE9170	-	DNA polymerase III subunit alpha
918	 28.21	0	1232379..1232573	+	64	26554370	rpsU	MYPE9180	-	30S ribosomal protein S21
919	 23.17	0	1232631..1232876	-	81	26554371	-	MYPE9190	-	hypothetical protein
920	 33.33	+2	1232950..1233129	-	59	26554372	-	MYPE9200	-	ribosomal protein L32
921	 27.07	0	1238420..1241167	-	915	26554373	-	MYPE9240	-	hypothetical protein
922	 26.84	0	1241422..1241991	+	189	26554374	-	MYPE9250	-	hypothetical protein
923	 23.70	0	1242034..1244337	-	767	26554375	pheT	MYPE9260	-	phenylalanyl-tRNA synthetase subunit beta
924	 24.95	0	1244414..1245439	-	341	26554376	pheS	MYPE9270	-	phenylalanyl-tRNA synthetase subunit alpha
925	 24.46	0	1245544..1246242	+	232	26554377	-	MYPE9280	-	tRNA pseudouridine 5S synthase
926	 19.74	-1	1246239..1246694	-	151	26554378	-	MYPE9290	-	hypothetical protein
927	 21.75	-1	1246704..1247549	-	281	26554379	-	MYPE9300	-	putative lipase
928	 19.89	-1	1247562..1248431	-	289	26554380	-	MYPE9310	-	riboflavin kinase-FAD synthetase
929	 19.08	-2	1248566..1249021	-	151	26554381	-	MYPE9320	-	hypothetical protein
930	 30.22	+1	1249089..1250051	-	320	26554382	-	MYPE9330	-	thioredoxin reductase
931	 25.45	0	1250148..1250819	-	223	26554383	-	MYPE9340	-	phosphate transport system regulatory protein
932	 27.10	0	1250822..1251688	-	288	26554384	-	MYPE9350	-	phosphate ABC transporter permease PstB
933	 26.93	0	1251706..1253721	-	671	26554385	-	MYPE9360	-	phosphate ABC transporter permease PstA
934	 29.68	+1	1253728..1254930	-	400	26554386	-	MYPE9370	-	phosphate binding protein PstS
935	 24.63	0	1255108..1258371	-	1087	26554387	-	MYPE9380	-	methionyl-tRNA synthetase
936	 22.51	-1	1258364..1261099	-	911	26554388	-	MYPE9390	-	phosphoenolpyruvate carboxylase
937	 30.39	+1	1261211..1262299	+	362	26554389	-	MYPE9400	-	peptidoglycan acetylation
938	 23.86	0	1262302..1262892	+	196	26554390	-	MYPE9410	-	hypothetical protein
939	 23.92	0	1262904..1263986	+	360	26554391	-	MYPE9420	-	nicotinate phosphoribosyltransferase
940	 26.00	0	1263983..1265659	-	558	26554392	-	MYPE9430	-	hypothetical protein
941	 21.68	-1	1265831..1266388	-	185	26554393	-	MYPE9440	-	nucleotidyltransferase
942	 28.43	0	1266376..1267374	-	332	26554394	-	MYPE9450	-	phosphoribosylpyrophosphate synthetase
943	 24.13	0	1267458..1268120	-	220	26554395	-	MYPE9460	-	ribonuclease H-related protein
944	 25.57	0	1268169..1268954	-	261	26554396	-	MYPE9470	-	hypothetical protein
945	 20.34	-1	1269032..1269847	-	271	26554397	-	MYPE9480	-	choline kinase
946	 29.85	+1	1269938..1271803	-	621	26554398	-	MYPE9490	-	HSP70 family molecular chaperone DnaK
947	 28.21	0	1271891..1272748	+	285	26554399	-	MYPE9500	-	oxidoreductase
948	 20.11	-1	1272807..1273169	-	120	26554400	-	MYPE9510	-	hypothetical protein
949	 23.90	0	1273174..1275345	-	723	26554401	-	MYPE9520	-	hypothetical protein
950	 23.74	0	1275510..1276583	+	357	26554402	-	MYPE9530	-	DNA polymerase III
951	 23.88	0	1276623..1277786	-	387	26554403	-	MYPE9540	-	CDP-diglyceride synthetase
952	 25.52	0	1277868..1278545	-	225	26554404	-	MYPE9550	-	undecaprenyl diphosphate synthase
953	 25.18	0	1278547..1279098	-	183	26554405	-	MYPE9560	-	ribosome recycling factor
954	 25.68	0	1279127..1280080	-	317	26554406	-	MYPE9570	-	uridylate kinase
955	 29.12	0	1280134..1281012	-	292	26554407	tsf	MYPE9580	-	elongation factor Ts
956	 19.88	-1	1281224..1282204	-	326	26554408	-	MYPE9600	-	hypothetical protein
957	 17.72	-2	1282338..1282670	-	110	26554409	-	MYPE9610	-	hypothetical protein
958	 25.72	0	1282913..1284121	-	402	26554410	-	MYPE9620	-	transposase
959	 21.79	-1	1284157..1284693	-	178	26554411	-	MYPE9630	-	hypothetical protein
960	 31.96	+1	1284919..1285866	-	315	26554412	-	MYPE9640	-	L-lactate dehydrogenase
961	 22.96	0	1285856..1286308	-	150	26554413	-	MYPE9650	-	putative lipopolysaccharide biosynthesis enzyme KdtB
962	 26.90	0	1286361..1287464	-	367	26554414	rpsB	MYPE9660	-	30S ribosomal protein S2
963	 21.18	-1	1287783..1288424	+	213	26554415	-	MYPE9670	-	transcription regulation proteins GntR
964	 29.00	0	1288515..1290821	+	768	26554416	-	MYPE9680	-	PTS system sucrose-specific IIABC component
965	 24.10	0	1290867..1292231	+	454	26554417	-	MYPE9690	-	sucrose-6-phosphate hydrolase
966	 26.33	0	1292235..1293119	+	294	26554418	-	MYPE9700	-	glucose kinase or transcriptional regulator
967	 24.17	0	1293280..1294512	+	410	26554419	-	MYPE9710	-	hypothetical protein
968	 40.26	+2	1294694..1295083	-	129	26554420	-	MYPE9720	-	hypothetical protein
969	 27.49	0	1295149..1295319	-	56	26554421	-	MYPE9730	-	hypothetical protein
970	 23.00	0	1295429..1296154	-	241	26554422	truA	MYPE9740	-	tRNA pseudouridine synthase A
971	 26.13	0	1296165..1297358	-	397	26554423	-	MYPE9750	-	cobalt transport membrane protein
972	 24.49	0	1297444..1298664	-	406	26554424	-	MYPE9760	-	cobalt transporter ATP-binding subunit
973	 25.93	0	1298649..1299512	-	287	26554425	-	MYPE9770	-	cobalt transporter ATP-binding subunit
974	 26.25	0	1299733..1300749	+	338	26554426	-	MYPE9780	-	IS1630-like transposase
975	 23.76	0	1301030..1302136	-	368	26554427	-	MYPE9790	-	hypothetical protein
976	 25.37	0	1302153..1303433	-	426	26554428	-	MYPE9800	-	cytosine-specific DNA methylase
977	 21.30	-1	1303628..1304566	-	312	26554429	-	MYPE9810	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
