IslandPathversion 1.0

IslandPath Analysis: Mycoplasma penetrans HF-2

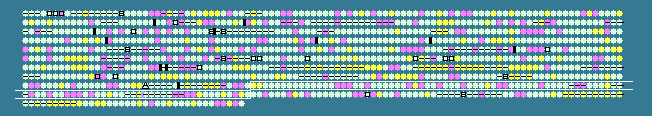

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
839	 29.98	+1	1113592..1115022	-	476	26554291	-	MYPE8370	-	cell division protein FtsZ
840	 29.68	+1	1115598..1117076	-	492	26554292	-	MYPE8380	-	hypothetical protein
841	 28.88	0	1117210..1118805	-	531	26554293	-	MYPE8390	-	hypothetical protein
842	 27.33	0	1118942..1121821	-	959	26554294	-	MYPE8400	-	hypothetical protein
843	 24.37	0	1121987..1122979	-	330	26554295	-	MYPE8410	-	hypothetical protein
844	 27.14	0	1122982..1124451	-	489	26554296	-	MYPE8420	-	lysyl-tRNA synthetase
845	 26.45	0	1124580..1127846	-	1088	26554297	-	MYPE8430	-	hypothetical protein
846	 26.21	0	1128026..1131283	-	1085	26554298	-	MYPE8440	-	hypothetical protein
847	 26.08	0	1131560..1134814	-	1084	26554299	-	MYPE8450	-	hypothetical protein
848	 23.21	0	1134961..1138755	-	1264	26554300	-	MYPE8460	-	ATP/GTP-binding protein
849	 29.53	0	1138967..1139413	-	148	26554301	-	MYPE8470	-	hypothetical protein
850	 27.84	0	1139542..1140087	-	181	26554302	-	MYPE8480	-	hypothetical protein
851	 24.55	0	1140671..1143949	-	1092	26554303	-	MYPE8490	-	hypothetical protein
852	 25.55	0	1144066..1145286	-	406	26554304	-	MYPE8500	-	protease
853	 22.40	-1	1145289..1146221	-	310	26554305	-	MYPE8510	-	protease
854	 20.58	-1	1146206..1146793	-	195	26554306	-	MYPE8520	-	O-methyltransferase
855	 21.45	-1	1146810..1147238	-	142	26554307	-	MYPE8530	-	hypothetical protein
856	 24.35	0	1147222..1150014	-	930	26554308	alaS	MYPE8540	-	alanyl-tRNA synthetase
857	 27.20	0	1150643..1152241	+	532	26554309	-	MYPE8550	-	putative lipoprotein
858	 21.91	-1	1152322..1153800	+	492	26554310	-	MYPE8560	-	haloacid dehalogenase-like hydrolase
859	 25.60	0	1153801..1155585	+	594	26554311	-	MYPE8570	-	spermidine/putrescine transport ATP-binding protein PotA
860	 27.37	0	1155554..1156459	+	301	26554312	-	MYPE8580	-	spermidine/putrescine transport system permease PotB
861	 25.47	0	1156452..1157303	+	283	26554313	-	MYPE8590	-	spermidine/putrescine transport system permease PotC
862	 26.02	0	1157291..1158973	+	560	26554314	-	MYPE8600	-	putative lipoprotein
863	 27.12	0	1158951..1159916	+	321	26554315	-	MYPE8610	-	O-sialoglycoprotein endopeptidase
864	 24.15	0	1160388..1161509	+	373	26554316	-	MYPE8620	-	hypothetical protein
865	 22.61	-1	1161493..1162005	+	170	26554317	-	MYPE8630	-	hypothetical protein
866	 31.92	+1	1162174..1163937	-	587	26554318	-	MYPE8640	-	permease
867	 22.09	-1	1164167..1165153	+	328	26554319	-	MYPE8650	-	lipoate protein ligase A
868	 26.01	0	1165989..1167953	-	654	26554320	-	MYPE8660	-	Trk-type cation transport protein
869	 23.70	0	1168261..1168644	-	127	26554321	-	MYPE8670	-	hypothetical protein
870	 22.53	-1	1168840..1170135	-	431	26554322	-	MYPE8680	-	hypothetical protein
871	 24.86	0	1170274..1171866	+	530	26554323	-	MYPE8690	-	formate-tetrahydrofolate ligase
872	 27.20	0	1171921..1173828	-	635	26554324	-	MYPE8700	-	end peptidase
873	 25.35	0	1173952..1175967	-	671	26554325	-	MYPE8710	-	heavy-metal transporting P-type ATPase
874	 18.06	-2	1176080..1176295	-	71	26554326	-	MYPE8720	-	heavy-metal transporting ATPase, partial
875	 23.13	0	1176403..1176990	-	195	26554327	-	MYPE8730	-	hypothetical protein
876	 26.52	0	1176983..1179358	-	791	26554328	-	MYPE8750	-	oligopeptide ABC transporter ATP-binding protein
877	 28.21	0	1179372..1180892	-	506	26554329	-	MYPE8760	-	oligopeptide ABC transporter ATP-binding protein
878	 30.28	+1	1180895..1182073	-	392	26554330	-	MYPE8770	-	oligopeptide ABC transporter permease protein
879	 27.71	0	1182077..1183321	-	414	26554331	-	MYPE8780	-	oligopeptide ABC transporter permease protein
880	 16.37	-2	1183561..1183731	-	56	26554332	-	MYPE8790	-	hypothetical protein
881	 21.90	-1	1184312..1184827	+	171	26554333	-	MYPE8800	-	hypothetical protein
882	 27.90	0	1184942..1185364	-	140	26554334	-	MYPE8810	-	hypothetical protein
883	 25.56	0	1185818..1188520	-	900	26554335	ileS	MYPE8820	-	isoleucyl-tRNA synthetase
884	 23.81	0	1188699..1189685	-	328	26554336	-	MYPE8830	-	putative glycosyltransferase
885	 28.18	0	1189724..1190770	-	348	26554337	-	MYPE8840	-	transcription antitermination factor
886	 24.01	0	1190805..1191158	-	117	26554338	-	MYPE8850	-	preprotein translocase subunit SecE
887	 21.67	-1	1191716..1192675	+	319	26554339	-	MYPE8860	-	hypothetical protein
888	 29.00	0	1192810..1194078	-	422	26554340	-	MYPE8870	-	hypothetical protein
889	 22.97	0	1194198..1194911	-	237	26554341	-	MYPE8880	-	hypothetical protein
890	 27.25	0	1194933..1196921	-	662	26554342	-	MYPE8890	-	excinuclease ABC subunit B
891	 27.21	0	1196989..1197804	-	271	26554343	-	MYPE8900	-	hypothetical protein
892	 24.63	0	1197903..1200119	-	738	26554344	-	MYPE8910	-	ATP-dependent DNA helicase
893	 21.18	-1	1200122..1200919	-	265	26554345	-	MYPE8920	-	hypothetical protein
894	 20.73	-1	1200933..1201892	-	319	26554346	-	MYPE8930	-	glycosyltransferase
895	 23.76	0	1201998..1202300	-	100	26554347	-	MYPE8940	-	hypothetical protein
896	 28.75	0	1202326..1203678	-	450	26554348	-	MYPE8950	-	leucyl aminopeptidase
897	 23.45	0	1203839..1204546	-	235	26554349	-	MYPE8960	-	heat shock protein GrpE
898	 32.73	+1	1204550..1205716	-	388	26554350	-	MYPE8970	-	heat shock protein DnaJ
899	 25.11	0	1206125..1206586	+	153	26554351	-	MYPE8980	-	phosphotyrosine protein phosphatase
900	 29.49	0	1207053..1208093	-	346	26554352	-	MYPE8990	-	NADH-dependent flavin oxidoreductase
901	 27.01	0	1208453..1210129	-	558	26554353	-	MYPE9000	-	hypothetical protein
902	 21.84	-1	1210287..1210808	-	173	26554354	-	MYPE9010	-	hypothetical protein
903	 23.44	0	1210894..1211712	-	272	26554355	-	MYPE9020	-	hypothetical protein
904	 25.00	0	1211705..1212268	-	187	26554356	-	MYPE9030	-	cysteinyl-tRNA synthetase
905	 22.33	-1	1212412..1215537	-	1041	26554357	-	MYPE9040	-	helicase/SNF2 domain-containing protein
906	 23.73	0	1215586..1216449	-	287	26554358	-	MYPE9050	-	hypothetical protein
907	 26.77	0	1216451..1217578	-	375	26554359	-	MYPE9060	-	serine/threonine protein kinase
908	 21.71	-1	1217816..1218340	-	174	26554360	-	MYPE9070	-	hypothetical protein
909	 22.01	-1	1218609..1219076	-	155	26554361	-	MYPE9080	-	hypothetical protein
910	 22.22	-1	1219638..1220195	-	185	26554362	-	MYPE9090	-	hypothetical protein
911	 28.19	0	1220198..1223056	-	952	26554363	uvrA	MYPE9100	-	excinuclease ABC subunit A
912	 22.43	-1	1223114..1225057	-	647	26554364	-	MYPE9110	-	hypothetical protein
913	 26.31	0	1225077..1225574	-	165	26554365	-	MYPE9120	-	flavodoxin FldA
914	 27.87	0	1225787..1226152	-	121	26554366	-	MYPE9130	-	hypothetical protein
915	 30.75	+1	1226351..1226698	-	115	26554367	rplT	MYPE9150	-	50S ribosomal protein L20
916	 26.12	0	1226940..1227452	-	170	26554368	infC	MYPE9160	-	translation initiation factor IF-3
917	 26.00	0	1227840..1232216	-	1458	26554369	-	MYPE9170	-	DNA polymerase III subunit alpha
918	 28.21	0	1232379..1232573	+	64	26554370	rpsU	MYPE9180	-	30S ribosomal protein S21
919	 23.17	0	1232631..1232876	-	81	26554371	-	MYPE9190	-	hypothetical protein
920	 33.33	+2	1232950..1233129	-	59	26554372	-	MYPE9200	-	ribosomal protein L32
921	 27.07	0	1238420..1241167	-	915	26554373	-	MYPE9240	-	hypothetical protein
922	 26.84	0	1241422..1241991	+	189	26554374	-	MYPE9250	-	hypothetical protein
923	 23.70	0	1242034..1244337	-	767	26554375	pheT	MYPE9260	-	phenylalanyl-tRNA synthetase subunit beta
924	 24.95	0	1244414..1245439	-	341	26554376	pheS	MYPE9270	-	phenylalanyl-tRNA synthetase subunit alpha
925	 24.46	0	1245544..1246242	+	232	26554377	-	MYPE9280	-	tRNA pseudouridine 5S synthase
926	 19.74	-1	1246239..1246694	-	151	26554378	-	MYPE9290	-	hypothetical protein
927	 21.75	-1	1246704..1247549	-	281	26554379	-	MYPE9300	-	putative lipase
928	 19.89	-1	1247562..1248431	-	289	26554380	-	MYPE9310	-	riboflavin kinase-FAD synthetase
929	 19.08	-2	1248566..1249021	-	151	26554381	-	MYPE9320	-	hypothetical protein
930	 30.22	+1	1249089..1250051	-	320	26554382	-	MYPE9330	-	thioredoxin reductase
931	 25.45	0	1250148..1250819	-	223	26554383	-	MYPE9340	-	phosphate transport system regulatory protein
932	 27.10	0	1250822..1251688	-	288	26554384	-	MYPE9350	-	phosphate ABC transporter permease PstB
933	 26.93	0	1251706..1253721	-	671	26554385	-	MYPE9360	-	phosphate ABC transporter permease PstA
934	 29.68	+1	1253728..1254930	-	400	26554386	-	MYPE9370	-	phosphate binding protein PstS
935	 24.63	0	1255108..1258371	-	1087	26554387	-	MYPE9380	-	methionyl-tRNA synthetase
936	 22.51	-1	1258364..1261099	-	911	26554388	-	MYPE9390	-	phosphoenolpyruvate carboxylase
937	 30.39	+1	1261211..1262299	+	362	26554389	-	MYPE9400	-	peptidoglycan acetylation
938	 23.86	0	1262302..1262892	+	196	26554390	-	MYPE9410	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
